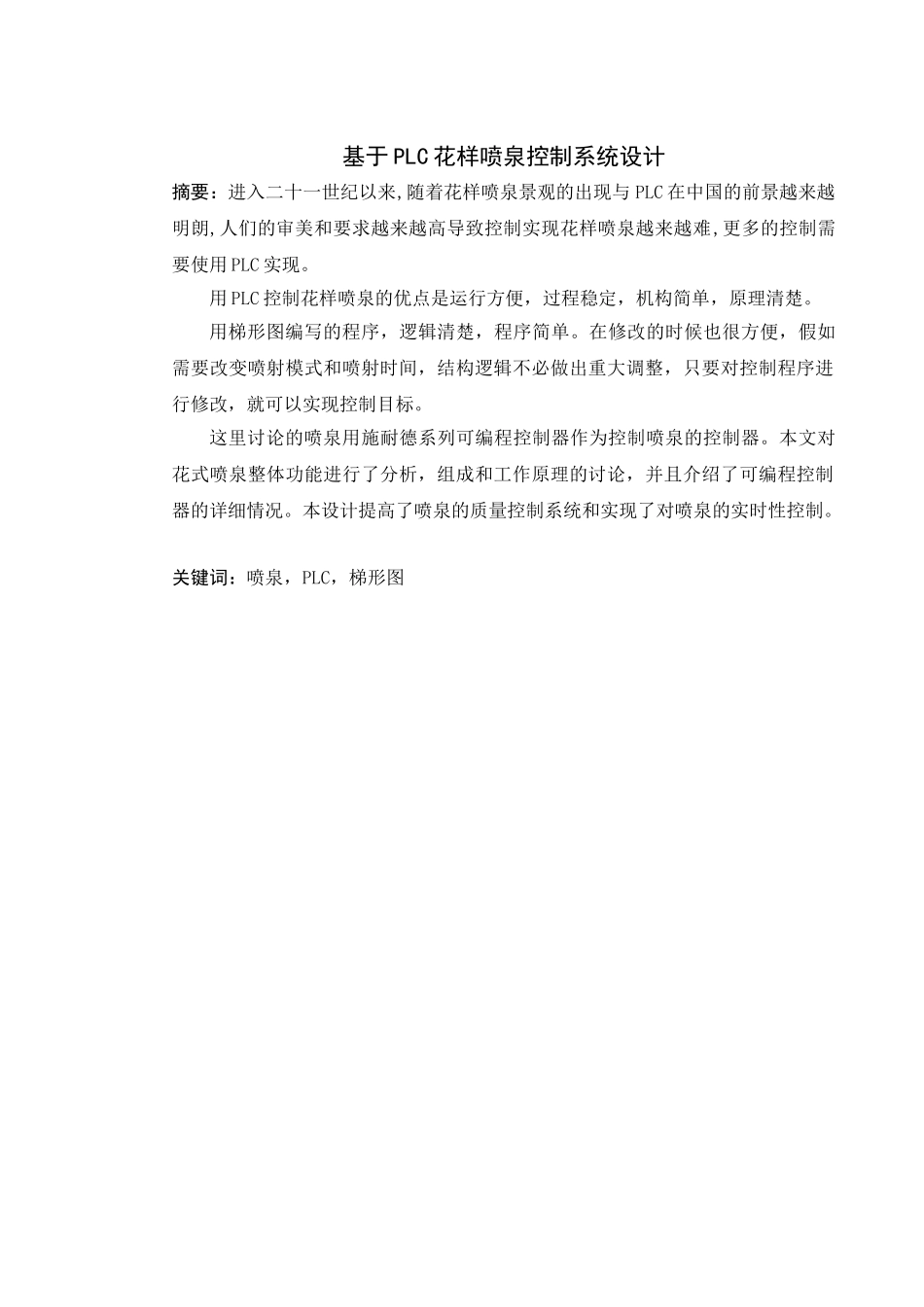

基于施耐德PLC的花样喷泉控制系统设计-自动控制本科设计说明书_第2页
2/31

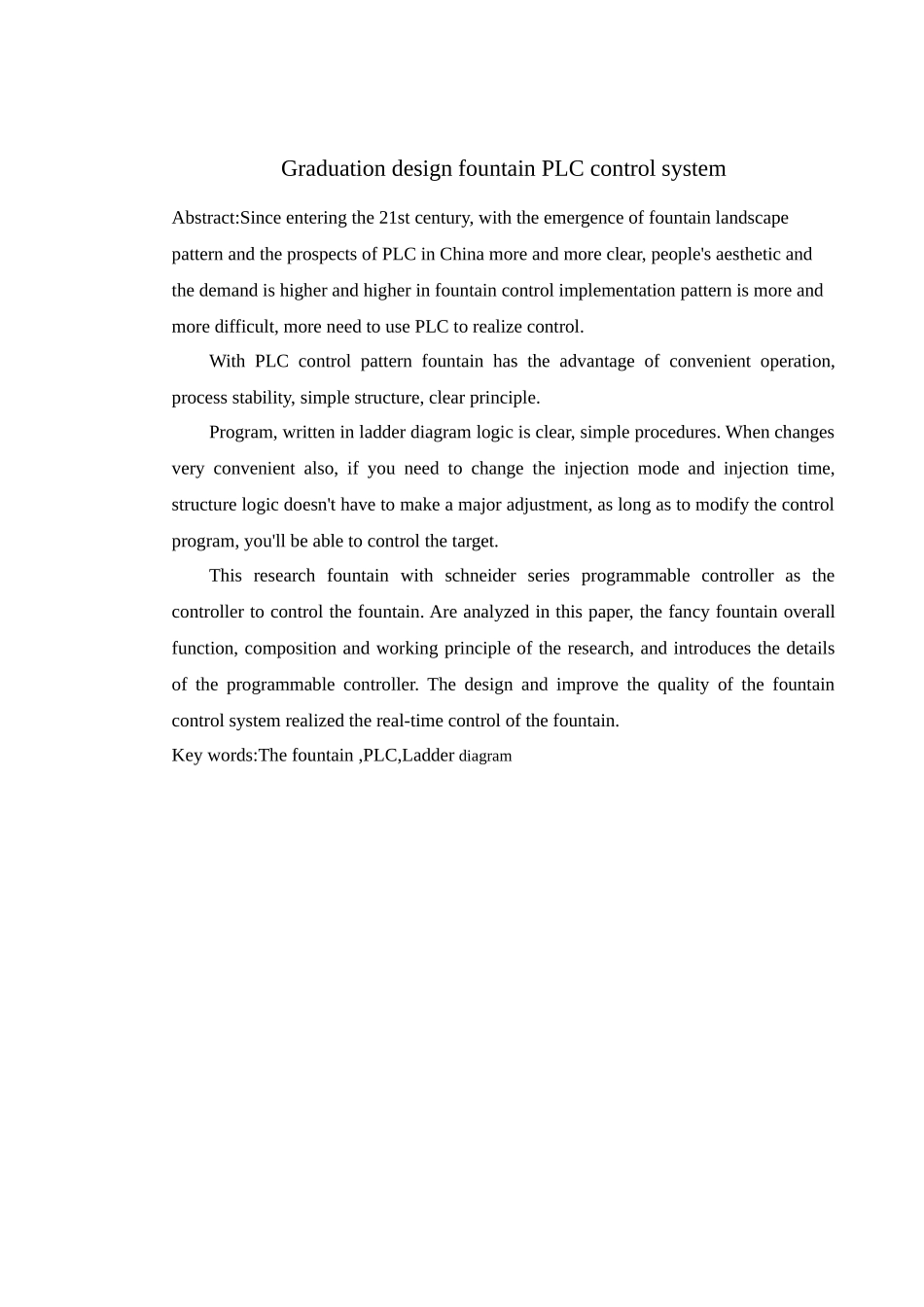

基于施耐德PLC的花样喷泉控制系统设计-自动控制本科设计说明书_第3页
3/31
毕业设计说明书基于 PLC 花样喷泉控制系统设计学生姓名: 学号: 学 院: 系 名: 专 业: 指导老师: 2025 年 6 月伊振华11050543X28信息商务学院自动控制系安道新自动化基于 PLC 花样喷泉控制系统设计摘要:进入二十一世纪以来,随着花样喷泉景观的出现与 PLC 在中国的前景越来越明朗,人们的审美和要求越来越高导致控制实现花样喷泉越来越难,更多的控制需要使用 PLC 实现。 用 PLC 控制花样喷泉的优点是运行方便,过程稳定,机构简单,原理清楚。用梯形图编写的程序,逻辑清楚,程序简单。在修改的时候也很方便,假如需要改变喷射模式和喷射时间,结构逻辑不必做出重大调整,只要对控制程序进行修改,就可以实现控制目标。这里讨论的喷泉用施耐德系列可编程控制器作为控制喷泉的控制器。本文对花式喷泉整体功能进行了分析,组成和工作原理的讨论,并且介绍了可编程控制器的详细情况。本设计提高了喷泉的质量控制系统和实现了对喷泉的实时性控制。关键词:喷泉,PLC,梯形图Graduation design fountain PLC control systemAbstract:Since entering the 21st century, with the emergence of fountain landscape pattern and the prospects of PLC in China more and more clear, people's aesthetic and the demand is higher and higher in fountain control implementation pattern is more and more difficult, more need to use PLC to realize control.With PLC control pattern fountain has the advantage of convenient operation, process stability, simple structure, clear principle. Program, written in ladder diagram logic is clear, simple procedures. When changes very convenient also, if you need to change the injection mode and injection time, structure logic doesn't have to make a major adjustment, as long as to modify the control program, you'll be able to control the target. This research fountain with schneider series programmable controller as the controller to control the fountain. Are analyzed in this paper, the fancy fountain overall function, composition and working principle of the r...
