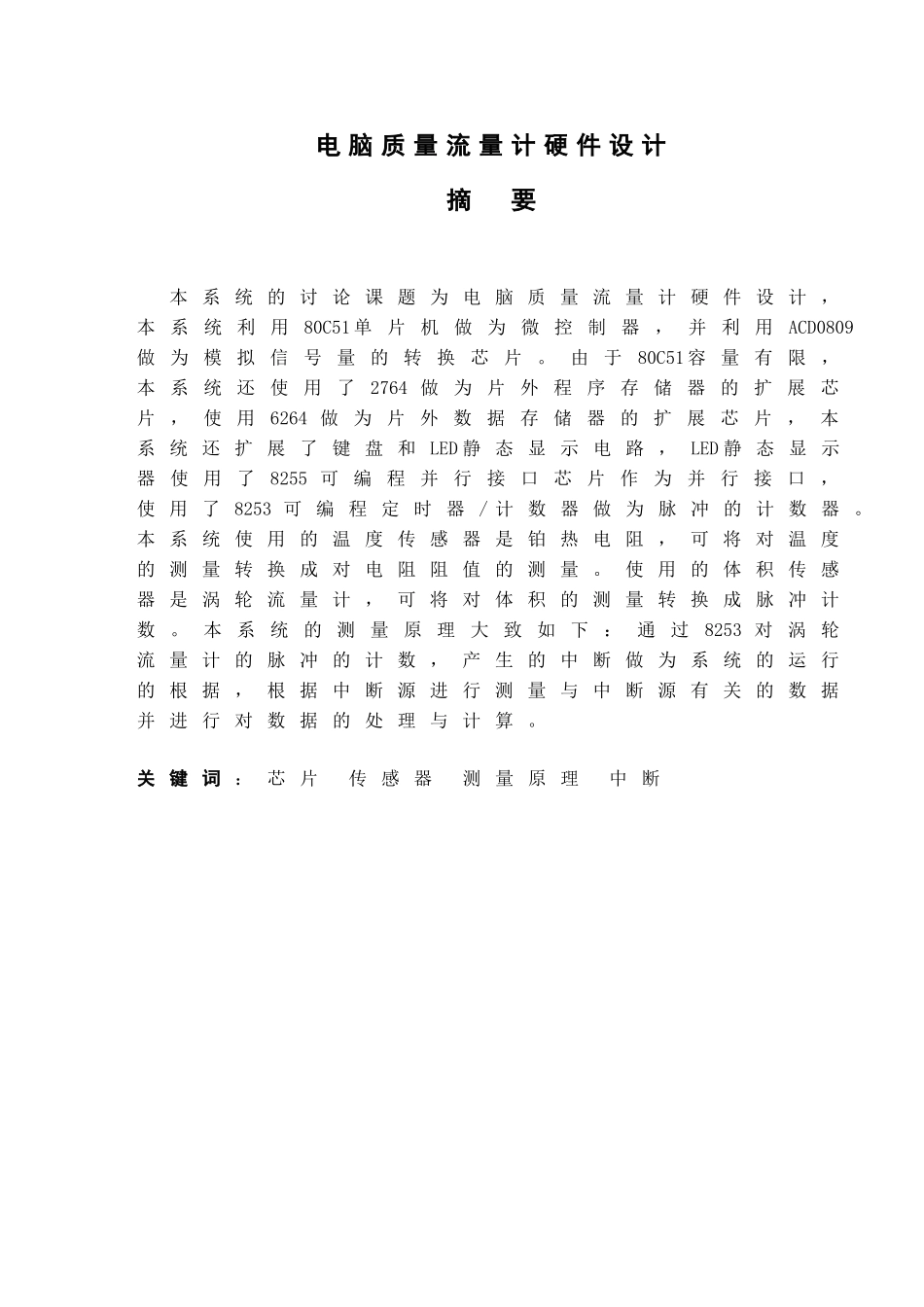

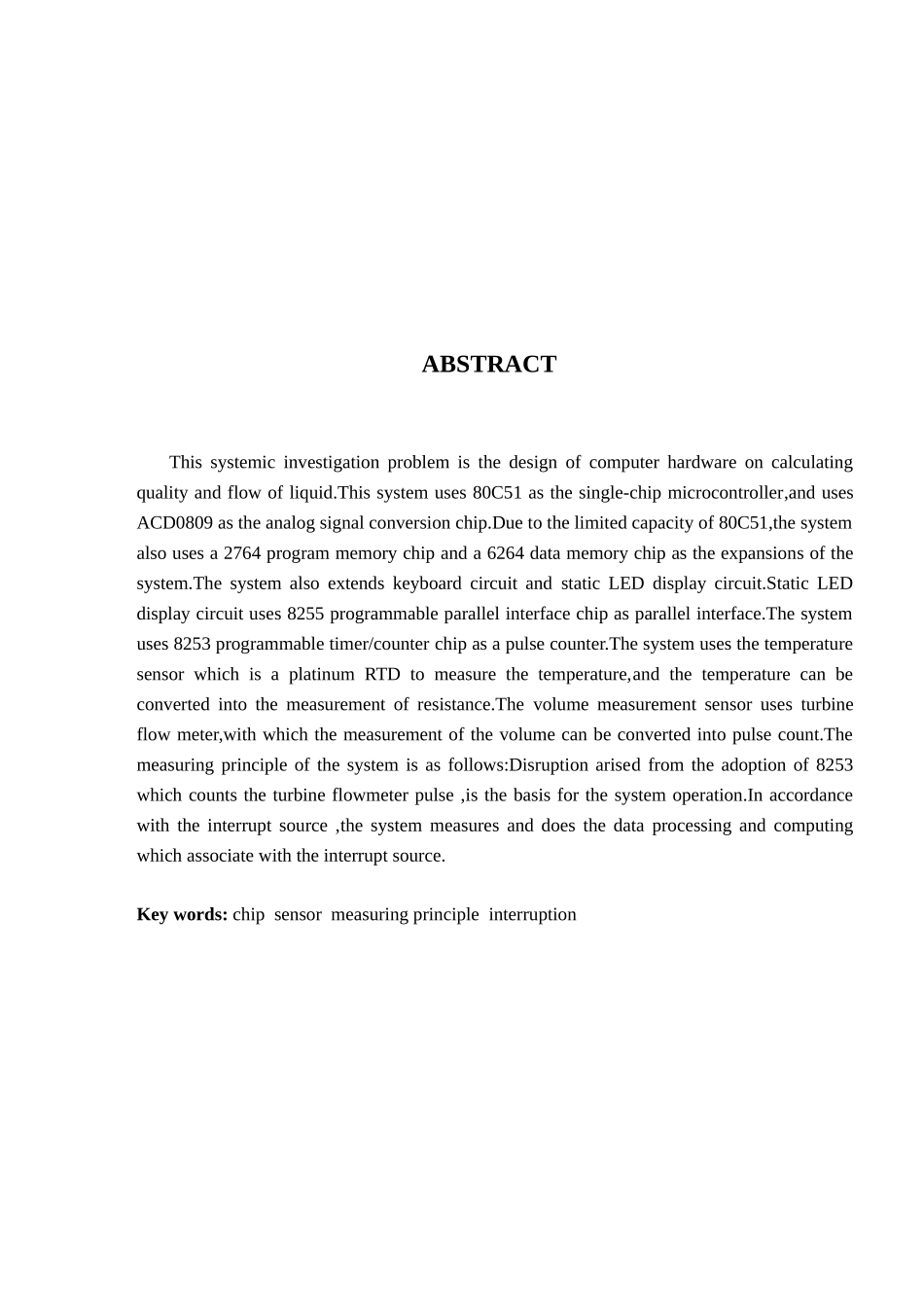

电 脑 质 量 流 量 计 硬 件 设 计摘 要本 系 统 的 讨 论 课 题 为 电 脑 质 量 流 量 计 硬 件 设 计 ,本 系 统 利 用 80C51 单 片 机 做 为 微 控 制 器 , 并 利 用ACD0809做 为 模 拟 信 号 量 的 转 换 芯 片 。 由 于80C51 容 量 有 限 ,本 系 统 还 使 用 了2764 做 为 片 外 程 序 存 储 器 的 扩 展 芯片 , 使 用6264 做 为 片 外 数 据 存 储 器 的 扩 展 芯 片 , 本系 统 还 扩 展 了 键 盘 和 LED 静 态 显 示 电 路 , LED 静 态 显 示器 使 用 了8255 可 编 程 并 行 接 口 芯 片 作 为 并 行 接 口 ,使 用 了 8253 可 编 程 定 时 器 / 计 数 器 做 为 脉 冲 的 计 数 器 。本 系 统 使 用 的 温 度 传 感 器 是 铂 热 电 阻 , 可 将 对 温 度的 测 量 转 换 成 对 电 阻 阻 值 的 测 量 。 使 用 的 体 积 传 感器 是 涡 轮 流 量 计 , 可 将 对 体 积 的 测 量 转 换 成 脉 冲 计数 。 本 系 统 的 测 量 原 理 大 致 如 下 : 通 过8253 对 涡 轮流 量 计 的 脉 冲 的 计 数 , 产 生 的 中 断 做 为 系 统 的 运 行的 根 据 , 根 据 中 断 源 进 行 测 量 与 中 断 源 有 关 的 数 据并 进 行 对 数 据 的 处 理 与 计 算 。关 键 词 : 芯 片 传 感 器 测 量 原 理 中 断ABSTRACTThis systemic investigation problem is the design of computer hardware on calculating quality and flow of liquid.This system uses 80C51 as the single-chip microcontroller,and uses ACD0809 as the analog signal conversion chip.Due to the limited capacity of 80C51,the system also uses a 2764 program memory chip and a 6264 data memory chip as the expansions of the system.The system also extends keyboard circuit and static LED display circuit.Static LED display circuit uses 8255 programmable parallel interface chip as parallel interface.The system uses 8253 progr...
