单片机控制的LCD汉字显示电路设计VIP专享

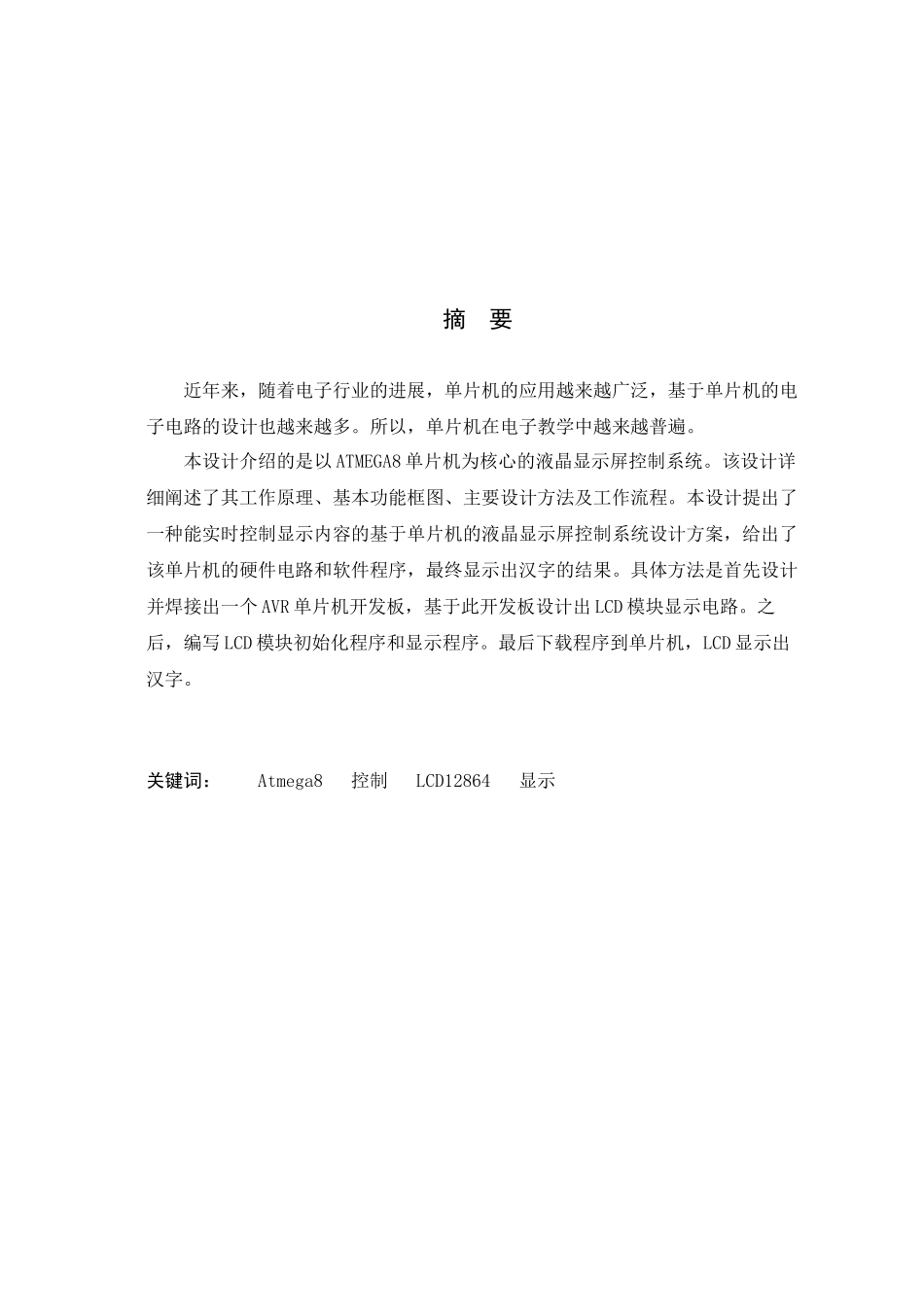

单片机控制的LCD 汉字显示电路设计(独家完整版)(45页)Good is good, but better carries it.精益求精，善益求善。单片机控制的 LCD 汉字显示电路设计 摘 要近年来，随着电子行业的进展，单片机的应用越来越广泛，基于单片机的电子电路的设计也越来越多。所以，单片机在电子教学中越来越普遍。本设计介绍的是以 ATMEGA8 单片机为核心的液晶显示屏控制系统。该设计详细阐述了其工作原理、基本功能框图、主要设计方法及工作流程。本设计提出了一种能实时控制显示内容的基于单片机的液晶显示屏控制系统设计方案，给出了该单片机的硬件电路和软件程序，最终显示出汉字的结果。具体方法是首先设计并焊接出一个 AVR 单片机开发板，基于此开发板设计出 LCD 模块显示电路。之后，编写 LCD 模块初始化程序和显示程序。最后下载程序到单片机，LCD 显示出汉字。关键词： Atmega8 控制 LCD12864 显示 Title The control circuit design of the dot-matrix liquid crystal display controlled by the microprocessor AbstractIn recent years, with the development of the electronics industry, the application of the Microcontroller Unit is becoming more and more widely, also, there is more and more electronic circuit design based on the Microcontroller Unit. Therefore, the Microcontroller Unit using in the electronic teaching is becoming more common.This design introduces the liquid crystal display control system based on the ATMEGA8 microcontroller. This design elaborated on its working principle, the basic functional block diagram, main design methods and working process. This design puts forward to a design scheme based on the Microcontroller Unit, which can control the showing content of the LCD screen controlling system at the real time. The specific method is that, firstly we should design and weld into an AVR Microcontroller development board and then design a LCD module display circuit based on the development board. After that, write the LCD module initialization pr...
