钻机设备配套表

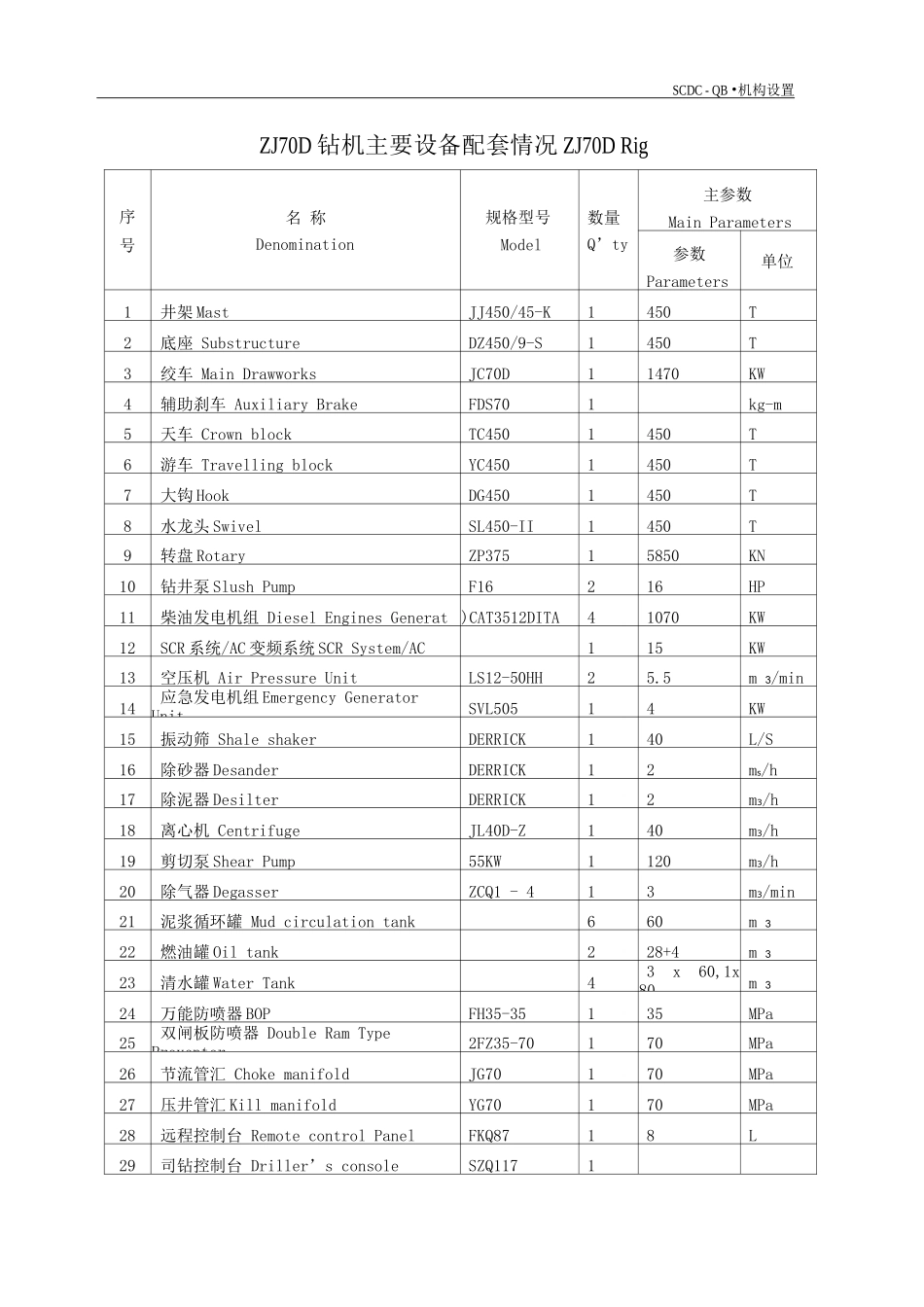

SCDC - QB •机构设置ZJ70D 钻机主要设备配套情况 ZJ70D Rig序号名 称Denomination规格型号Model数量Q’ty主参数Main Parameters参数Parameters单位1井架 MastJJ450/45-K1450T2底座 SubstructureDZ450/9-S1450T3绞车 Main DrawworksJC70D11470KW4辅助刹车 Auxiliary BrakeFDS701kg-m5天车 Crown blockTC4501450T6游车 Travelling blockYC4501450T7大钩 HookDG4501450T8水龙头 SwivelSL450-II1450T9转盘 RotaryZP37515850KN10钻井泵 Slush PumpF16216HP11柴油发电机组 Diesel Engines Generat )CAT3512DITA41070KW12SCR 系统/AC 变频系统 SCR System/AC115KW13空压机 Air Pressure UnitLS12-50HH25.5m 3/min14应急发电机组 Emergency Generator UnitSVL50514KW15振动筛 Shale shakerDERRICK140L/S16除砂器 DesanderDERRICK12ms/h17除泥器 DesilterDERRICK12m3/h18离心机 CentrifugeJL40D-Z140m3/h19剪切泵 Shear Pump55KW1120m3/h20除气器 DegasserZCQ1 - 413m3/min21泥浆循环罐 Mud circulation tank660m 322燃油罐 Oil tank228+4m 323清水罐 Water Tank43 x 60,1x 80m 324万能防喷器 BOPFH35-35135MPa25双闸板防喷器 Double Ram Type Preventer2FZ35-70170MPa26节流管汇 Choke manifoldJG70170MPa27压井管汇 Kill manifoldYG70170MPa28远程控制台 Remote control PanelFKQ8718L29司钻控制台 Driller’s consoleSZQ1171SCDC - QB •机构设置F320-4DHG 钻机设备配套情况序号名称 Denomination规格型号Model数量Q’ty主参数 MainParameters参数Parameters单位1井架 MastMA-32014T2底座 SubstructureMA —32014T3绞车 Main DrawworksTF-38120HP4辅助刹车 Auxiliary BrakeFDWS701110KN。M5天车 Crown BlockGF —414T6游车 Travelling blockMC-414T7大钩 HookMC —414T8水龙头 SwivelCH-414T9转盘 Rotary tableMRL-27.51490T10钻井泵 Slush pumpF-16216HP11柴油机 Diesel enginePZ12V190BG 2—3410HP12柴油发电机组 Diesel Engines Generate )iGF-414KW13柴油发电机组 Diesel Engines GeneratoGF —32013KW14空压机 Air Pressure Unit2V—6.5/1226。5m 3/min15振动筛 Shale shaker2YNS —D230L/S16除砂器 DesanderNJ4-1212m 3/h17除泥器 DesilterNJ4—1212m 3/h18离心机 CentrifugalLW450 —442N140m 3/h19除气器 Dega...
