CAD图层标准中英文互译

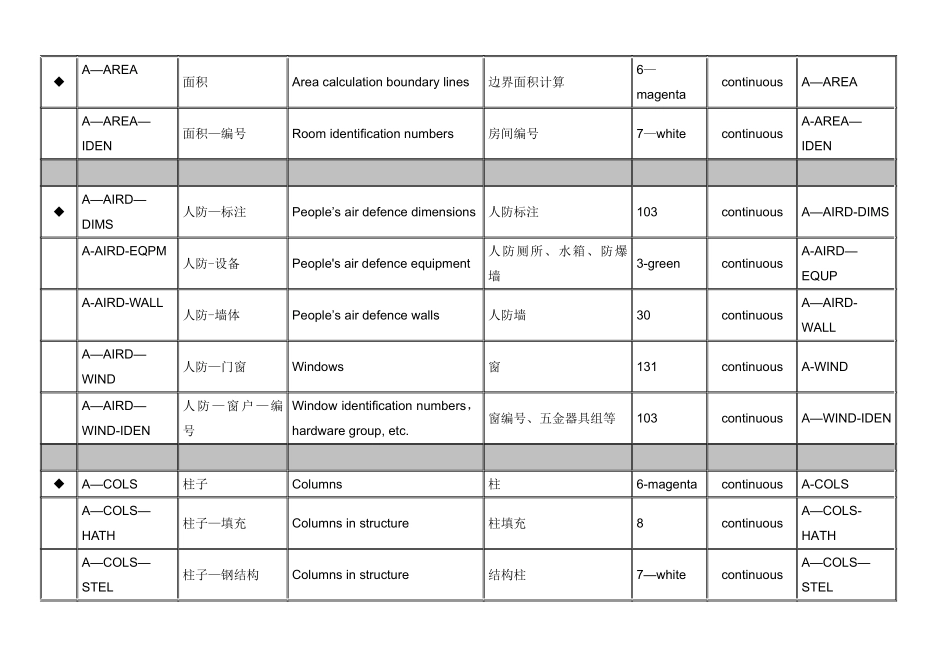

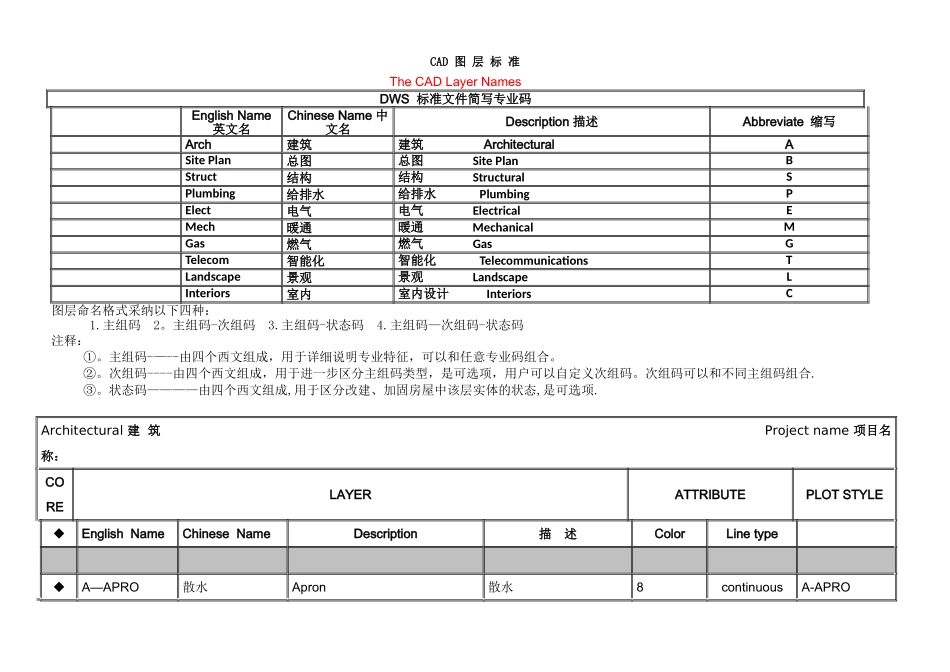

CAD 图 层 标 准Architectural 建 筑 Project name 项目名称： CORELAYERATTRIBUTEPLOT STYLEEnglish NameChinese NameDescription描 述ColorLine type A—APRO散水Apron散水8continuousA-APROThe CAD Layer Names DWS 标准文件简写专业码 English Name 英文名Chinese Name 中文名Description 描述Abbreviate 缩写 Arch建筑建筑 ArchitecturalA Site Plan总图总图 Site PlanB Struct结构结构 StructuralS Plumbing给排水给排水 PlumbingP Elect电气电气 ElectricalE Mech暖通暖通 MechanicalM Gas燃气燃气 GasG Telecom智能化智能化 TelecommunicationsT Landscape景观景观 LandscapeL Interiors室内室内设计 InteriorsC 图层命名格式采纳以下四种： 1.主组码 2。主组码-次组码 3.主组码-状态码 4.主组码—次组码-状态码 注释： ①。主组码-—--由四个西文组成，用于详细说明专业特征，可以和任意专业码组合。 ②。次组码----由四个西文组成，用于进一步区分主组码类型，是可选项，用户可以自定义次组码。次组码可以和不同主组码组合. ③。状态码————由四个西文组成,用于区分改建、加固房屋中该层实体的状态,是可选项.A—AREA面积Area calculation boundary lines边界面积计算6—magentacontinuousA—AREA A—AREA—IDEN面积—编号Room identification numbers房间编号7—white continuousA-AREA—IDEN A—AIRD—DIMS人防—标注People’s air defence dimensions人防标注103continuousA—AIRD-DIMS A-AIRD-EQPM人防-设备People's air defence equipment人防厕所、水箱、防爆墙3-greencontinuousA-AIRD—EQUP A-AIRD-WALL人防-墙体People’s air defence walls人防墙30continuousA—AIRD-WALL A—AIRD—WIND人防—门窗Windows窗131continuousA-WIND A—AIRD—WIND-IDEN人防—窗户—编号Window identification numbers， hardware group, etc.窗编号、五金器具组等103continuousA—WIND-IDEN A—COLS柱子Columns柱6-magentacontinuousA-COLS A—COLS—HATH柱子—填充Columns in structure柱填充8continuousA—COLS-HATH A—COLS—STEL柱子—钢结构Columns in structure结构柱7—whitecontinuousA—COLS—STELA—DASH虚线Dashed虚线151HIDDEN2A-DESHA—DECK平台Structure floor deck , balcony and parapet（wall)平台、阳台、...
