U23-操作&仪表调试&故障诊断快速指南

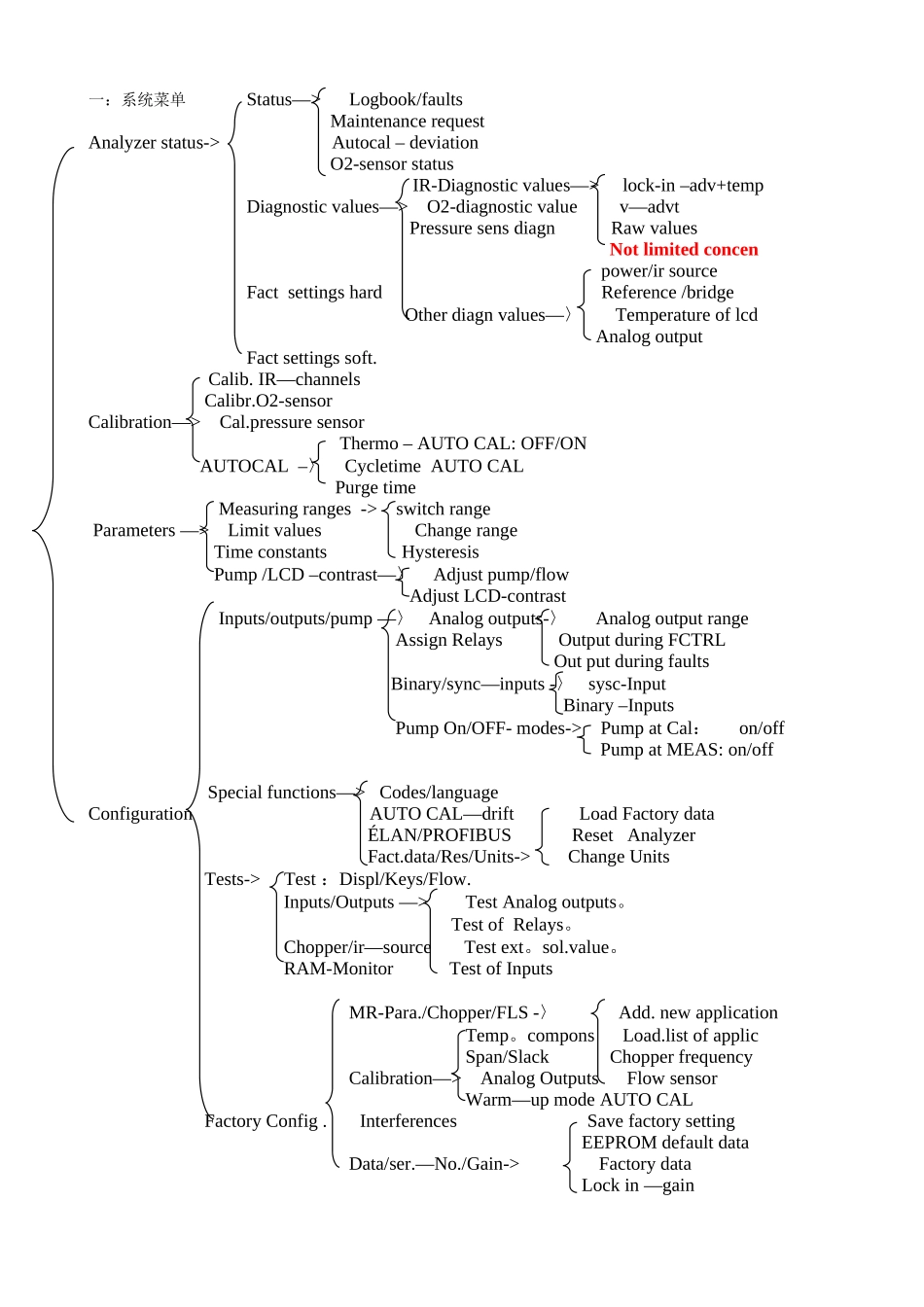

一：系统菜单 Status—> Logbook/faults Maintenance requestAnalyzer status-> Autocal – deviation O2-sensor statusIR-Diagnostic values—> lock-in –adv+temp Diagnostic values—> O2-diagnostic value v—advt Pressure sens diagn Raw values Not limited concenpower/ir source Fact settings hard Reference /bridge Other diagn values—〉 Temperature of lcd Analog output Fact settings soft.Calib. IR—channels Calibr.O2-sensorCalibration—> Cal.pressure sensor Thermo – AUTO CAL: OFF/ON AUTOCAL –〉 Cycletime AUTO CAL Purge time Measuring ranges -> switch range Parameters —> Limit values Change range Time constants Hysteresis Pump /LCD –contrast—〉 Adjust pump/flow Adjust LCD-contrast Inputs/outputs/pump —〉 Analog outputs-〉 Analog output range Assign Relays Output during FCTRL Out put during faults Binary/sync—inputs -〉 sysc-Input Binary –Inputs Pump On/OFF- modes-> Pump at Cal： on/off Pump at MEAS: on/offSpecial functions—> Codes/languageConfiguration AUTO CAL—drift Load Factory data ÉLAN/PROFIBUS Reset Analyzer Fact.data/Res/Units-> Change Units Tests-> Test ：Displ/Keys/Flow. Inputs/Outputs —> Test Analog outputs。 Test of Relays。 Chopper/ir—source Test ext。sol.value。 RAM-Monitor Test of Inputs MR-Para./Chopper/FLS -〉 Add. new application Temp。compons Load.list of applic Span/Slack Chopper frequency Calibration—> Analog Outputs Flow sensor Warm—up mode AUTO CAL Factory Config . Interferences Save factory setting EEPROM default data Data/ser.—No./Gain-> Factory data Lock in —gain 二:标定 标零类型：1：开机第一次自动标零： 仪表开机会预热倒计时,接着会有一次自动标零。2：开机第二次自动标零： 开机进行第一次自标定后,分析仪切换到测量模式，大约 30 分钟后，分析仪自动进行另外一次自动标零。然后，预热模式结束。3：周期性自动标定： Calibration->auto cal-> Cycletime auto cal ....
