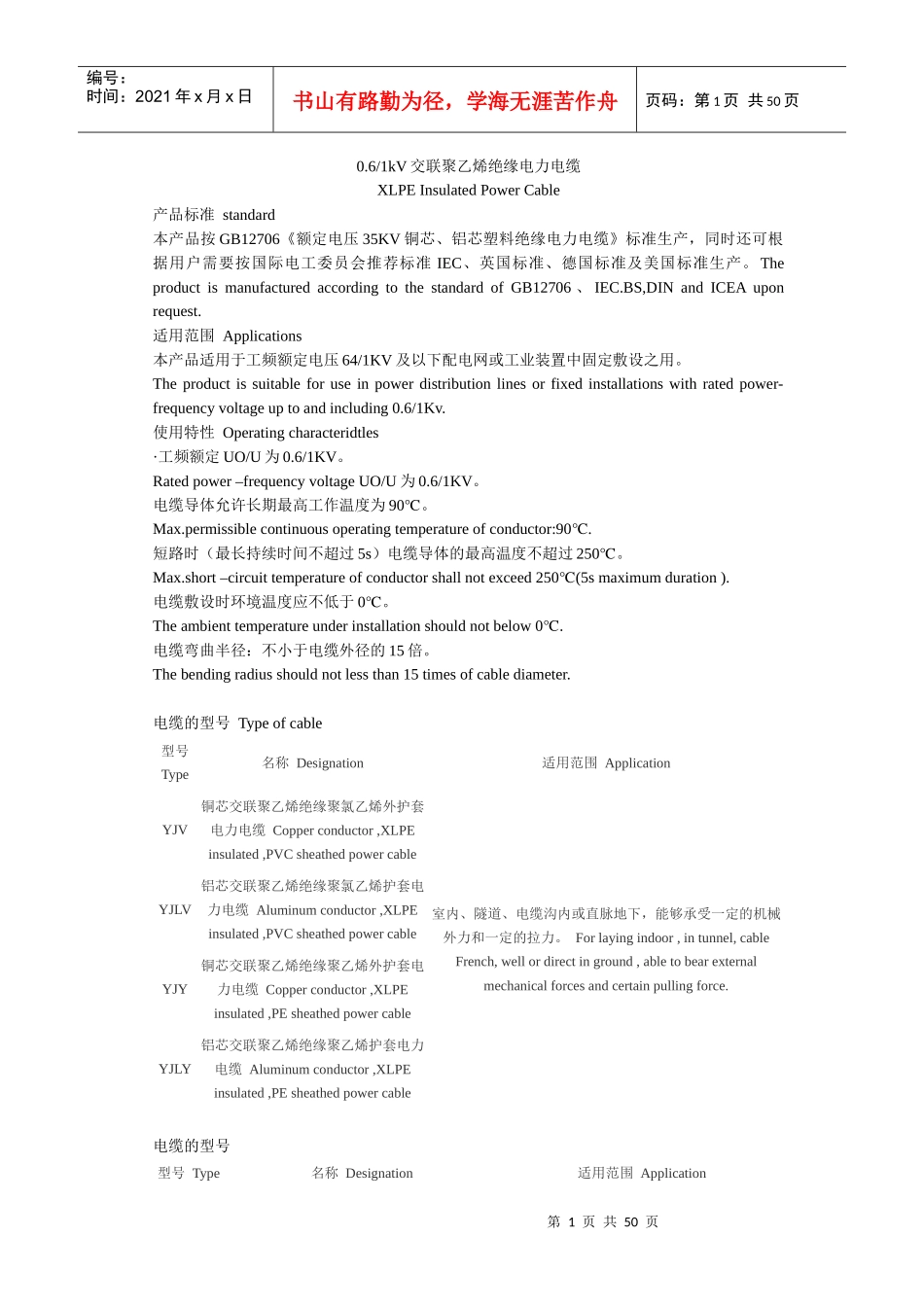

第1页共50页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第1页共50页0.6/1kV交联聚乙烯绝缘电力电缆XLPEInsulatedPowerCable产品标准standard本产品按GB12706《额定电压35KV铜芯、铝芯塑料绝缘电力电缆》标准生产，同时还可根据用户需要按国际电工委员会推荐标准IEC、英国标准、德国标准及美国标准生产。TheproductismanufacturedaccordingtothestandardofGB12706、IEC.BS,DINandICEAuponrequest.适用范围Applications本产品适用于工频额定电压64/1KV及以下配电网或工业装置中固定敷设之用。Theproductissuitableforuseinpowerdistributionlinesorfixedinstallationswithratedpower-frequencyvoltageuptoandincluding0.6/1Kv.使用特性Operatingcharacteridtles·工频额定UO/U为0.6/1KV。Ratedpower–frequencyvoltageUO/U为0.6/1KV。电缆导体允许长期最高工作温度为90℃。Max.permissiblecontinuousoperatingtemperatureofconductor:90.℃短路时（最长持续时间不超过5s）电缆导体的最高温度不超过250℃。Max.short–circuittemperatureofconductorshallnotexceed250(5smaximumduration).℃电缆敷设时环境温度应不低于0℃。Theambienttemperatureunderinstallationshouldnotbelow0.℃电缆弯曲半径：不小于电缆外径的15倍。Thebendingradiusshouldnotlessthan15timesofcablediameter.电缆的型号Typeofcable型号Type名称Designation适用范围ApplicationYJV铜芯交联聚乙烯绝缘聚氯乙烯外护套电力电缆Copperconductor,XLPEinsulated,PVCsheathedpowercable室内、隧道、电缆沟内或直脉地下，能够承受一定的机械外力和一定的拉力。Forlayingindoor,intunnel,cableFrench,wellordirectinground,abletobearexternalmechanicalforcesandcertainpullingforce.YJLV铝芯交联聚乙烯绝缘聚氯乙烯护套电力电缆Aluminumconductor,XLPEinsulated,PVCsheathedpowercableYJY铜芯交联聚乙烯绝缘聚乙烯外护套电力电缆Copperconductor,XLPEinsulated,PEsheathedpowercableYJLY铝芯交联聚乙烯绝缘聚乙烯护套电力电缆Aluminumconductor,XLPEinsulated,PEsheathedpowercable电缆的型号型号Type名称Designation适用范围Application第2页共50页第1页共50页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共50页YJLW02-Z铜芯交联聚乙烯绝缘皱纹铝套聚氯乙烯外护套纵向阻水电力电缆Copperconductor,XLPEinsulated,creasing-aluminumsheathedandPVCsheathedlongitudinal-block-waterpowercable室内、隧道、电缆沟内或直埋地下，可在潮湿环境及地下水位较高的地方使用，能够承受一定的机械外力和一定的拉力Forlayingindoors,intunnel,cableFrench,wellordirectinground,useinthedampplaceandinthehighwatertable,abletobearexternalmechanicalforcesandcertainpullingforce.YJLLW02-Z铝芯交联聚乙烯绝缘皱纹铝套聚氯乙烯外护套纵向阻水电力电缆Aluminumconductor,XLPEinsulated,creasing-aluminumsheathedandPVCsheathedlongitudinal-block-waterpowercableYJLW03-Z铜芯交联聚乙烯绝缘皱纹铝套聚乙烯外护套纵向阻水电力电缆Copperconductor,XLPEinsulated,creasing-aluminumsheathedandPEsheathedlongitudinal-block-waterpowercableJLLW03-Z铝芯交联聚乙烯绝缘皱纹铝套聚乙烯外护套纵向阻水电力电缆Aluminumconductor,XLPEinsulated,creasing-aluminumsheathedandPEsheathedlongitudinal-block-waterpowercableYJV铜芯交联聚乙烯绝缘聚氯乙烯外护套电力电缆Copperconductor,XPLEinsulatedandPVCsheathedpowercable室内、隧道及电缆沟内等场所，不能承受机械外力。Forlayingindoors,Intunnel,cabletrench,wellordirectinground,abletobearexternalmech-anicalforcesandcertainpullingforce.YJLV铝芯交联聚乙烯绝缘聚氯乙烯外护套电力电缆Aluminumconductor,XPLEinsulatedandPVCsheathedpowercableYJY铜芯交联聚乙烯绝缘聚乙烯外护套电力电缆Copperconductor,XPLEinsulatedandPEsheathedpowercableYJLY铝芯交联聚乙烯绝缘聚乙烯外护套电力电缆Aluminumconductor,XPLEinsulated...
