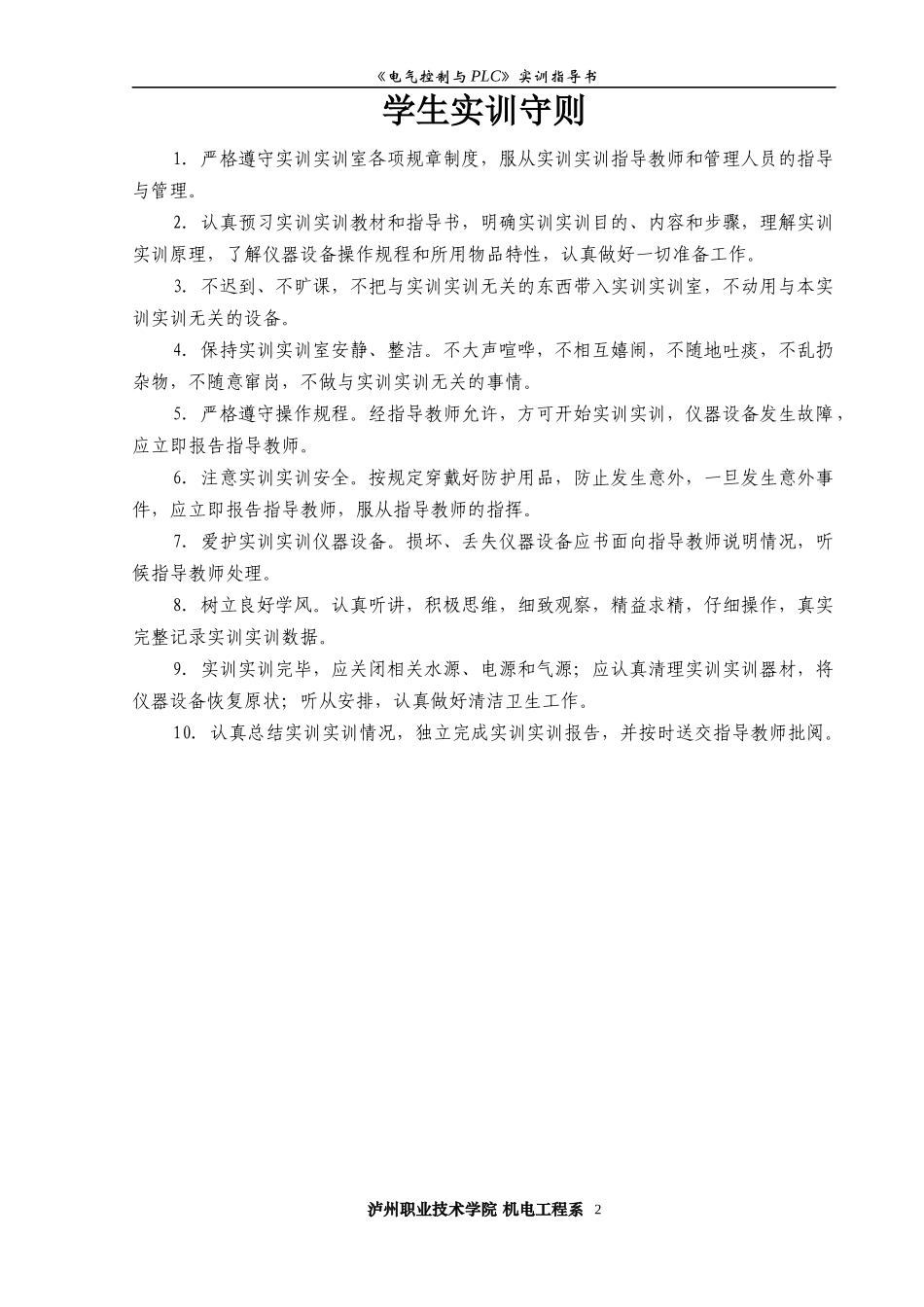

《电气控制与PLC》课程实训指导书泸州职业技术学院机电工程系组编2004年7月《电气控制与PLC》实训指导书学生实训守则1.严格遵守实训实训室各项规章制度，服从实训实训指导教师和管理人员的指导与管理。2.认真预习实训实训教材和指导书，明确实训实训目的、内容和步骤，理解实训实训原理，了解仪器设备操作规程和所用物品特性，认真做好一切准备工作。3.不迟到、不旷课，不把与实训实训无关的东西带入实训实训室，不动用与本实训实训无关的设备。4.保持实训实训室安静、整洁。不大声喧哗，不相互嬉闹，不随地吐痰，不乱扔杂物，不随意窜岗，不做与实训实训无关的事情。5.严格遵守操作规程。经指导教师允许，方可开始实训实训，仪器设备发生故障，应立即报告指导教师。6.注意实训实训安全。按规定穿戴好防护用品，防止发生意外，一旦发生意外事件，应立即报告指导教师，服从指导教师的指挥。7.爱护实训实训仪器设备。损坏、丢失仪器设备应书面向指导教师说明情况，听候指导教师处理。8.树立良好学风。认真听讲，积极思维，细致观察，精益求精，仔细操作，真实完整记录实训实训数据。9.实训实训完毕，应关闭相关水源、电源和气源；应认真清理实训实训器材，将仪器设备恢复原状；听从安排，认真做好清洁卫生工作。10.认真总结实训实训情况，独立完成实训实训报告，并按时送交指导教师批阅。泸州职业技术学院机电工程系2《电气控制与PLC》实训指导书电气控制实训室、PLC实训室实训要求1．元件摆放时按照一定次序集中摆放，并且元器件之间留有适当间隔。另外元件的布置讲究美观、对称，并遵循便于操作、观察、测量、分析等原则。2．导线采用单股硬导线。布线时应讲究横平竖直，避免交叉连接，并且考虑用线最少、最短。3．接线要紧固，不能有裸体的线头在外。4．故障检查一定要在断电情况下进行，必须通电检查的则注意安全问题。5．故障检查依照先主电路，后控制电路的顺序。例如：若是通电后电动机不转情况，则先检查电源电路，如熔断器是否熔断；然后查看接线是否有脱线、松动等现象。最后检查控制电路连接，可用电压测量法，也可用电阻测量法来寻找故障点。6．操作过程严格遵守实训规则，注意安全问题。泸州职业技术学院2004年7月泸州职业技术学院机电工程系3《电气控制与PLC》实训指导书目录实训一三相异步电动机点动、连续运行控制·····················································5实训二三相异步电动机可逆运行控制实训······················································7实训三三相异步电动机星—三角降压起动控制················································9实训四三相异步电动机能耗制动控制实训·····················································11实训五CA6140车床电气控制检修实训·························································13实训六M7120型平面磨床的电气控制检修实训···············································14实训七Z3040摇臂钻床电气控制检修实训·······················································15实训八X62W型万能铣床的电气控制检修实训·················································16实训九T68卧式镗床电气控制检修实训························································17实训十：FPwinPLC编程软件练习及在线调试·················································18实训十一：交通灯控制···················...
