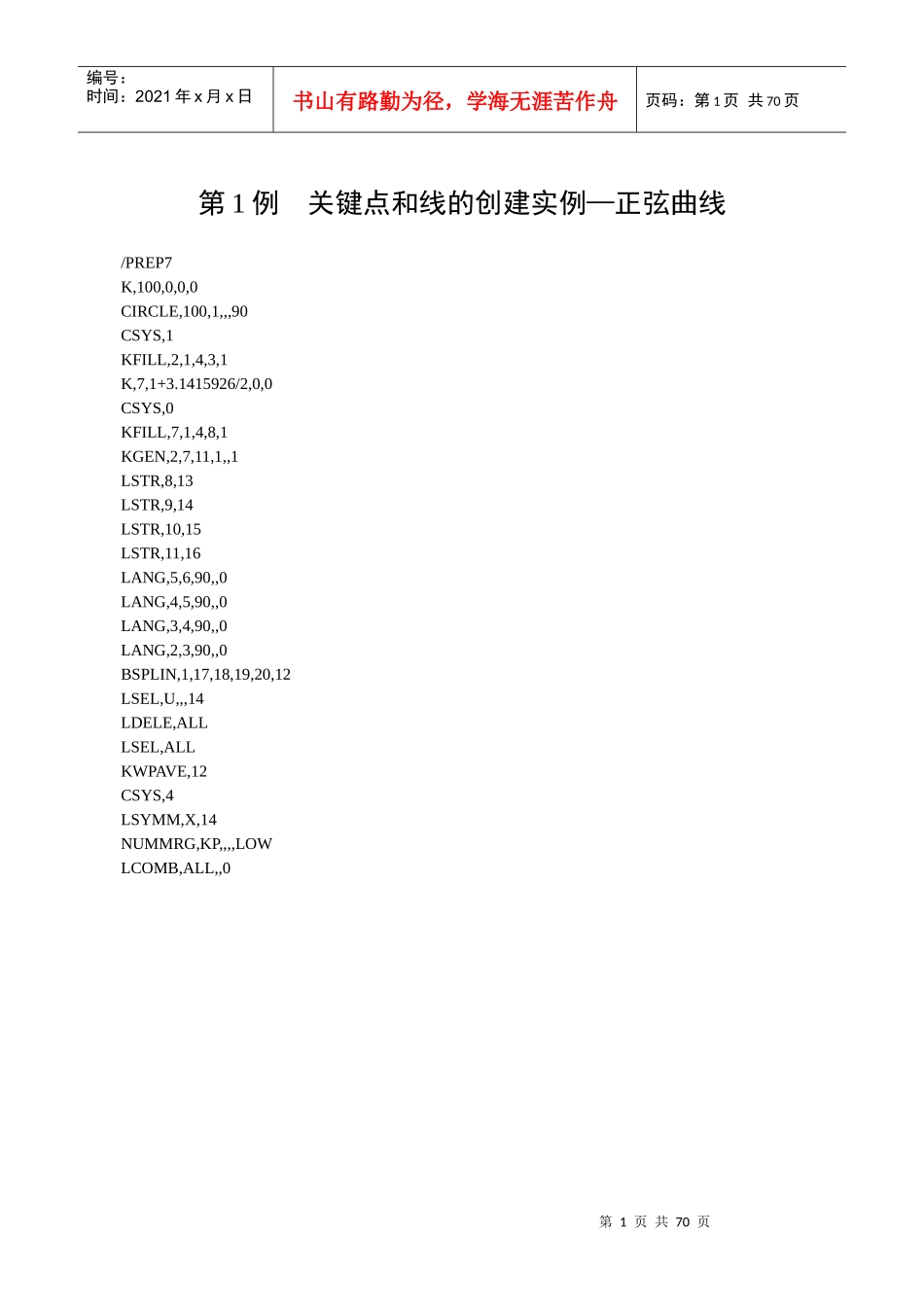

第1页共70页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第1页共70页第1例关键点和线的创建实例—正弦曲线/PREP7K,100,0,0,0CIRCLE,100,1,,,90CSYS,1KFILL,2,1,4,3,1K,7,1+3.1415926/2,0,0CSYS,0KFILL,7,1,4,8,1KGEN,2,7,11,1,,1LSTR,8,13LSTR,9,14LSTR,10,15LSTR,11,16LANG,5,6,90,,0LANG,4,5,90,,0LANG,3,4,90,,0LANG,2,3,90,,0BSPLIN,1,17,18,19,20,12LSEL,U,,,14LDELE,ALLLSEL,ALLKWPAVE,12CSYS,4LSYMM,X,14NUMMRG,KP,,,,LOWLCOMB,ALL,,0第2页共70页第1页共70页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第2页共70页第2例工作平面的应用实例—相交圆柱体/PREP7CYLIND,0.015,0,0,0.08,0,360CYLIND,0.03,0,0,0.08,0,360/VIEW,1,1,1,1/PNUM,VOLU,1WPOFF,0,0.05,0.03WPROT,0,60CYLIND,0.012,0,0,0.055,0,360CYLIND,0.006,0,0,0.055,0,360VSEL,S,,,2,3,1CM,VV1,VOLUVSEL,INVECM,VV2,VOLUVSEL,ALLVSBV,VV1,VV2BLOCK,-0.002,0.002,-0.013,-0.009，0,0.008WPSTYLE,,,,,,1CSYS,4VGEN,3,1,,,,120VSBV,5,1VSBV,4,2VSBV,1,3WPROT,0,0,90VSBW,ALLVDELE,1,4,3VADD,ALLVPLOT/REPLOT第3页共70页第2页共70页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第3页共70页第3例复杂形状实体的创建实例—螺栓/PREP7CSYS,1K,1,0.008,0,-0.002K,2,0.008,90,-0.0015K,3,0.008,180,-0.001K,4,0.008,270,-0.0005K,5,0.008,0,0/VIEW,1,1,1,1L,1,2L,2,3L,3,4L,4,5LGEN,7,ALL,,,,,0.002NUMMRG,KP,,,,LOWLCOMB,ALLK,80,0.008+0.0015/4,90,0.012+0.002/4K,81,0.008+2*0.0015/4,180,0.012+2*0.002/4K,82,0.008+3*0.0015/4,270,0.012+3*0.002/4K,83,0.008+4*0.0015/4,0,0.012+4*0.002/4L,35,80L,80,81L,81,82L,82,83CSYS,0K,90,0.008,0,-0.00025K,91,0.006918,0,-0.002K,92,0.006918,0,0/PNUM,KP,1/PNUM,LINE,1GPLOTLSTR,1,90LSTR,91,92LANG,7,90,60,,0LANG,7,1,120,,0AL,6,9,10,11VDRAG,1,,,,,,1,2,3,4,5/PNUM,KP,0/PNUM,LINE,0/PNUM,AREA,1第4页共70页第3页共70页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第4页共70页/PNUM,VOLU,1CYLIND,0.0079,,0,0.04,0,360VSEL,U,,,6CM,VVV2,VOLUALLSVSBV,6,VVV2/REPLOTK,93,0.0065,0,0K,94,0.0095,0,0.003K,95,0,0,0K,96,0,0,0.03LSTR,93,94AROTAT,6,,,,,,95,96,360ASEL,S,,,1,4,1VSBA,7,ALLASEL,ALLVDELE,1,,,1RPRISM,0.04,0.05,6,,0.0131CONE,0.03477,0.00549,0.03,0.055,0,360VINV,1,3/REPLOTVPLOTFINISH第5页共70页第4页共70页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第5页共70页第4例复杂形状实体的创建实例—杯子/PREP7K,1,0,0,0K,2,0.0395,0,0K,3,0.05,0.12,0K,4,0.047,0.12,0K,5,0.03675,0.003,0K,6,0,0.003,0LSTR,1,2LSTR,2,3LSTR,3,4LSTR,4,5LSTR,5,6LSTR,6,1LFILLT,1,2,0.02LFILLT,4,5,0.017AL,ALLVROTAT,ALL,,,,,,1,6,360K,31,0,0.103,0K,32,0.078,0.103,0K,33,0.078,0.046,0K,34,0,0.0011,0LSTR,31,32LSTR,32,33LSTR,33,34LFILLT,54,55,0.013LFILLT,55,56,0.028K,41,0,0.103+0.002,0.005K,42,0,0.103+0.002,-0.005K,43,0,0.103-0.002,-0.005K,44,0,0.103-0.002,0.005LSTR,41,42LSTR,42,43LSTR,43,44LSTR,44,41LFILLT,59,60,0.001LFILLT,60,61,0.001LFILLT,61,62,0.001LFILLT,62,59,0.001AL,59,63,60,64,61,65,62,66第6页共70页第5页共70页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第6页共70页VDRAG,33,,,,,,54,57,55,58,56VSEL,S,,,5,9,4ASEL,S,,,4,28,24VSBA,ALL,ALLALLSEL,ALLVDELE,10,,,1VDELE,13,,,1/PNUM,VOLU,1/NUMBER,1/COLOR,VOLU,ORAN,ALL/REPLOTFINISH第7页共70页第6页共70页编号：时间：2021年x月x日书山有路勤为径，学海无涯苦作舟页码：第7页共70页第5例杆系结构的静力学分析实例—平面桁架/CLEAR/FILNAME,EXAMPLE5L=0.1A=1e-4/PREP7ET,1,BEAM3R,1,AMP,EX,1,2E11MP,PRXY,1,0.3N,1N,2,LN,3,2*LN,4,L,LE,1,2E,2,3E,1,4E,2,4E,3,4FINISH/SOLUD,1,UXD,1,UYD,3,UYF,4,FY,-2000SOLVEFINISH/POST1ETABLE,FA,SMISC,1ETABLE,SA,LS...
