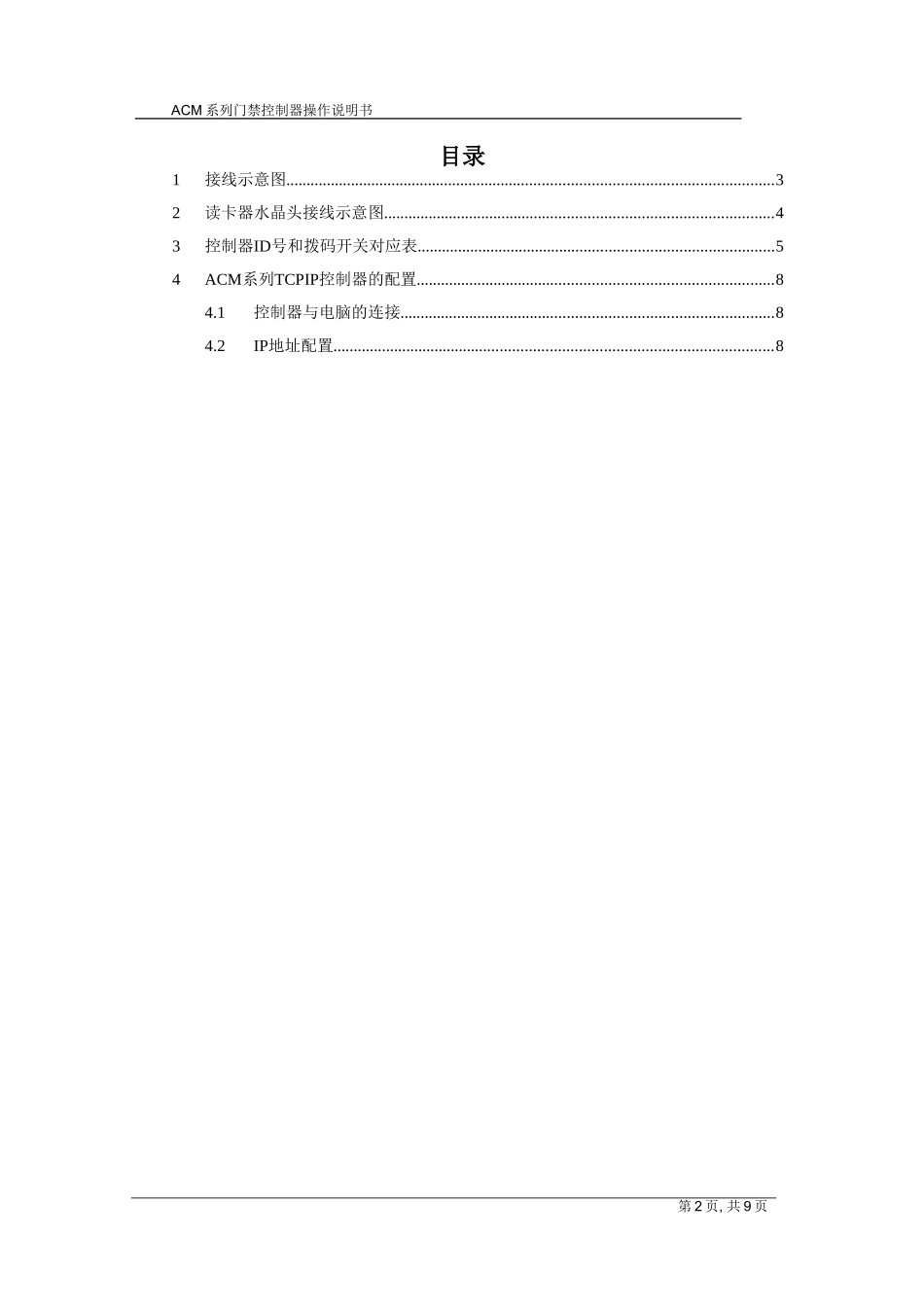

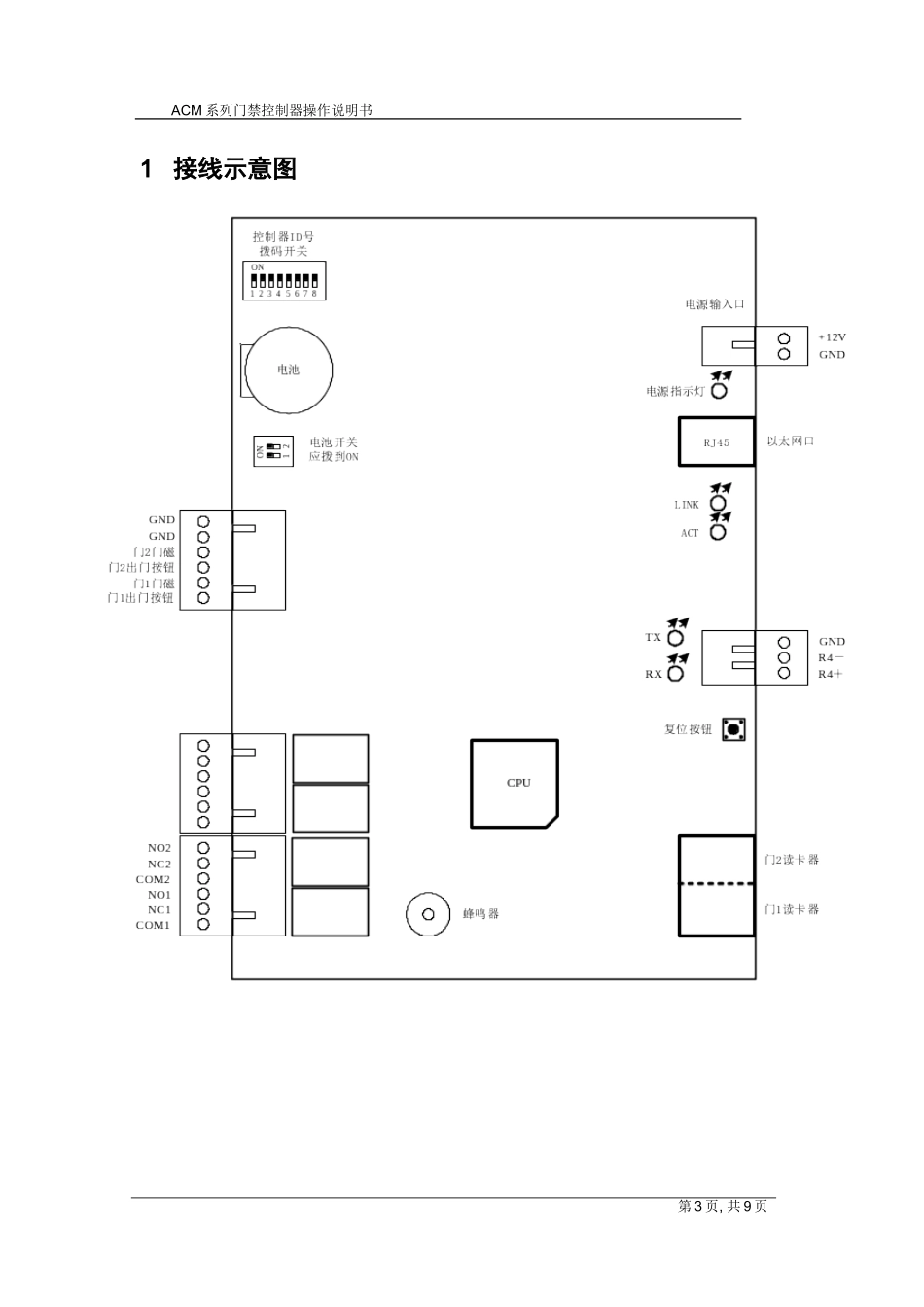

ACM系列门禁控制器操作说明书ACM系列门禁控制器操作说明书目录1接线示意图.......................................................................................................................32读卡器水晶头接线示意图...............................................................................................43控制器ID号和拨码开关对应表.......................................................................................54ACM系列TCPIP控制器的配置.......................................................................................84.1控制器与电脑的连接...........................................................................................84.2IP地址配置...........................................................................................................8第2页,共9页ACM系列门禁控制器操作说明书1接线示意图第3页,共9页ACM系列门禁控制器操作说明书2读卡器水晶头接线示意图编号接线引脚含义1GND电源地2GND电源地3LED指示灯控制线4BEEP蜂鸣器控制线5WD0时钟（数据0）6WD1数据（数据1）7＋12V＋12V直流电源8＋12V＋12V直流电源3控制器ID号和拨码开关对应表拨码开关中1表示对应的位拨到ON的位置。第4页,共9页ACM系列门禁控制器操作说明书例如：控制器ID号2，对应的拨码开关是00000010，拨码开关如下图所示：控制器ID号和拨码开关对应表：控制器ID号拨码开关控制器ID号拨码开关控制器ID号拨码开关控制器ID号拨码开关100000001650100000112910000001193110000012000000106601000010130100000101941100001030000001167010000111311000001119511000011400000100680100010013210000100196110001005000001016901000101133100001011971100010160000011070010001101341000011019811000110700000111710100011113510000111199110001118000010007201001000136100010002001100100090000100173010010011371000100120111001001100000101074010010101381000101020211001010110000101175010010111391000101120311001011120000110076010011001401000110020411001100130000110177010011011411000110120511001101140000111078010011101421000111020611001110150000111179010011111431000111120711001111160001000080010100001441001000020811010000170001000181010100011451001000120911010001180001001082010100101461001001021011010010190001001183010100111471001001121111010011200001010084010101001481001010021211010100210001010185010101011491001010121311010101第5页,共9页ACM系列门禁控制器操作说明书220001011086010101101501001011021411010110230001011187010101111511001011121511010111240001100088010110001521001100021611011000250001100189010110011531001100121711011001260001101090010110101541001101021811011010270001101191010110111551001101121911011011280001110092010111001561001110022011011100290001110193010111011571001110122111011101300001111094010111101581001111022211011110310001111195010111111591001111122311011111320010000096011000001601010000022411100000330010000197011000011611010000122511100001340010001098011000101621010001022611100010350010001199011000111631010001122711100011360010010010001100100164101001002281110010037001001011010110010116510100101229111001013800100110102011001101661010011023011100110390010011110301100111167101001112311110011140001010001040110100016810101000232111010004100101001105011010011691010100123311101001420010101010601101010170101010102341110101043001010111070110101117110101011235111010114400101100108011011001721010110023611101100450010110110901101101173101011012371110110146001011101100110111017410101110238111011104700101111111011011111751010111123911101111480011000011201110000176101...
