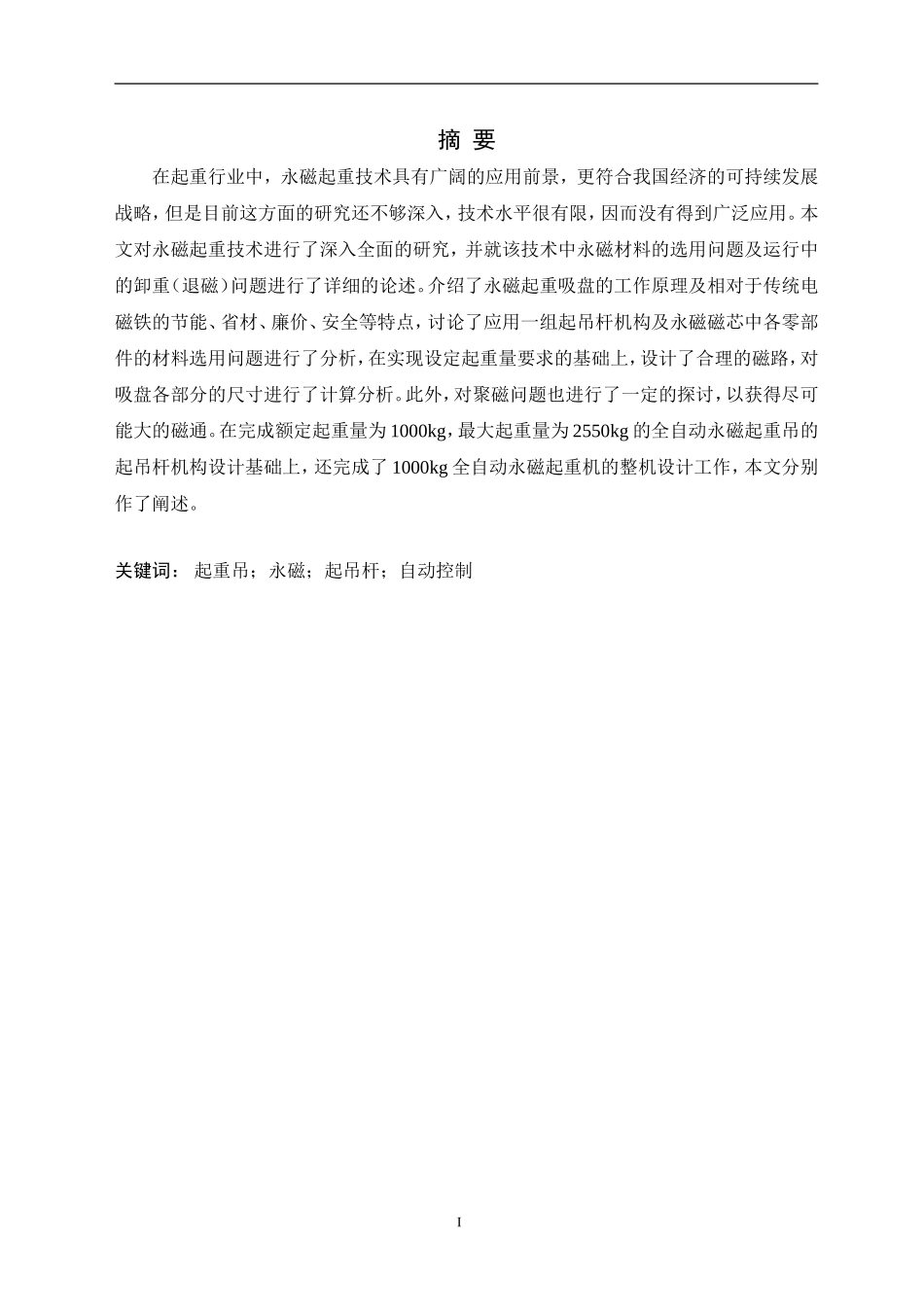

学号14071900494毕业设计(论文)题目:一吨全自动永磁起重吊的设计作者武道届别2011届院别机械工程学院专业机械设计制造及自动化指导教师赵稳职称高级工程师完成时间2011年5月20日湖南理工学院毕业设计(论文)II摘要在起重行业中,永磁起重技术具有广阔的应用前景,更符合我国经济的可持续发展战略,但是目前这方面的研究还不够深入,技术水平很有限,因而没有得到广泛应用。本文对永磁起重技术进行了深入全面的研究,并就该技术中永磁材料的选用问题及运行中的卸重(退磁)问题进行了详细的论述。介绍了永磁起重吸盘的工作原理及相对于传统电磁铁的节能、省材、廉价、安全等特点,讨论了应用一组起吊杆机构及永磁磁芯中各零部件的材料选用问题进行了分析,在实现设定起重量要求的基础上,设计了合理的磁路,对吸盘各部分的尺寸进行了计算分析。此外,对聚磁问题也进行了一定的探讨,以获得尽可能大的磁通。在完成额定起重量为1000kg,最大起重量为2550kg的全自动永磁起重吊的起吊杆机构设计基础上,还完成了1000kg全自动永磁起重机的整机设计工作,本文分别作了阐述。关键词:起重吊;永磁;起吊杆;自动控制I湖南理工学院毕业设计(论文)AbstractInthecranetrade,theliftingtechniqueofpermanentmagnetismhaswideapplicationprospects,accordwiththesustainabledevelopmentstrategyoftheeconomyofourcountyevenmore,buttheresearchofdeepeningtotheliftingtechniqueofpermanentmagnetism,andonthequestionofexertionofthepermanentmagnetismmaterialinthistechnologyandunloadingheavy(removethemagnetism),questiongoneonthedetailedargumentationinoperating.Workingprincipleofthistechnologyisintroduced.Comparedwithtraditionalelectromnagnet,thisdevicehasmanymerits.Thearticlediscussesmethodsofmagnetizationanddemagnetizationbythepulseofstrongcurrent.Suchasthecirculationofonegroupofleverstructureandpermanentmagneticlifterwhichcanmakesadeepanalysisontheaspectofselectingmaterialrelatedtoeverypartsofhanging-padandpermanentmagnetismcore.Onthebasisofthefactthattherequiredweightwassetup,wehavedesignedreasonablemagnetismcircuitandhavecarriedoncomputationalanalysistothesizeofeverypartofthepad.Inaddition,inordertomakemagnetismasbigaspossible,someproblemconcerninggatheringmagnetismhasbeenresearched.Onthebasisoffinishthestructureofliftingstaffdesignofautomaticpermanentmagneticlifter,whoseamountliftingweightis1000kgandthemaximumweightis2550kg,Ihavealsofinishedthecompletemachinedesignworkof1000kgautomaticpermanentmagneticlifter,thistexthasbeenexplainedseparately.KeyWordsCrane;permanentmagnetism;Liftingstaff;AutomaticcontrolII目录摘要....................................................................IAbstract.................................................................II1绪论....................................................................11.1本课题的来源、研究目的及意义.....................................11.2国内外研究现状、水平及存在的问题..................................21.3本课题主要研究内容和研究目标.....................................31.4本章小结.........................................................42全自动永磁起重吊系统分析................................................52.1本课题系统构建思想................................................52.2本课题系统的总体结构..............................................52.3本设计的创新机理..................................................52.4本章小结..........................................................63起吊部分设计与计算......................................................73.1永磁材料的研究状态............................................
