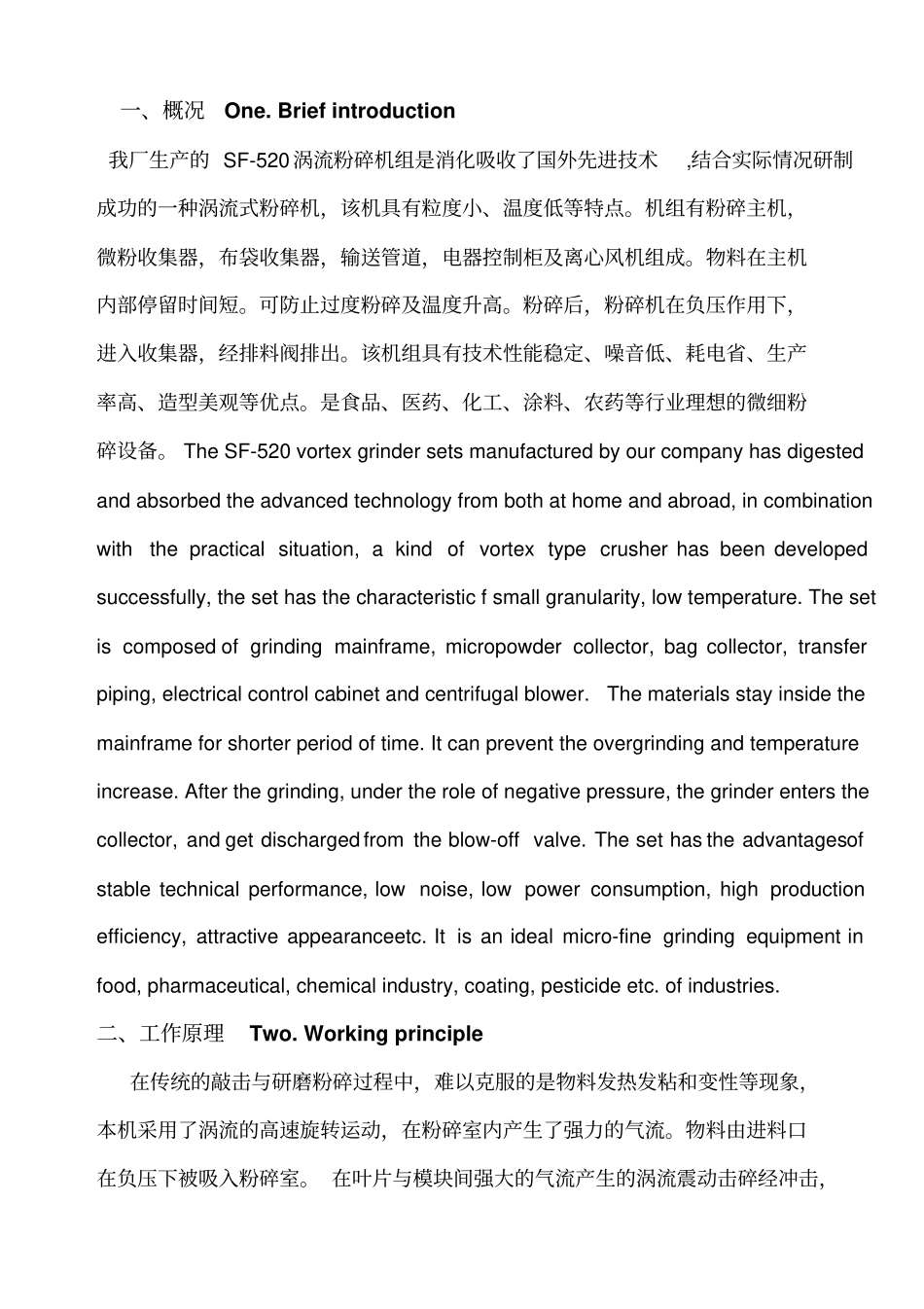

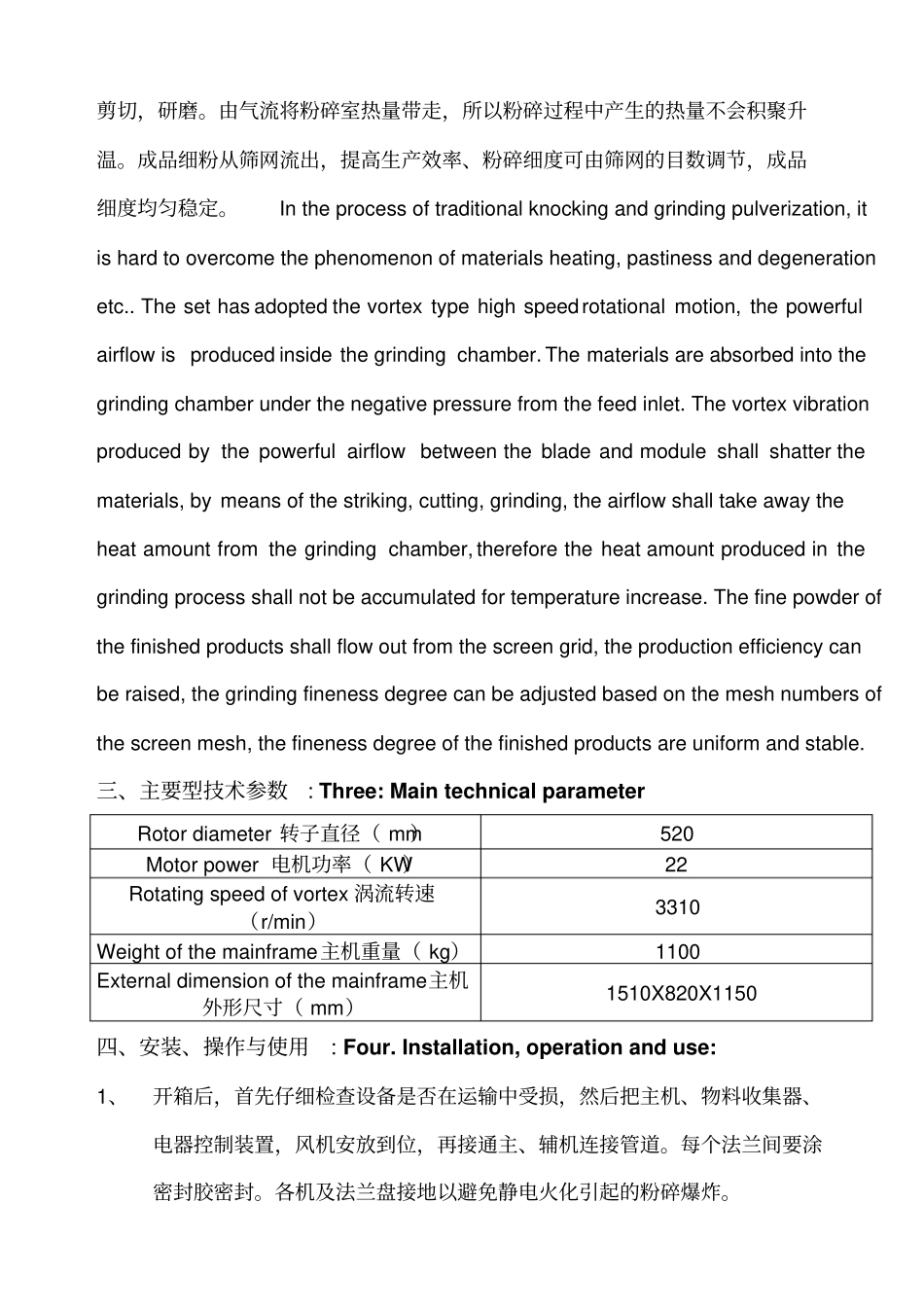

SF-520涡流粉碎机组SF-520Vortexgrindersets使用说明Operationinstruction天津茂源制药机械有限公司TianjinMaoyuanPharmaceuticalMachineCo.,Ltd.一、概况One.Briefintroduction我厂生产的SF-520涡流粉碎机组是消化吸收了国外先进技术,结合实际情况研制成功的一种涡流式粉碎机，该机具有粒度小、温度低等特点。机组有粉碎主机，微粉收集器，布袋收集器，输送管道，电器控制柜及离心风机组成。物料在主机内部停留时间短。可防止过度粉碎及温度升高。粉碎后，粉碎机在负压作用下，进入收集器，经排料阀排出。该机组具有技术性能稳定、噪音低、耗电省、生产率高、造型美观等优点。是食品、医药、化工、涂料、农药等行业理想的微细粉碎设备。TheSF-520vortexgrindersetsmanufacturedbyourcompanyhasdigestedandabsorbedtheadvancedtechnologyfrombothathomeandabroad,incombinationwiththepracticalsituation,akindofvortextypecrusherhasbeendevelopedsuccessfully,thesethasthecharacteristicfsmallgranularity,lowtemperature.Thesetiscomposedofgrindingmainframe,micropowdercollector,bagcollector,transferpiping,electricalcontrolcabinetandcentrifugalblower.Thematerialsstayinsidethemainframeforshorterperiodoftime.Itcanpreventtheovergrindingandtemperatureincrease.Afterthegrinding,undertheroleofnegativepressure,thegrinderentersthecollector,andgetdischargedfromtheblow-offvalve.Thesethastheadvantagesofstabletechnicalperformance,lownoise,lowpowerconsumption,highproductionefficiency,attractiveappearanceetc.Itisanidealmicro-finegrindingequipmentinfood,pharmaceutical,chemicalindustry,coating,pesticideetc.ofindustries.二、工作原理Two.Workingprinciple在传统的敲击与研磨粉碎过程中，难以克服的是物料发热发粘和变性等现象，本机采用了涡流的高速旋转运动，在粉碎室内产生了强力的气流。物料由进料口在负压下被吸入粉碎室。在叶片与模块间强大的气流产生的涡流震动击碎经冲击，剪切，研磨。由气流将粉碎室热量带走，所以粉碎过程中产生的热量不会积聚升温。成品细粉从筛网流出，提高生产效率、粉碎细度可由筛网的目数调节，成品细度均匀稳定。Intheprocessoftraditionalknockingandgrindingpulverization,itishardtoovercomethephenomenonofmaterialsheating,pastinessanddegenerationetc..Thesethasadoptedthevortextypehighspeedrotationalmotion,thepowerfulairflowisproducedinsidethegrindingchamber.Thematerialsareabsorbedintothegrindingchamberunderthenegativepressurefromthefeedinlet.Thevortexvibrationproducedbythepowerfulairflowbetweenthebladeandmoduleshallshatterthematerials,bymeansofthestriking,cutting,grinding,theairflowshalltakeawaytheheatamountfromthegrindingchamber,thereforetheheatamountproducedinthegrindingprocessshallnotbeaccumulatedfortemperatureincrease.Thefinepowderofthefinishedproductsshallflowoutfromthescreengrid,theproductionefficiencycanberaised,thegrindingfinenessdegreecanbeadjustedbasedonthemeshnumbersofthescreenmesh,thefinenessdegreeofthefinishedproductsareuniformandstable.三、主要型技术参数:Three:MaintechnicalparameterRotordiameter转子直径（mm）520Motorpower电机功率（KW）22Rotatingspeedofvortex涡流转速（r/min）3310Weightofthemainframe主机重量（kg）1100Externaldimensionofthemainframe主机外形尺寸（mm）1510X820X1150四、安装、操作与使用:Four.Installation,operationanduse:1、开箱后，首先仔细检查设备是否在运输中受损，然后把主机、物料收集器、电器控制装置，风机安放到位，再接通主、辅机连接管道。每个法兰间要涂密封胶密封。各机及法兰盘接地以避免静电火化引起的粉碎爆炸。1.Afterunpacking,firstlycarefullycheckiftheequipmentisdamagedinthetransportation,thenthemainframe,materialscollectors,electricalcontroldevice...
