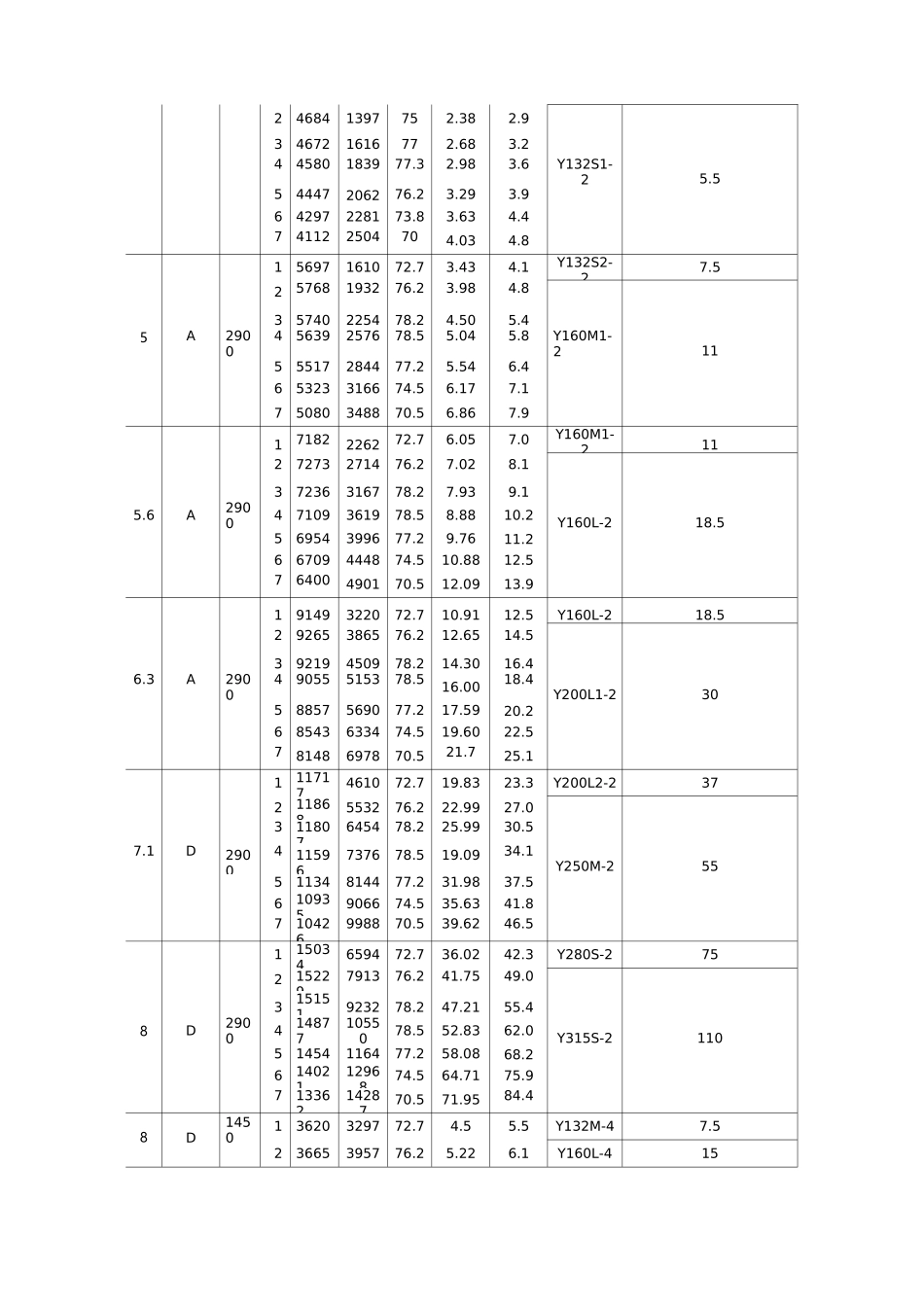

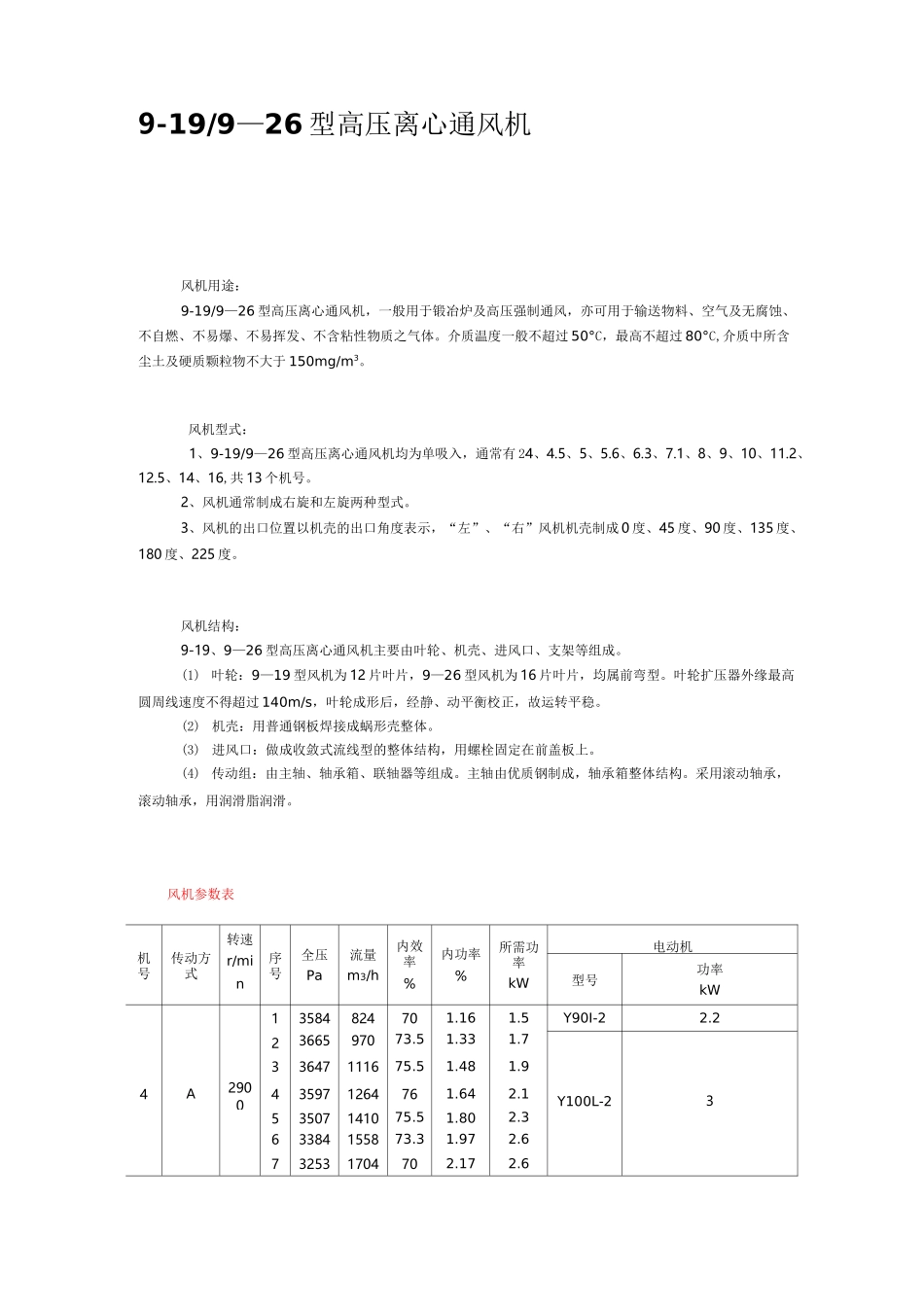

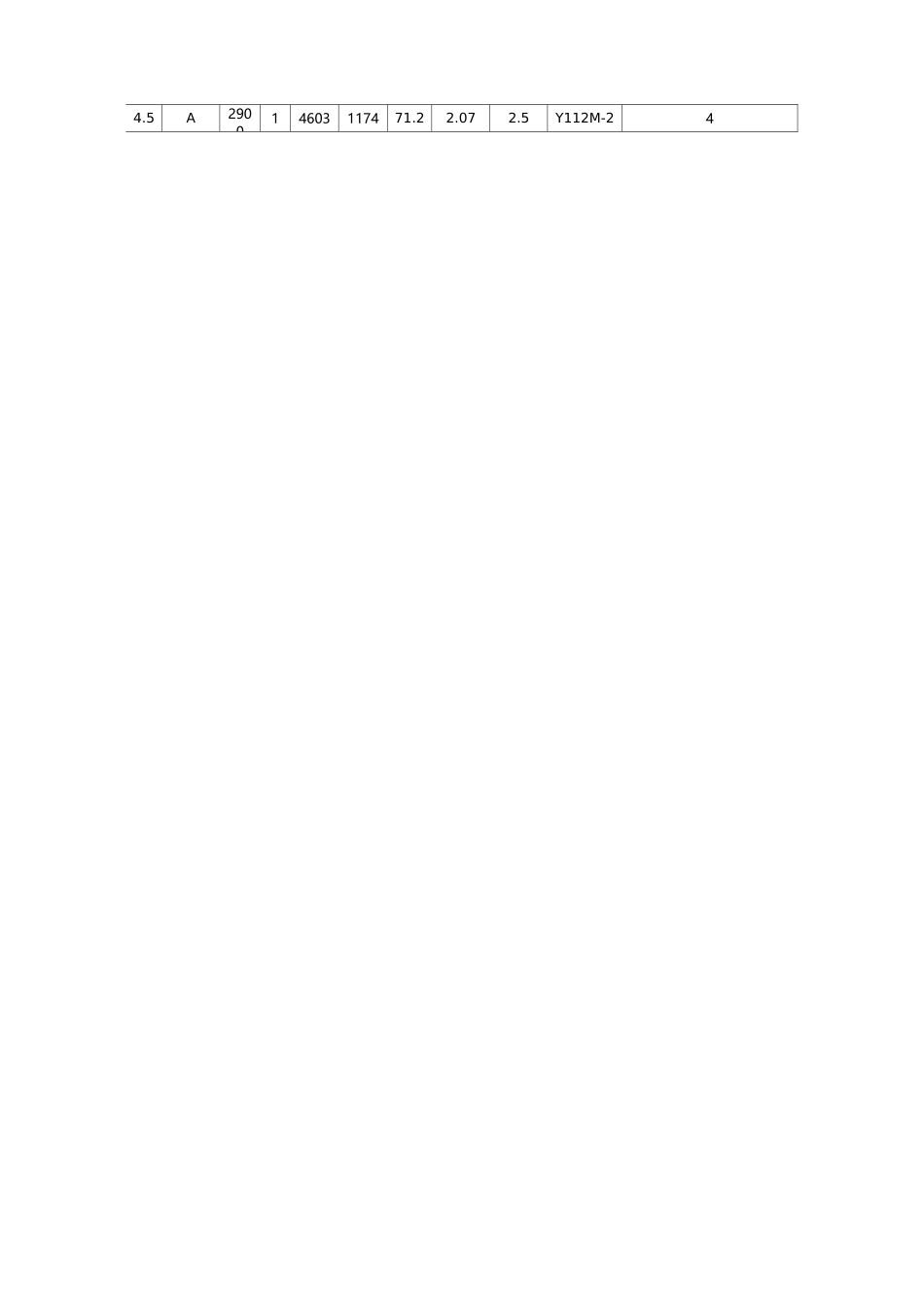

9-19/9—26型高压离心通风机风机用途：9-19/9—26型高压离心通风机，一般用于锻冶炉及高压强制通风，亦可用于输送物料、空气及无腐蚀、不自燃、不易爆、不易挥发、不含粘性物质之气体。介质温度一般不超过50°C，最高不超过80°C,介质中所含尘土及硬质颗粒物不大于150mg/m3。风机型式：1、9-19/9—26型高压离心通风机均为单吸入，通常有24、4.5、5、5.6、6.3、7.1、8、9、10、11.2、12.5、14、16,共13个机号。2、风机通常制成右旋和左旋两种型式。3、风机的出口位置以机壳的出口角度表示，“左”、“右”风机机壳制成0度、45度、90度、135度、180度、225度。风机结构：9-19、9—26型高压离心通风机主要由叶轮、机壳、进风口、支架等组成。(1)叶轮：9—19型风机为12片叶片，9—26型风机为16片叶片，均属前弯型。叶轮扩压器外缘最高圆周线速度不得超过140m/s，叶轮成形后，经静、动平衡校正，故运转平稳。(2)机壳：用普通钢板焊接成蜗形壳整体。(3)进风口：做成收敛式流线型的整体结构，用螺栓固定在前盖板上。(4)传动组：由主轴、轴承箱、联轴器等组成。主轴由优质钢制成，轴承箱整体结构。采用滚动轴承，滚动轴承，用润滑脂润滑。风机参数表机号传动方式转速r/min序号全压Pa流量m3/h内效率%内功率%所需功率kW电动机型号功率kW13584824701.161.5Y90I-22.22366597073.51.331.733647111675.51.481.94A2900435971264761.642.1Y100L-2353507141075.51.802.363384155873.31.972.6732531704702.172.64.5A290014603117471.22.072.5Y112M-24246841397752.382.9346721616772.683.244580183977.32.983.6Y132S1-25.554447206276.23.293.964297228173.83.634.4741122504704.034.815697161072.73.434.1Y132S2-27.525768193276.23.984.835740225478.24.505.45A290045639257678.55.045.8Y160M1-21155517284477.25.546.465323316674.56.177.175080348870.56.867.917182226272.76.057.0Y160M1-21127273271476.27.028.137236316778.27.939.15.6A290047109361978.58.8810.2Y160L-218.556954399677.29.7611.266709444874.510.8812.576400490170.512.0913.919149322072.710.9112.5Y160L-218.529265386576.212.6514.539219450978.214.3016.46.3A290049055515378.516.0018.4Y200L1-23058857569077.217.5920.268543633474.519.6022.578148697870.521.725.1111717461072.719.8323.3Y200L2-237211868553276.222.9927.0311807645478.225.9930.57.1D2900411596737678.519.0934.1Y250M-255511340814477.231.9837.5610935906674.535.6341.8710426998870.539.6246.5115034659472.736.0242.3Y280S-275215229791376.241.7549.0315151923278.247.2155.48D29004148771055078.552.8362.0Y315S-21105145461164977.258.0868.26140211296874.564.7175.97133621428770.571.9584.48D145013620329772.74.55.5Y132M-47.523665395776.25.226.1Y160L-41533647461678.25.906.943584527578.56.607.753507582577.27.268.563384648474.58.099.573231714470.58.9910.614597469572.78.119.5Y160L-41524655563376.29.4111.034632657278.210.6312.59D145044551751178.511.9014.054453829477.213.0815.4Y180L-42264297923374.514.5817.1741011017170.516.2119.015408644076.513.3815.7Y200L-4302594179428016.0318.832891944581.518.5921.810D145045740109478121.1224.8554951245078.223.8428.0Y225S-437652441395274.526.7931.474958154557029.8835.117364904776.523.5827.7Y225M-44527491111588028.2533.2374281326981.532.7638.411.2D145047236153808137.2243.7569271749178.242.0249.3Y280S-475666091960274.547.2155.476246217137052.6661.813182599076.56.848.0Y180L-615232377388808.209.633210878581.59.5111.211.2D96043128101828110.8212.7529961158078.212.1914.3Y209L2-622628601297874.513.7016.172705143757015.2817.9192291257776.540.8447.9Y280S-47529390155128048.9257.4393101844781.556.7266.612.5D145049068213818164.4675.6586782431678.272.7685.4Y315S-4110682782725174.581.7595.977822301867091.18107.0139758327...
