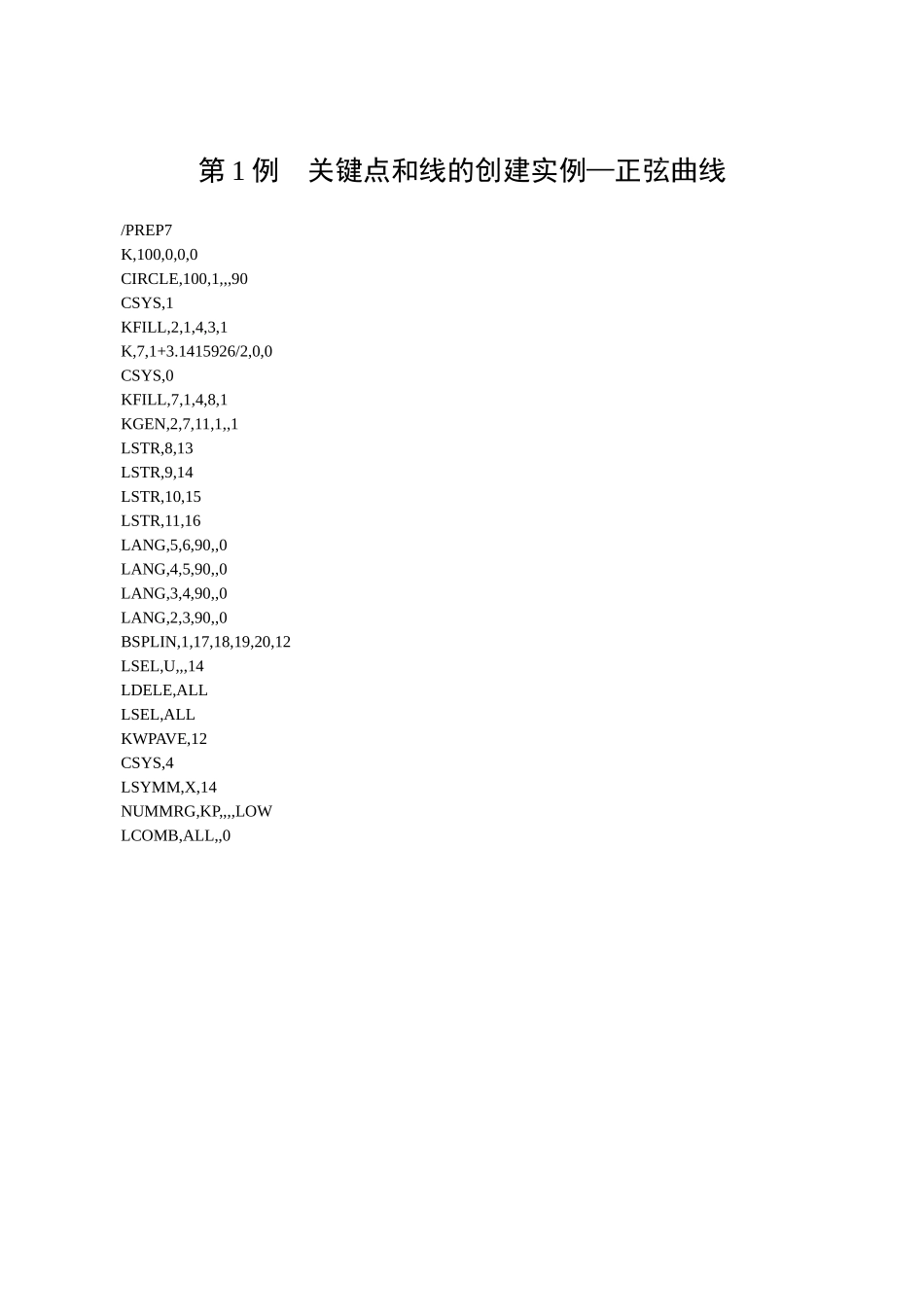

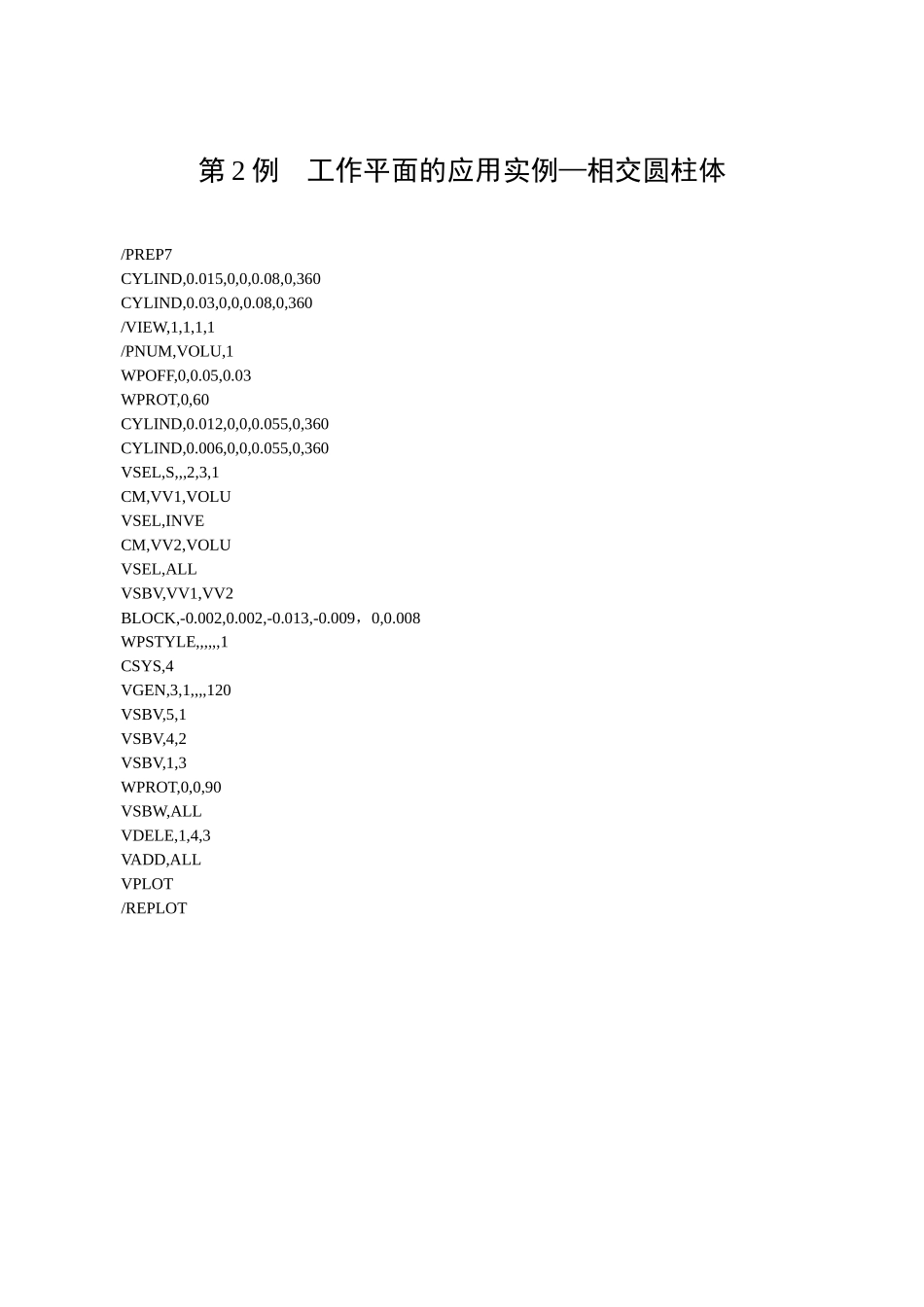

第 1 例 关键点和线的创建实例—正弦曲线/PREP7K,100,0,0,0CIRCLE,100,1,,,90 CSYS,1KFILL,2,1,4,3,1K,7,1+3.1415926/2,0,0CSYS,0KFILL,7,1,4,8,1KGEN,2,7,11,1,,1 LSTR,8,13LSTR,9,14LSTR,10,15LSTR,11,16LANG,5,6,90,,0 LANG,4,5,90,,0LANG,3,4,90,,0LANG,2,3,90,,0BSPLIN,1,17,18,19,20,12LSEL,U,,,14LDELE,ALLLSEL,ALLKWPAVE,12CSYS,4LSYMM,X,14NUMMRG,KP,,,,LOWLCOMB,ALL,,0第 2 例 工作平面的应用实例—相交圆柱体/PREP7CYLIND,0.015,0,0,0.08,0,360CYLIND,0.03,0,0,0.08,0,360/VIEW,1,1,1,1 /PNUM,VOLU,1WPOFF,0,0.05,0.03WPROT,0,60 CYLIND,0.012,0,0,0.055,0,360CYLIND,0.006,0,0,0.055,0,360VSEL,S,,,2,3,1CM,VV1,VOLUVSEL,INVECM,VV2,VOLUVSEL,ALLVSBV,VV1,VV2BLOCK,-0.002,0.002,-0.013,-0.009，0,0.008WPSTYLE,,,,,,1 CSYS,4VGEN,3,1,,,,120VSBV,5,1VSBV,4,2VSBV,1,3WPROT,0,0,90 VSBW,ALLVDELE,1,4,3VADD,ALLVPLOT/REPLOT第 3 例 复杂形状实体的创建实例—螺栓/PREP7CSYS,1K,1,0.008,0,-0.002K,2,0.008,90,-0.0015K,3,0.008,180,-0.001K,4,0.008,270,-0.0005K,5,0.008,0,0/VIEW,1,1,1,1L,1,2L,2,3L,3,4L,4,5LGEN,7,ALL,,,,,0.002NUMMRG,KP,,,,LOWLCOMB,ALLK,80,0.008+0.0015/4,90,0.012+0.002/4K,81,0.008+2*0.0015/4,180,0.012+2*0.002/4K,82,0.008+3*0.0015/4,270,0.012+3*0.002/4K,83,0.008+4*0.0015/4,0,0.012+4*0.002/4L,35,80L,80,81L,81,82L,82,83CSYS,0K,90,0.008,0,-0.00025K,91,0.006918,0,-0.002K,92,0.006918,0,0/PNUM,KP,1 /PNUM,LINE,1GPLOTLSTR,1,90 LSTR,91,92LANG,7,90,60,,0LANG,7,1,120,,0AL,6,9,10,11VDRAG,1,,,,,,1,2,3,4,5/PNUM,KP,0 /PNUM,LINE,0/PNUM,AREA,1/PNUM,VOLU,1CYLIND,0.0079,,0,0.04,0,360VSEL,U,,,6CM,VVV2,VOLUALLSVSBV,6,VVV2/REPLOTK,93,0.0065,0,0K,94,0.0095,0,0.003K,95,0,0,0K,96,0,0,0.03LSTR,93,94AROTAT,6,,,,,,95,96,360ASEL,S,,,1,4,1VSBA,7,ALLASEL,ALLVDELE,1,,,1RPRISM,0.04,0.05,6,,0.0131CONE,0.03477,0.00549,0.03,0.055,0,360VINV,1,3/REPLOTVPLOTFINISH第 4 例 复杂形状实体的创建实例—杯子/PREP7K,1,0,0,0K,2, 0.0395,0,0K,3, 0.05,0.12,0K,4, 0.047,0.12,0K,5, 0.03675,0.003,0K,6, 0,0.003,0LSTR,1,2LSTR,2,3LSTR,3,4LSTR,4,5LSTR,5,6LSTR,6,1LFILLT, 1, 2, 0.02LFILLT, 4, 5, 0.017AL,ALLVROTAT, ALL, , , , , , 1,6, 360K,3...
