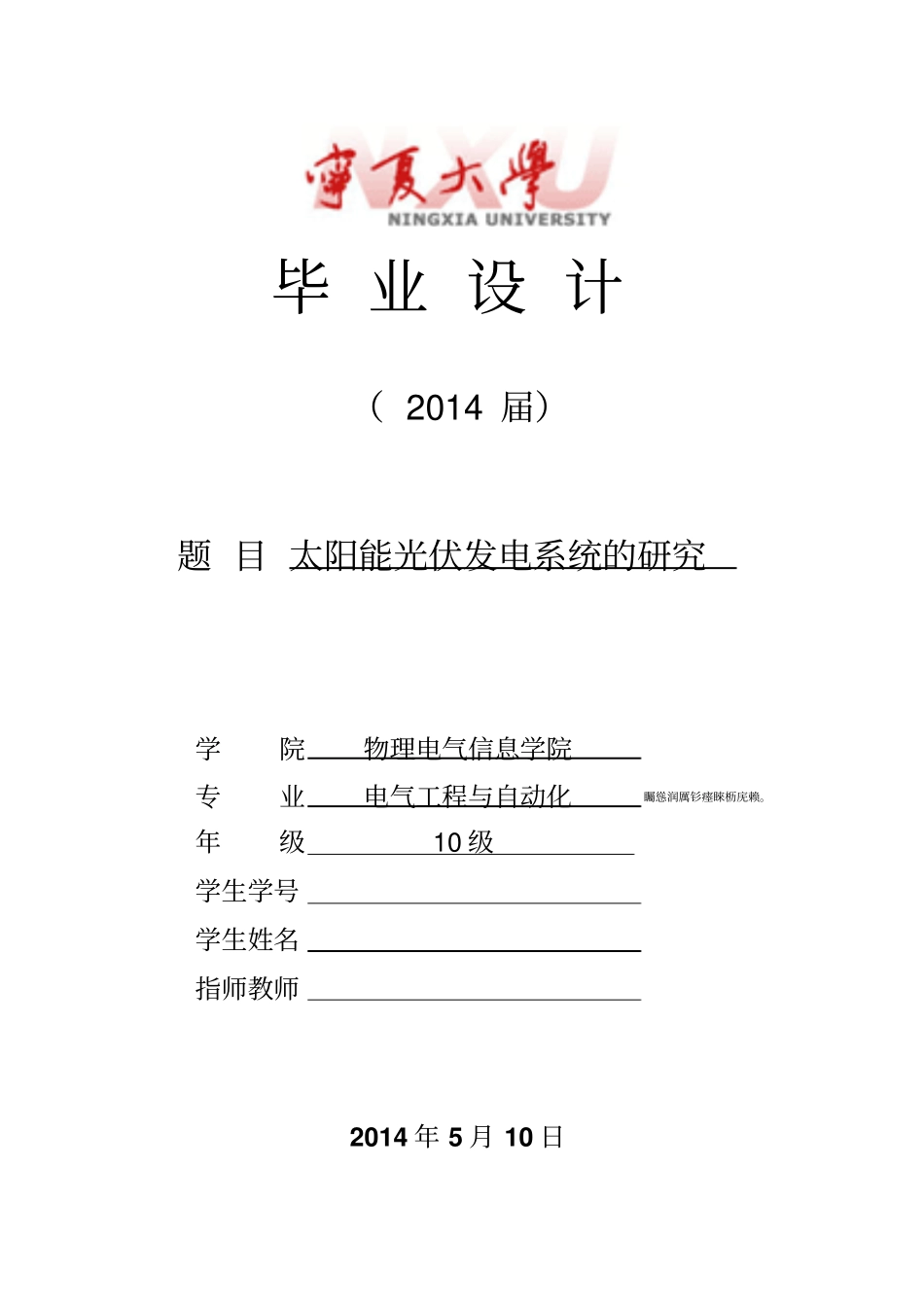

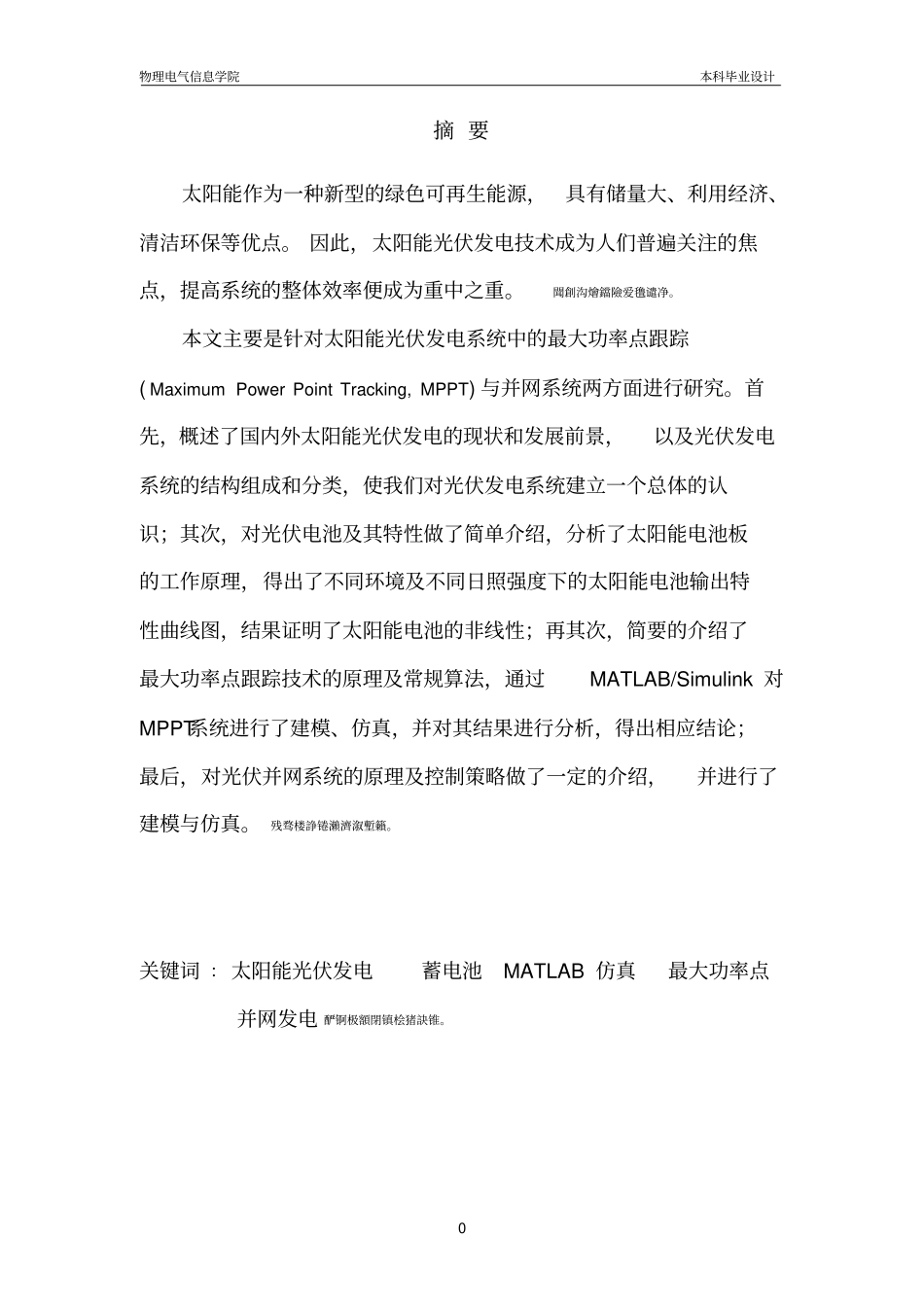

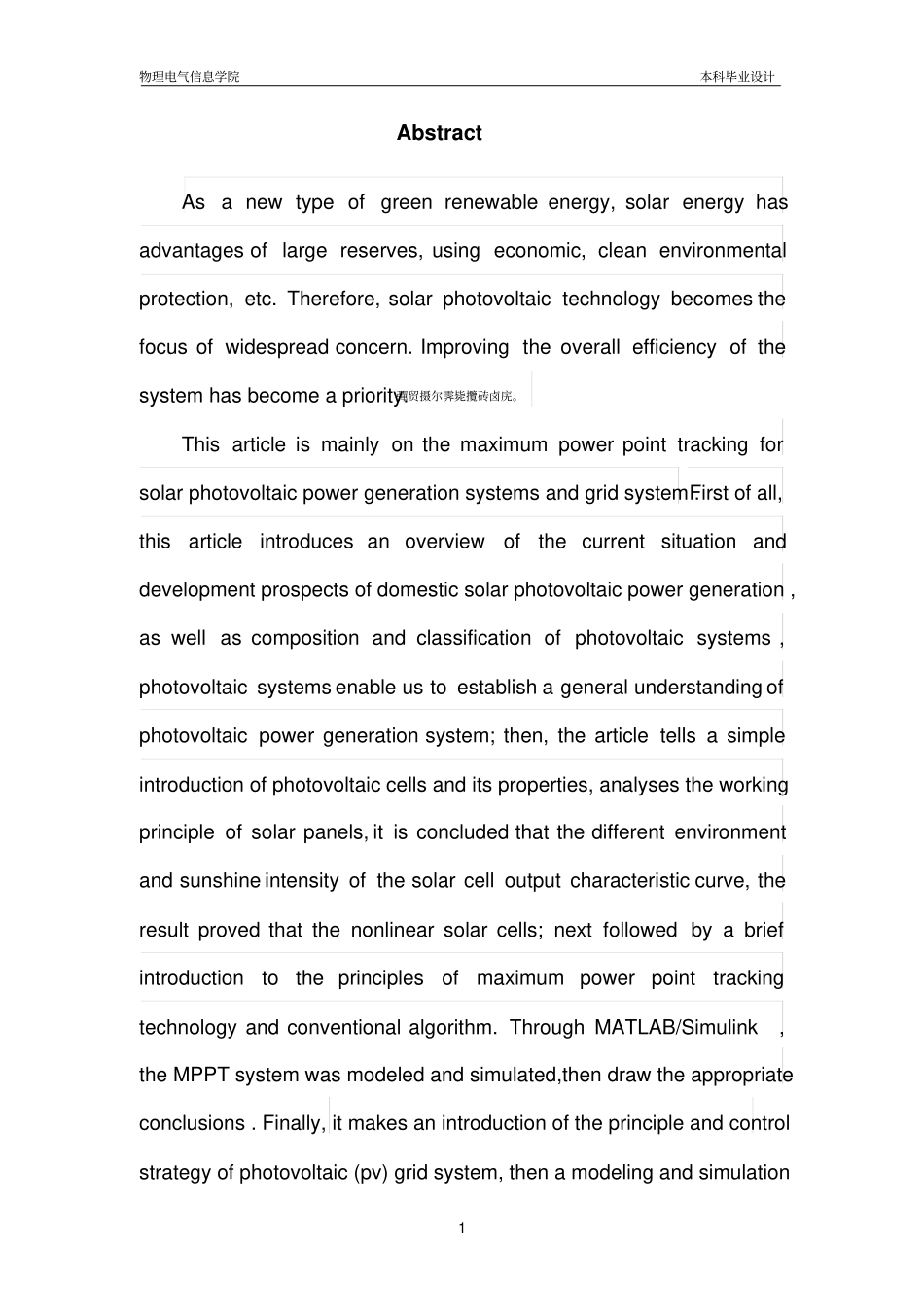

毕 业 设 计( 2014 届)题 目 太阳能光伏发电系统的研究学院物理电气信息学院专业电气工程与自动化矚慫润厲钐瘗睞枥庑赖。年级10 级学生学号学生姓名指师教师2014 年 5 月 10 日物理电气信息学院本科毕业设计0摘 要太阳能作为一种新型的绿色可再生能源,具有储量大、利用经济、清洁环保等优点。 因此,太阳能光伏发电技术成为人们普遍关注的焦点,提高系统的整体效率便成为重中之重。聞創沟燴鐺險爱氇谴净。本文主要是针对太阳能光伏发电系统中的最大功率点跟踪( Maximum Power Point Tracking, MPPT) 与并网系统两方面进行研究。首先,概述了国内外太阳能光伏发电的现状和发展前景,以及光伏发电系统的结构组成和分类,使我们对光伏发电系统建立一个总体的认识;其次,对光伏电池及其特性做了简单介绍,分析了太阳能电池板的工作原理,得出了不同环境及不同日照强度下的太阳能电池输出特性曲线图,结果证明了太阳能电池的非线性;再其次,简要的介绍了最大功率点跟踪技术的原理及常规算法,通过MATLAB/Simulink 对MPPT系统进行了建模、仿真,并对其结果进行分析,得出相应结论;最后,对光伏并网系统的原理及控制策略做了一定的介绍,并进行了建模与仿真。残骛楼諍锩瀨濟溆塹籟。关键词 : 太阳能光伏发电蓄电池 MATLAB 仿真最大功率点并网发电 酽锕极額閉镇桧猪訣锥。物理电气信息学院本科毕业设计1Abstract As a new type of green renewable energy, solar energy has advantages of large reserves, using economic, clean environmental protection, etc. Therefore, solar photovoltaic technology becomes the focus of widespread concern. Improving the overall efficiency of the system has become a priority.彈贸摄尔霁毙攬砖卤庑。This article is mainly on the maximum power point tracking for solar photovoltaic power generation systems and grid system .First of all, this article introduces an overview of the current situation and development prospects of domestic solar photovoltaic power generation , as well as composition and classification of photovoltaic systems , photovoltaic systems enable us to establish a general understanding of photovoltaic...
