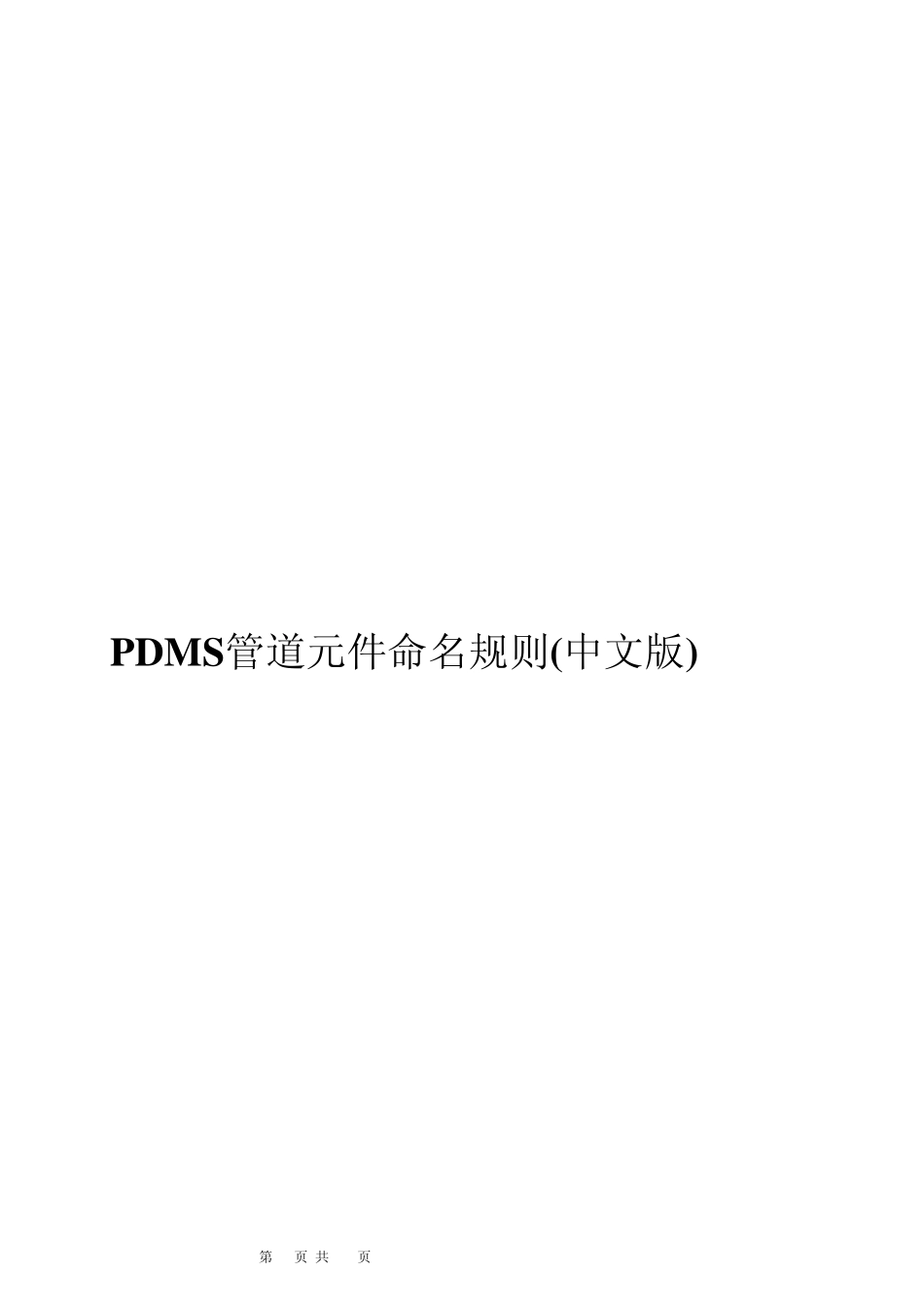

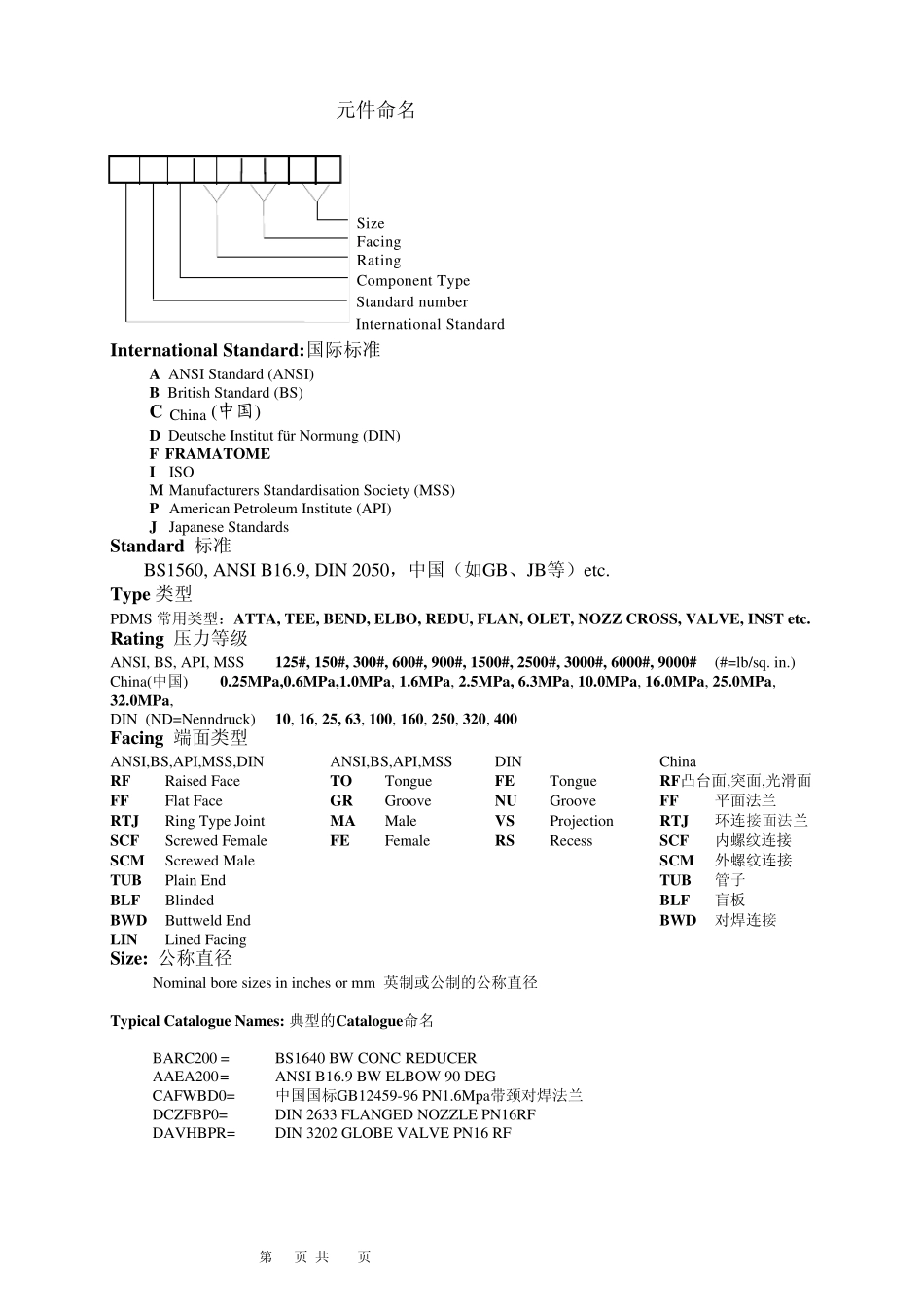

第 1 页 共 62 页 PDMS管道元件命名规则(中文版) 2007.12 第 2 页 共 62 页 Index 目录 1.Naming Components 元件命名 2. Deriving Bolt Names 螺栓命名 3. COCO Table Coding 联接兼容表命名 4. Component CATREF coding 元件CATREF命名 第 3 页 共 62 页 1. Naming Components 元件命名 International Standard: 国际标准 A ANSI Standard (ANSI) B British Standard (BS) C China (中国) D Deutsche Institut für Normung (DIN) F FRAMATOME I ISO M Manufacturers Standardisation Society (MSS) P American Petroleum Institute (API) J Japanese Standards Standard 标准 BS1560, ANSI B16.9, DIN 2050，中国（如GB、JB等）etc. Type 类型 PDMS 常用类型：ATTA, TEE, BEND, ELBO, REDU, FLAN, OLET, NOZZ CROSS, VALVE, INST etc. Rating 压力等级 ANSI, BS, API, MSS 125#, 150#, 300#, 600#, 900#, 1500#, 2500#, 3000#, 6000#, 9000# (#=lb/sq. in.) China(中国) 0.25MPa,0.6MPa,1.0MPa, 1.6MPa, 2.5MPa, 6.3MPa, 10.0MPa, 16.0MPa, 25.0MPa, 32.0MPa, DIN (ND=Nenndruck) 10, 16, 25, 63, 100, 160, 250, 320, 400 Facing 端面类型 ANSI,BS,API,MSS,DIN ANSI,BS,API,MSS DIN China RF Raised Face TO Tongue FE Tongue RF凸台面,突面,光滑面 FF Flat Face GR Groove NU Groove FF 平面法兰 RTJ Ring Type Joint MA Male VS Projection RTJ 环连接面法兰 SCF Screwed Female FE Female RS Recess SCF 内螺纹连接 SCM Screwed Male SCM 外螺纹连接 TUB Plain End TUB 管子 BLF Blinded BLF 盲板 BWD Buttweld End BWD 对焊连接 LIN Lined Facing Size: 公称直径 Nominal bore sizes in inches or mm 英制或公制的公称直径 Typical Catalogue Names: 典型的Catalogue命名 BARC200 = BS1640 BW CONC REDUCER AAEA200 = ANSI B16.9 BW ELBOW 90 DEG CAFWBD0= 中国国标GB12459-96 PN1.6Mpa带颈对焊法兰 DCZFBP0= DIN 2633 FLANGED NOZZLE PN16RF DAVHBPR= DIN 3202 GLOBE VALVE PN16 RF International StandardStandard numberRatingFacingSizeComponent Type 第 4 页...
