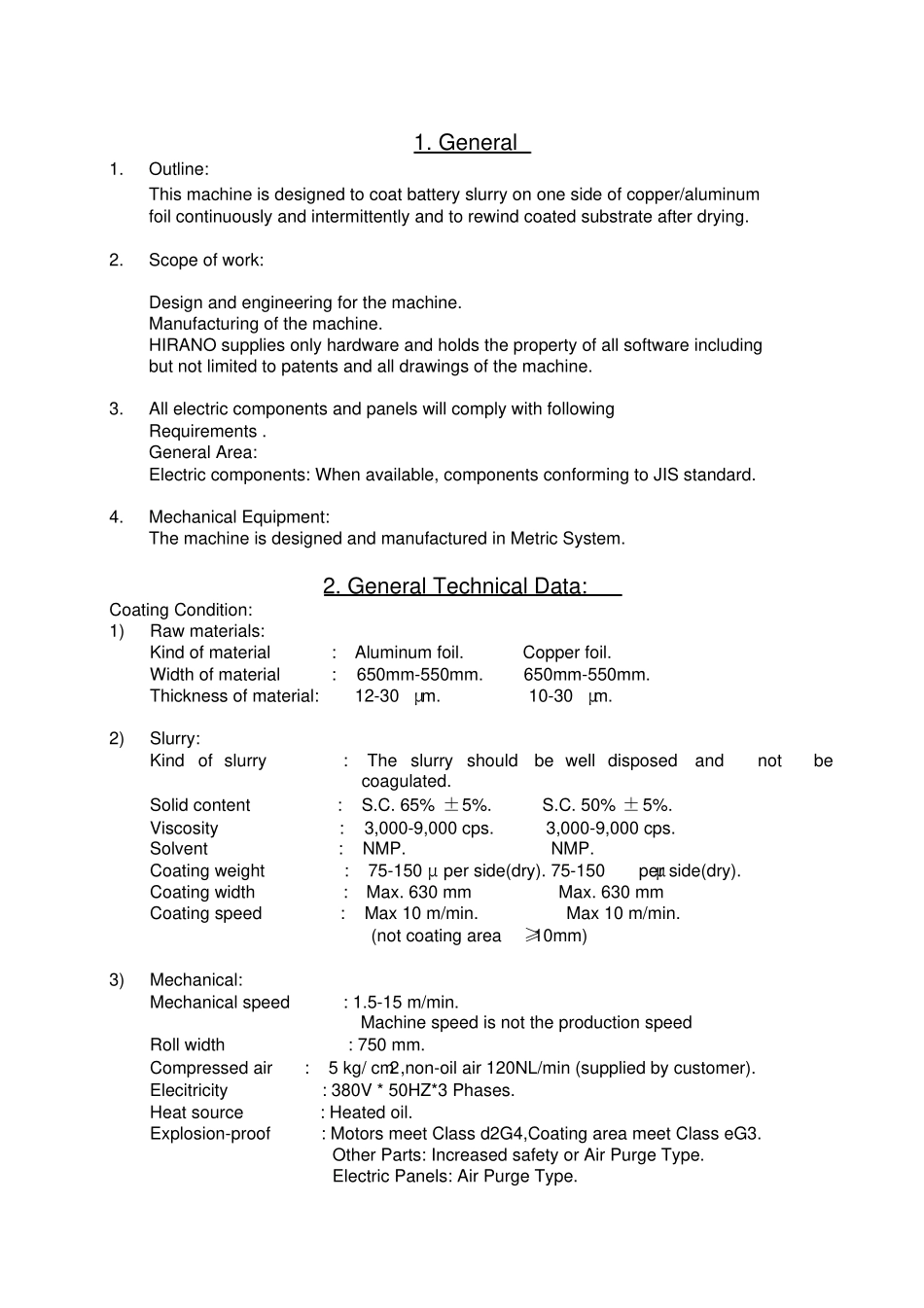

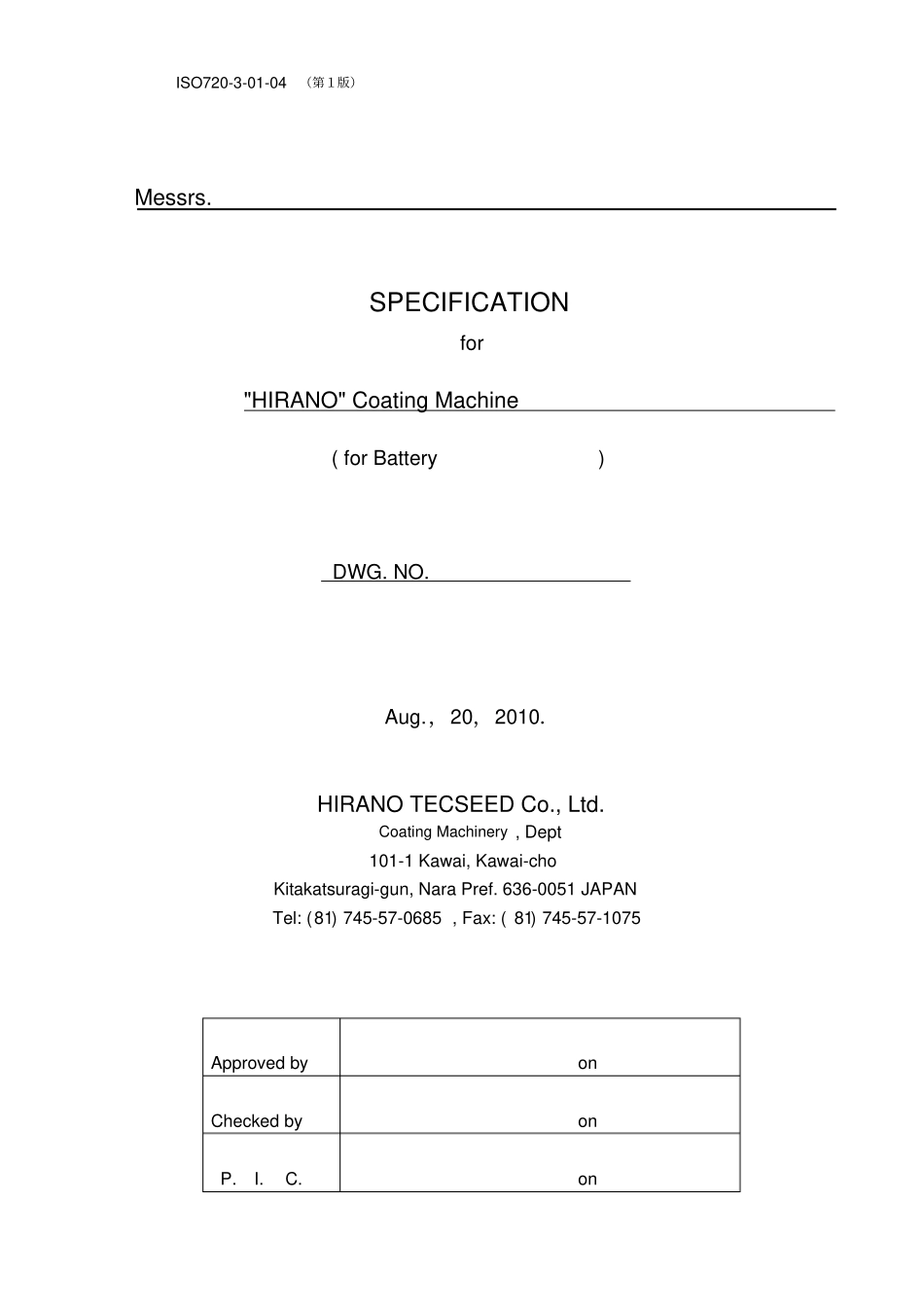

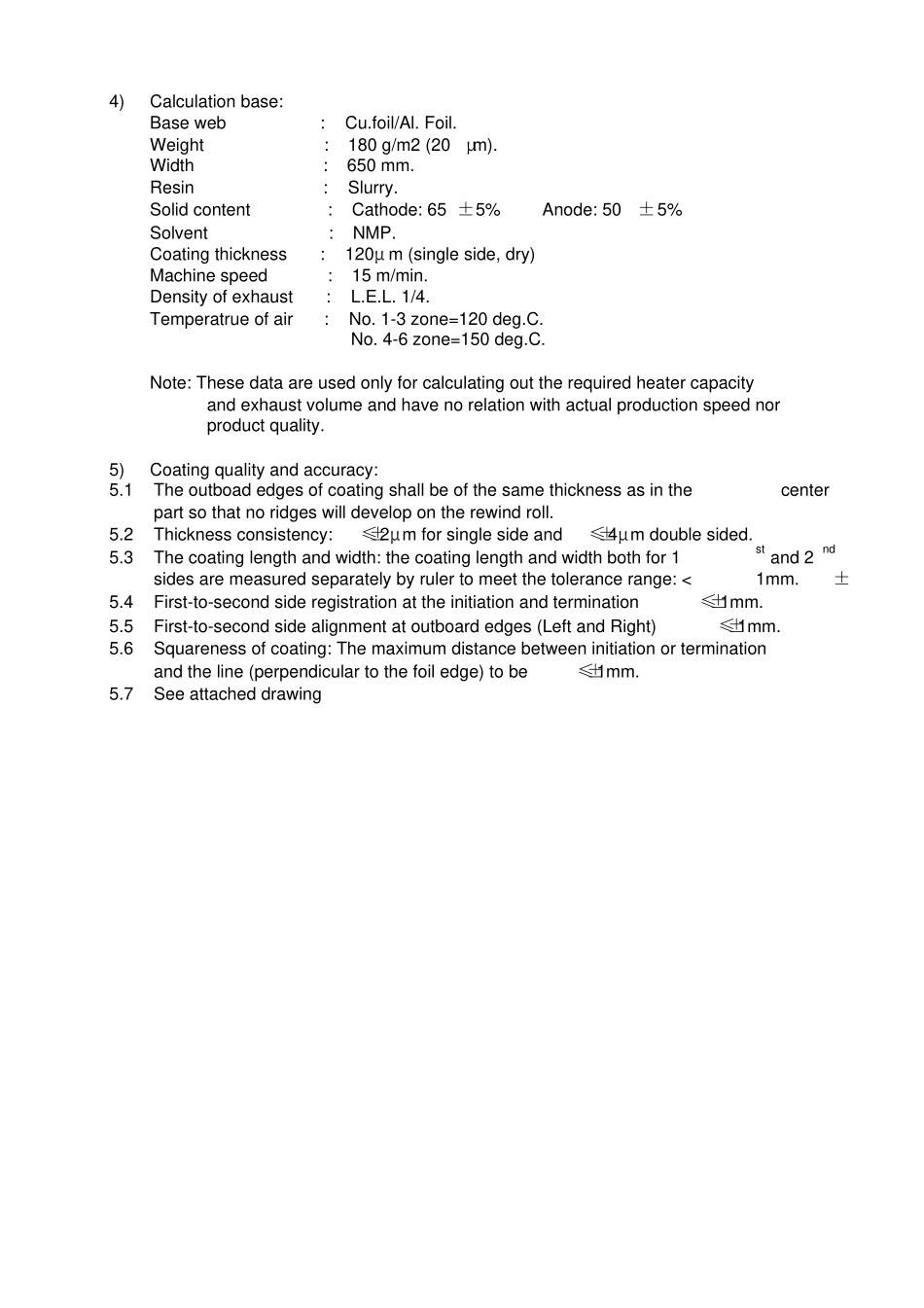

ISO720-3-01-04（第１版）Messrs. SPECIFICATIONfor "HIRANO" Coating Machine ( for Battery ) DWG. NO. Aug.，20，2010．HIRANO TECSEED Co., Ltd. Coating Machinery , Dept 101-1 Kawai, Kawai-cho Kitakatsuragi-gun, Nara Pref. 636-0051 JAPAN Tel: (81) 745-57-0685 , Fax: ( 81) 745-57-1075Approved by on Checked by on P. I. C. on 1. General 1. Outline: This machine is designed to coat battery slurry on one side of copper/aluminum foil continuously and intermittently and to rewind coated substrate after drying. 2. Scope of work: Design and engineering for the machine. Manufacturing of the machine. HIRANO supplies only hardware and holds the property of all software including but not limited to patents and all drawings of the machine. 3. All electric components and panels will comply with following Requirements . General Area: Electric components: When available, components conforming to JIS standard. 4. Mechanical Equipment: The machine is designed and manufactured in Metric System. 2. General Technical Data: Coating Condition: 1) Raw materials: Kind of material : Aluminum foil. Copper foil. Width of material : 650mm-550mm. 650mm-550mm. Thickness of material: 12-30 μm. 10-30 μm. 2) Slurry: Kind of slurry : The slurry should be well disposed and not be coagulated. Solid content : S.C. 65% ±5%. S.C. 50% ± 5%. Viscosity : 3,000-9,000 cps. 3,000-9,000 cps. Solvent : NMP. NMP. Coating weight : 75-150 μ per side(dry). 75-150μ per side(dry). Coating width : Max. 630 mm Max. 630 mm Coating speed : Max 10 m/min. Max 10 m/min. (not coating area ≥10mm) 3) Mechanical: Mechanical speed : 1.5-15 m/min. Machine speed is not the production speed Roll width : 750 mm. Compressed air : 5 kg/ cm2 ,non-oil air 120NL/min (sup...
