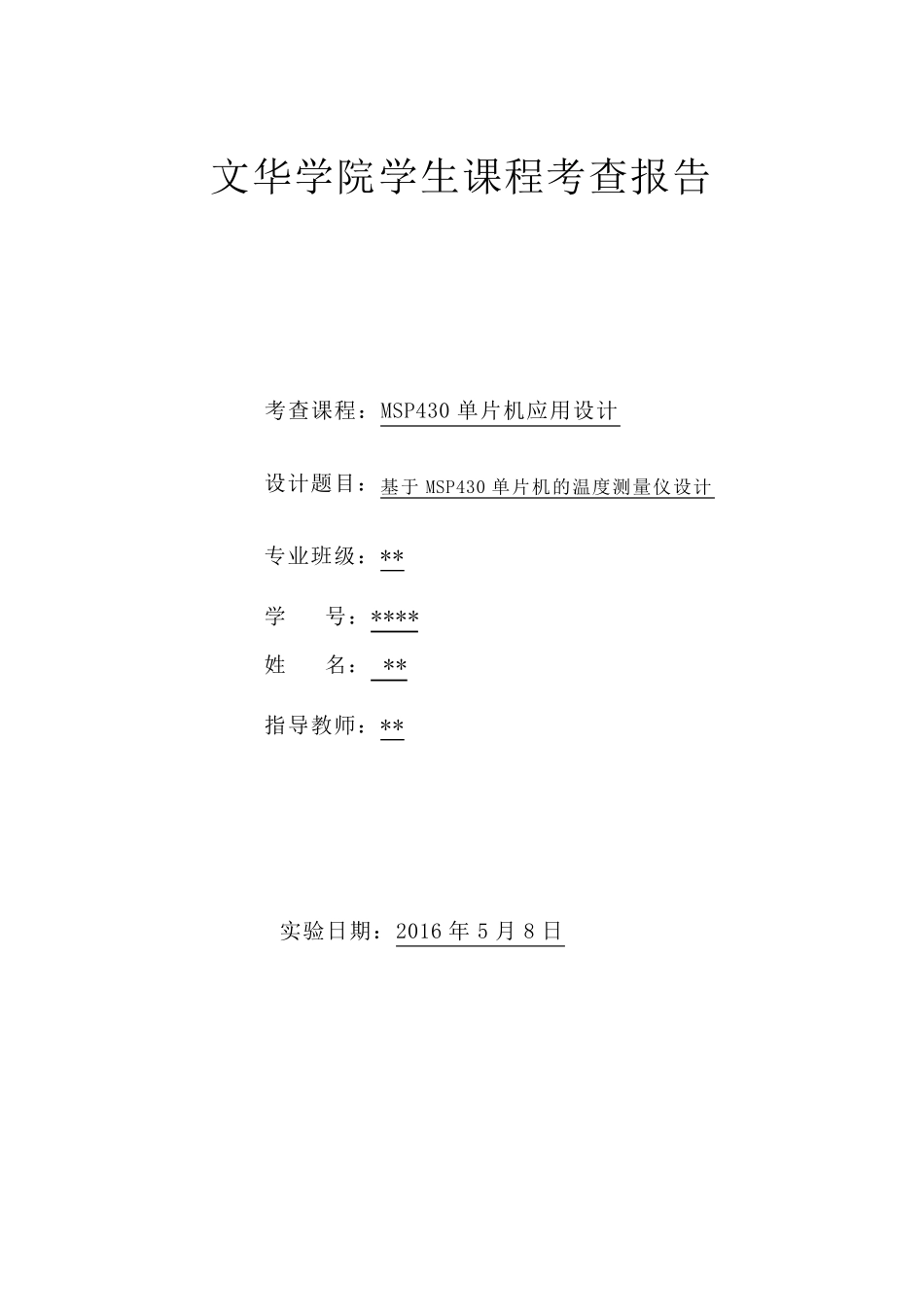

文华学院学生课程考查报告 考查课程:MSP430 单片机应用设计 设计题目:基于MSP430 单片机的温度测量仪设计 专业班级:** 学 号:**** 姓 名: ** 指导教师:** 实验日期:2016 年 5 月 8 日 基于MSP430单片机的温度测量仪设计 文华学院 摘要 MSP430 单片机是德州公司最新开发的具有16 位总线带FLASH 的单片机,由于它的性价比和集成度高,受到广大技术开发人员的青睐。它的可靠性能比较好,加强电干扰运行不受影响,适应工业级的运行环境,在各种行业中都占有重要的位置,越来越多的领域应用到以单片机为控制核心,用液晶显示作为显示终端的数字化控制设备,通过单片机对被控制对象进行智能控制。 MSP430 单片机将会在工程技术应用中得到广泛的应用。而且,它是通向 DSP系列的桥梁,随着自动控制的低功耗化和高速化,MSP430 系列单片机将会得到越来越多人的喜爱。 通过这次毕业设计,我对 MSP430 单片机有了完整的了解,并且着重了解了MSP430F149 芯片的原理图以及它的工作原理,对内部的硬件资源和自身的汇编语 法 进行了实 验 ,把 它和DS18B20 温度传 感 器 联 系在一 起 实 现 了温度的测量以及报 警 。 关 键 词 : MSP430; 超 低功耗; 单片机; DS18B20 Abstract Texas MSP430 microcontroller is the latest development of a 16-bit bus with FLASH MCU, due to its cost-effective and highly integrated, by the majority of technology developers of all ages. Its reliability is better, enhancing electrical interference unaffected, adapt industrial-grade operating environment, in a variety of industry occupies an important position in both, applied to more and more areas to microcontroller core, with LCD as a digital control display terminal equipment, through the controlled object MCU intelligent control. MSP430 microcontroller applications engineering technology will be widely used. And, it is a bridge leading DSP family, with automatic control, low power consumption and high speed, MSP430 MCU will get more and more people's favorite. Through this graduation project, I have a c...
