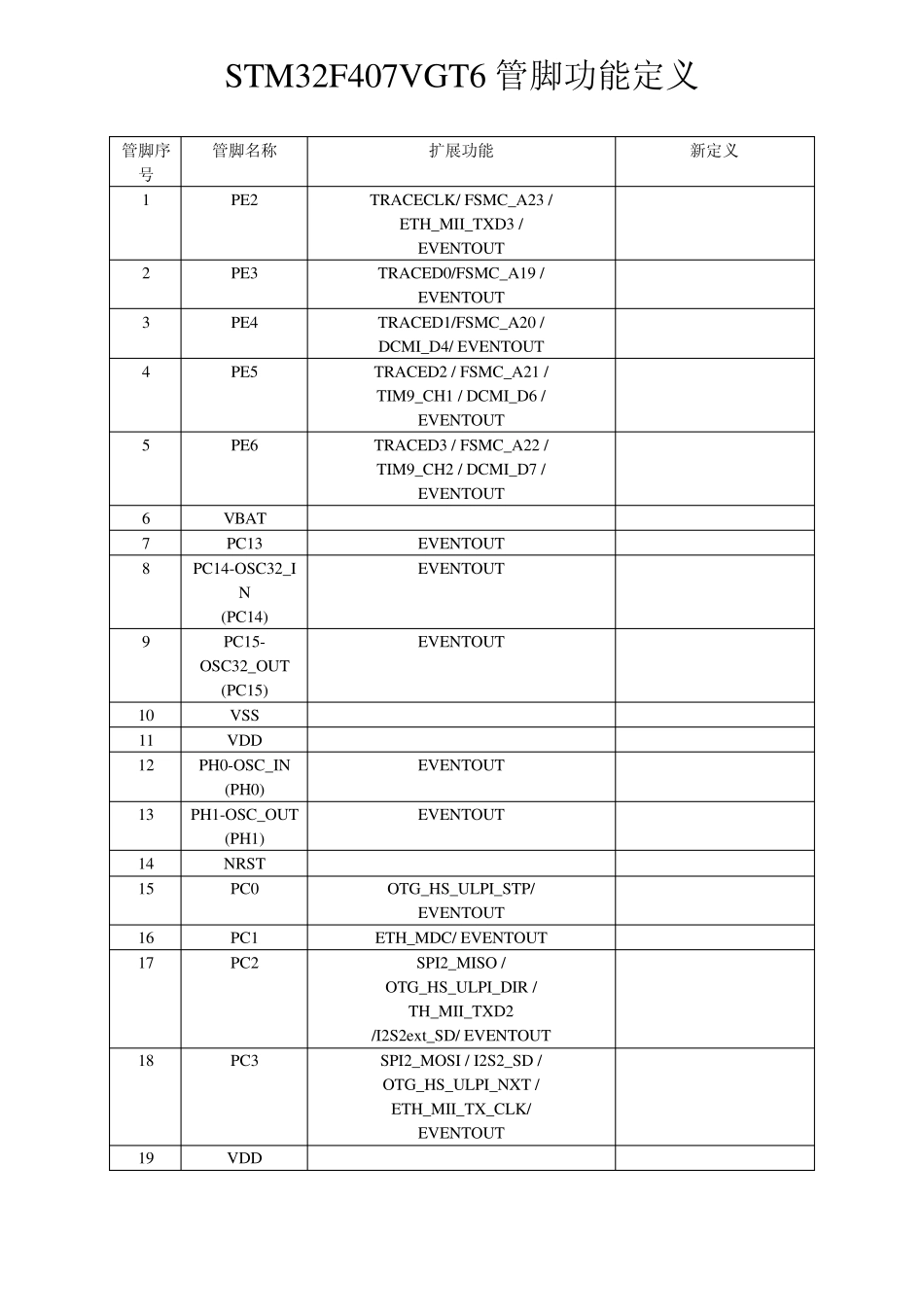

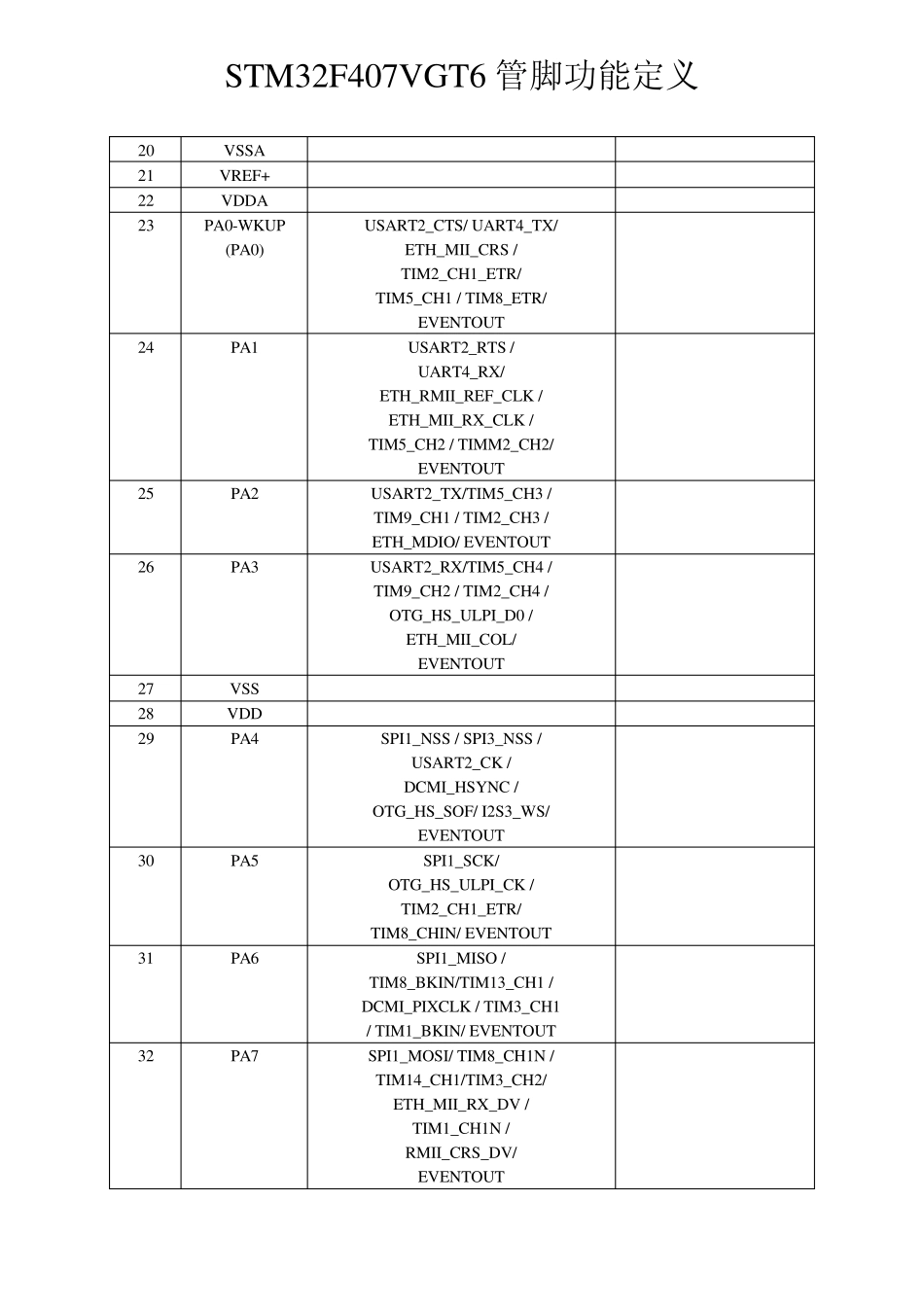

STM32F407VGT6 管脚功能定义 管脚序号 管脚名称 扩展功能 新定义 1 PE2 TRACECLK/ FSMC_A23 / ETH_MII_TXD3 / EVENTOUT 2 PE3 TRACED0/FSMC_A19 / EVENTOUT 3 PE4 TRACED1/FSMC_A20 / DCMI_D4/ EVENTOUT 4 PE5 TRACED2 / FSMC_A21 / TIM9_CH1 / DCMI_D6 / EVENTOUT 5 PE6 TRACED3 / FSMC_A22 / TIM9_CH2 / DCMI_D7 / EVENTOUT 6 VBAT 7 PC13 EVENTOUT 8 PC14-OSC32_IN (PC14) EVENTOUT 9 PC15- OSC32_OUT (PC15) EVENTOUT 10 VSS 11 VDD 12 PH0-OSC_IN (PH0) EVENTOUT 13 PH1-OSC_OUT (PH1) EVENTOUT 14 NRST 15 PC0 OTG_HS_ULPI_STP/ EVENTOUT 16 PC1 ETH_MDC/ EVENTOUT 17 PC2 SPI2_MISO / OTG_HS_ULPI_DIR / TH_MII_TXD2 /I2S2ex t_SD/ EVENTOUT 18 PC3 SPI2_MOSI / I2S2_SD / OTG_HS_ULPI_NXT / ETH_MII_TX_CLK/ EVENTOUT 19 VDD STM32F407VGT6 管脚功能定义 20 VSSA 21 VREF+ 22 VDDA 23 PA0-WKUP (PA0) USART2_CTS/ UART4_TX/ ETH_MII_CRS / TIM2_CH1_ETR/ TIM5_CH1 / TIM8_ETR/ EVENTOUT 24 PA1 USART2_RTS / UART4_RX/ ETH_RMII_REF_CLK / ETH_MII_RX_CLK / TIM5_CH2 / TIMM2_CH2/ EVENTOUT 25 PA2 USART2_TX/TIM5_CH3 / TIM9_CH1 / TIM2_CH3 / ETH_MDIO/ EVENTOUT 26 PA3 USART2_RX/TIM5_CH4 / TIM9_CH2 / TIM2_CH4 / OTG_HS_ULPI_D0 / ETH_MII_COL/ EVENTOUT 27 VSS 28 VDD 29 PA4 SPI1_NSS / SPI3_NSS / USART2_CK / DCMI_HSYNC / OTG_HS_SOF/ I2S3_WS/ EVENTOUT 30 PA5 SPI1_SCK/ OTG_HS_ULPI_CK / TIM2_CH1_ETR/ TIM8_CHIN/ EVENTOUT 31 PA6 SPI1_MISO / TIM8_BKIN/TIM13_CH1 / DCMI_PIXCLK / TIM3_CH1 / TIM1_BKIN/ EVENTOUT 32 PA7 SPI1_MOSI/ TIM8_CH1N / TIM14_CH1/TIM3_CH2/ ETH_MII_RX_DV / TIM1_CH1N / RMII_CRS_DV/ EVENTOUT STM32F407VGT6 管脚功能定义 33 PC4 ETH_RMII_RX_D0 / ETH_MII_RX_D0/ EVENTOUT 34 PC5 ETH_RMII_RX_D1 / ETH_MII_RX_D1/ EVENTOUT 35 PB0 TIM3_CH3 / TIM8_CH2N/ OTG_HS_ULPI_D1/ ETH_MII_RXD2 / TIM1_CH2N/ EVENTOUT 36 PB1 TIM3_CH4 / TIM8_CH3N/ OTG_HS_ULPI_D2/ ETH_MII_RXD3 / OTG_HS_INTN / TIM1_CH3N/ EVENTOUT 37 PB2-BOOT1 (...
