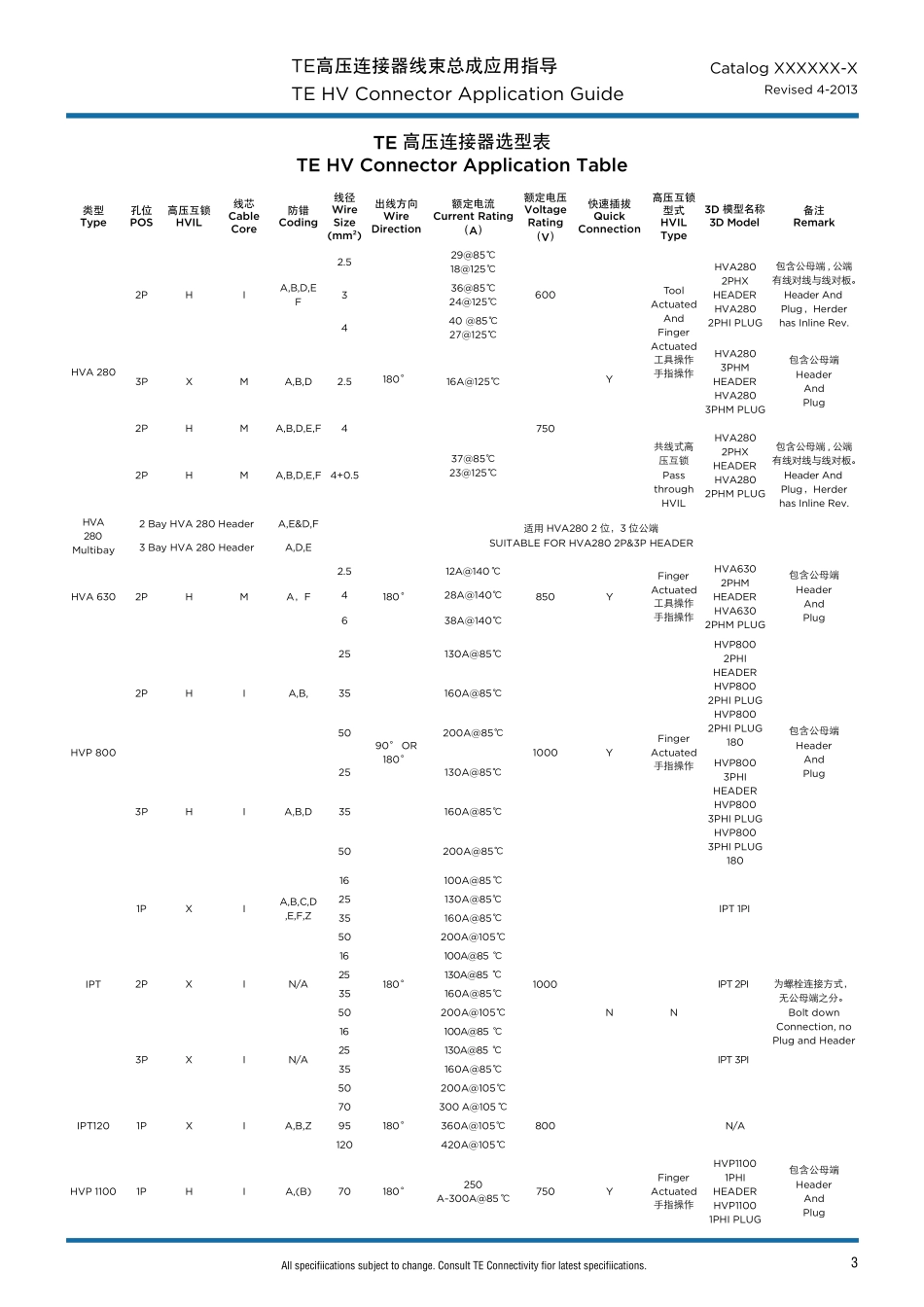

TE高压连接器线束总成应用指导TE HV Connector Application Gu idelineTE高压连接器线束总成应用指导TE HV Connector Application GuideCatalog XXXXXX-XRevised 4-2013All specifications subject to change. Consult TE Connectivity for latest specifications.2高压连接器线束总成根据设备的额定电流和最高工作电压进行选型。直流设备可选用一个2位或两个1位连接器，交流设备可选用一个3位或三个1位连接器。选型结果可以以“类型-孔位/高压互锁/线束-公端(母端)-Coding-线径-线长”的描述方式，即可从TE订购样品，如出线方向有90°和180°区分可在描述后面做备注。例如：“HVP800 2PHI-Plug-A-35mm²-500mm（180°）”。（TE高压连接器选型表说明：孔位：代表孔位的数量是2P 或者3P；高压互锁：H代表有高压互锁功能，X代表没有高压互锁功能；线束：I代表单芯线，M代表多芯线。）The Selection of TE's High Voltage (refer to as HV) connectors is based on the rated current and voltage of the applicable devices. For example, one 2-way connector or two 1-way connectors can be selected for Direct-Current (DC) devices; while one 3-Way connector or three 1-Way connectors for Alternative-Current (AC) devices. The customer order requirements can be described in the form as "Type-POS/HVIL/Cable Core-Plug(Header)-Coding-Wire Size-Wire Length", and if wire direction (90° and 180°) needs to be defined, it can be remarked such as: "HVP800-2PHI-Plug-A-35mm²-500mm（180°）". (TE HV Connector Application Table introduction: Pin, indicates number of positions 2P or 3P; HVIL, H indicates HVIL function, X indicates no HVIL function; Wire Core, I indicates individual core wire, M indicate multicore wire.TE高压连接器线束总成应用指导TE HV Connector Application GuideCatalog XXXXXX-XRevised 4-20133All specifications subject to change. Consult TE Connectivity for latest specifications.TE 高压连接器选型表 TE HV Connector Application Table类型Type孔位POS高压互锁HVIL线芯Cable Core防错Coding...
