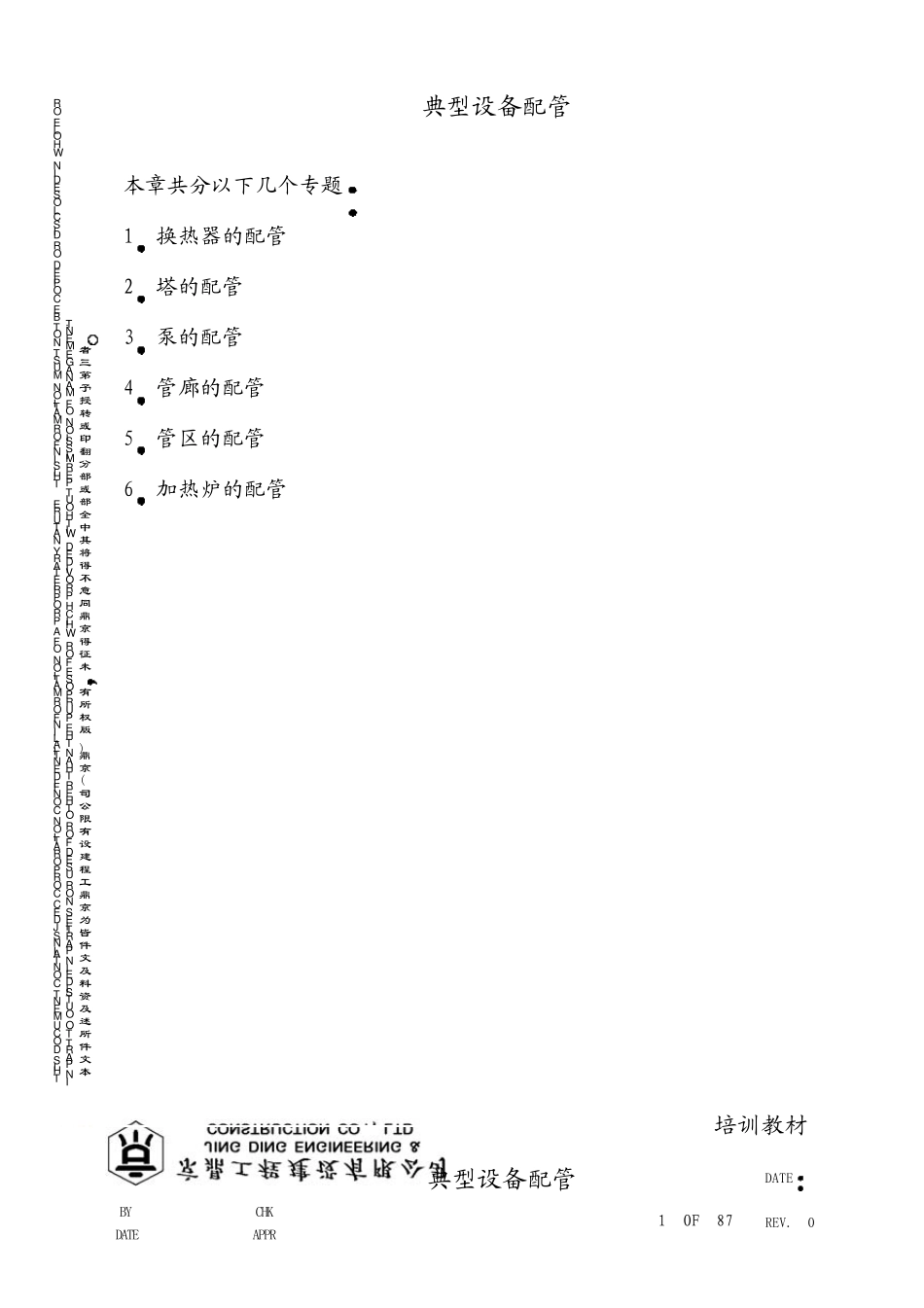

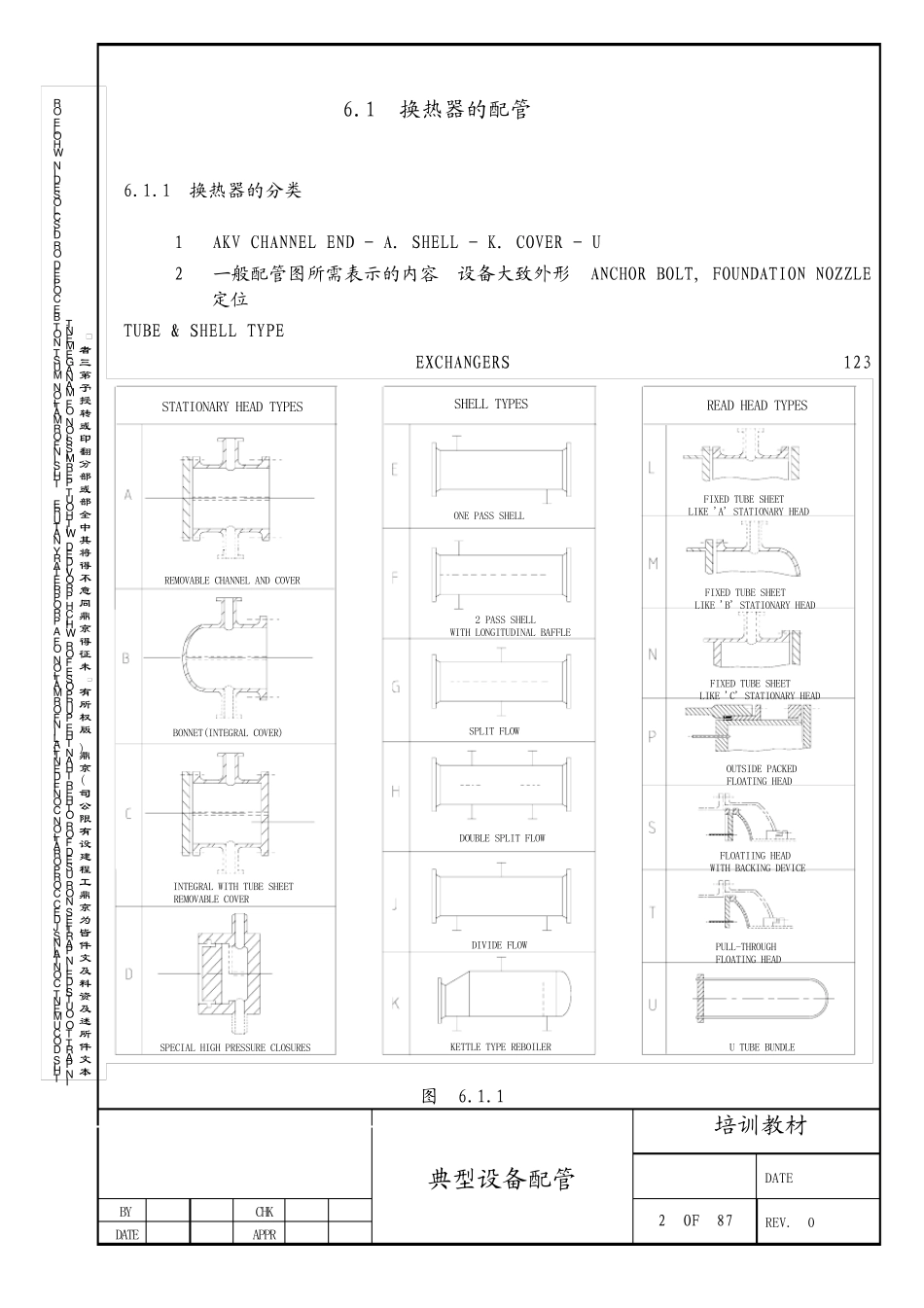

THIS DOCUMENT CONTAINS JDEC CORPORATION CONFIDENTIAL INFORMATION OF A PROPRIETARY NATURE. THIS INFORMATION MUST NOT BE COPIED OR DISCLOSED IN WHOLE ORIN PART TO OUTSIDE IN PARTIES NOR USED FOR OTHER THAN THE PURPOSE FOR WHICH PROVIDED WITHOUT PERMISSION OF MANAGEMENT. 本文件所述及资料及文件皆为京鼎工程建设有限公司 (京鼎) 版权所有未征得京鼎同意不得将其中全部或部分翻印或转授予第三者 培训教材 DATE BY CHK DATE APPR 典型设备配管 1 OF 87 REV. 0 典型设备配管 本章共分以下几个专题 1换热器的配管 2塔的配管 3泵的配管 4管廊的配管 5管区的配管 6加热炉的配管 THIS DOCUMENT CONTAINS JDEC CORPORATION CONFIDENTIAL INFORMATION OF A PROPRIETARY NATURE. THIS INFORMATION MUST NOT BE COPIED OR DISCLOSED IN WHOLE ORIN PART TO OUTSIDE IN PARTIES NOR USED FOR OTHER THAN THE PURPOSE FOR WHICH PROVIDED WITHOUT PERMISSION OF MANAGEMENT. 本文件所述及资料及文件皆为京鼎工程建设有限公司 (京鼎) 版权所有未征得京鼎同意不得将其中全部或部分翻印或转授予第三者 培训教材 DATE BY CHK DATE APPR 典型设备配管 2 OF 87 REV. 0 6.1 换热器的配管 6.1.1 换热器的分类 1 AKV CHANNEL END - A. SHELL - K. COVER - U 2 一般配管图所需表示的内容设备大致外形ANCHOR BOLT, FOUNDATION NOZZLE定位 TUBE & SHELL TYPE EXCHANGERS 123 图 6.1.1 REMOVABLE CHANNEL AND COVERBONNET(INTEGRAL COVER)INTEGRAL WITH TUBE SHEET REMOVABLE COVERSPECIAL HIGH PRESSURE CLOSURESONE PASS SHELL 2 PASS SHELLWITH LONGITUDINAL BAFFLESPLIT FLOWDOUBLE SPLIT FLOWDIVIDE FLOWKETTLE TYPE REBOILER FIXED TUBE SHEETLIKE 'A' STATIONARY HEAD FIXED TUBE SHEETLIKE 'B' STATIONARY HEAD FIXED TUBE SHEETLIKE 'C' STATIONARY HEADOUTSIDE PACKEDFLOATING HEAD FLOATIING HEADWITH BACKING DEVICEPULL-THROUGHFLOATING HEADU TUBE BUNDLESTATIONARY HEAD TYPESSHELL TYPESREAD HEAD TYPESTHIS DOCUMENT CONTAINS JDEC CORPORATION CONFIDENTIAL INFORMATION OF A PROPRIETARY NATURE. THIS ...
