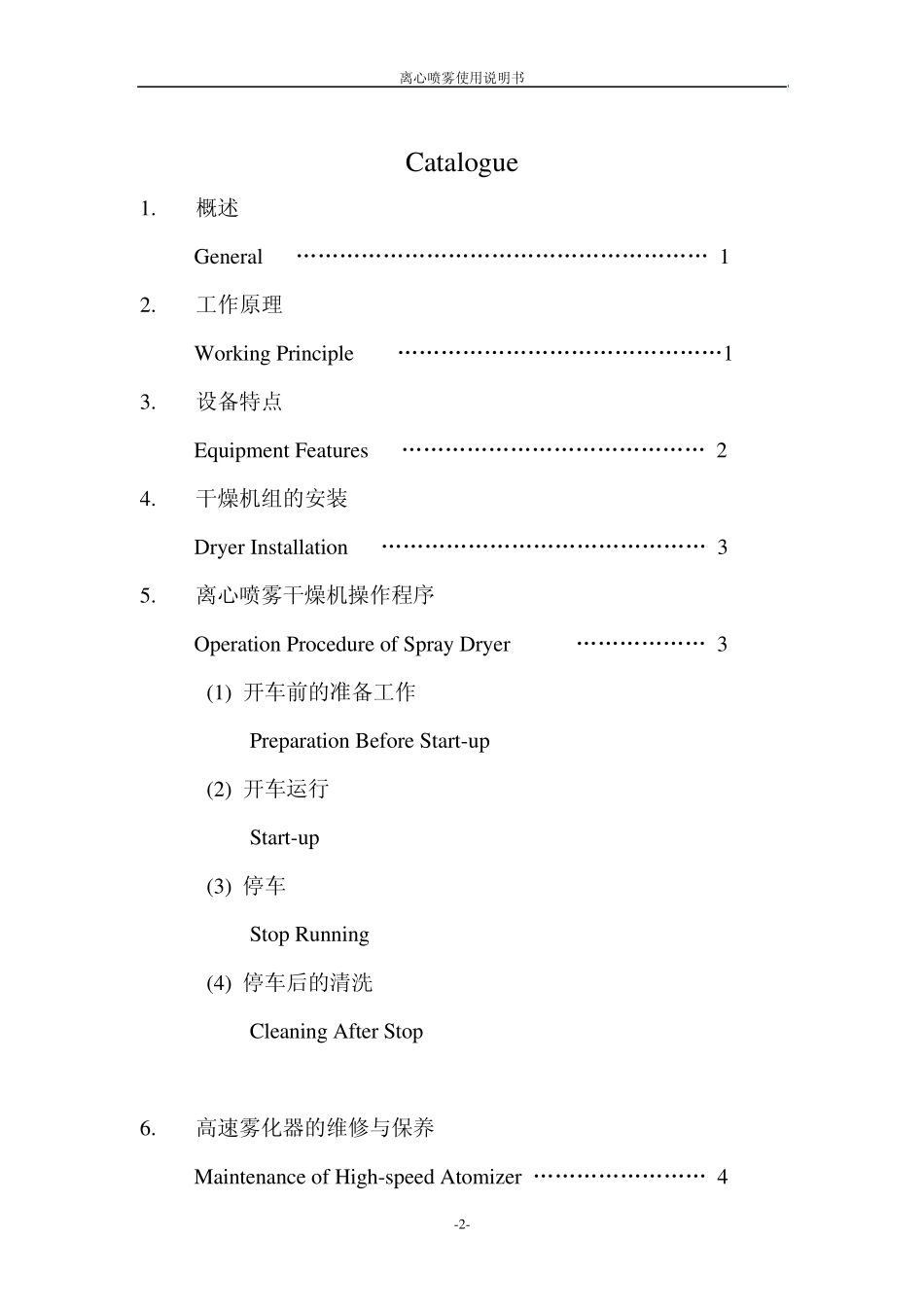

离心喷雾使用说明书 -1- LPG- 喷雾干燥机 Spray Dryer 使用说明书 Operation instru ction People’s Republic of China 目 录 离心喷雾使用说明书 -2- Catalogue 1. 概述 General ………………………………………………… 1 2. 工作原理 Working Principle ………………………………………1 3. 设备特点 Equipment Features …………………………………… 2 4. 干燥机组的安装 Dryer Installation ……………………………………… 3 5. 离心喷雾干燥机操作程序 Operation Procedure of Spray Dryer ……………… 3 (1) 开车前的准备工作 Preparation Before Start-up (2) 开车运行 Start-up (3) 停车 Stop Running (4) 停车后的清洗 Cleaning After Stop 6. 高速雾化器的维修与保养 Maintenance of High-speed Atomizer …………………… 4 离心喷雾使用说明书 -3- 7. 故障分析与排除 Fail Analysis and Repair …………………………… 6 8. 安全生产 Safety Operation ……………………………………… 7 9. 离心喷雾自控系统 Auto-control System of Centrifugal Spray ……………8 10. 喷雾干燥塔中主要易损件 Main Wearing Part of Spray Drying Tower …………9 附：电气原理图； Attachment: Electrical Principle Dwg. 1. 概述 General LPG 型高速离心喷雾干燥机，主要用于使稀溶液、乳浊液、悬浮离心喷雾使用说明书 -4- 液、浆状物料、熔融液及中药浸膏等物料喷雾干燥成干粉。具有速度快、效率高、工序少等优点。对热敏性物料可保持其色、香、味。干粉溶解性好，纯度高，该型喷雾干燥机可广泛用于塑料、染料、轻工业、化肥、食品、医药，特别是热敏性物料，如牛奶、药物、染料等工业领域广泛使用。 LPG High-speed Centrifugal Spray Dryer mainly used for the drying of materials such as weak solution, emulsion, suspending liquid, slurry, melt-water, Chinese herbal extract etc. to dry powder. It has advantages of high speed and efficiency as well as less process. For thermal sensitive material, it can keep its color, scent and taste. Dry powder has good solubility and high purity. This kind of dryer has ...
