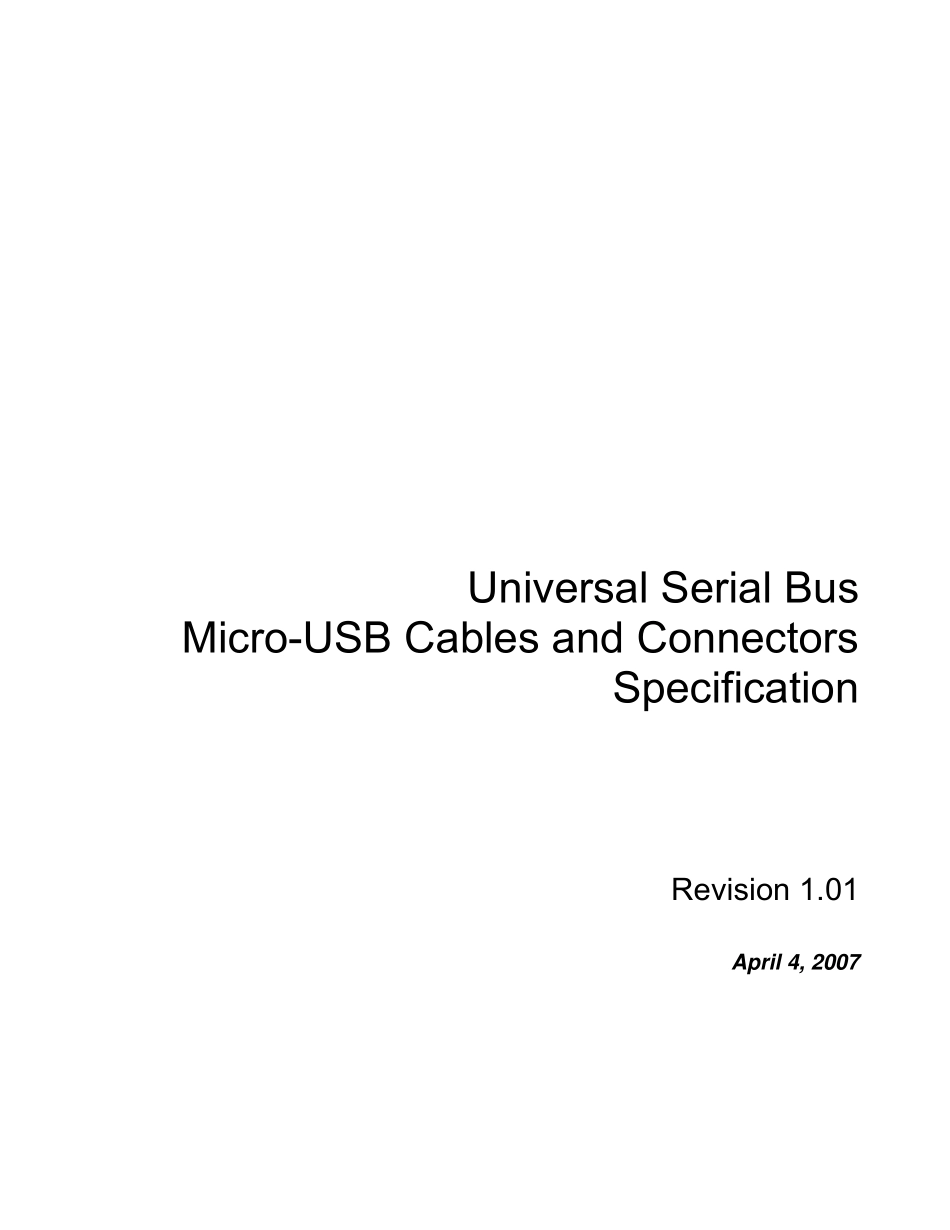

Universal Serial Bus Micro-USB Cables and Connectors Specification Revision 1.01 April 4, 2007 MicroUSB Specification to the USB 2.0 Specification, Revision 1.01 April 4, 2007 2 Revision History Revision Issue Date Comment 0.6 1/30/2006 Revisions to all sections 0.7 3/24/2006 Added revised Micro-USB drawings to Rev.0.8 0.8 4/19/2006 Editorial changes and additions by Jan Fahllund (Nokia) 0.8b 4/26/2006 Corrections to the 0.8 version (based by comments from contributors) 0.9 6/7/2006 Corrections based on comments from the 0.8b version 1.0RC 8/2/2006 Added lubricant recommendation, LLRC delta change specified 1.01RC 11/10/2006 Editorial changes and addition based on Oct-06 USB-IF CCWG meeting. 1.02RC 12/10/2006 Shell material thickness tolerances changed so that material can be 0.25 mm or 0.3 mm; edited three pictures (Figure 4-10, 4-11 and 4-12). 1.03RC 12/11/2006 Two pictures edited (Figure 4-8 and 4-9). In fig 4-8 max height to be 2.8mm MAX. In fig 4-9 R0.25mm MAX to be R0.30mm MAX. 1.0RC3 12/19/2006 For BoD approval 1.0 1/12/2007 Approved 1.0 1/22/2007 Cosmetic edits for publication 1.01 4/4/2007 Editorial corrections and additions to contributor list. Reinserted shell and plug material requirements as section 6.10. Clarified wording on Plating Recommendations. Copyright © 2007 USB Implementers Forum, Inc. (USB-IF). All rights reserved. A LICENSE IS HEREBY GRANTED TO REPRODUCE THIS SPECIFICATION FOR INTERNAL USE ONLY. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, IS GRANTED OR INTENDED HEREBY. USB-IF AND THE AUTHORS OF THIS SPECIFICATION EXPRESSLY DISCLAIM ALL LIABILITY FOR INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS, RELATING TO IMPLEMENTATION OF INFORMATION IN THIS SPECIFICATION. USB-IF AND...
