大华桥水利枢纽初步设计混凝土重力坝方案模板

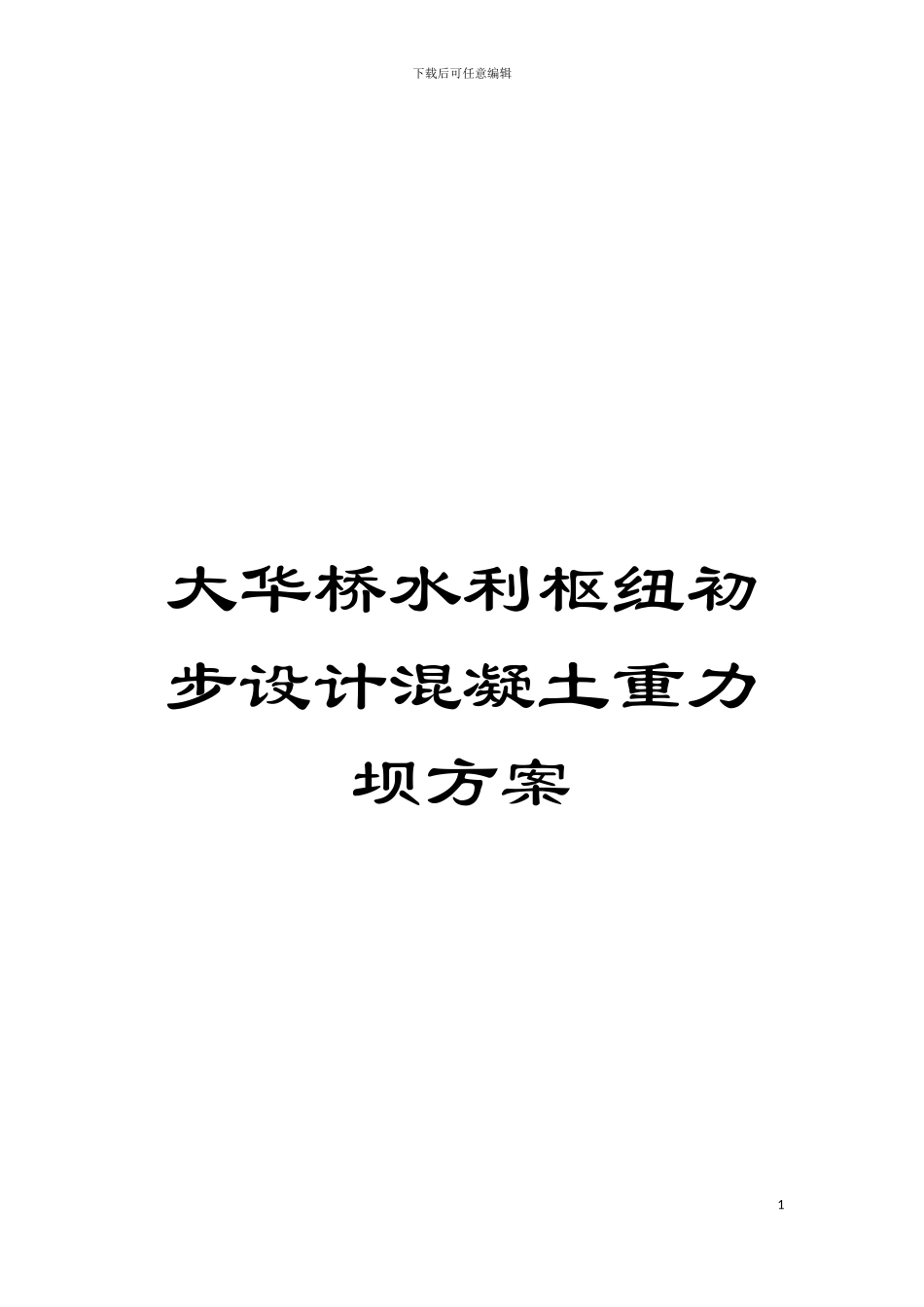

大华桥水利枢纽初步设计混凝土重力坝方案模板_第1页
1/172
大华桥水利枢纽初步设计混凝土重力坝方案模板_第2页
2/172

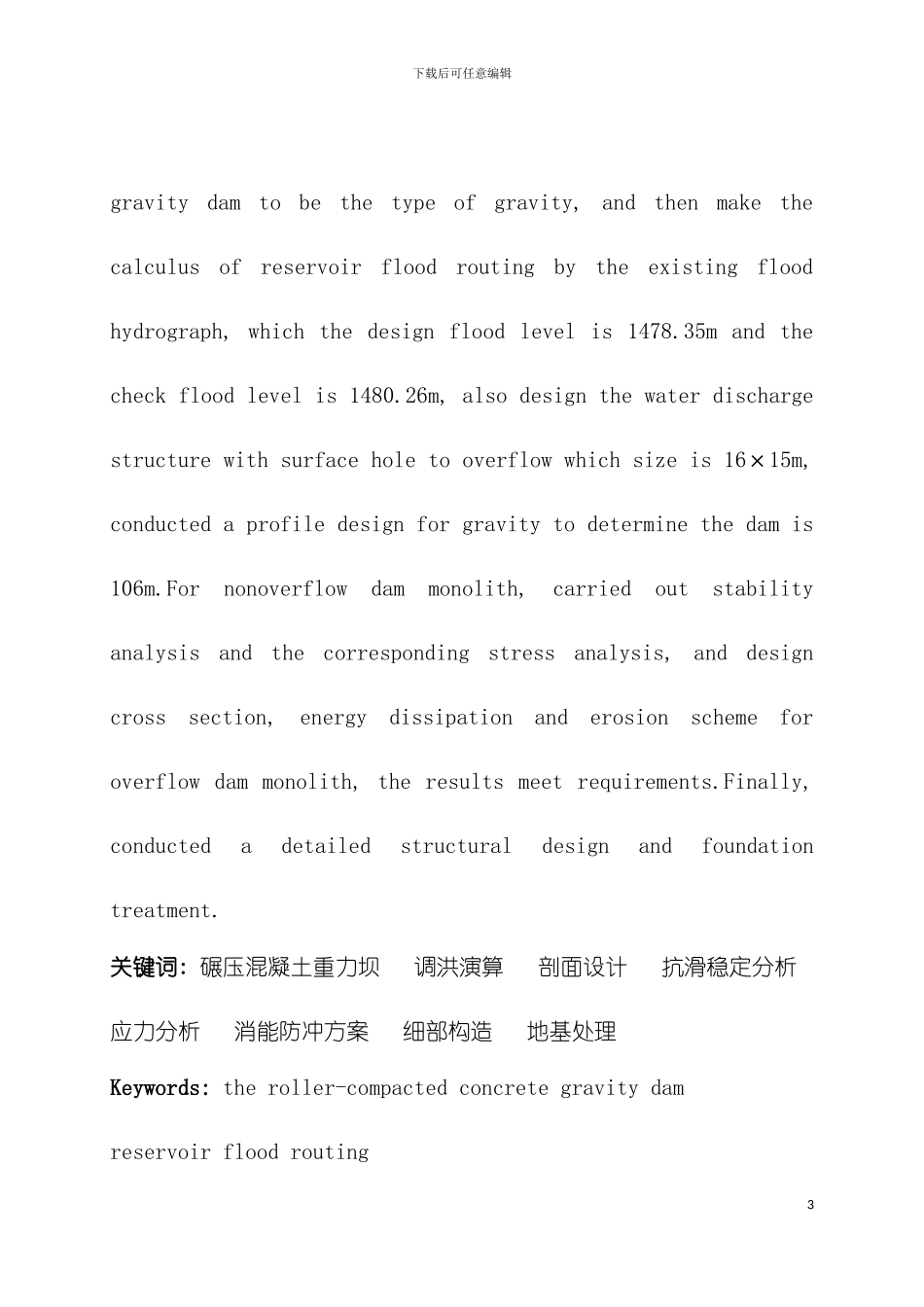

大华桥水利枢纽初步设计混凝土重力坝方案模板_第3页
3/172
下载后可任意编辑大华桥水利枢纽初步设计混凝土重力坝方案1下载后可任意编辑大华桥水利枢纽工程设计-混凝土重力坝方案设计摘要: 大华桥混凝土重力坝位于澜沧江干流上游云南省怒江州兰坪县兔峨乡境内, 是澜沧江上游河段梯级开发的第六级。工程以发电为主要任务。在设计中, 首先根据给定的地质和水文气象资料, 进行了重力坝坝型的选择, 选定了混凝土重力坝。然后由已有的洪水过程线, 进行了调洪演算, 得到设计洪水位为 1478.35m,校核洪水位为 1480.26m。再对重力坝进行剖面设计, 确定坝高为 106m, 采纳 16×15m 表孔溢流, 对非溢流坝段进行抗滑稳定分析和相应的应力分析,以及对溢流坝段进行了体形和消能防冲方案设计, 结果均满足要求。最后进行了细部构造设计和地基处理。Abstract: Dahuaqiao hydropower station is the sixth grade of Recommended cascade development scheme. This project mainly for power generation,.The design of this project is based on the data of geological and hydrological and meteorological which is given, first select the roller-compacted concrete 2下载后可任意编辑gravity dam to be the type of gravity, and then make the calculus of reservoir flood routing by the existing flood hydrograph, which the design flood level is 1478.35m and the check flood level is 1480.26m, also design the water discharge structure with surface hole to overflow which size is 16×15m, conducted a profile design for gravity to determine the dam is 106m.For nonoverflow dam monolith, carried out stability analysis and the corresponding stress analysis, and design cross section, energy dissipation and erosion scheme for overflow dam monolith, the results meet requirements.Finally, conducted a detailed structural design and foundation treatment.关键词: 碾压混凝土重力坝 调洪演算 剖面设计 抗滑稳定分析 应力分析 消能防冲方案 细部构造 地基处理Keywords: the roller-compacted concrete gravity dam reservoir flood routing3下载后可任意编辑profile design stability analys...
