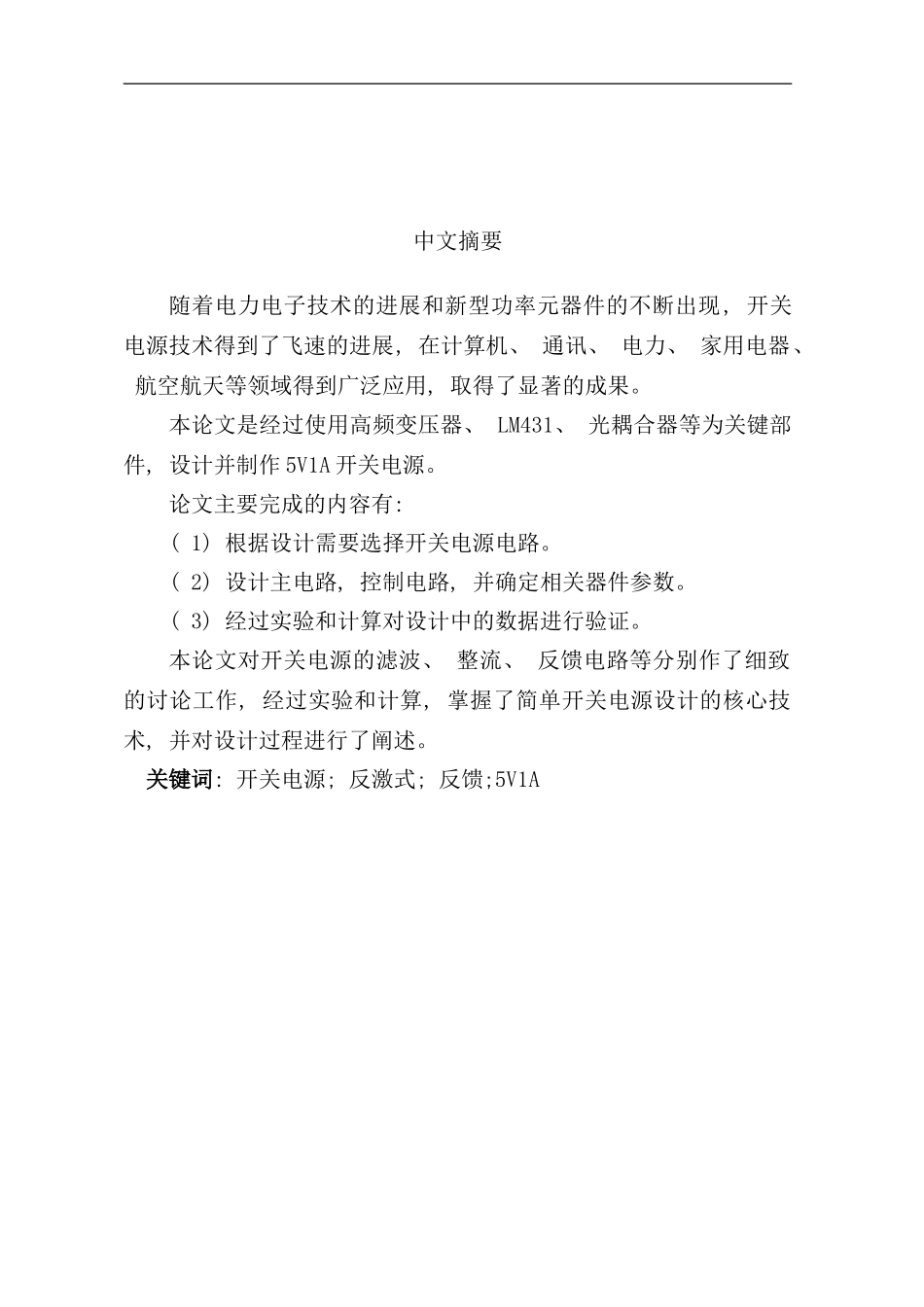

编号 学士学位论文小功率 AC-DC 变换器设计与实现 学生姓名: XXX 学 号: 020 XXXX 系 部: 物理系 专 业: 电子信息科学与技术 年 级: 级 指导老师: XXXXX 完成日期: 年 5 月 6 日中文摘要随着电力电子技术的进展和新型功率元器件的不断出现, 开关电源技术得到了飞速的进展, 在计算机、 通讯、 电力、 家用电器、 航空航天等领域得到广泛应用, 取得了显著的成果。本论文是经过使用高频变压器、 LM431、 光耦合器等为关键部件, 设计并制作 5V1A 开关电源。论文主要完成的内容有: ( 1) 根据设计需要选择开关电源电路。( 2) 设计主电路, 控制电路, 并确定相关器件参数。( 3) 经过实验和计算对设计中的数据进行验证。本论文对开关电源的滤波、 整流、 反馈电路等分别作了细致的讨论工作, 经过实验和计算, 掌握了简单开关电源设计的核心技术, 并对设计过程进行了阐述。 关键词: 开关电源; 反激式; 反馈;5V1AAbstractWith the development of the electronic technology and the emerging of new power components, switching power supply has been widely used in computer, communications, electricity, home appliances and aerospace fields, achieving remarkable results. The present paper is through use power control chip design and production CR6850C 12V5A switch power supply. The main content of the papers are: (1)According to the design needs to choose switching power supply circuit; (2)Design main circuit, control circuit, the power factor correction circuit, and identify the device parameters; (3)Through experiment and computing to verify the data design; In the thesis, the switching power supply filtering, rectifier and the feedback circuit are studied in details. The main technology of designing switching power supply is obtained by experiments and calculations. The design process is specified also. Key words: SwitchPower Spply; Flyback ; feedback; 5V1A;下载后可任意编辑 目 录1 绪论...................................................21.1 开关电源的概念和...
