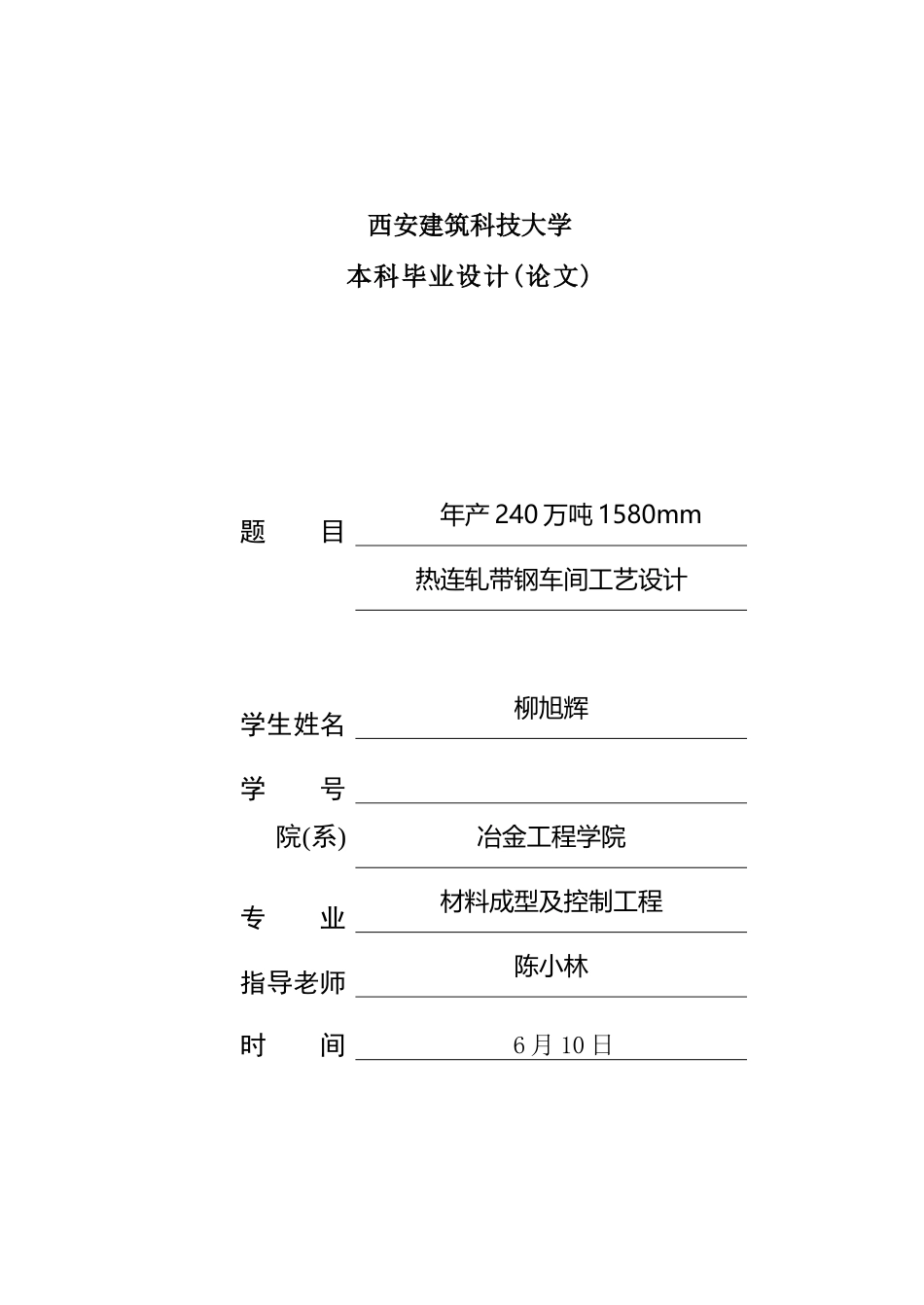

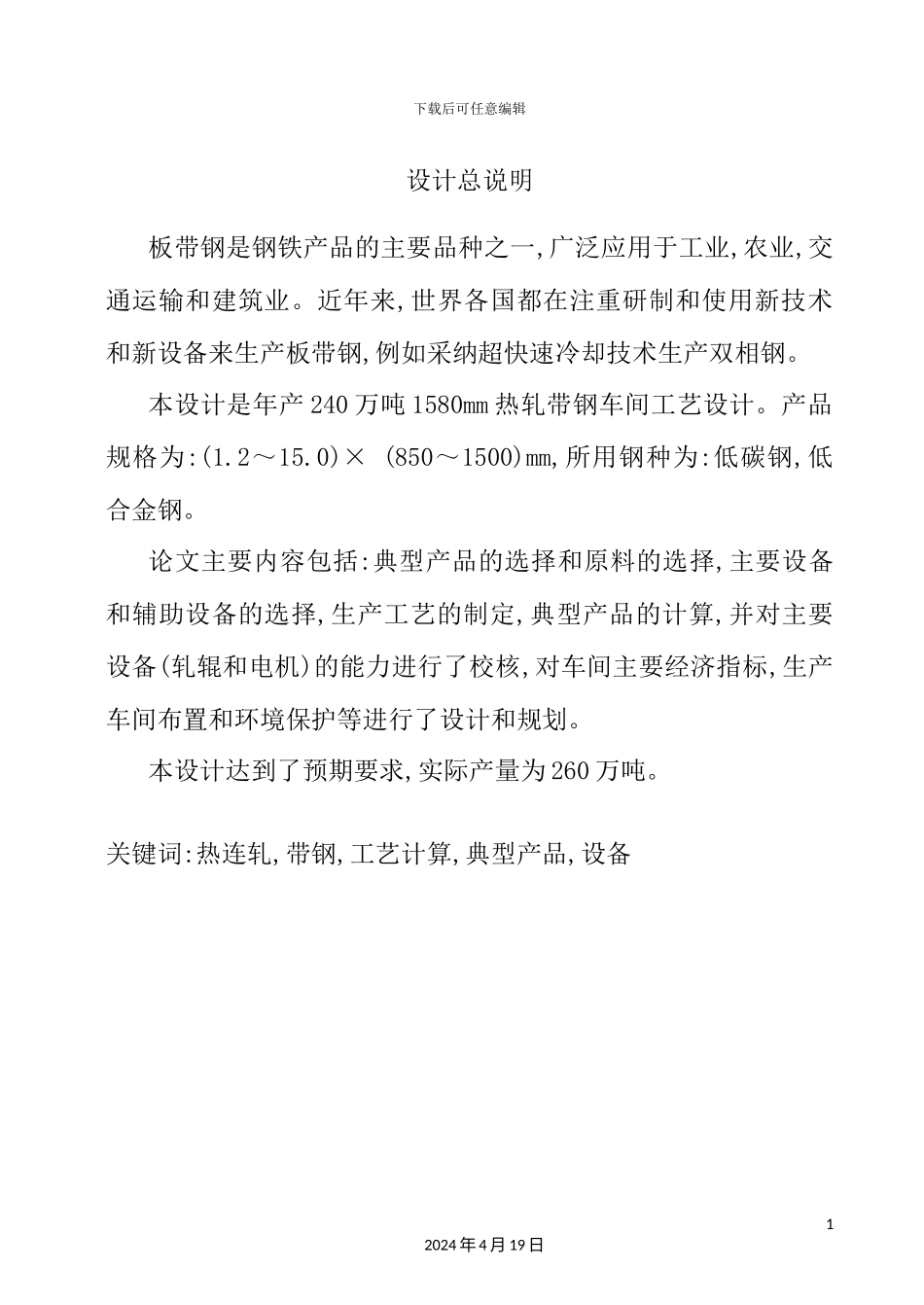

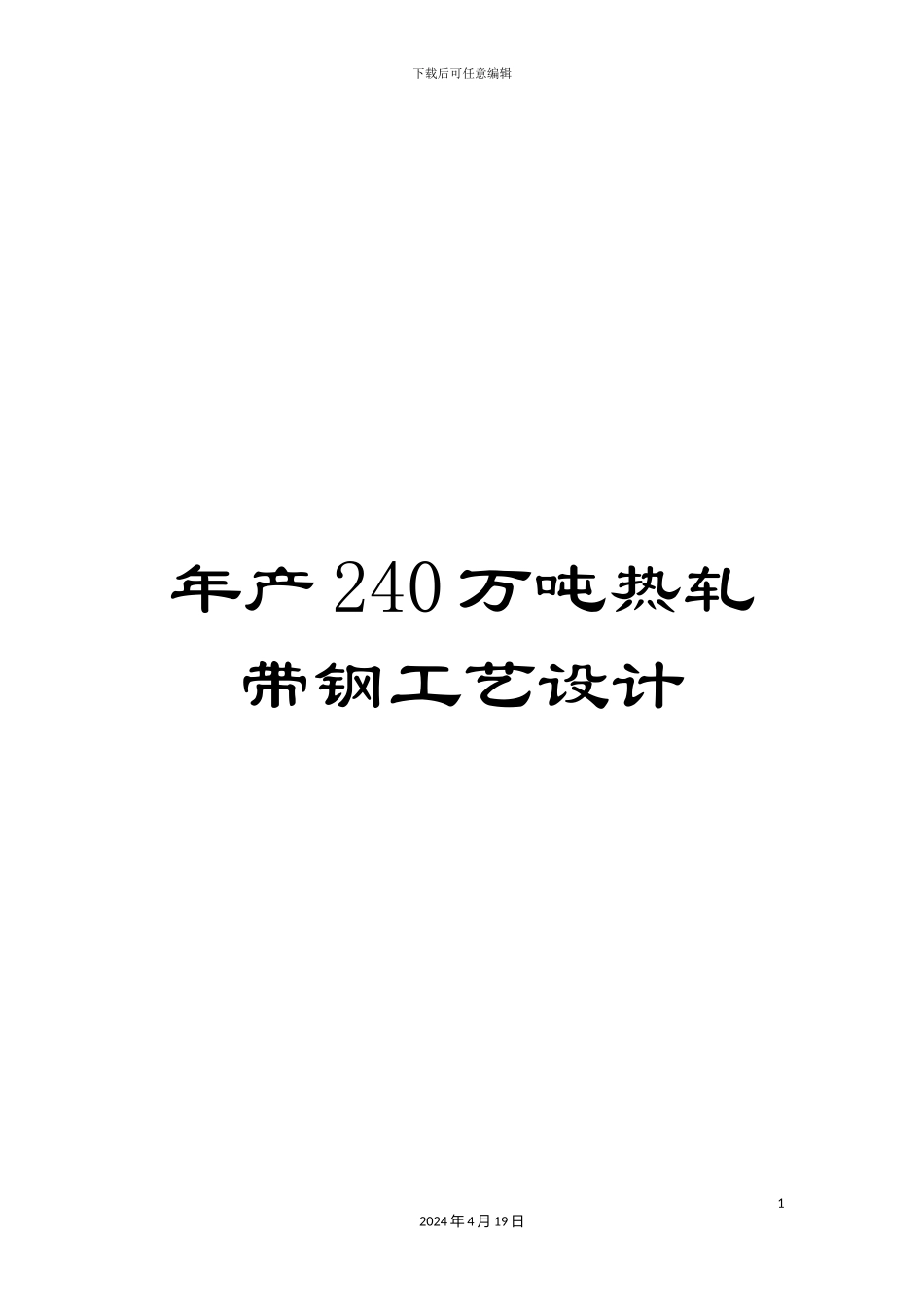

下载后可任意编辑年产 240 万吨热轧带钢工艺设计12024 年 4 月 19 日西安建筑科技大学本科毕业设计(论文)题 目年产 240 万吨 1580mm热连轧带钢车间工艺设计学生姓名柳旭辉 学 号院(系)冶金工程学院专 业材料成型及控制工程指导老师陈小林时 间 6 月 10 日下载后可任意编辑设计总说明板带钢是钢铁产品的主要品种之一,广泛应用于工业,农业,交通运输和建筑业。近年来,世界各国都在注重研制和使用新技术和新设备来生产板带钢,例如采纳超快速冷却技术生产双相钢。本设计是年产 240 万吨 1580mm 热轧带钢车间工艺设计。产品规格为:(1.2～15.0)× (850～1500)mm,所用钢种为:低碳钢,低合金钢。论文主要内容包括:典型产品的选择和原料的选择,主要设备和辅助设备的选择,生产工艺的制定,典型产品的计算,并对主要设备(轧辊和电机)的能力进行了校核,对车间主要经济指标,生产车间布置和环境保护等进行了设计和规划。本设计达到了预期要求,实际产量为 260 万吨。关键词:热连轧,带钢,工艺计算,典型产品,设备12024 年 4 月 19 日下载后可任意编辑22024 年 4 月 19 日下载后可任意编辑Design DescriptionStrip is one of steel and iron products. It plays an important role in the industry,agriculture,transportation and construction. In recent years, many new technologies and equipments, such as ultra-fast cooling are developed toproduce the duplex steel in the various countries.This design is the annual output of 2.4 million tons of sheet strip workshop process design. Its product specifications range from (1.2 ～ 15.0)×(850 ～ 1550)mm , which uses steels of carbon steel,low alloy steel.The thesis mainly includes the selection of tppical production and raw material ,the selection of subsidiary equipments and main equipments, formulation of production technology,technology calculation of the typical products,and check the capacity of main equipments (including rolling mills and the electric motors). Setting about the products design it plans exactly the main economic index of the workshop and its 32024...
