直流系统蓄电池充放电试验研究报告

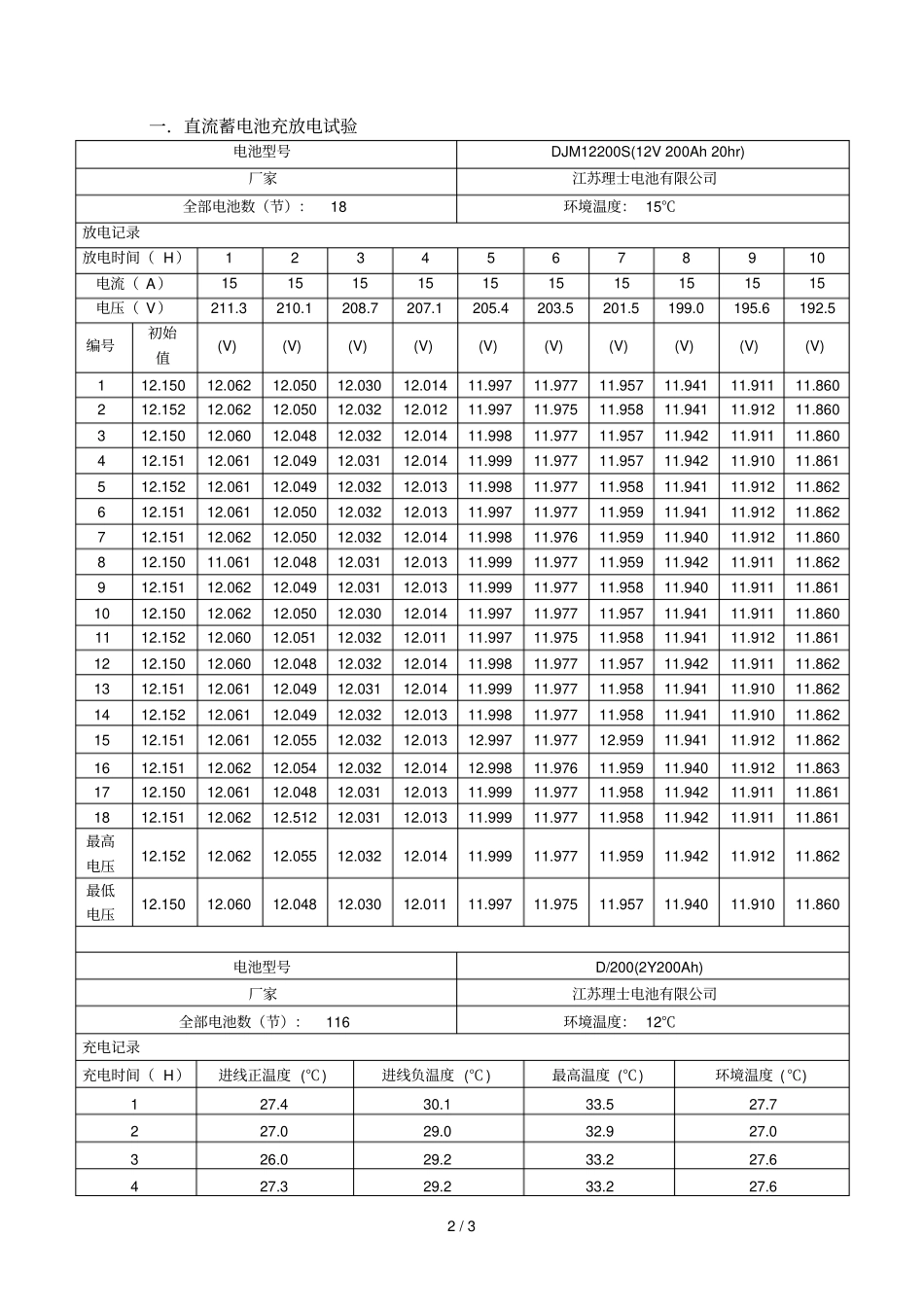

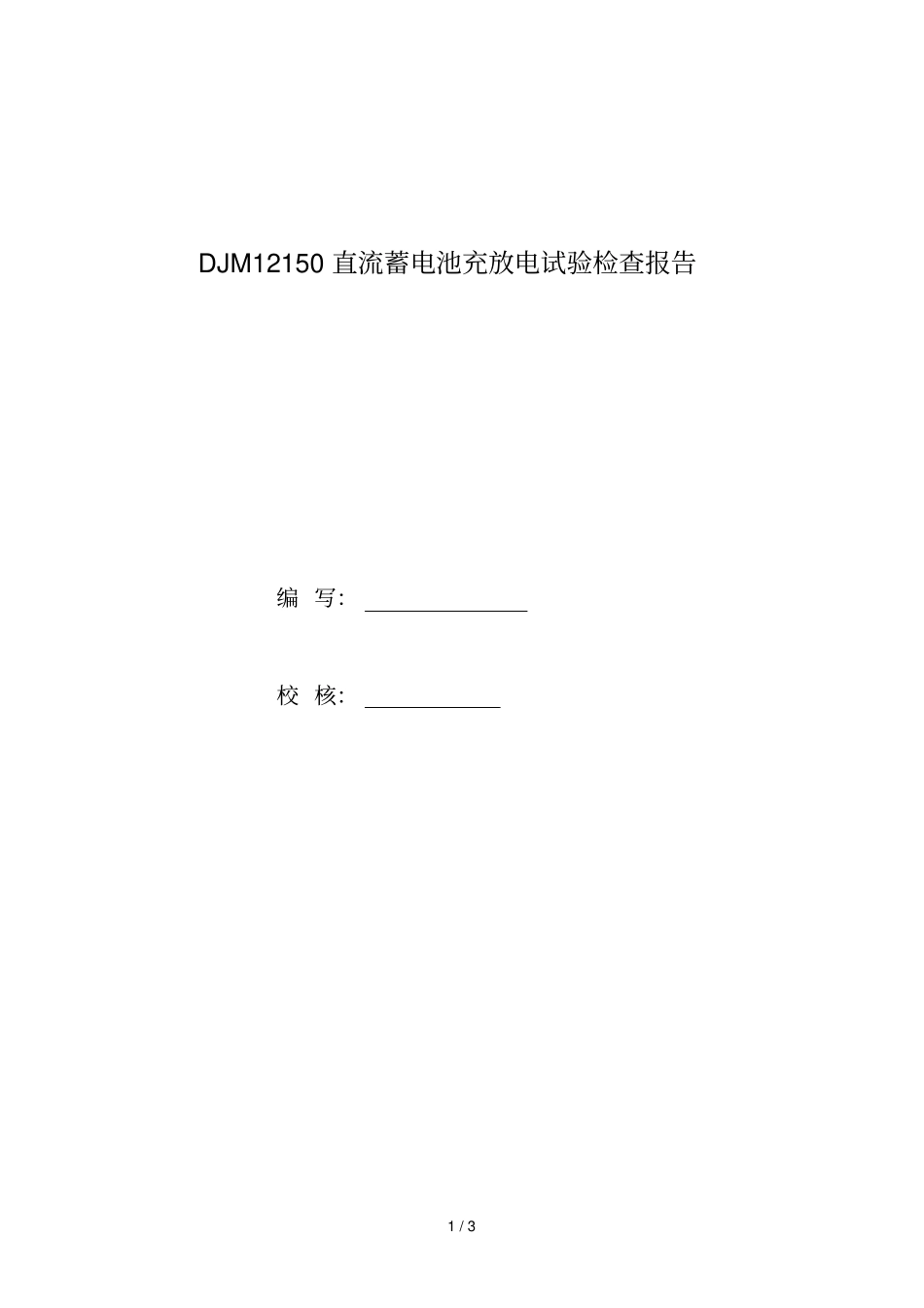

1 / 3 DJM12150 直流蓄电池充放电试验检查报告编 写：校 核：2 / 3 一．直流蓄电池充放电试验电池型号DJM12200S(12V 200Ah 20hr) 厂家江苏理士电池有限公司全部电池数（节）：18 环境温度： 15℃放电记录放电时间（ H）1 2 3 4 5 6 7 8 9 10 电流（ A）15 15 15 15 15 15 15 15 15 15 电压（ V）211.3 210.1 208.7 207.1 205.4 203.5 201.5 199.0 195.6 192.5 编号初始值(V) (V)(V)(V)(V)(V)(V)(V)(V)(V)1 12.150 12.062 12.050 12.030 12.014 11.997 11.977 11.957 11.941 11.911 11.860 2 12.152 12.062 12.050 12.032 12.012 11.997 11.975 11.958 11.941 11.912 11.860 3 12.150 12.060 12.048 12.032 12.014 11.998 11.977 11.957 11.942 11.911 11.860 4 12.151 12.061 12.049 12.031 12.014 11.999 11.977 11.957 11.942 11.910 11.861 5 12.152 12.061 12.049 12.032 12.013 11.998 11.977 11.958 11.941 11.912 11.862 6 12.151 12.061 12.050 12.032 12.013 11.997 11.977 11.959 11.941 11.912 11.862 7 12.151 12.062 12.050 12.032 12.014 11.998 11.976 11.959 11.940 11.912 11.860 8 12.150 11.061 12.048 12.031 12.013 11.999 11.977 11.959 11.942 11.911 11.862 9 12.151 12.062 12.049 12.031 12.013 11.999 11.977 11.958 11.940 11.911 11.861 10 12.150 12.062 12.050 12.030 12.014 11.997 11.977 11.957 11.941 11.911 11.860 11 12.152 12.060 12.051 12.032 12.011 11.997 11.975 11.958 11.941 11.912 11.861 12 12.150 12.060 12.048 12.032 12.014 11.998 11.977 11.957 11.942 11.911 11.862 13 12.151 12.061 12.049 12.031 12.014 11.999 11.977 11.958 11.941 11.910 11.862 14 12.152 12.061 12.049 12.032 12.013 11.998 11.977 11.958 11.941 11.910 11.862 15 12.151 12.061 12.055 12.032 12.013 12.997 11.977 12.959 11.941 11.912 11.862 16 12.151 12.062 12.054 12.032 12.014 12.998 11.976 11.959 11.940 11.912 11.863 17 12.150 12.061 12.048 12.031 12.013 11.999 11.977 11.958 11.942 11.911 11.861 18 12.151 12.062 12.512 12.031 12.013 11.999 11.977 11.958 11.942 11.911 11.861 最高电压12.152 12.062 12.055 12.032 12.014 11.999 11.977 11.959 11.942 11.912 11.862 最低电压12.150 12.060 12.048 12.030 12.011 11.997 11.975 11.957 11.940 11.910 11.860 电池型号D/200(2Y200Ah) 厂家江苏理士电池有限公司全部电池数（节）：116 环境温度： 12℃充电记录充电时间（ H）进线正温度 (℃)进线负温度 (℃ )最高温度 (℃)环境温度 (℃)1 27.4 30.1 33.5 27.7 2 27.0 29.0 32.9 27.0 3 26.0 29.2 33.2 27.6 4 27.3 29.2 33.2 27.6 3 / 3 5 26.9 29.8 33.1 26.3 6 25.6 29.6 32.1 26.8 7 26.9 29.5 32.3 25.7 8 27.9 29.1 33.0 26.5 9 28.4 29.0 33.1 25.9 10 28.2 31.1 33.8 26.5 蓄电池组各充电数据正常，电池温升正常，设备运行正常。试验结论：该组蓄电池充放电试验合格。（合格或不合格）2:放电 10h 后每个电池端电压
