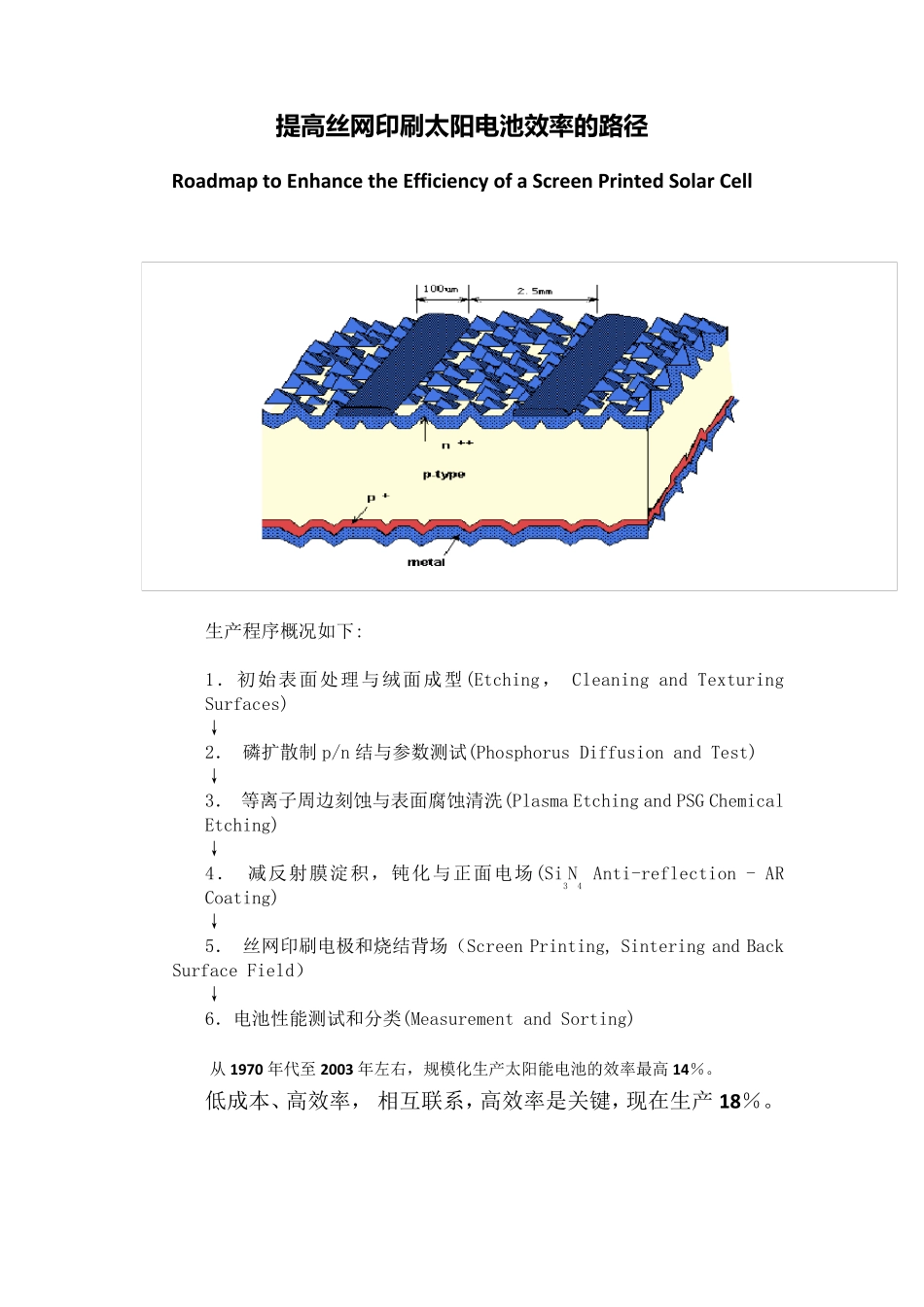

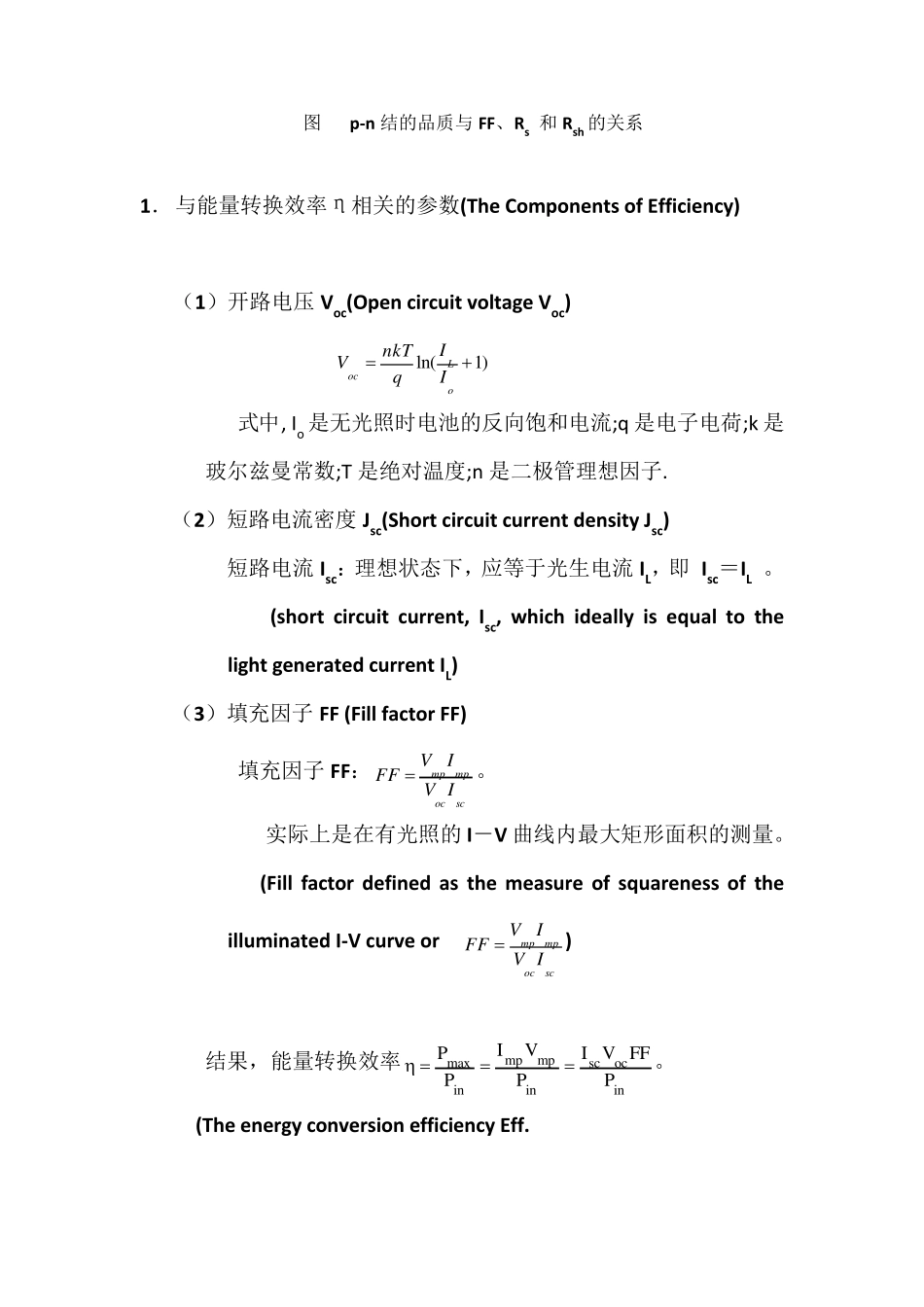

提 高 丝网印刷太阳电池效率的路径 Roadmap to Enhance the Efficiency of a Screen Printed Solar Cell 生产程序概况如下: 1.初始表面处理与绒面成型(Etching, Cleaning and Texturing Surfaces) ↓ 2. 磷扩散制 p/n 结与参数测试(Phosphorus Diffusion and Test) ↓ 3. 等离子周边刻蚀与表面腐蚀清洗(Plasma Etching and PSG Chemical Etching) ↓ 4. 减反射膜淀积,钝化与正面电场(Si3N4 Anti-reflection - AR Coating) ↓ 5. 丝网印刷电极和烧结背场(Screen Printing, Sintering and Back Surface Field) ↓ 6.电池性能测试和分类(Measurement and Sorting) 从 1970 年代至 2003 年左右,规模化生产太阳能电池的效率最高 14%。 低成本、高效率, 相互联系,高效率是关键,现在生产18%。 光-电能量转换效率η为: PPIVPI V FFPinmpmpinscocinmax 在太阳能电池I-V 特性曲线上作出Rs 和 Rsh (ΔV/ΔI = Rs,ΔV/ΔI = Rsh)的图示。作出最大功率点 Pm 及表示 FF 的方框图,写出用 I,V 表示FF 和Pm 的公式。 ocscmmVIVIFF ; Pm = ImVm = IscVocFF ΔV ΔI ΔI ΔV Rsh=ΔV/ΔI Rs=ΔV/ΔI V Isc Im Vm Voc Pm I 图 p-n 结的品质与FF、Rs 和Rsh 的关系 1. 与能量转换效率η相关的参数(The Components of Efficiency) (1)开路电压 Voc(Open circuit voltage Voc) )1ln(oLocIIqnkTV 式中, Io 是无光照时电池的反向饱和电流;q 是电子电荷;k 是玻尔兹曼常数;T 是绝对温度;n 是二极管理想因子. (2)短路电流密度 Jsc(Short circuit current density Jsc) 短路电流 Isc:理想状态下,应等于光生电流 IL,即 Isc=IL 。 (short circuit current, Isc, which ideally is equal to the light generated current IL) (3)填充因子 FF (Fill factor FF) 填充因子 FF:scocmpmpIVIVFF 。 实际上是在有光照的I-V 曲线内最大矩形面积的测量。 (Fill factor defined as the measure of squareness of the illuminated I-V curve or scocmpmpIVIVFF ) 结果,能量转换效率 PPIVPI V FFPinmpmpinscocinmax。 (The energy conversion efficiency Eff. PPIVPI V FFPinmpmpinscocinmax) 2.有那些参数影...
