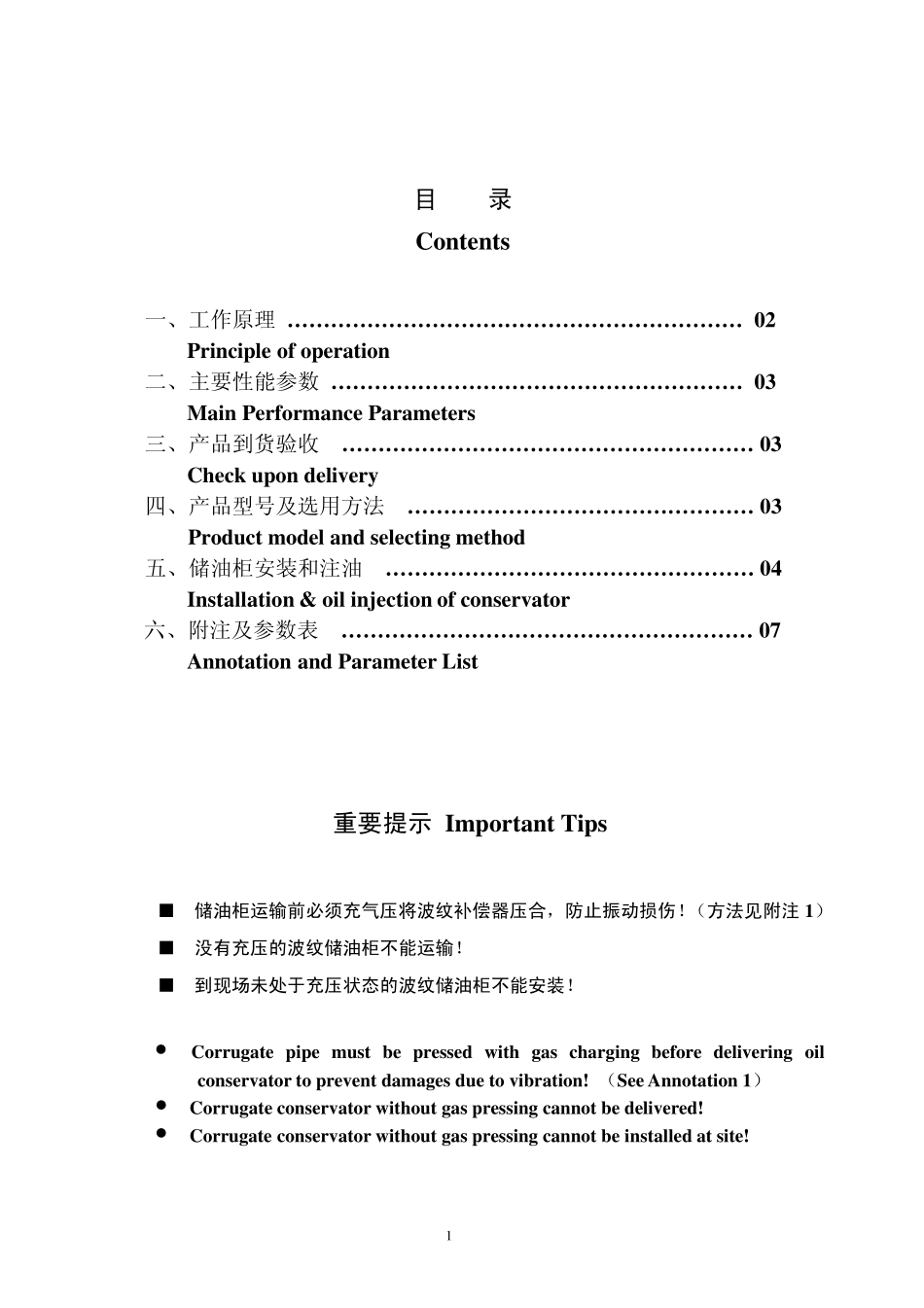

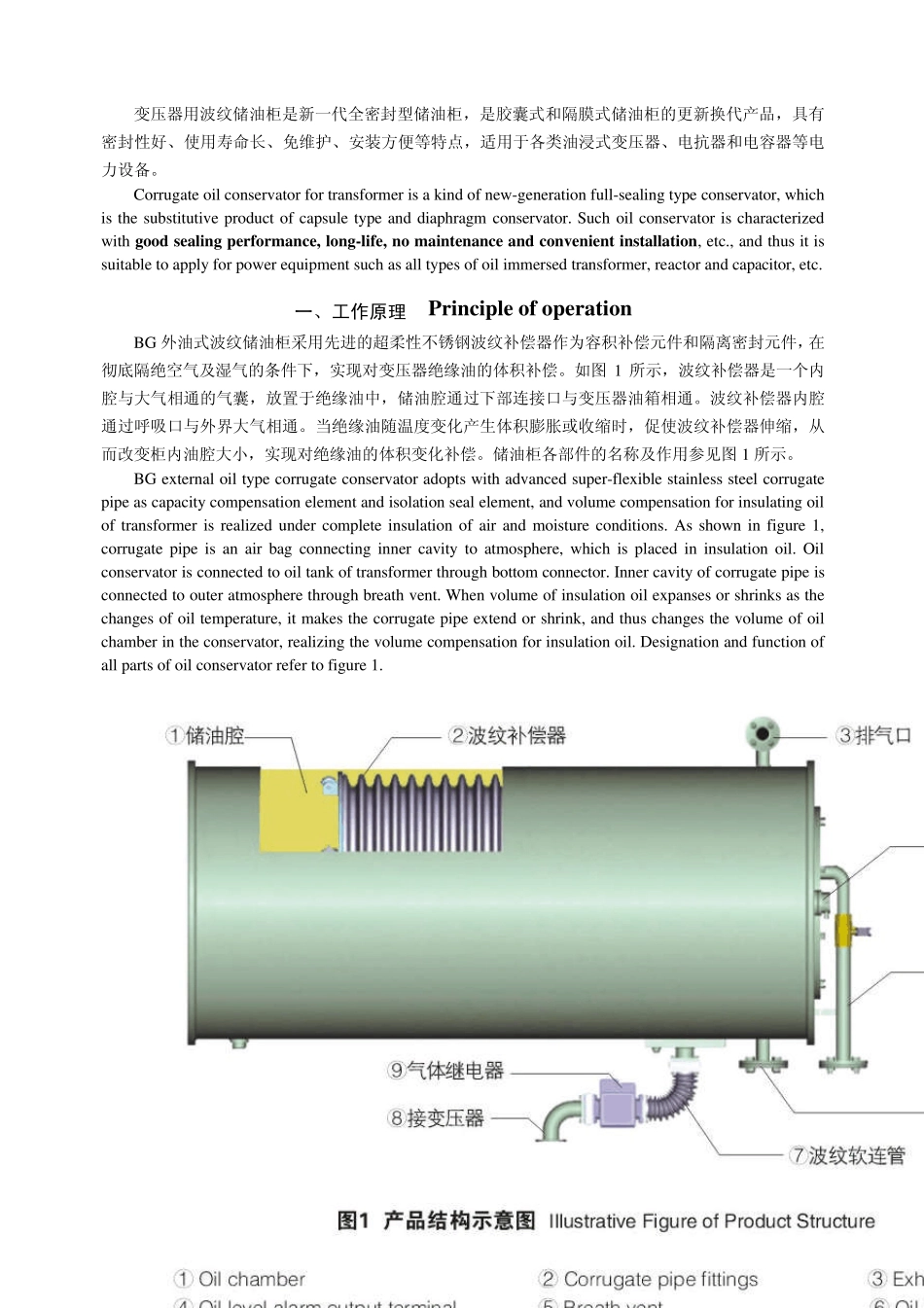

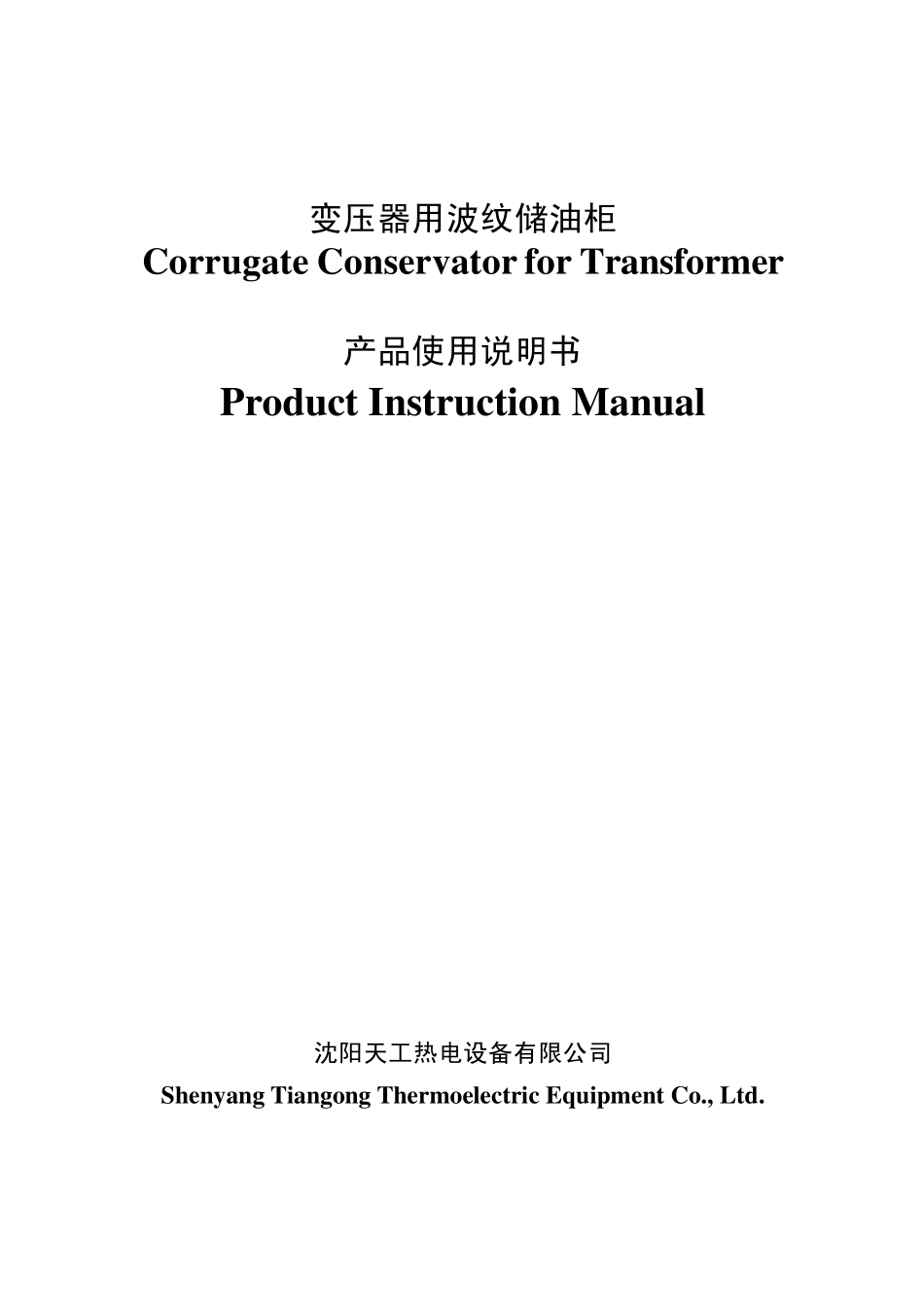

变压器用波纹储油柜Corrugate Conservator for Transformer产品使用说明书Product Instruction Manual沈阳天工热电设备有限公司Shenyang Tiangong Thermoelectric Equipment Co., Ltd.1目录Contents一、工作原理 … … … … … … … … … … … … … … … … … … … … …02Principle of operation二、主要性能参数 … … … … … … … … … … … … … … … … … … …03Main Performance Parameters三、产品到货验收… … … … … … … … … … … … … … … … … … … 03Check upon delivery四、产品型号及选用方法… … … … … … … … … … … … … … … … 03Product model and selecting method五、储油柜安装和注油… … … … … … … … … … … … … … … … … 04Installation & oil injection of conservator六、附注及参数表… … … … … … … … … … … … … … … … … … … 07Annotation and Parameter List重要提示Important Tips■储油柜运输前必须充气压将波纹补偿器压合,防止振动损伤!(方法见附注 1)■没有充压的波纹储油柜不能运输!■到现场未处于充压状态的波纹储油柜不能安装!●Corrugate pipe must be pressed with gas charging before delivering oilconservator to prevent damages due to vibration! (See Annotation 1)●Corrugate conservator without gas pressing cannot be delivered!●Corrugate conservator without gas pressing cannot be installed at site!2变压器用波纹储油柜是新一代全密封型储油柜,是胶囊式和隔膜式储油柜的更新换代产品,具有密封性好、使用寿命长、免维护、安装方便等特点,适用于各类油浸式变压器、电抗器和电容器等电力设备。Corrugate oil conservator for transformer is a kind of new-generation full-sealing type conservator, whichis the substitutive product of capsule type and diaphragm conservator. Such oil conservator is characterizedwith good sealing performance, long-life, no maintenance and conv enient installation, etc., and thus it issuitable to apply fo...
