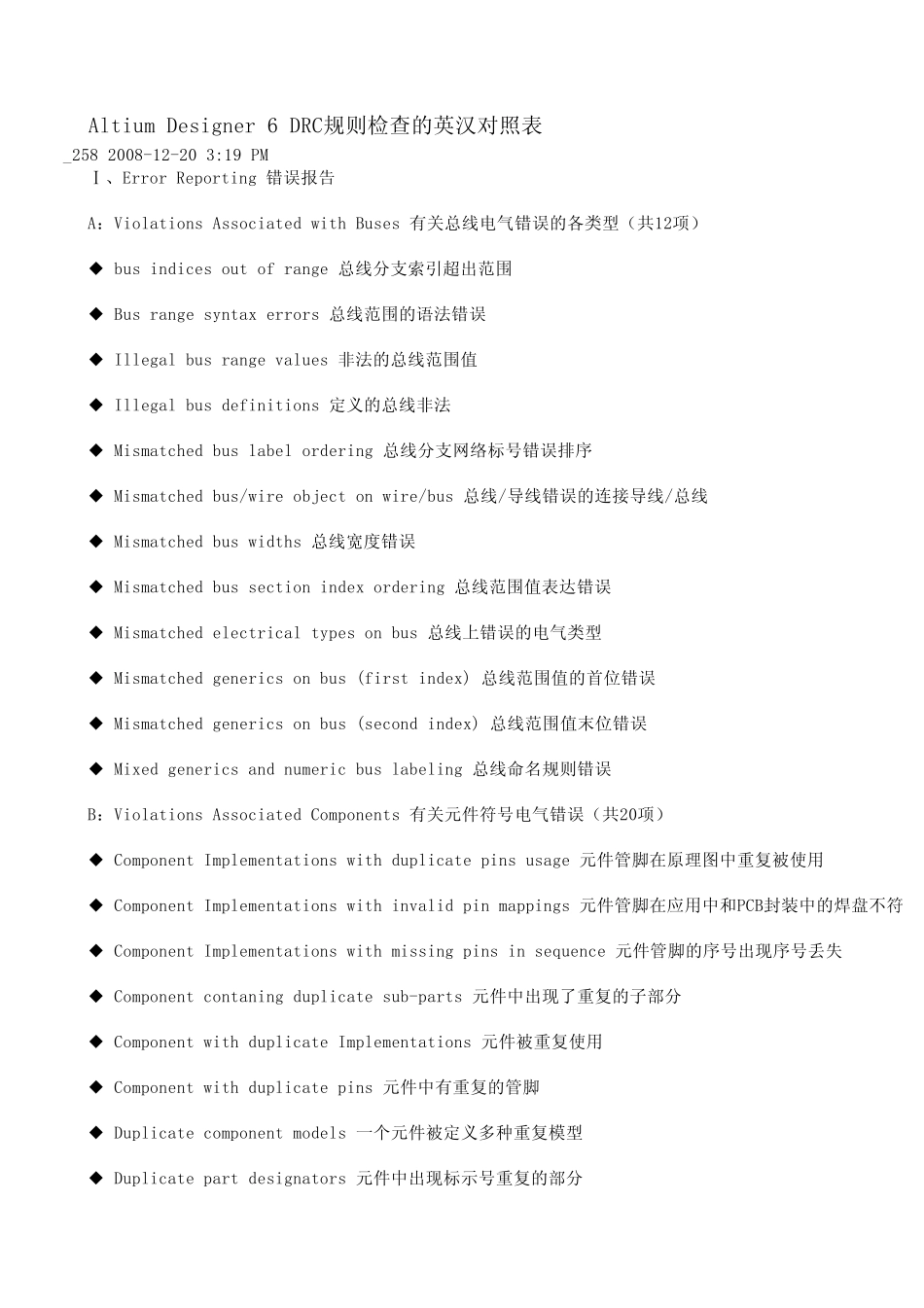

Altium_Designer_6_DRC规则检查的英汉对照表_第1页
1/6

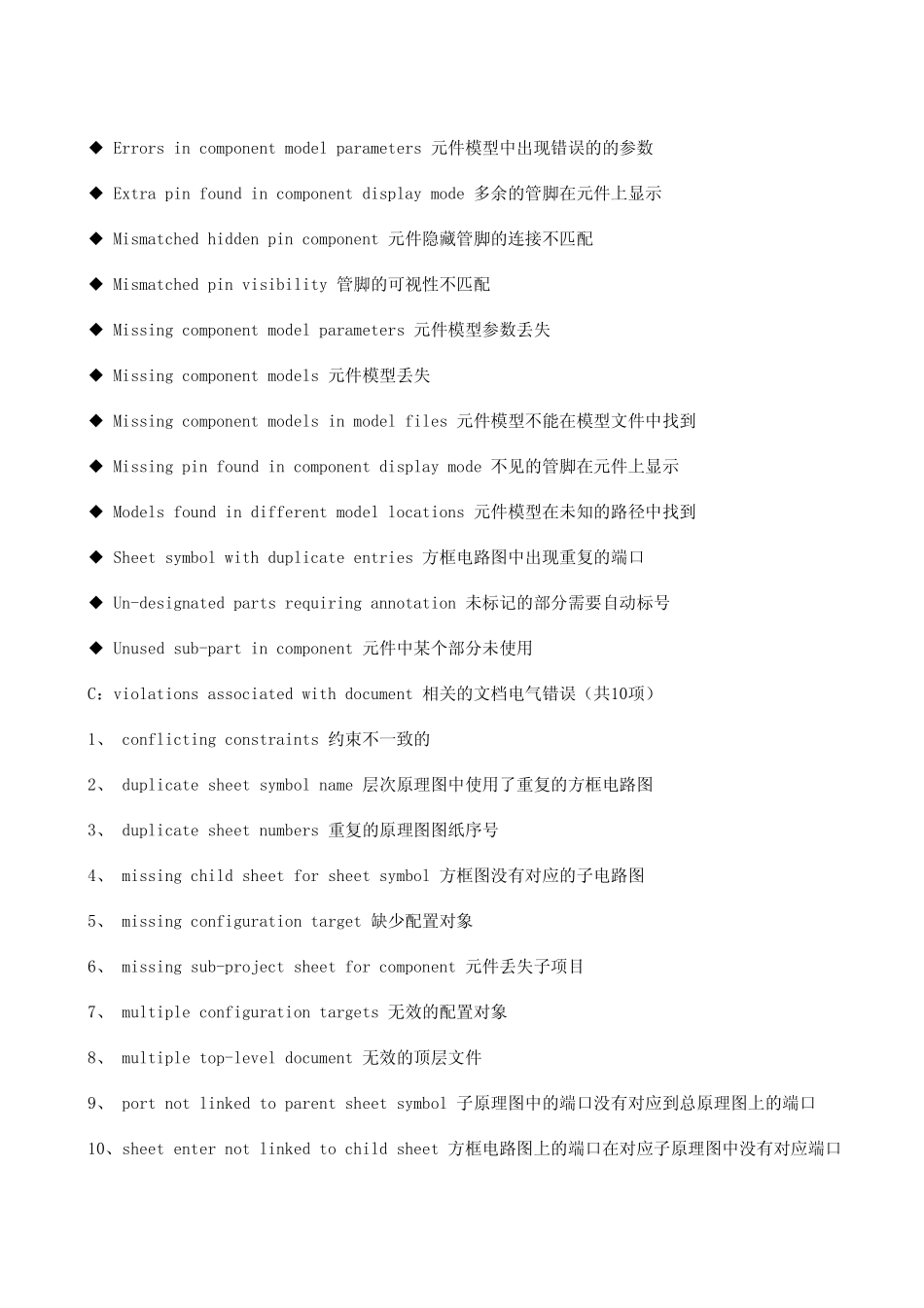

Altium_Designer_6_DRC规则检查的英汉对照表_第2页
2/6

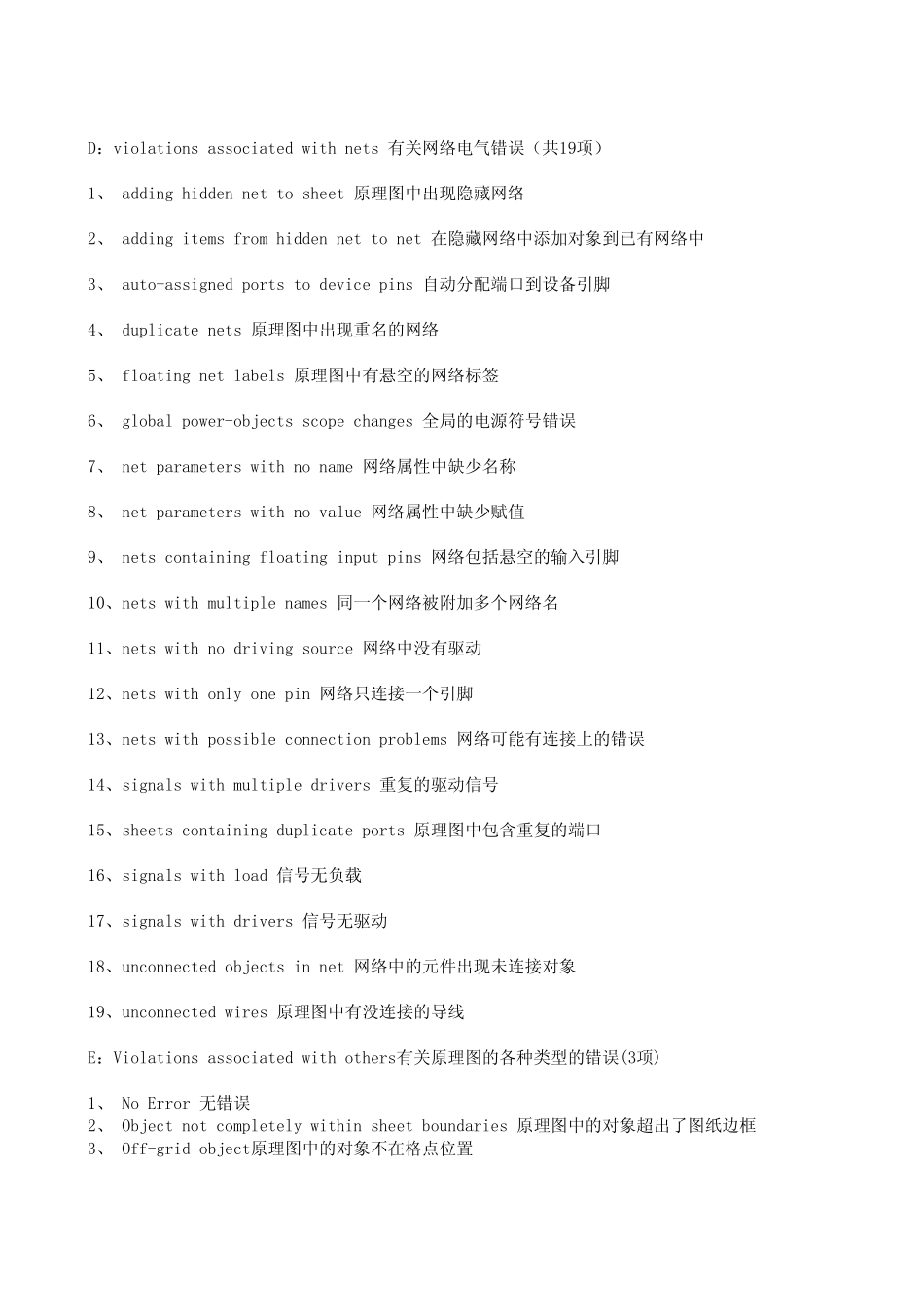

Altium_Designer_6_DRC规则检查的英汉对照表_第3页
3/6
Altium Designer 6 DRC规则检查的英汉对照表_258 2008-12-20 3:19 PMⅠ、Error Reporting 错误报告A:Violations Associated with Buses 有关总线电气错误的各类型(共12项)◆ bus indices out of range 总线分支索引超出范围◆ Bus range syntax errors 总线范围的语法错误◆ Illegal bus range values 非法的总线范围值◆ Illegal bus definitions 定义的总线非法◆ Mismatched bus label ordering 总线分支网络标号错误排序◆ Mismatched bus/wire object on wire/bus 总线/导线错误的连接导线/总线◆ Mismatched bus widths 总线宽度错误◆ Mismatched bus section index ordering 总线范围值表达错误◆ Mismatched electrical types on bus 总线上错误的电气类型◆ Mismatched generics on bus (first index) 总线范围值的首位错误◆ Mismatched generics on bus (second index) 总线范围值末位错误◆ Mixed generics and numeric bus labeling 总线命名规则错误B:Violations Associated Components 有关元件符号电气错误(共20项)◆ Component Implementations with duplicate pins usage 元件管脚在原理图中重复被使用◆ Component Implementations with invalid pin mappings 元件管脚在应用中和PCB封装中的焊盘不符◆ Component Implementations with missing pins in sequence 元件管脚的序号出现序号丢失◆ Component contaning duplicate sub-parts 元件中出现了重复的子部分◆ Component with duplicate Implementations 元件被重复使用◆ Component with duplicate pins 元件中有重复的管脚◆ Duplicate component models 一个元件被定义多种重复模型◆ Duplicate part designators 元件中出现标示号重复的部分◆ Errors in component model parameters 元件模型中出现错误的的参数◆ Extra pin found in component display mode 多余的管脚在元件上显示◆ Mismatched hidden pin component 元件隐藏管脚的连接不匹配◆ Mismatched pin visibility 管脚的可视性不匹配◆ Missing component model parameters 元件模型参数丢失◆ Missing component models 元件模型丢失◆ Missing component models in model files 元件模型不能在模型文件中找到◆ M...
