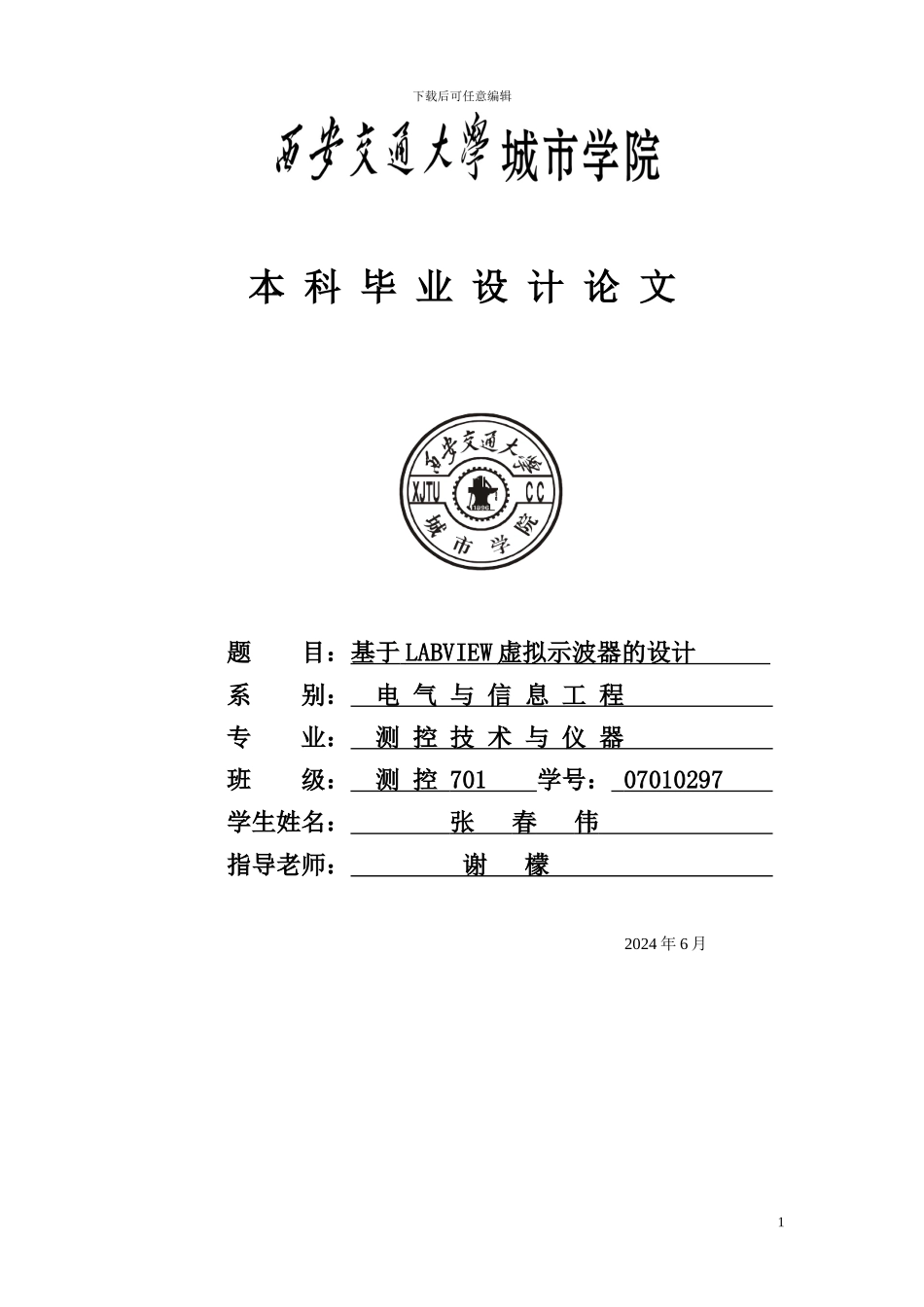

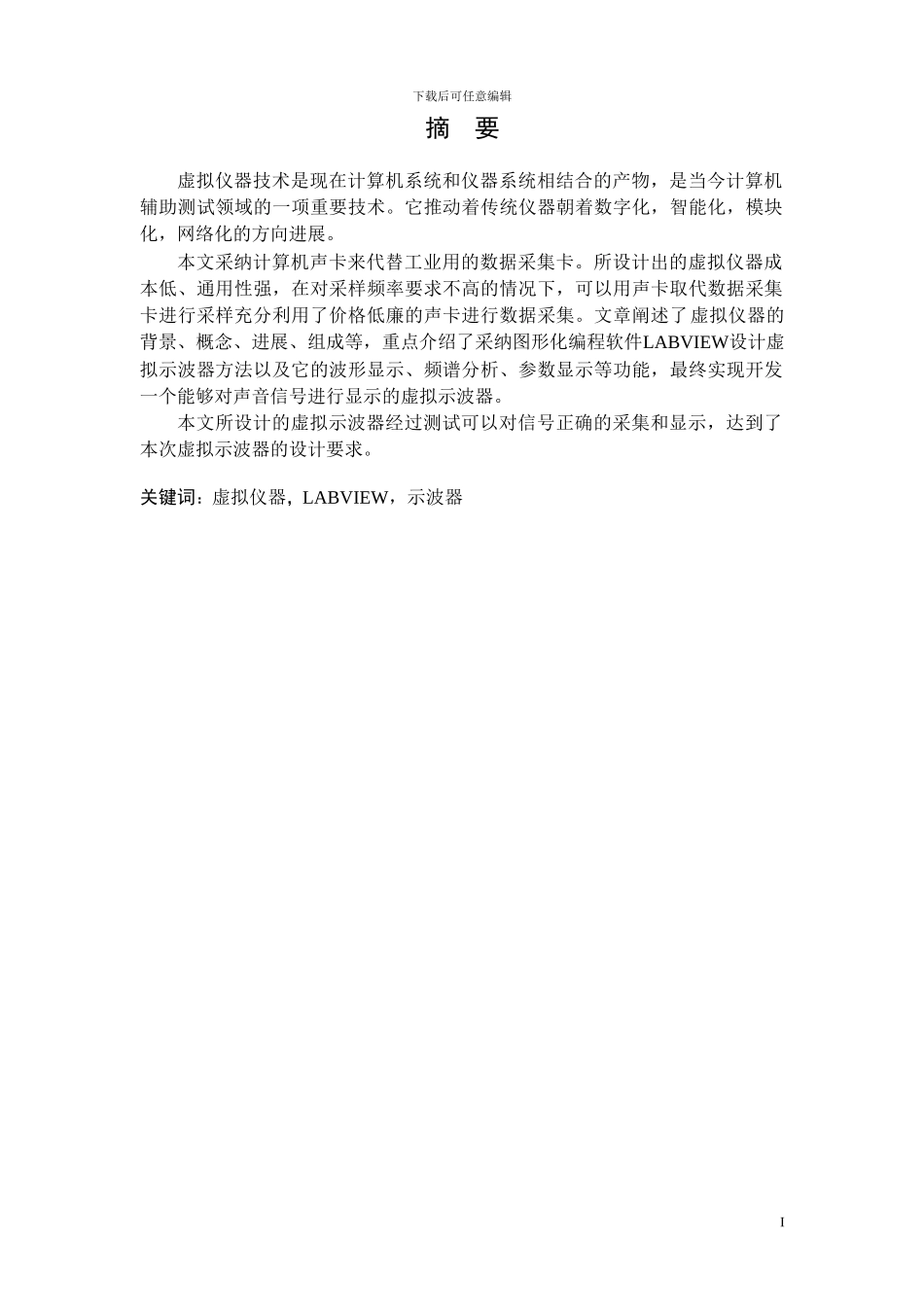

下载后可任意编辑本 科 毕 业 设 计 论 文 题 目:基于 LABVIEW 虚拟示波器的设计 系 别: 电 气 与 信 息 工 程 专 业: 测 控 技 术 与 仪 器 班 级: 测 控 701 学号: 07010297 学生姓名: 张 春 伟 指导老师: 谢 檬 2024 年 6 月1下载后可任意编辑I下载后可任意编辑摘 要虚拟仪器技术是现在计算机系统和仪器系统相结合的产物,是当今计算机辅助测试领域的一项重要技术。它推动着传统仪器朝着数字化,智能化,模块化,网络化的方向进展。 本文采纳计算机声卡来代替工业用的数据采集卡。所设计出的虚拟仪器成本低、通用性强,在对采样频率要求不高的情况下,可以用声卡取代数据采集卡进行采样充分利用了价格低廉的声卡进行数据采集。文章阐述了虚拟仪器的背景、概念、进展、组成等,重点介绍了采纳图形化编程软件LABVIEW设计虚拟示波器方法以及它的波形显示、频谱分析、参数显示等功能,最终实现开发一个能够对声音信号进行显示的虚拟示波器。本文所设计的虚拟示波器经过测试可以对信号正确的采集和显示,达到了本次虚拟示波器的设计要求。关键词:虚拟仪器,LABVIEW,示波器I西安交通大学城市学院本科毕业设计(论文)II下载后可任意编辑ABSTRACTVirtual instrument technology is now the computer system and instrumentation system combining the product of today's computer-aided testing is an important technology area. It advances towards the traditional digital instrumentation, intelligent, modular, network-based direction.In this paper, computer sound card to replace the industrial data acquisition card. The design of the virtual instrument, low cost, versatility, less demanding in the case of sampling frequency can be used to replace the sound card data acquisition card to sample the full advantage of the cheap sound card for data acquisition. Paper describes the background of virtual instruments, concepts, development, composition, focusing on the use of LABVIEW graphical programming software design method and its virtual oscilloscope waveform display, virtual spectrum analysis, para...
