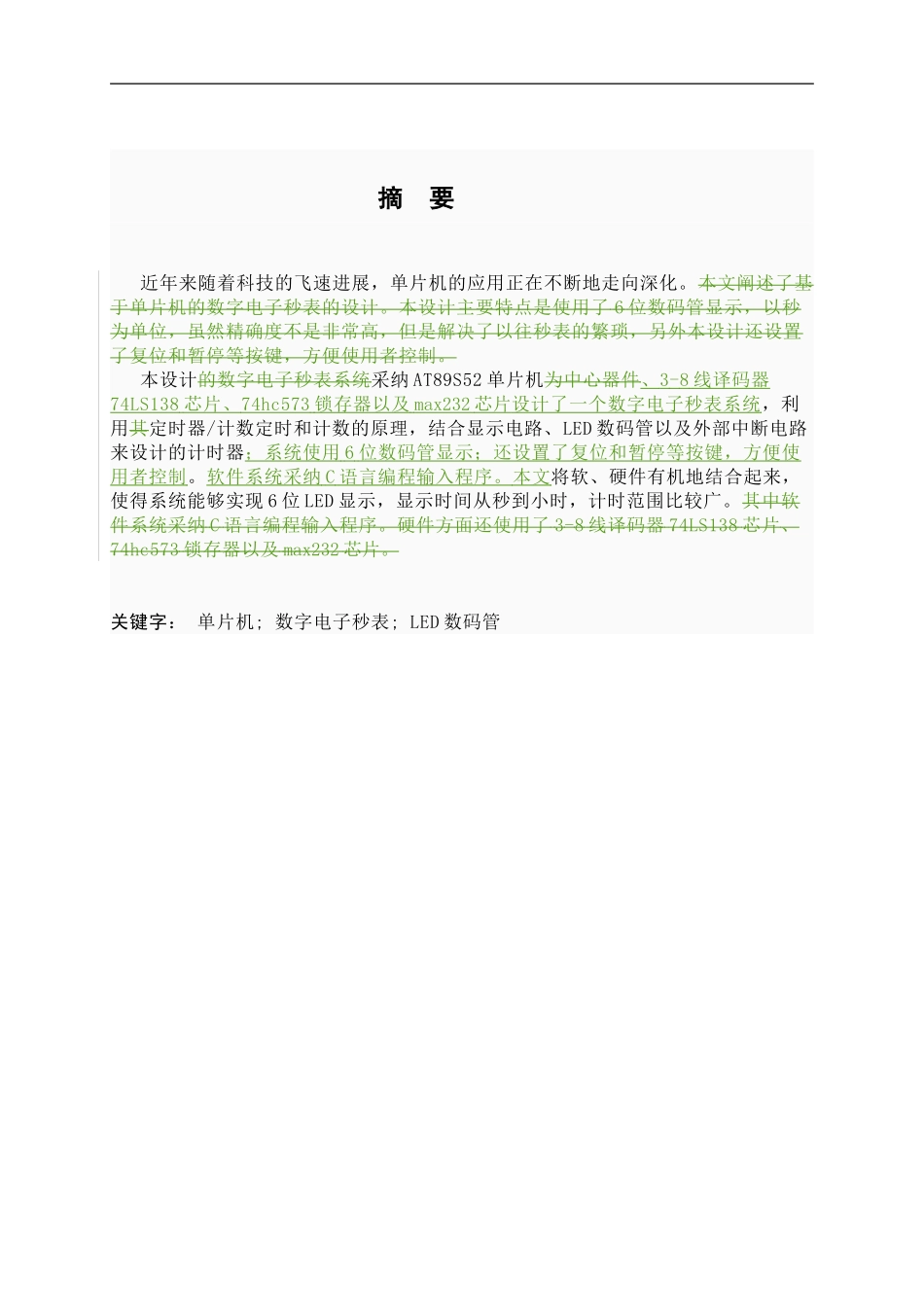

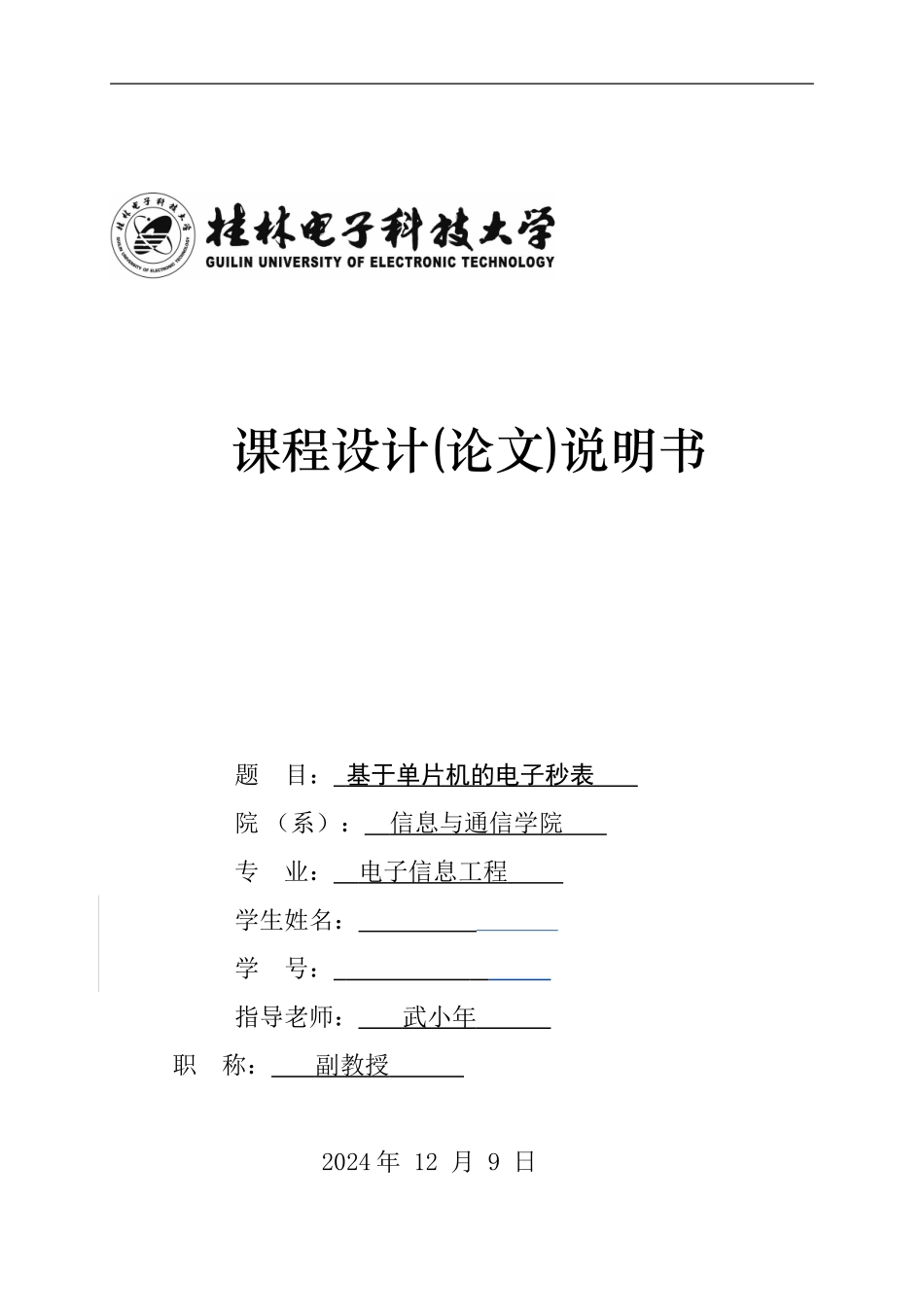

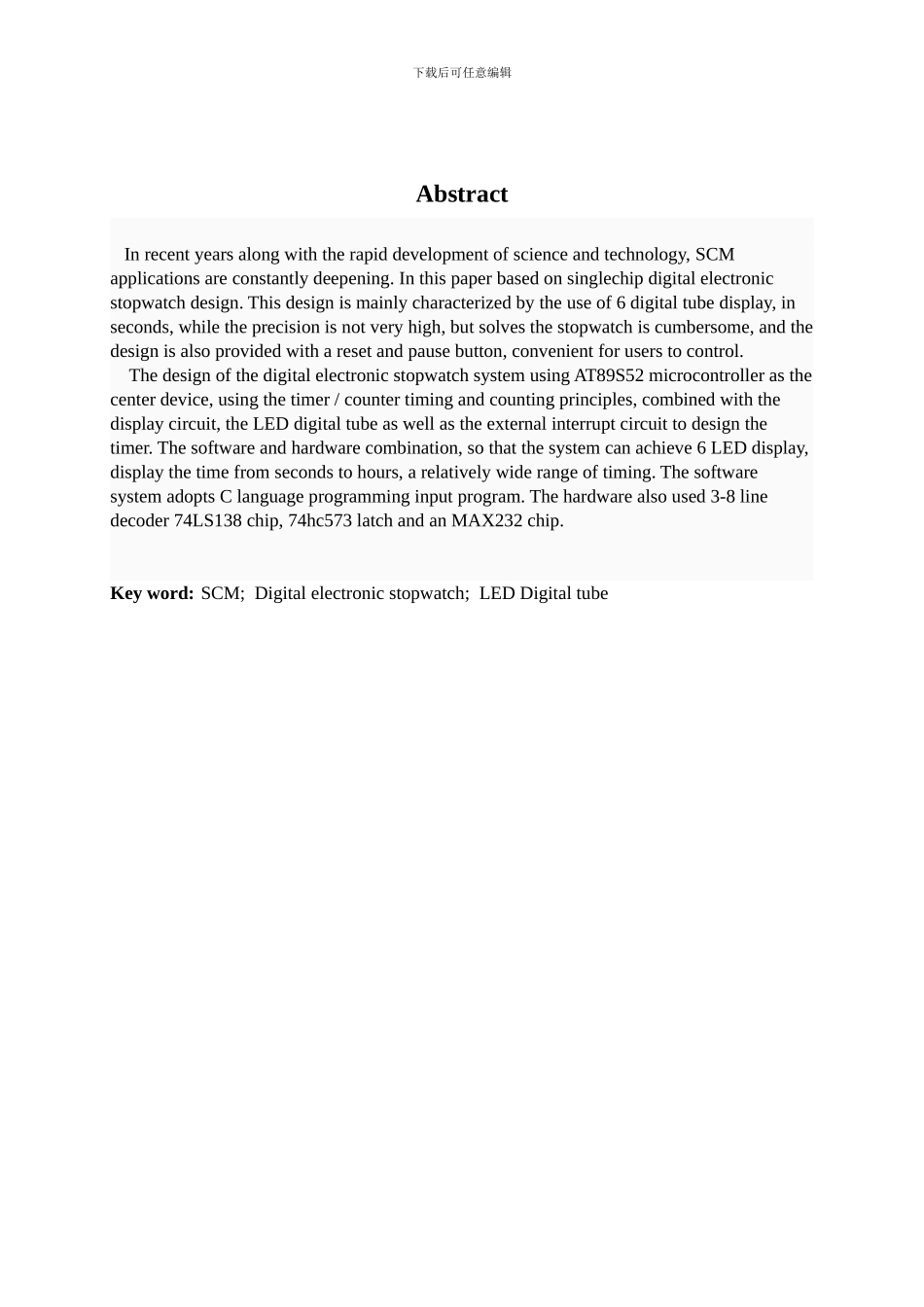

课程设计(论文)说明书题 目: 基于单片机的电子秒表 院 (系): 信息与通信学院 专 业: 电子信息工程 学生姓名: 学 号: 指导老师: 武小年 职 称: 副教授 2024 年 12 月 9 日 摘 要 近年来随着科技的飞速进展,单片机的应用正在不断地走向深化。本文阐述了基于单片机的数字电子秒表的设计。本设计主要特点是使用了 6 位数码管显示,以秒为单位,虽然精确度不是非常高,但是解决了以往秒表的繁琐,另外本设计还设置了复位和暂停等按键,方便使用者控制。 本设计的数字电子秒表系统 采纳 AT89S52 单片机为中心器件 、 3 - 8 线译码器74LS138 芯片、 74hc573 锁存器以及 max232 芯片设计了一个数字电子秒表系统 ,利用其 定时器/计数定时和计数的原理,结合显示电路、LED 数码管以及外部中断电路来设计的计时器;系统使用 6 位数码管显示;还设置了复位和暂停等按键,方便使用者控制 。软件系统采纳 C 语言编程输入程序。 本文 将软、硬件有机地结合起来,使得系统能够实现 6 位 LED 显示,显示时间从秒到小时,计时范围比较广。其中软件系统采纳 C 语言编程输入程序。硬件方面还使用了 3 - 8 线译码器 74LS138 芯片、74hc573 锁存器以及 max232 芯片。 关键字: 单片机; 数字电子秒表; LED 数码管下载后可任意编辑Abstract In recent years along with the rapid development of science and technology, SCM applications are constantly deepening. In this paper based on singlechip digital electronic stopwatch design. This design is mainly characterized by the use of 6 digital tube display, in seconds, while the precision is not very high, but solves the stopwatch is cumbersome, and the design is also provided with a reset and pause button, convenient for users to control. The design of the digital electronic stopwatch system using AT89S52 microcontroller as the center device, using the timer / counter timing and counting principles, combined with the display circuit, the LED digital tube as well as the external interrupt circuit to design the timer. The software and hardware...
