低频小信号放大器电路设计

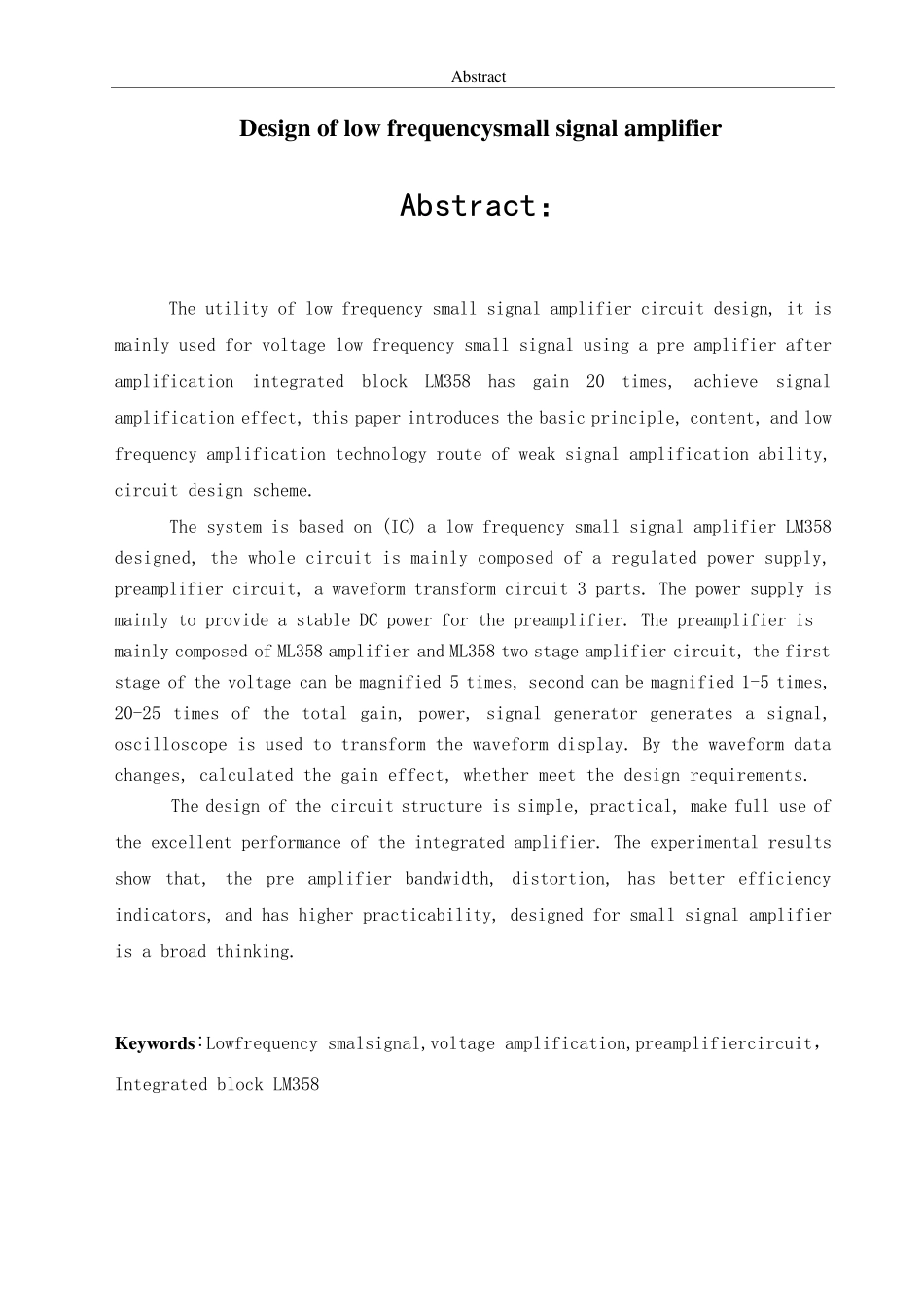

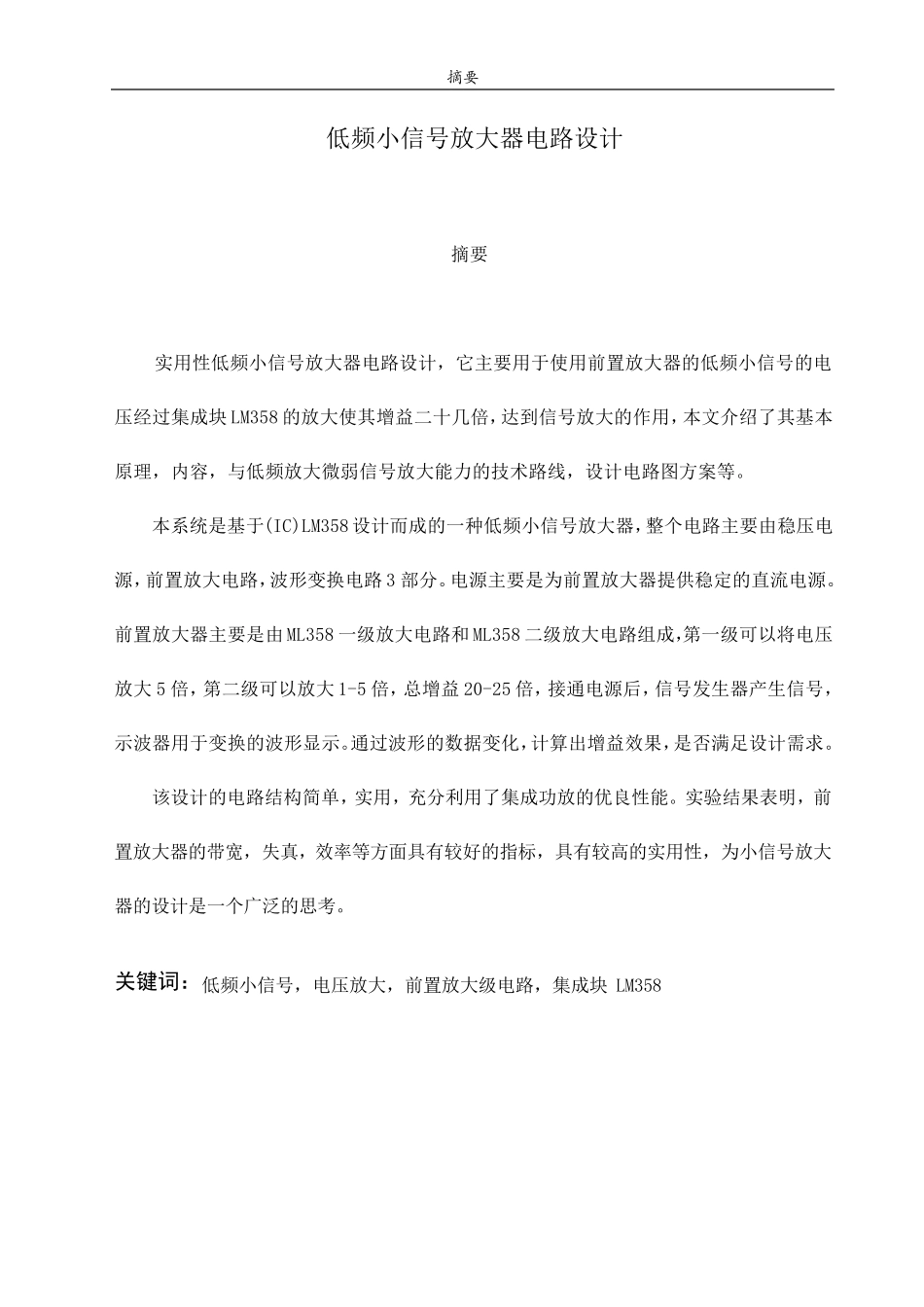

摘要 低频小信号放大器电路设计 摘要 实用性低频小信号放大器电路设计，它主要用于使用前置放大器的低频小信号的电压经过集成块LM358 的放大使其增益二十几倍，达到信号放大的作用，本文介绍了其基本原理，内容，与低频放大微弱信号放大能力的技术路线，设计电路图方案等。 本系统是基于(IC)LM358 设计而成的一种低频小信号放大器，整个电路主要由稳压电源，前置放大电路，波形变换电路3 部分。电源主要是为前置放大器提供稳定的直流电源。前置放大器主要是由 ML358 一级放大电路和 ML358 二级放大电路组成，第一级可以将电压放大5 倍，第二级可以放大1-5 倍，总增益20-25 倍，接通电源后，信号发生器产生信号，示波器用于变换的波形显示。通过波形的数据变化，计算出增益效果，是否满足设计需求。 该设计的电路结构简单，实用，充分利用了集成功放的优良性能。实验结果表明，前置放大器的带宽，失真，效率等方面具有较好的指标，具有较高的实用性，为小信号放大器的设计是一个广泛的思考。 关键词：低频小信号，电压放大，前置放大级电路，集成块LM358 Abstract Design of low frequencysmall signal amplifier Abstract： The utility of low frequency small signal amplifier circuit design, it is mainly used for voltage low frequency small signal using a pre amplifier after amplification integrated block LM358 has gain 20 times, achieve signal amplification effect, this paper introduces the basic principle, content, and low frequency amplification technology route of weak signal amplification ability, circuit design scheme. The system is based on (IC) a low frequency small signal amplifier LM358 designed, the whole circuit is mainly composed of a regulated power supply, preamplifier circuit, a waveform transform circuit 3 parts. The power supply is mainly to provide a stable DC power for the preamplifier. The preamplifier is mainly composed of ML358 amplifier and ML358 two stage amplifier circuit, the first stage of the voltage can be magnified 5 times, second can be magnified 1-5 times, 20-...
