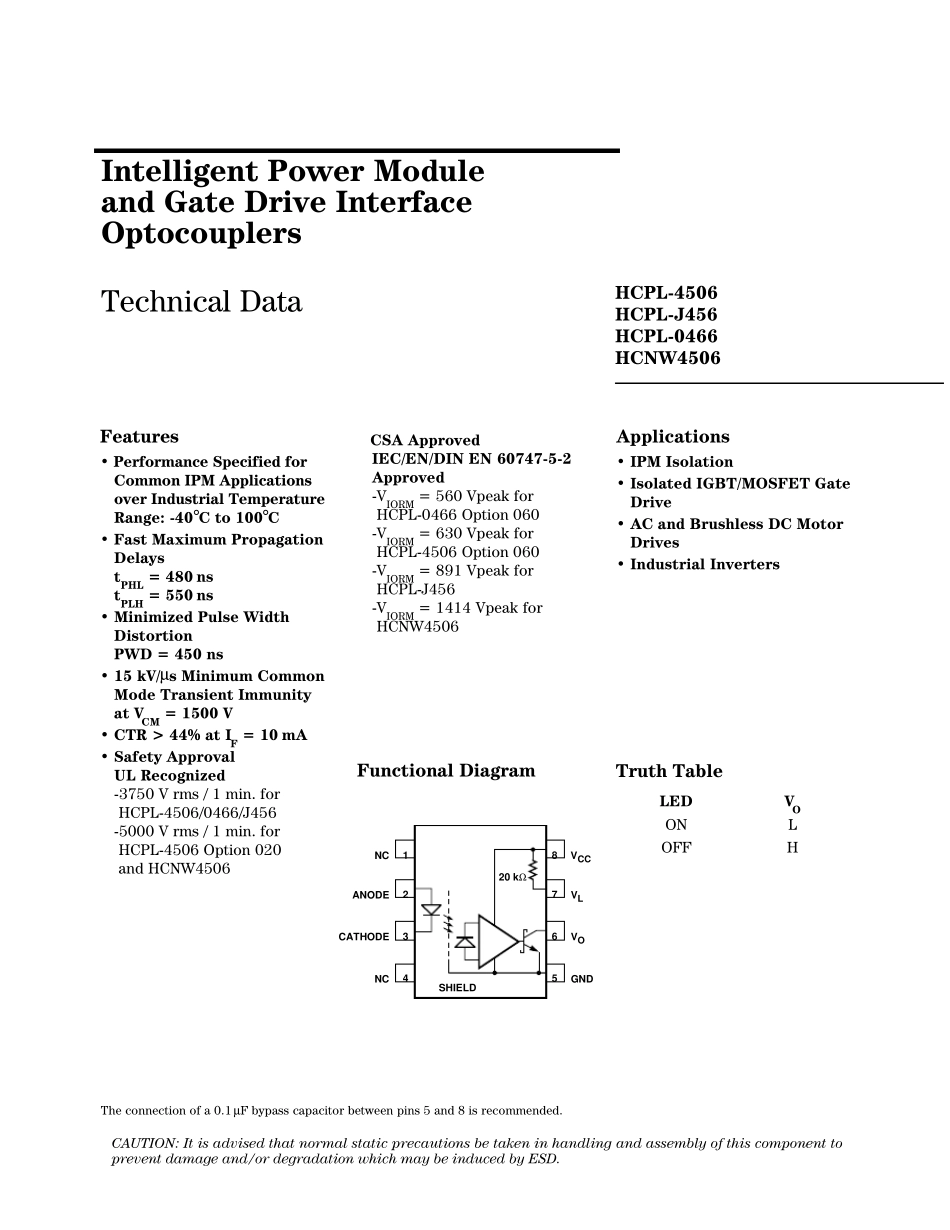

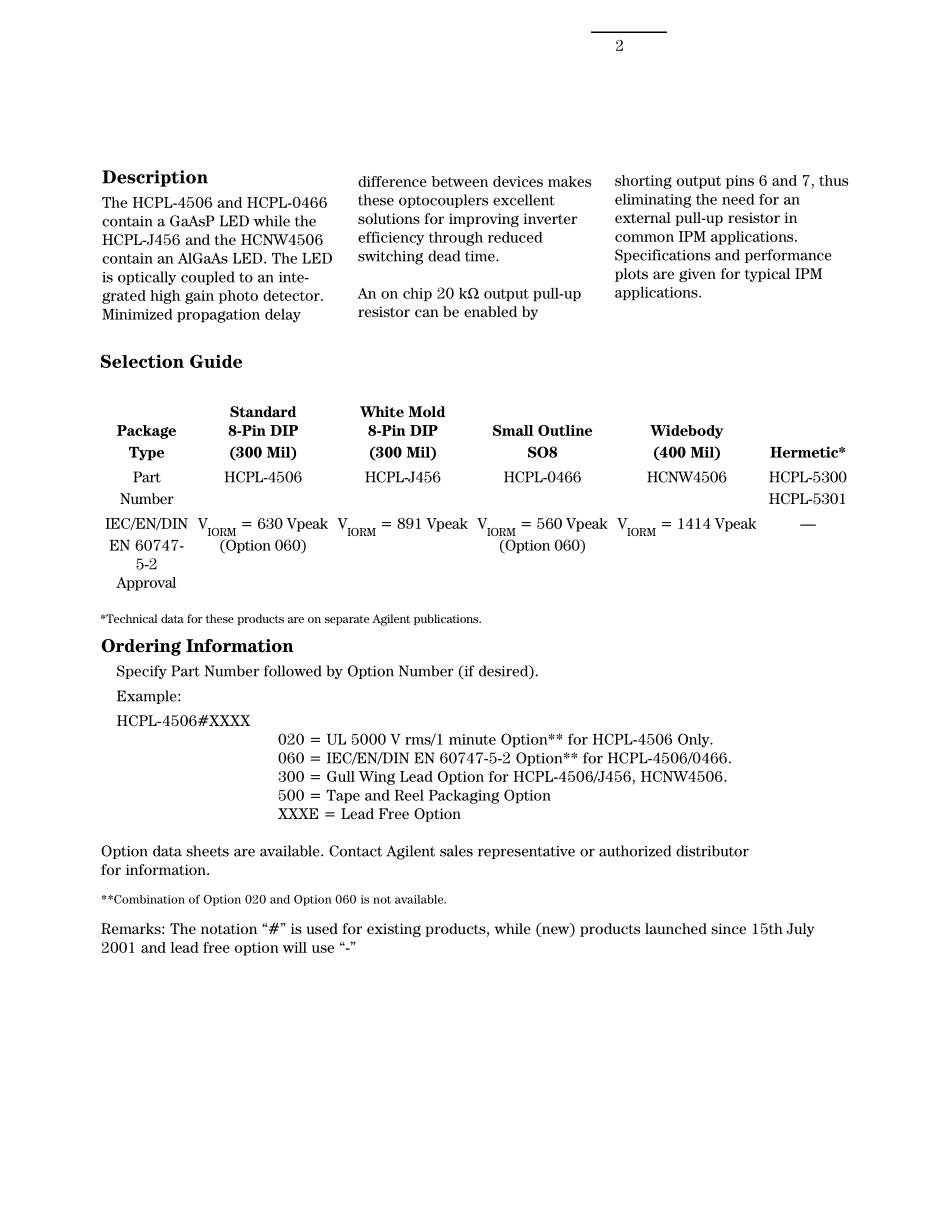

Intelligent Power Moduleand Gate Drive InterfaceOptocouplersTechnical DataFeatures• Performance Specified forCommon IPM Applicationsover Industrial TemperatureRange: -40°C to 100°C• Fast Maximum PropagationDelaystPHL = 480 nstPLH = 550 ns• Minimized Pulse WidthDistortionPWD = 450 ns• 15 kV/µs Minimum CommonMode Transient Immunityat VCM = 1500 V• CTR > 44% at IF = 10 mA• Safety ApprovalUL Recognized-3750 V rms / 1 min. for HCPL-4506/0466/J456-5000 V rms / 1 min. for HCPL-4506 Option 020 and HCNW4506 CSA ApprovedIEC/EN/DIN EN 60747-5-2Approved-VIORM = 560 Vpeak for HCPL-0466 Option 060-VIORM = 630 Vpeak for HCPL-4506 Option 060-VIORM = 891 Vpeak for HCPL-J456-VIORM = 1414 Vpeak for HCNW4506The connection of a 0.1 µF bypass capacitor between pins 5 and 8 is recommended.Applications• IPM Isolation• Isolated IGBT/MOSFET GateDrive• AC and Brushless DC MotorDrives• Industrial InvertersHCPL-4506HCPL-J456HCPL-0466HCNW4506CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component toprevent damage and/or degradation which may be induced by ESD.Functional DiagramTruth TableLEDVOONLOFFH87613SHIELD52420 kΩNCANODECATHODENCVCCVLVOGND2Selection GuideStandardWhite MoldPackage8-Pin DIP8-Pin DIPSmall OutlineWidebodyType(300 Mil)(300 Mil)SO8(400 Mil)Hermetic*PartHCPL-4506HCPL-J456HCPL-0466HCNW4506HCPL-5300NumberHCPL-5301IEC/EN/DIN VIORM = 630 Vpeak VIORM = 891 Vpeak VIORM = 560 Vpeak VIORM = 1414 Vpeak—EN 60747-(Option 060)(Option 060)5-2Approval*Technical data for these products are on separate Agilent publications.Ordering InformationSpecify Part Number followed by Option Number (if desired).Example:HCPL-4506#XXXX020 = UL 5000 V rms/1 minute Option** for HCPL-4506 Only.060 = IEC/EN/DIN EN 60747-5-2 Option** fo...
