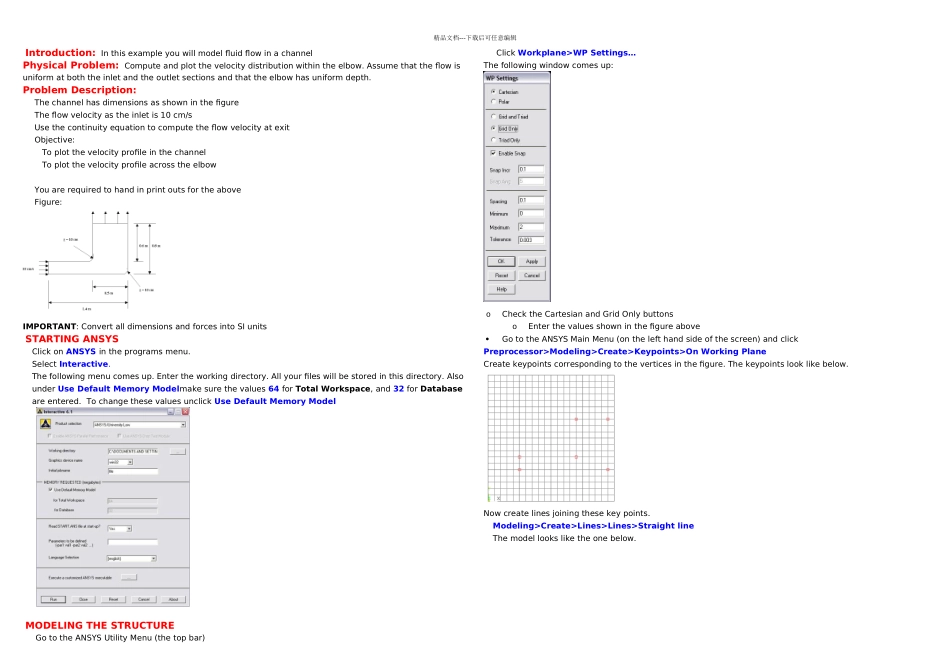

精品文档---下载后可任意编辑 Introduction: In this example you will model fluid flow in a channelPhysical Problem: Compute and plot the velocity distribution within the elbow. Assume that the flow is uniform at both the inlet and the outlet sections and that the elbow has uniform depth.Problem Description:The channel has dimensions as shown in the figureThe flow velocity as the inlet is 10 cm/sUse the continuity equation to compute the flow velocity at exitObjective:To plot the velocity profile in the channelTo plot the velocity profile across the elbowYou are required to hand in print outs for the aboveFigure:IMPORTANT: Convert all dimensions and forces into SI units STARTING ANSYS Click on ANSYS in the programs menu.Select Interactive.The following menu comes up. Enter the working directory. All your files will be stored in this directory. Also under Use Default Memory Modelmake sure the values 64 for Total Workspace, and 32 for Database are entered. To change these values unclick Use Default Memory Model MODELING THE STRUCTUREGo to the ANSYS Utility Menu (the top bar)Click Workplane>WP Settings…The following window comes up: o Check the Cartesian and Grid Only buttonso Enter the values shown in the figure above  Go to the ANSYS Main Menu (on the left hand side of the screen) and clickPreprocessor>Modeling>Create>Keypoints>On Working PlaneCreate keypoints corresponding to the vertices in the figure. The keypoints look like below.Now create lines joining these key points. Modeling>Create>Lines>Lines>Straight lineThe model looks like the one below. 精品文档---下载后可任意编辑 Now create fillets between lines L4-L5 and L1-L2.Click Modeling>Create>Lines>Line Fillet. A pop-up window will now appear. Select lines ...
