叶轮有限元分析

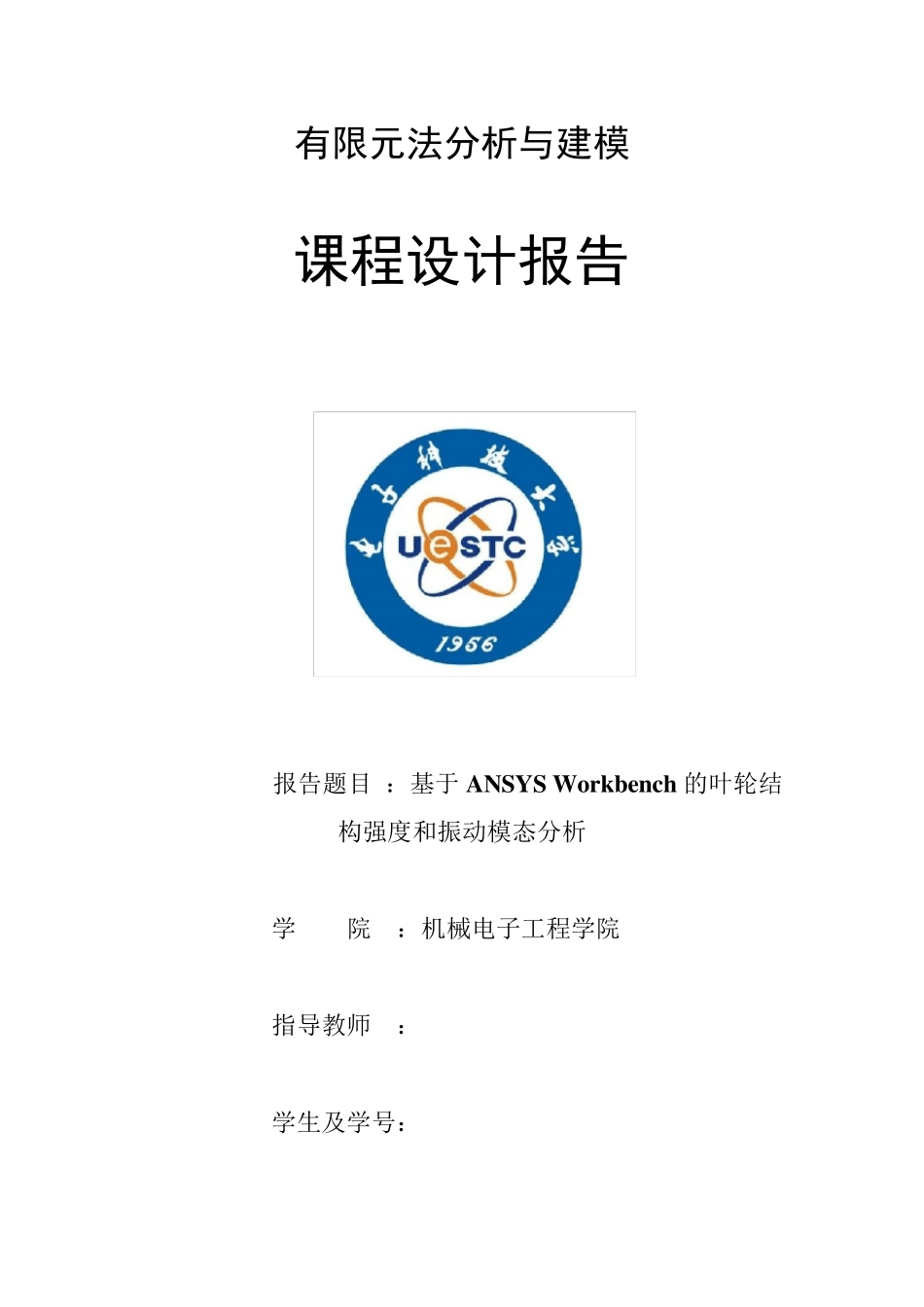

叶轮有限元分析_第1页
1/25
叶轮有限元分析_第2页
2/25

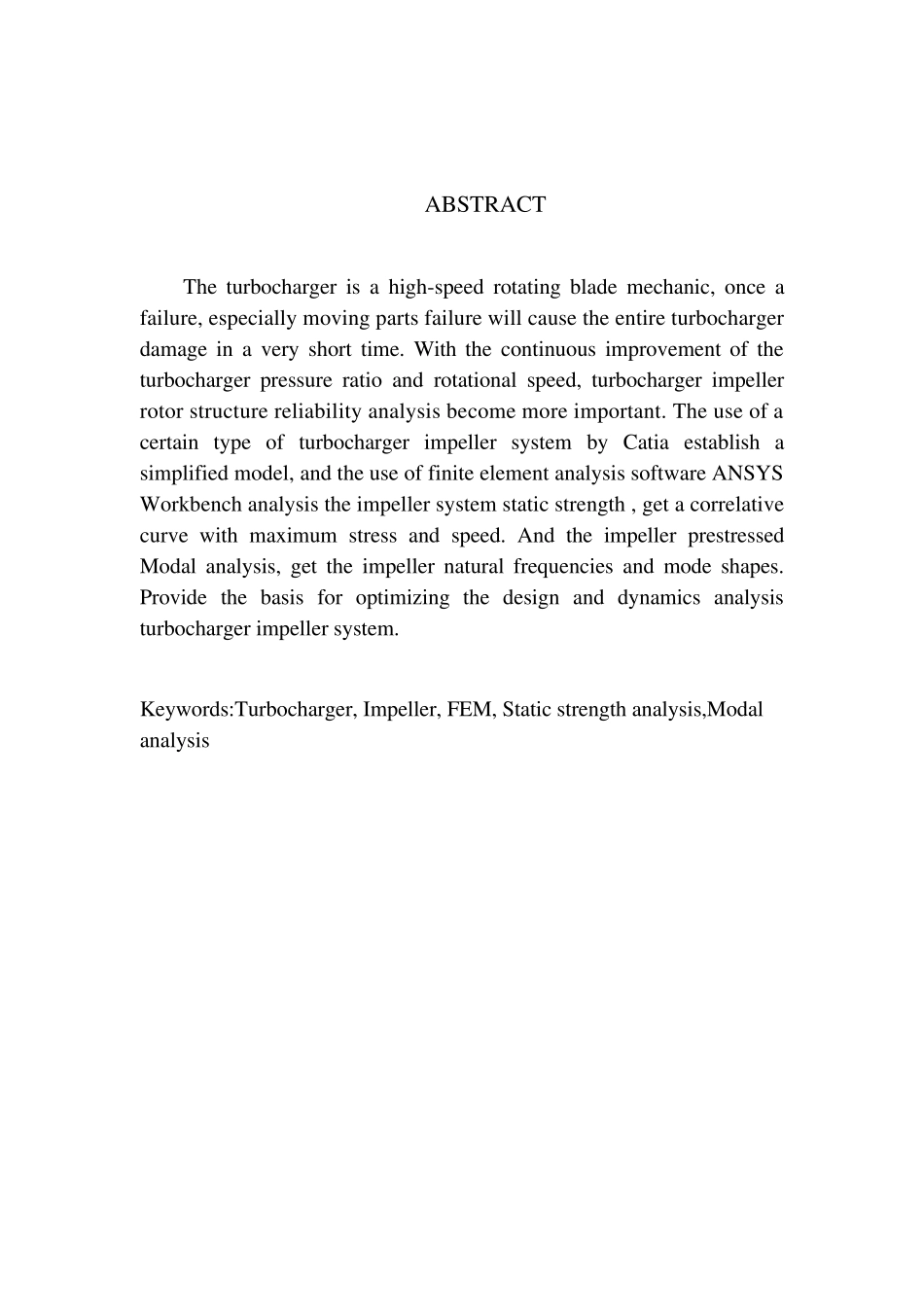

叶轮有限元分析_第3页
3/25
有限元法分析与建模 课程设计报告 报告题目 :基于 ANSYS Workbench 的叶轮结构强度和振动模态分析 学 院 :机械电子工程学院 指导教师 : 学生及学号: 摘 要 涡轮增压器是一种高速回转的叶片机械,一旦出现故障,特别是运动部分发生故障,将导致整个增压器在极短时间内损坏。随着涡轮增压器压比及转速的不断提高,增压器转子叶轮部分的结构可靠性分析变得愈为重要。对某型号增压器叶轮系统使用 Catia 建立简化的模型,并使用 ANSYS Workbench 有限元分析软件对叶轮系统进行静强度分析,得到最大应力与转速的曲线。以及对叶轮预应力振动模态分析,得到叶轮的自振频率和振型。为涡轮增压器叶轮系统的优化设计和动力学分析提供依据。 关键词:涡轮增压器 叶轮 有限元法 静强度分析 模态分析 ABSTRACT The turbocharger is a high-speed rotating blade mechanic, once a failure, especially moving parts failure will cause the entire turbocharger damage in a very short time. With the continuous improvement of the turbocharger pressure ratio and rotational speed, turbocharger impeller rotor structure reliability analysis become more important. The use of a certain type of turbocharger impeller system by Catia establish a simplified model, and the use of finite element analysis software ANSYS Workbench analysis the impeller system static strength , get a correlative curve with maximum stress and speed. And the impeller prestressed Modal analysis, get the impeller natural frequencies and mode shapes. Provide the basis for optimizing the design and dynamics analysis turbocharger impeller system. Keywords:Turbocharger, Impeller, FEM, Static strength analysis,Modal analysis 目录 第1 章 引言.................................................................................................................. 1 1.1 有限元法及其优越性..................................................................................... 1 1.2 ANSYS Workbench 及其优点 .......................................
