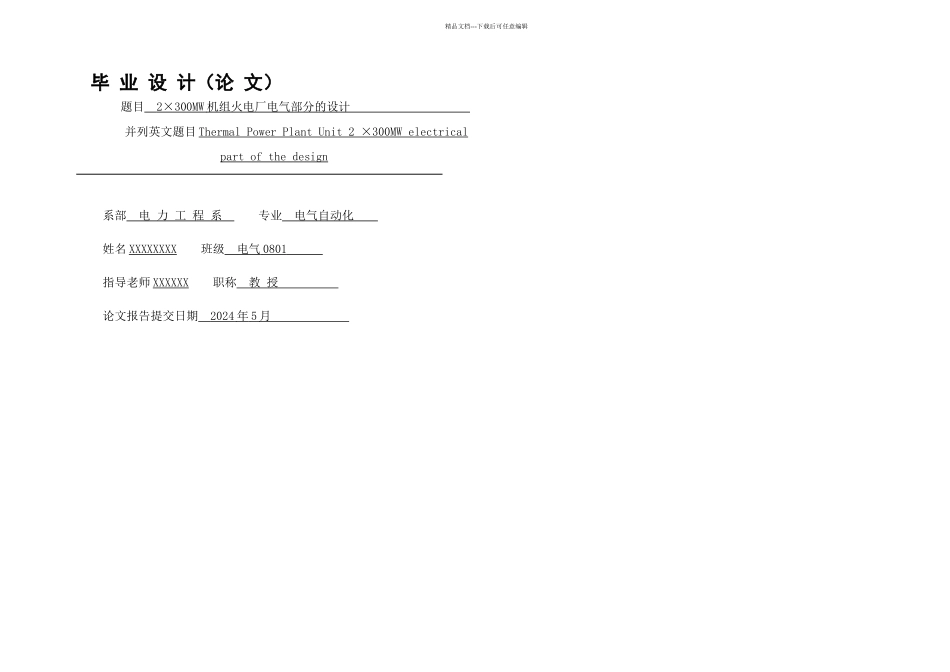

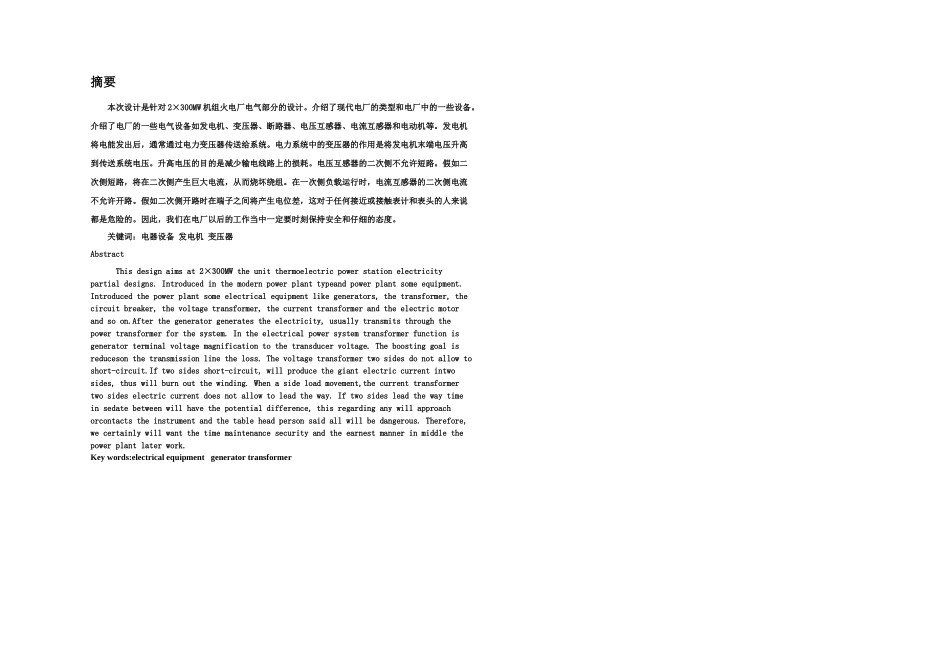

精品文档---下载后可任意编辑毕 业 设 计(论 文)题目 2×300MW 机组火电厂电气部分的设计 并列英文题目 Thermal Power Plant Unit 2 ×300MW electrical part of the design系部 电 力 工 程 系 专业 电气自动化 姓名 XXXXXXXX 班级 电气 0801 指导老师 XXXXXX 职称 教 授 论文报告提交日期 2024 年 5 月 摘要本次设计是针对 2×300MW 机组火电厂电气部分的设计。介绍了现代电厂的类型和电厂中的一些设备。介绍了电厂的一些电气设备如发电机、变压器、断路器、电压互感器、电流互感器和电动机等。发电机将电能发出后,通常通过电力变压器传送给系统。电力系统中的变压器的作用是将发电机末端电压升高到传送系统电压。升高电压的目的是减少输电线路上的损耗。电压互感器的二次侧不允许短路。假如二次侧短路,将在二次侧产生巨大电流,从而烧坏绕组。在一次侧负载运行时,电流互感器的二次侧电流不允许开路。假如二次侧开路时在端子之间将产生电位差,这对于任何接近或接触表计和表头的人来说都是危险的。因此,我们在电厂以后的工作当中一定要时刻保持安全和仔细的态度。关键词:电器设备 发电机 变压器AbstractThis design aims at 2×300MW the unit thermoelectric power station electricity partial designs. Introduced in the modern power plant typeand power plant some equipment. Introduced the power plant some electrical equipment like generators, the transformer, the circuit breaker, the voltage transformer, the current transformer and the electric motor and so on.After the generator generates the electricity, usually transmits through the power transformer for the system. In the electrical power system transformer function is generator terminal voltage magnification to the transducer voltage. The boosting goal is reduceson the transmission line the loss. The voltage transformer two sides do not allow to short-circuit.If two sides short-circuit, will produce the giant electric current intwo sides, thus will burn out the winding. When a side load movement,the current transformer two...
