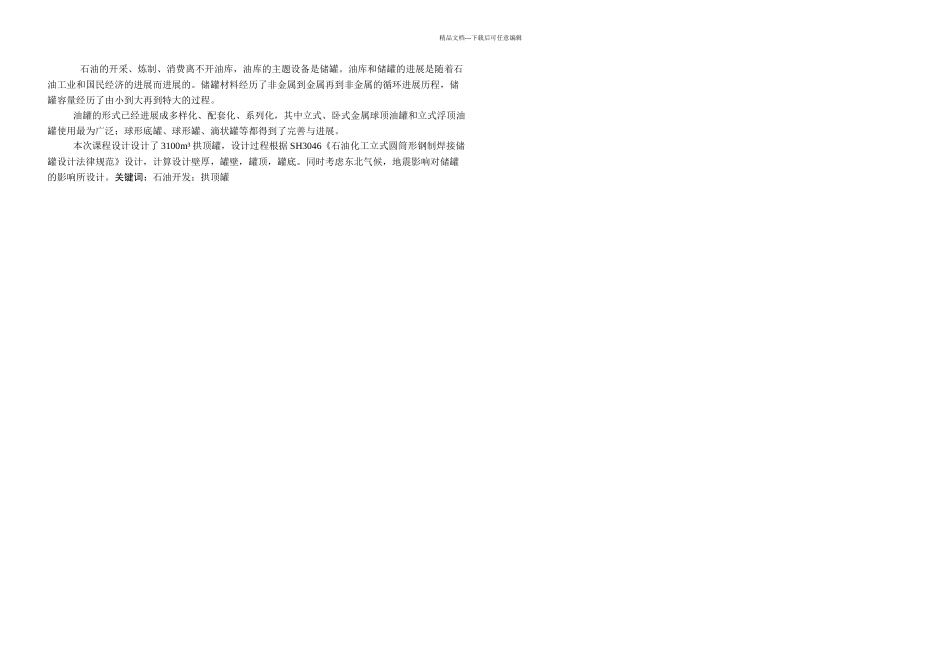

m拱顶罐的设计_第1页
1/16

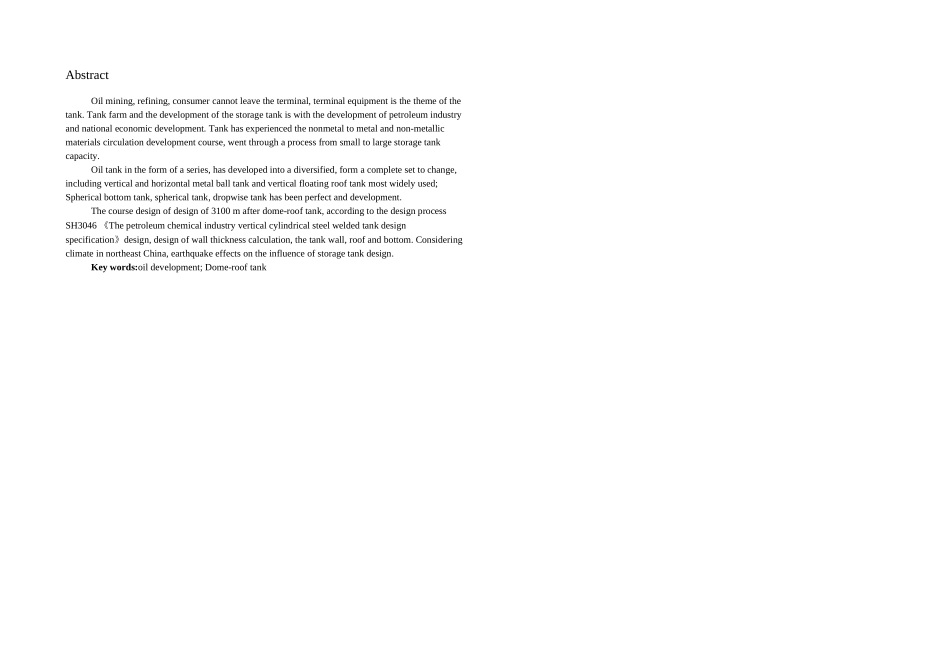

m拱顶罐的设计_第2页
2/16

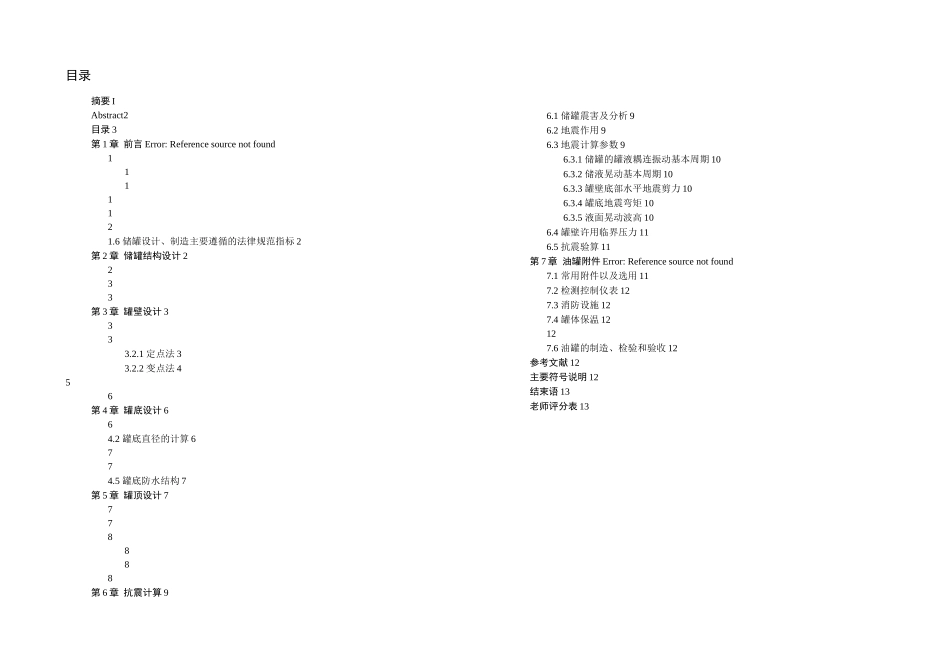

m拱顶罐的设计_第3页
3/16
精品文档---下载后可任意编辑 石油的开采、炼制、消费离不开油库,油库的主题设备是储罐。油库和储罐的进展是随着石油工业和国民经济的进展而进展的。储罐材料经历了非金属到金属再到非金属的循环进展历程,储罐容量经历了由小到大再到特大的过程。油罐的形式已经进展成多样化、配套化、系列化,其中立式、卧式金属球顶油罐和立式浮顶油罐使用最为广泛;球形底罐、球形罐、滴状罐等都得到了完善与进展。本次课程设计设计了 3100m³ 拱顶罐,设计过程根据 SH3046《石油化工立式圆筒形钢制焊接储罐设计法律规范》设计,计算设计壁厚,罐壁,罐顶,罐底。同时考虑东北气候,地震影响对储罐的影响所设计。关键词:石油开发;拱顶罐AbstractOil mining, refining, consumer cannot leave the terminal, terminal equipment is the theme of the tank. Tank farm and the development of the storage tank is with the development of petroleum industry and national economic development. Tank has experienced the nonmetal to metal and non-metallic materials circulation development course, went through a process from small to large storage tank capacity. Oil tank in the form of a series, has developed into a diversified, form a complete set to change, including vertical and horizontal metal ball tank and vertical floating roof tank most widely used; Spherical bottom tank, spherical tank, dropwise tank has been perfect and development. The course design of design of 3100 m after dome-roof tank, according to the design process SH3046 《The petroleum chemical industry vertical cylindrical steel welded tank design specification》design, design of wall thickness calculation, the tank wall, roof and bottom. Considering climate in northeast China, earthquake effects on the influence of storage tank design.Key words:oil development; Dome-roof tank 目录摘要 IAbstract2目录 3第 1 章 前言 Error: Reference source not found1111121.6 储罐设计、制造主要遵循的法律规范指标 2第 2 ...
