WDWA电子万能试验机英文技术参数

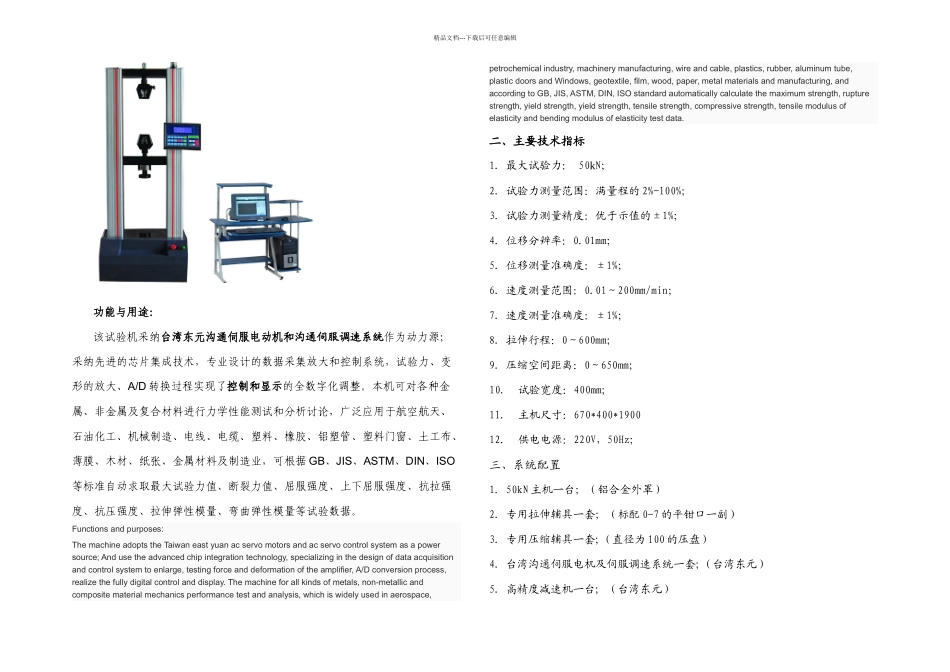

精品文档---下载后可任意编辑功能与用途：该试验机采纳台湾东元沟通伺服电动机和沟通伺服调速系统作为动力源；采纳先进的芯片集成技术，专业设计的数据采集放大和控制系统，试验力、变形的放大、A/D 转换过程实现了控制和显示的全数字化调整。本机可对各种金属、非金属及复合材料进行力学性能测试和分析讨论，广泛应用于航空航天、石油化工、机械制造、电线、电缆、塑料、橡胶、铝塑管、塑料门窗、土工布、薄膜、木材、纸张、金属材料及制造业，可根据 GB、JIS、ASTM、DIN、ISO等标准自动求取最大试验力值、断裂力值、屈服强度、上下屈服强度、抗拉强度、抗压强度、拉伸弹性模量、弯曲弹性模量等试验数据。Functions and purposes:The machine adopts the Taiwan east yuan ac servo motors and ac servo control system as a power source; And use the advanced chip integration technology, specializing in the design of data acquisition and control system to enlarge, testing force and deformation of the amplifier, A/D conversion process, realize the fully digital control and display. The machine for all kinds of metals, non-metallic and composite material mechanics performance test and analysis, which is widely used in aerospace, petrochemical industry, machinery manufacturing, wire and cable, plastics, rubber, aluminum tube, plastic doors and Windows, geotextile, film, wood, paper, metal materials and manufacturing, and according to GB, JIS, ASTM, DIN, ISO standard automatically calculate the maximum strength, rupture strength, yield strength, yield strength, tensile strength, compressive strength, tensile modulus of elasticity and bending modulus of elasticity test data.二、主要技术指标1. 最大试验力： 50kN；2. 试验力测量范围：满量程的 2%-100%；3. 试验力测量精度：优于示值的±1%；4. 位移分辨率：0.01mm；5. 位移测量准确度：±1%；6. 速度测量范围：0.01～200mm/min；7. 速度测量准确度：±1%；8. 拉伸行程：0～600mm；9. 压缩空间距离：0～650mm；10.试验宽度：400mm; 11.主机尺寸：670*400*190...
