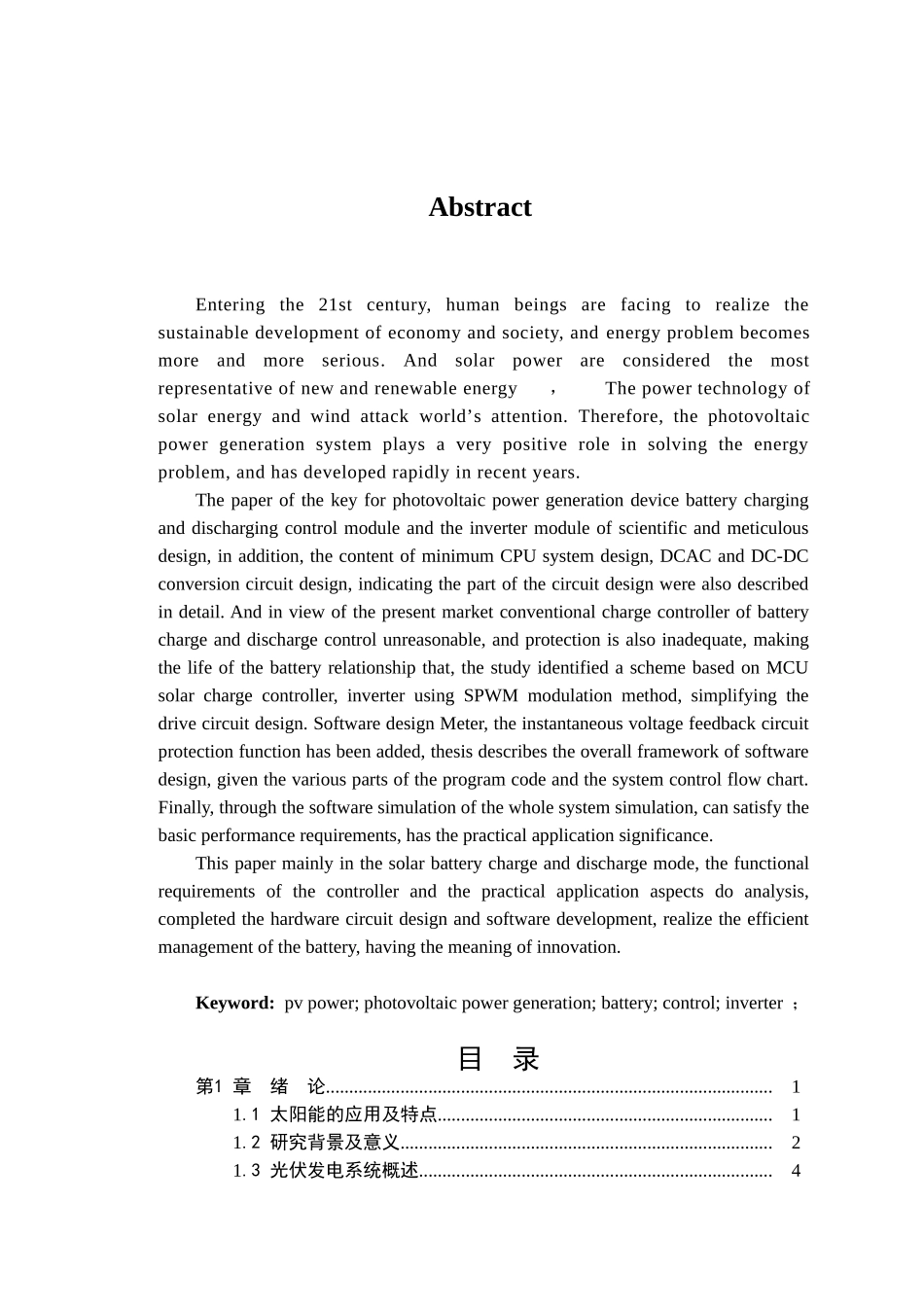

光伏发电系统设计和实现 电气工程专业_第2页
2/67

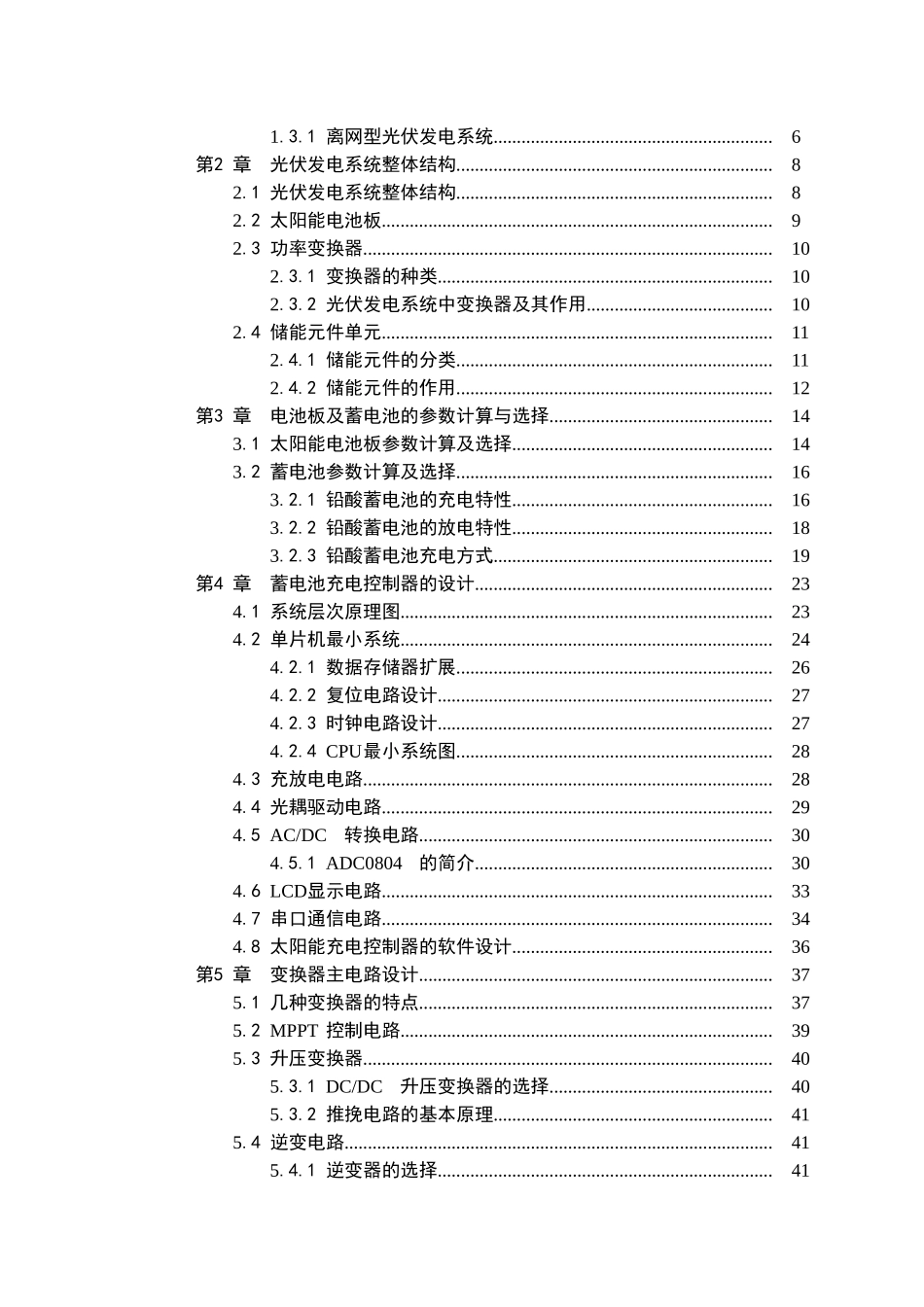

光伏发电系统设计和实现 电气工程专业_第3页
3/67
摘要进入二十一世纪,人类面临着实现经济和社会可持续发展的重大挑战,而能源问题日益严重。太阳能被看做是最具有代表性的新能源和可再生能源。因此,光伏发电系统对解决能源问题起到非常积极的作用,近年来发展迅速。本设计重点针对光伏发电装置中蓄电池充放电控制模块和逆变器模块进行了细致科学的设计,此外,论文内容对CPU最小系统设计、DCDC及DCAC转换电路设计、指示电路部分的设计也进行了详细说明。并针对目前市场上传统充电控制器对蓄电池的充放电控制不合理,同时保护也不够充分,使得蓄电池的寿命缩短这种情况,研究确定了一种基于单片机的太阳能充电控制器的方案。逆变环节采用SPWM调制方式,简化了驱动电路设计。软件设计中,采用瞬时电压反馈,增加了电路保护等功能,论文阐述了软件设计总体思想构架,给出了程序代码和系统各部分控制流程图。最后,经过仿真软件进行整体系统仿真,基本达到性能要求,具有实际应用意义。本设计着重在太阳能对蓄电池的充放电方式、控制器的功能要求和实际应用方面做了一定分析,完成了硬件电路设计和软件编制,实现了对蓄电池的高效率管理,具有创新意义。关键词:太阳能;光伏发电;蓄电池;控制;逆变器;AbstractEnteringthe21stcentury,humanbeingsarefacingtorealizethesustainabledevelopmentofeconomyandsociety,andenergyproblembecomesmoreandmoreserious.Andsolarpowerareconsideredthemostrepresentativeofnewandrenewableenergy,Thepowertechnologyofsolarenergyandwindattackworld’sattention.Therefore,thephotovoltaicpowergenerationsystemplaysaverypositiveroleinsolvingtheenergyproblem,andhasdevelopedrapidlyinrecentyears.Thepaperofthekeyforphotovoltaicpowergenerationdevicebatterycharginganddischargingcontrolmoduleandtheinvertermoduleofscientificandmeticulousdesign,inaddition,thecontentofminimumCPUsystemdesign,DCACandDC-DCconversioncircuitdesign,indicatingthepartofthecircuitdesignwerealsodescribedindetail.Andinviewofthepresentmarketconventionalchargecontrollerofbatterychargeanddischargecontrolunreasonable,andprotectionisalsoinadequate,makingthelifeofthebatteryrelationshipthat,thestudyidentifiedaschemebasedonMCUsolarchargecontroller,inverterusingSPWMmodulationmethod,simplifyingthedrivecircuitdesign.SoftwaredesignMeter,theinstantaneousvoltagefeedbackcircuitprotectionfunctionhasbeenadded,thesisdescribestheoverallframeworkofsoftwaredesign,giventhevariouspartsoftheprogramcodeandthesystemcontrolflowchart.Finally,throughthesoftwaresimulationofthewholesystemsimulation,cansatisfythebasicperformancerequirements,hasthepracticalapplicationsignificance.Thispapermainlyinthesolarbatterychargeanddischargemode,thefunctionalrequirementsofthecontrollerandthepracticalapplicationaspectsdoanalysis,completedthehardwarecircuitdesignandsoftwaredevelopment,realizetheefficientmanagementofthebattery,havingthemeaningofinnovation.Keyword:pvpower;photovoltaicpowergeneration;battery;control;inverter;目录第1章绪论................................................................................................11.1太阳能的应用及特点........................................................................11.2研究背景及意义................................................................................21.3光伏发电系统概述............................................................................41.3.1离网型光伏发电系统............................................................6第2章光伏发电系统整体结构....................................................................82.1光伏发电系统整体结构....................................................................82...
