二滩水电站交叉冗余双微机调节器论文

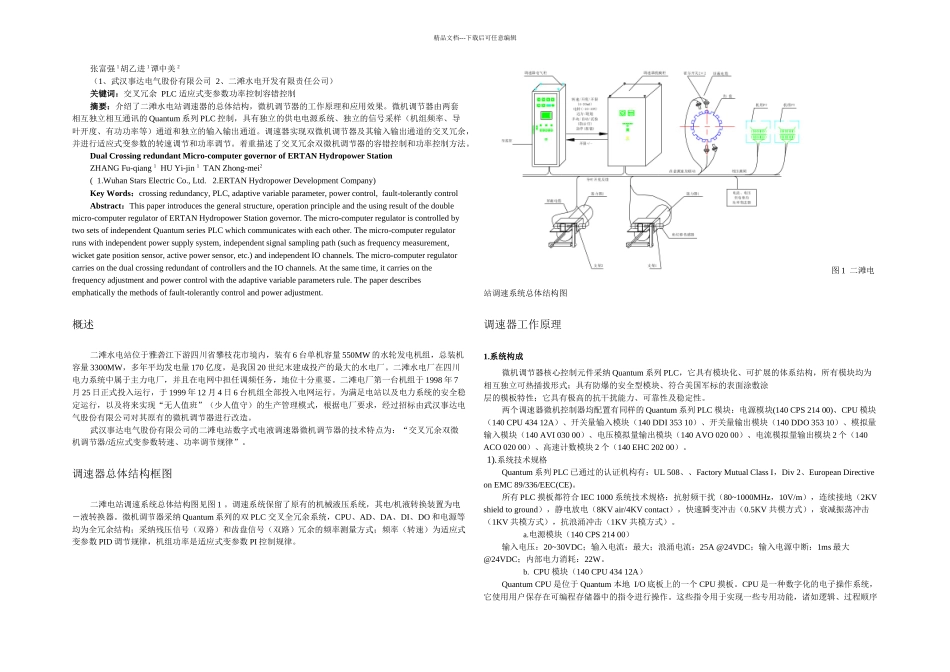

精品文档---下载后可任意编辑张富强 1胡乙进 1谭中美 2（1、武汉事达电气股份有限公司 2、二滩水电开发有限责任公司）关键词：交叉冗余 PLC 适应式变参数功率控制容错控制摘要：介绍了二滩水电站调速器的总体结构，微机调节器的工作原理和应用效果。微机调节器由两套相互独立相互通讯的 Quantum 系列 PLC 控制，具有独立的供电电源系统、独立的信号采样（机组频率、导叶开度、有功功率等）通道和独立的输入输出通道。调速器实现双微机调节器及其输入输出通道的交叉冗余，并进行适应式变参数的转速调节和功率调节。着重描述了交叉冗余双微机调节器的容错控制和功率控制方法。Dual Crossing redundant Micro-computer governor of ERTAN Hydropower StationZHANG Fu-qiang 1 HU Yi-jin 1 TAN Zhong-mei2( 1.Wuhan Stars Electric Co., Ltd. 2.ERTAN Hydropower Development Company)Key Words：crossing redundancy, PLC, adaptive variable parameter, power control, fault-tolerantly control Abstract：This paper introduces the general structure, operation principle and the using result of the double micro-computer regulator of ERTAN Hydropower Station governor. The micro-computer regulator is controlled by two sets of independent Quantum series PLC which communicates with each other. The micro-computer regulator runs with independent power supply system, independent signal sampling path (such as frequency measurement, wicket gate position sensor, active power sensor, etc.) and independent IO channels. The micro-computer regulator carries on the dual crossing redundant of controllers and the IO channels. At the same time, it carries on the frequency adjustment and power control with the adaptive variable parameters rule. The paper describes emphatically the methods of fault-tolerantly control and power adjustment.概述二滩水电站位于雅砻江下游四川省攀枝花市境内，装有 6 台单机容量 550MW 的水轮发电机组，总装机容量 3300MW，多年平均发电量 170 亿度，是我国 20 世纪末建成投产的最...
