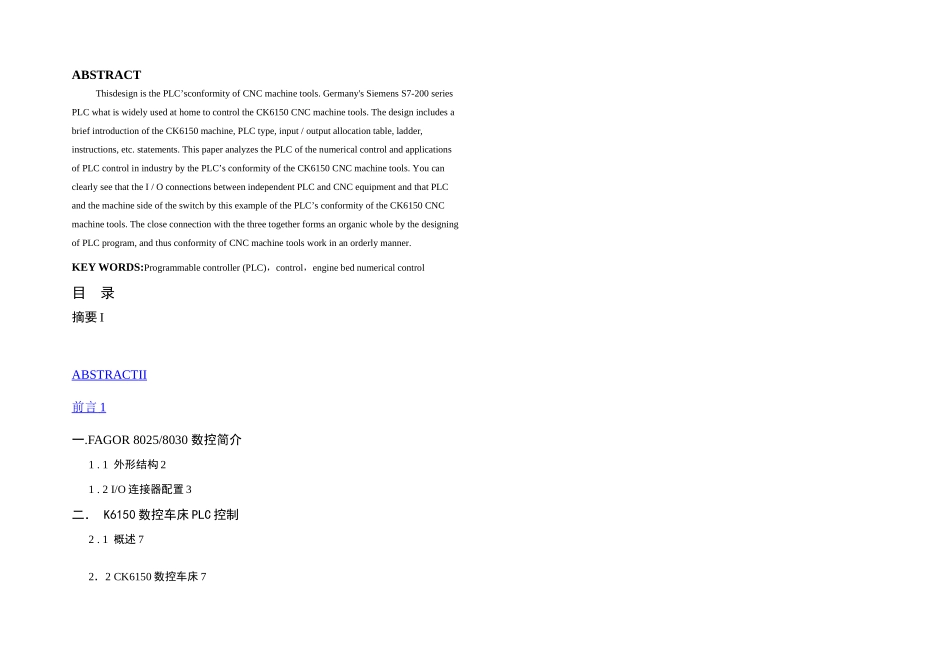

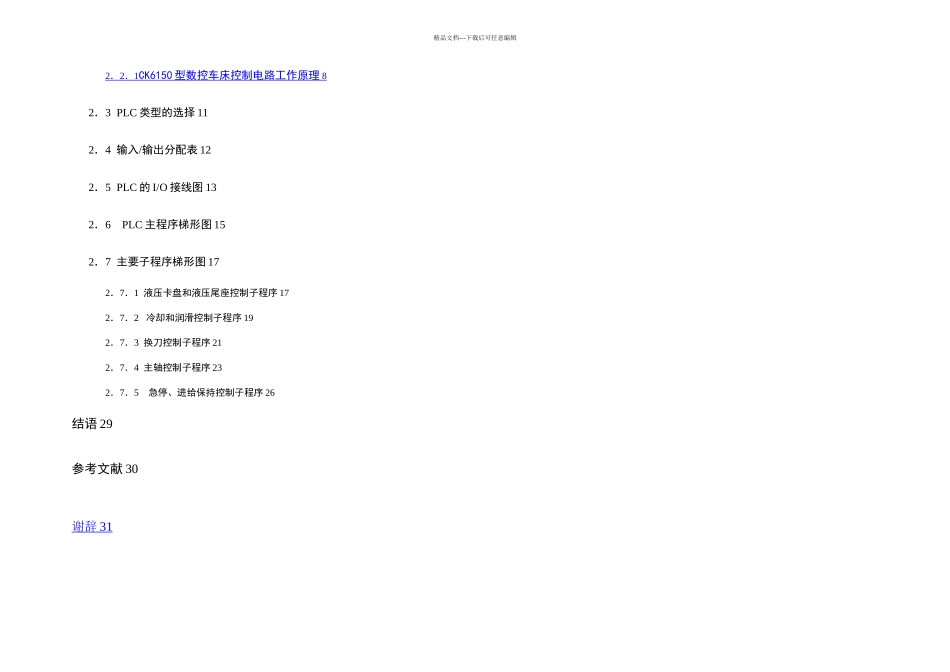

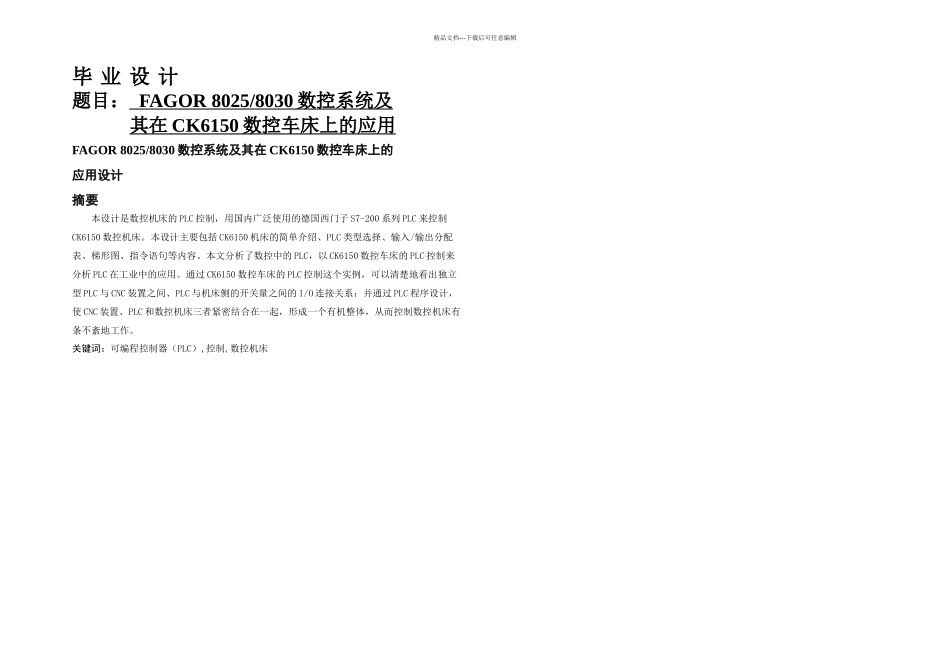

精品文档---下载后可任意编辑毕 业 设 计题目: FAGOR 8025/8030 数控系统及 其在 CK6150 数控车床上的应用 FAGOR 8025/8030 数控系统及其在 CK6150 数控车床上的应用设计摘要本设计是数控机床的 PLC 控制,用国内广泛使用的德国西门子 S7-200 系列 PLC 来控制CK6150 数控机床。本设计主要包括 CK6150 机床的简单介绍、PLC 类型选择、输入/输出分配表、梯形图、指令语句等内容。本文分析了数控中的 PLC,以 CK6150 数控车床的 PLC 控制来分析 PLC 在工业中的应用。通过 CK6150 数控车床的 PLC 控制这个实例,可以清楚地看出独立型 PLC 与 CNC 装置之间、PLC 与机床侧的开关量之间的 I/O 连接关系:并通过 PLC 程序设计,使 CNC 装置、PLC 和数控机床三者紧密结合在一起,形成一个有机整体,从而控制数控机床有条不紊地工作。关键词:可编程控制器(PLC),控制,数控机床ABSTRACTThisdesign is the PLC’sconformity of CNC machine tools. Germany's Siemens S7-200 series PLC what is widely used at home to control the CK6150 CNC machine tools. The design includes a brief introduction of the CK6150 machine, PLC type, input / output allocation table, ladder, instructions, etc. statements. This paper analyzes the PLC of the numerical control and applications of PLC control in industry by the PLC’s conformity of the CK6150 CNC machine tools. You can clearly see that the I / O connections between independent PLC and CNC equipment and that PLC and the machine side of the switch by this example of the PLC’s conformity of the CK6150 CNC machine tools. The close connection with the three together forms an organic whole by the designing of PLC program, and thus conformity of CNC machine tools work in an orderly manner.KEY WORDS:Programmable controller (PLC),control,engine bed numerical control目 录摘要 IABSTRACT II 前言 1 一.FAGOR 8025/8030 数控简介1 . 1 外形结构 21 . 2 I/O 连接器配置 3二. K6150 数控车床 PLC 控制2 . 1 概述 72...
