戴尔DELL_InspironOne_2020拆机示意图

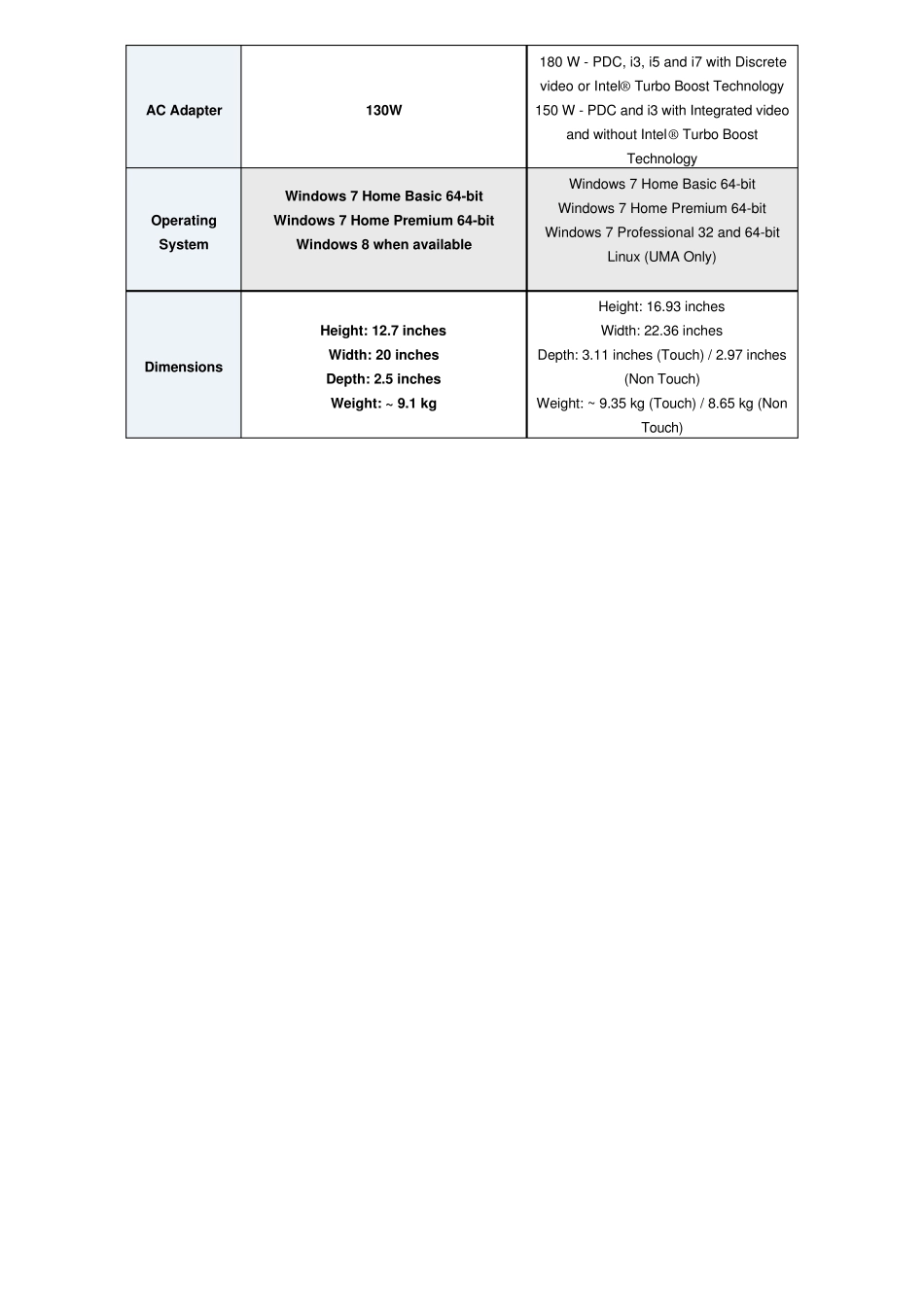

戴尔DELL_InspironOne_2020 拆机示意图 DELL InspironOne_2020 这个型号的一体机配置跟 InspironOne_2320 的配置比对 Product Overview Features Dell Inspiron™ One 2020 Dell™ Inspiron™ One 2320 Touch-screen No Yes Processors Intel® Core™ i3 Intel® Core™ i5 Intel® Core™ i3 Intel® Core™ i5 Intel® Core™ i7 Intel® G620 Chipset Intel® H61 Express Memory 1333 MHz DDR3 SODIMM (2 x DDR3 SODIMM Sockets) Memory min/max 2 GB - 6 GB 2 GB - 8 GB Video UMA: Intel® HD / HD 2000 Graphics Discrete: NVidia GeForce 610M UMA: Intel® HD / HD 2000 / HD 3000 Graphics Discrete: NVidia GeForce GT 525M Network RealTek® 10/100/1000 Mbps LOM Audio Realtek® ALC662VD HD Audio Realtek® ALC269 HD Audio Card Reader 8-in-1 Media Card Reader LCD 20.2 inches HD+ WLED (1600 × 900) 23” FHD WLED (1920 x 1080) Hard Drive 3.5-inch SATA III HDD 500GB / 1TB (7200 RPM) 3.5-inch SATA II HDD 320GB / 500GB / 1TB / 1.5TB / 2TB (7200 RPM) Optical Drive Blu-ray Disk™ rewritable DVD+/-RW DVD+/-RW DVD+/-RW/Blu-ray Disc combo Blu-ray Disc™ rewritable TV Tuner A339A - US, A33TD - Japan. A360-Japan, A339D-EMEA, APCC and Taiwan, A328-CCC and CHINA, A339A-US and Korea. Wireless 802.11 a/b/g/n + Bluetooth 4.0 (optional) 802.11 a/b/g/n + Bluetooth 3.0 (optional) Camera 720p HD (1280 × 720) + Digital Microphone 1 Mega Pixel + Digital Microphone Speakers 2 × 3 Watt speakers 2 × 4 Watt speakers Internal IR Receiver Yes Ports and Connectors 1 × Microphone Port 1 × Stereo Headphone / Speakers Port 1 × RJ45 Port 5 × USB 2.0 Ports (2 on the left side panel and 3 on the rear panel) 1 × MCX Antenna-in Port 1 × Half Mini Card Slot 1 × Full Mini Card Slot 1 B-CAS Card Slot (Japan Only) 1 × VGA port 1 × HDMI port (Opti...
