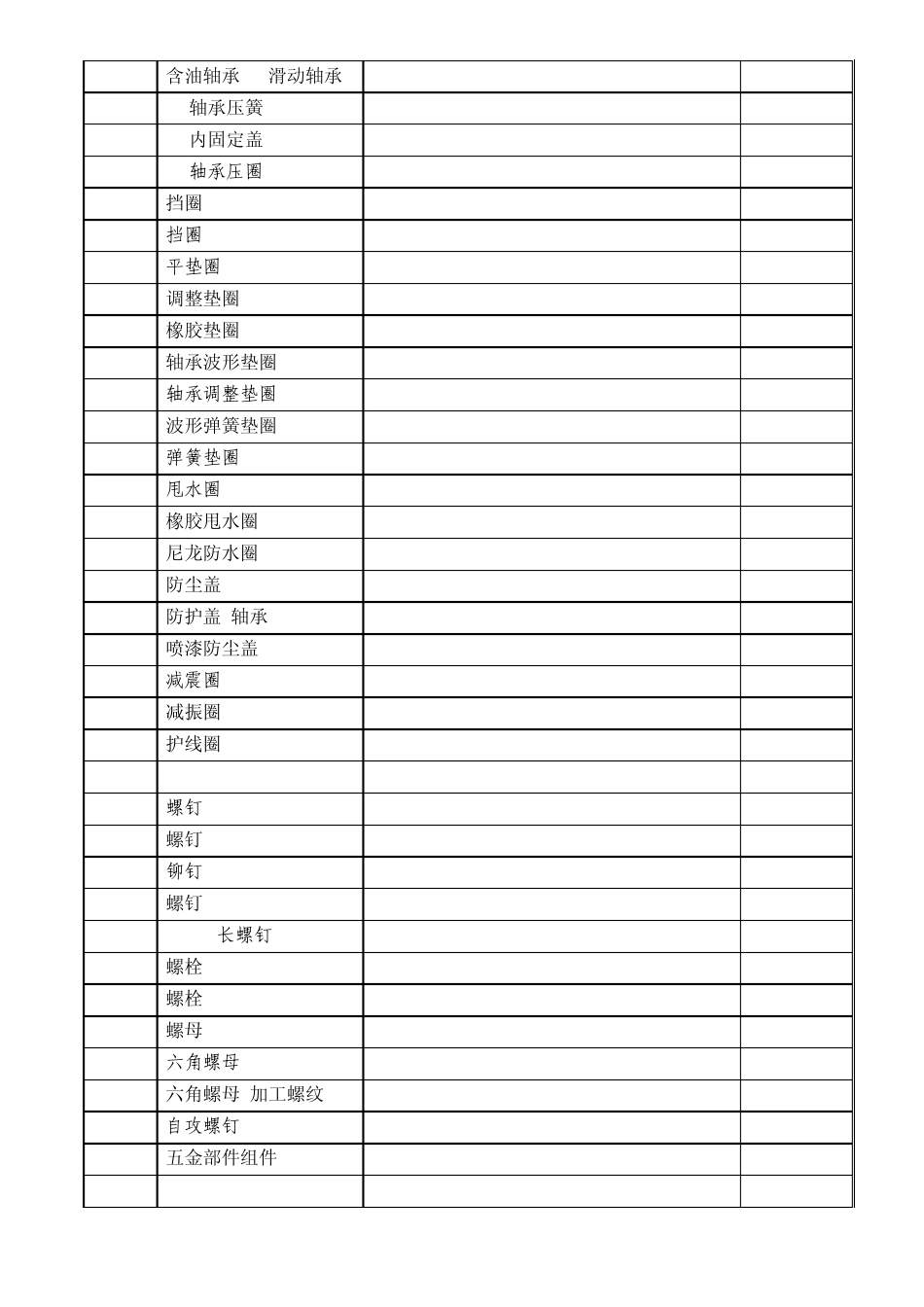

电机零配件中英文对照表 Part No. Chinese Description English Description REMARK 图纸 编号 中文描述 英文描述 备注 定子片 STATOR LAMINATION 转子片 ROTOR LAMINATION 定子 FRAME-STATOR-COIL 定子铁芯 STATOR CORE 定子铁芯 STATOR-CORE INTERLOCKED 定子铁芯 STATOR CORE ASSEMBLY 转子铁芯 INTERLOCKED ROTOR CORE 铸铝端盖 END FRAME CAST 铸铝端盖 END-FRAME MACHINED 压铸端盖 END FRAME CASTING 铁端盖 END FRAME-STAMPING 后盖 END COVER 端盖 COVER BRACKET / BRKT CSTG OP/ENCL 铸铝转子 ROTOR CORE 铸铝转子 cast-alu minu m rotor 铸铝转子 ROTOR-CORE (SPECIAL) 铸铝转子 ROTOR CORE CAST/MACH. 轴 SHAFT SHAFT(SINGLE FLAT) 机壳 MAIN FRAME 槽楔 SLOT-PEG / WEDGE 槽绝缘纸 SLOT-LINER /SLOT LINER 槽绝缘 INSULATION SLOT 绝缘材料 INSULATION MATERIAL 保护器 THERMOSTAT / PROTECTOR 热保护器 THERMOSTAT-ASSEMBLY 热保护器与线 THERMOSTAT-LEAD ASSEMBLY 轴承 / 球轴承 BEARING-BALL / BALL BEARING 球形含油轴承 BEARING SLEEVE 含油轴承 滑动轴承 BEARING SLEEVE / SLEEVE BEARING 48轴承压簧 0048 SPRING BRG.LOADING 48内固定盖 0048 CAP RETAINER INSIDE 48轴承压圈 0048 SLINGER SLEEVE BRG 挡圈 RING RETAINING 挡圈 RETAING RING RET. RING 平垫圈 WASHER PLAIN 调整垫圈 FELT WASHER 橡胶垫圈 PLASTIC WASHER 轴承波形垫圈 BEARING SPRING 轴承调整垫圈 BEARING SPACER 波形弹簧垫圈 WAVE SPRING 弹簧垫圈 WASHER SPRING 甩水圈 SLINGER WATER 橡胶甩水圈 SLINGER RUBBER 尼龙防水圈 SLINGER NYLON 防尘盖 DUST CAP 防护盖(轴承) SHIELD (BEARING) 喷漆防尘盖 PAINTED DUST CAP 减震圈 DAMPING RING 减振圈 SPLIT RING 护线圈 GROMMET 螺钉 SCREW 螺钉 STUD 铆钉 RIVET 螺钉 THRUBOLT #8-32长螺钉 THRUBOLT #8-32 螺栓 THRUBOLT 8-32 .164 螺栓 STUD 螺母 NUT HEX SS 六角螺母 NUT HEX #8-32 六角螺母(加工螺纹) NUT-HEX 自攻螺钉 #10-32 NF SELF FORMING SCREW #10-32 NF 五金部件组件 HARDWARE-GROUP 端子片 TERMINAL LUG 端子 TERMINAL FM KW KQ GQ MV P...
