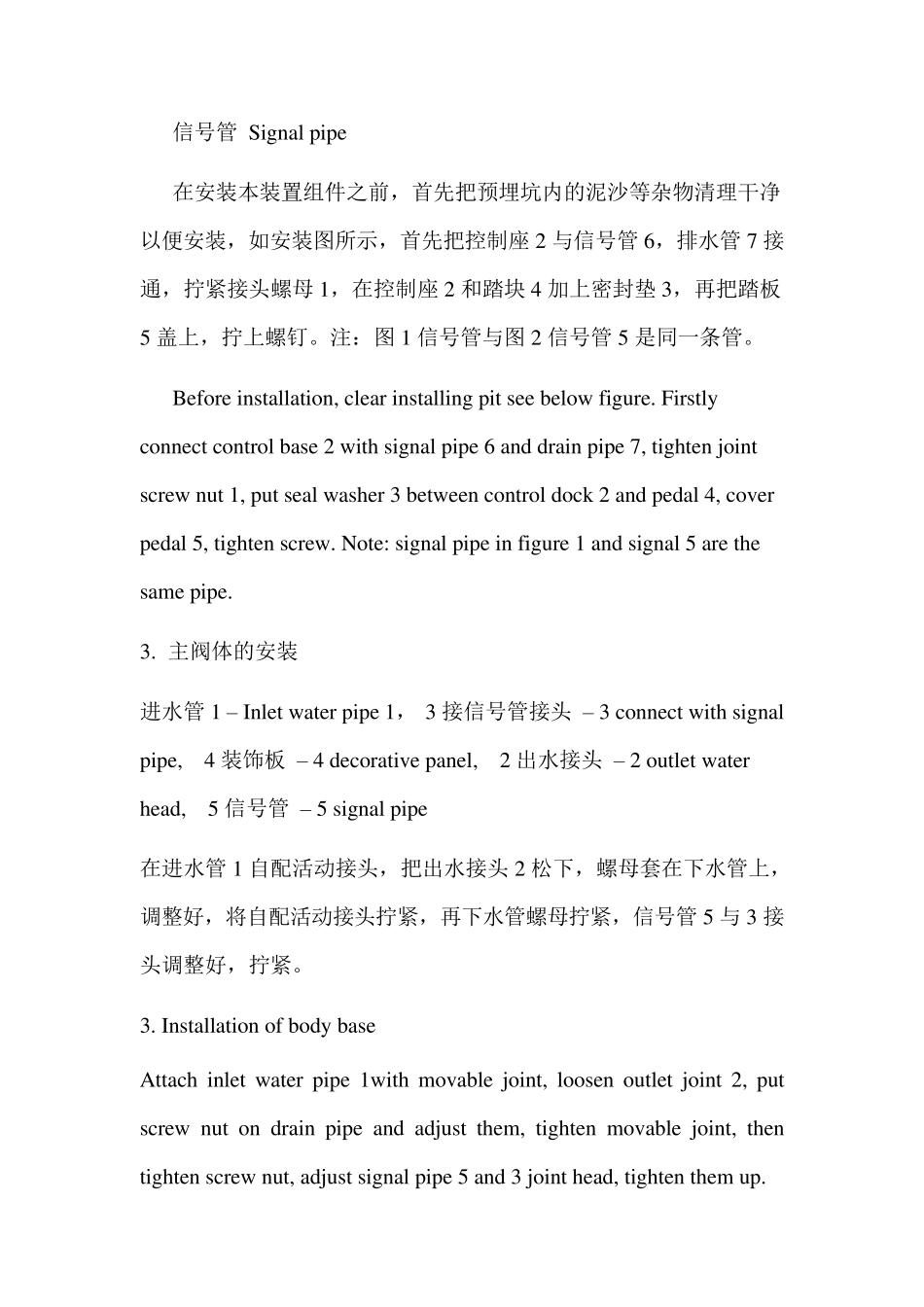

脚踏式大便冲洗阀安装使用说明书 Installation and Application Manual: Pedal Flush Valve 为了充分发挥产品功能,请按照本使用说明书内容正确安装 Please follow the installation instructions correctly to ensure the full efficiency of this product 用途与特点 Usage and Features 1. 广泛适用与宾馆、饭店、家庭、医院及公共场所的便池冲洗,实用美观。 1. Universally applied for toilet water flush in hotels, restaurants, homes, hospitals and public facilities, aesthetic and practical. 2. 卫生:以脚代手,减少了公共场所的疾病的传播,另外能防止水源污染。 2. Hygienic: pedal control reduces public disease spreading and water contamination by avoiding hand contacts. 安装示意图 (1) Installation Figure (1) I 大样 - Bulk sample, 钻孔 – Drill hole, 铜排水管 – Brass drain pipe 铜信号管 – Brass signal pipe,脚踏控制器 – pedal controller 安装示意图 (2) Installation Figure (2) 请注意:在安装时,信号管不能折成死角 Note: signal pipe MUST NOT be bent to right-angle. 排水管 – Drain pipe 信号管 – Signal pipe 主要性能与参数 Main Funtions and Parameters 1. 供水压力:0.06-0.6Mpa. 1. Water Pressure: 0.06-0.6Mpa. 2. 冲洗时间s:3-10s. 2. Flush Time s: 3-10s. 3. 冲洗水量L: 6-8L 3. LPF: 6-8L 4. 供水温度:0-50 °C. 4. Water Temperature: 0-50 °C. 安装方法 Installation 1. 供水管道的清洗 安装之前,务必清理管中杂物,砂砾等异物,以免造成堵塞。 1. Flush the water supply pipes thoroughly to remove miscellaneous articles and debris to avoid pipe jam. 2. 控制器的安装 Controller Installation 排水管 Drain pipe 信号管 Signal pipe 在安装本装置组件之前,首先把预埋坑内的泥沙等杂物清理干净以便安装,如安装图所示,首先把控制座2 与信号管6,排水管7 接通,拧紧接头螺母1,在控制座2 和踏块4 加上密封垫3,再把踏板5 盖上,拧上螺钉。注:图1 信号管与图2 信号管5 是同一条管。 Before installation, clear installing pit see below figure. Firs...
