基于PLC地铁排水控制系统的设计VIP专享

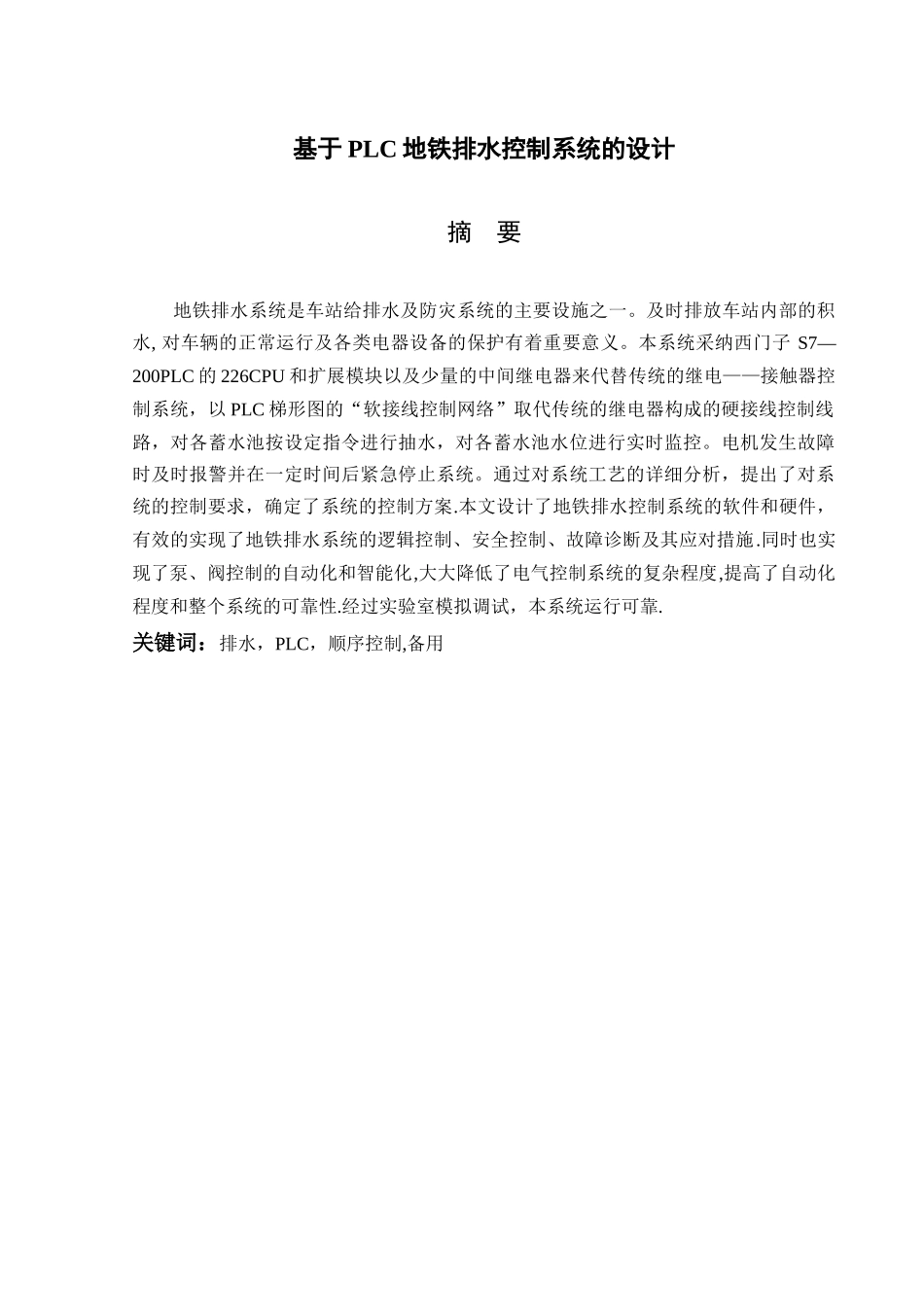

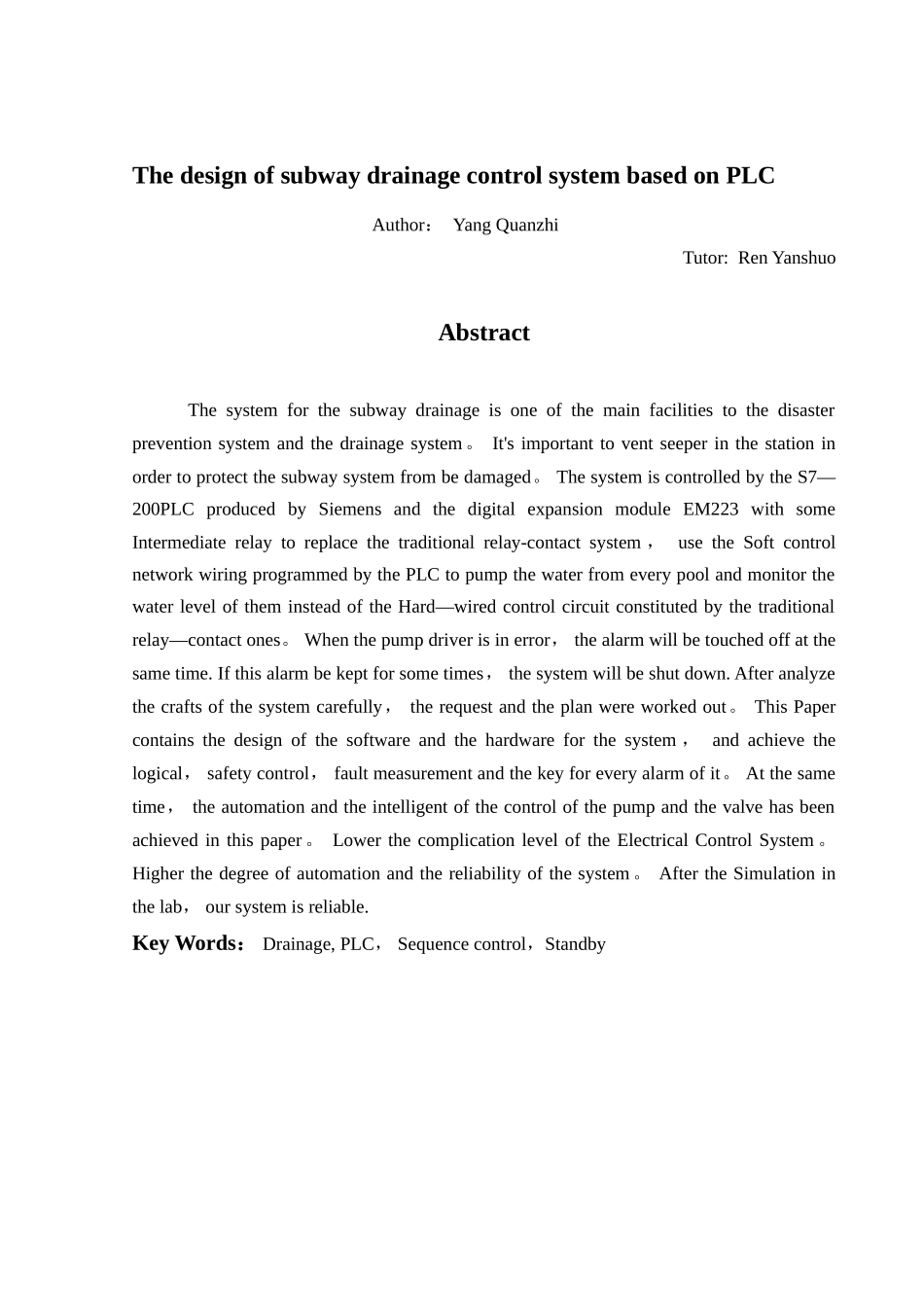

基于 PLC 地铁排水控制系统的设计摘 要地铁排水系统是车站给排水及防灾系统的主要设施之一。及时排放车站内部的积水, 对车辆的正常运行及各类电器设备的保护有着重要意义。本系统采纳西门子 S7—200PLC 的 226CPU 和扩展模块以及少量的中间继电器来代替传统的继电——接触器控制系统，以 PLC 梯形图的“软接线控制网络”取代传统的继电器构成的硬接线控制线路，对各蓄水池按设定指令进行抽水，对各蓄水池水位进行实时监控。电机发生故障时及时报警并在一定时间后紧急停止系统。通过对系统工艺的详细分析，提出了对系统的控制要求，确定了系统的控制方案.本文设计了地铁排水控制系统的软件和硬件，有效的实现了地铁排水系统的逻辑控制、安全控制、故障诊断及其应对措施.同时也实现了泵、阀控制的自动化和智能化,大大降低了电气控制系统的复杂程度,提高了自动化程度和整个系统的可靠性.经过实验室模拟调试，本系统运行可靠.关键词：排水，PLC，顺序控制,备用The design of subway drainage control system based on PLC Author： Yang QuanzhiTutor: Ren Yanshuo AbstractThe system for the subway drainage is one of the main facilities to the disaster prevention system and the drainage system。 It's important to vent seeper in the station in order to protect the subway system from be damaged。 The system is controlled by the S7—200PLC produced by Siemens and the digital expansion module EM223 with some Intermediate relay to replace the traditional relay-contact system ， use the Soft control network wiring programmed by the PLC to pump the water from every pool and monitor the water level of them instead of the Hard—wired control circuit constituted by the traditional relay—contact ones。 When the pump driver is in error， the alarm will be touched off at the same time. If this alarm be kept for some times， the system will be shut down. After analyze the crafts of the system carefully， the request and the plan were worked out。 This Paper contains the design of the...
