珠海市太阳能空调系统设计

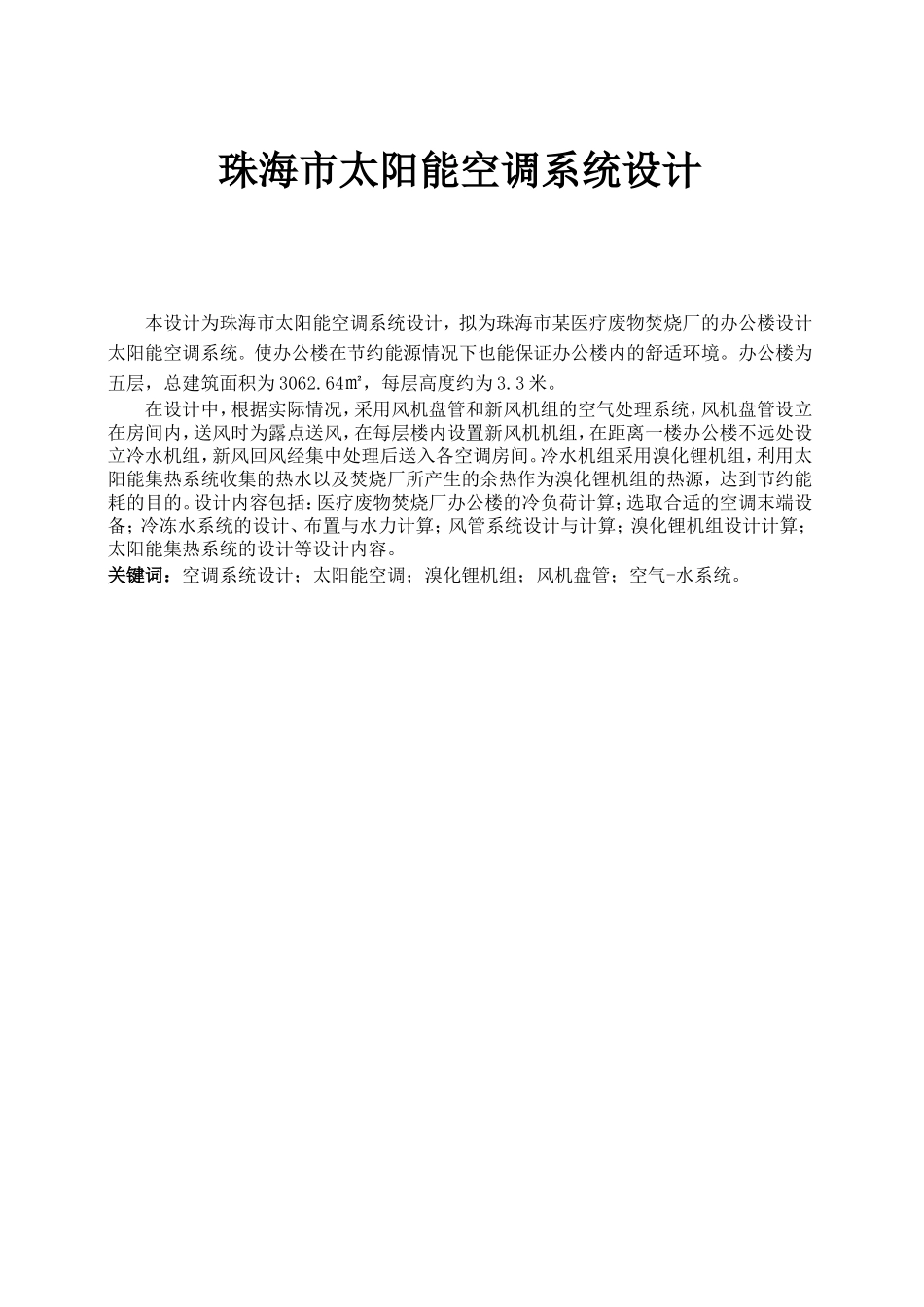

珠海市太阳能空调系统设计_第1页
1/72

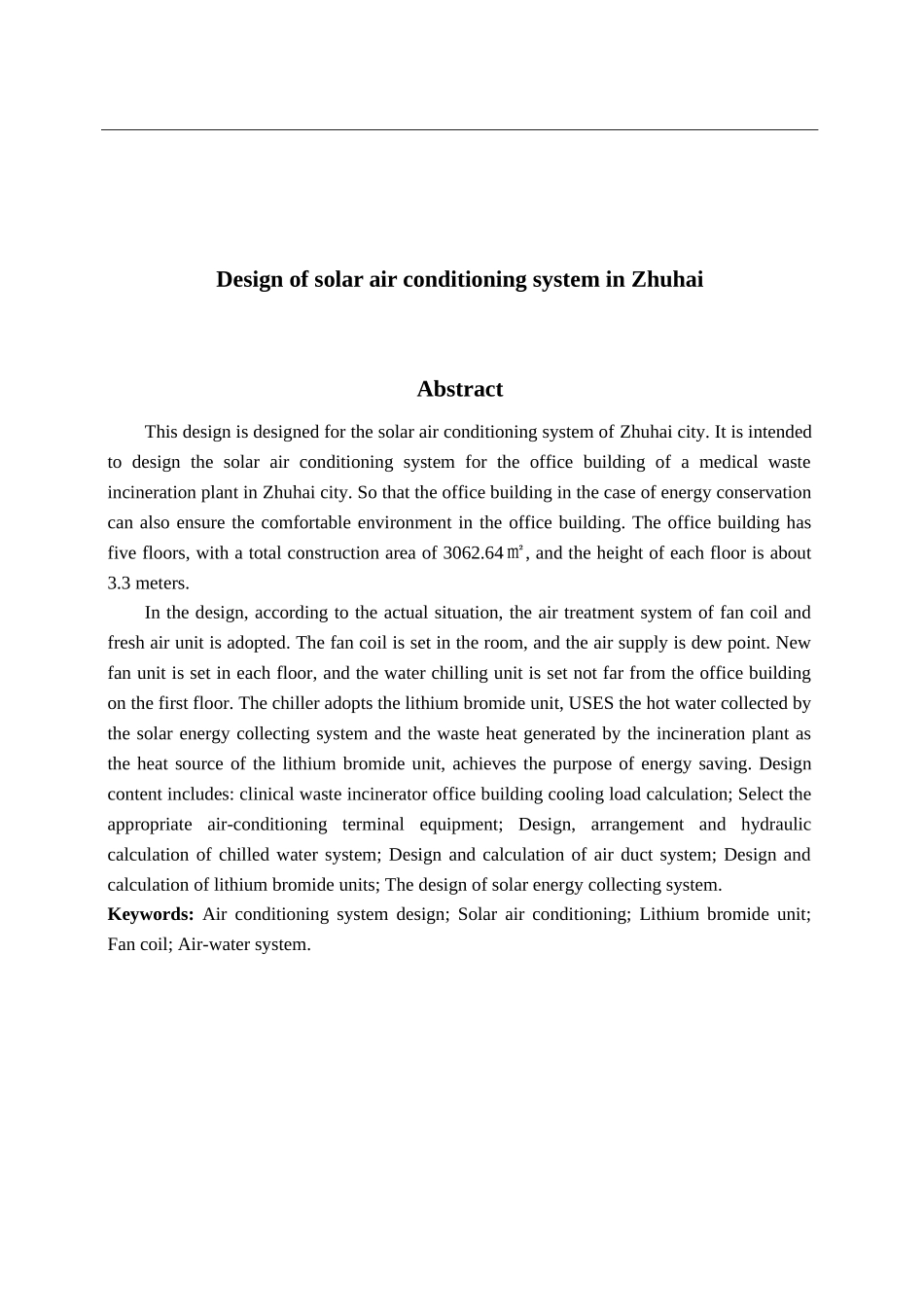

珠海市太阳能空调系统设计_第2页
2/72

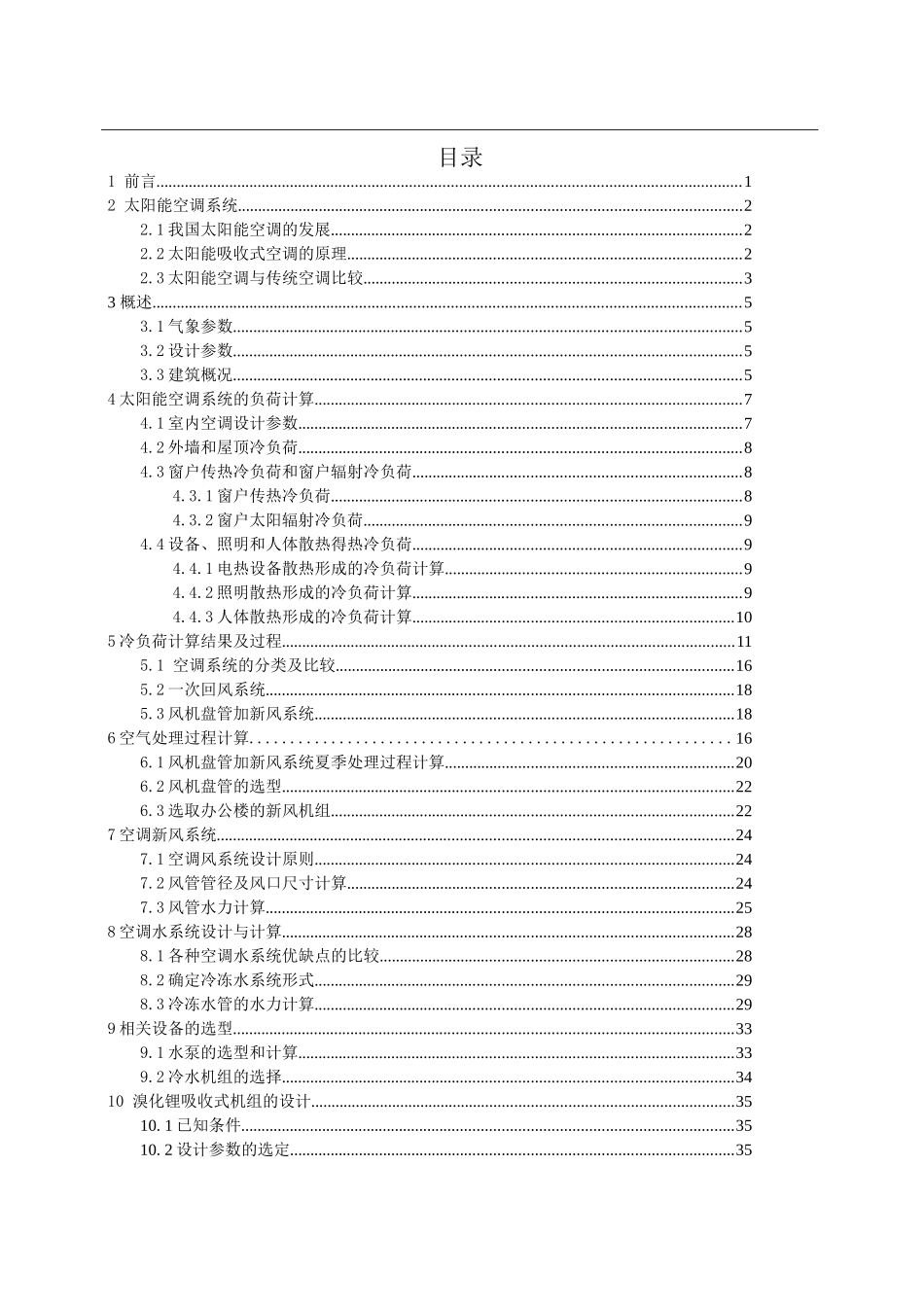

珠海市太阳能空调系统设计_第3页
3/72
珠海市太阳能空调系统设计本设计为珠海市太阳能空调系统设计,拟为珠海市某医疗废物焚烧厂的办公楼设计太阳能空调系统。使办公楼在节约能源情况下也能保证办公楼内的舒适环境。办公楼为五层,总建筑面积为 3062.64㎡,每层高度约为 3.3 米。在设计中,根据实际情况,采用风机盘管和新风机组的空气处理系统,风机盘管设立在房间内,送风时为露点送风,在每层楼内设置新风机机组,在距离一楼办公楼不远处设立冷水机组,新风回风经集中处理后送入各空调房间。冷水机组采用溴化锂机组,利用太阳能集热系统收集的热水以及焚烧厂所产生的余热作为溴化锂机组的热源,达到节约能耗的目的。设计内容包括:医疗废物焚烧厂办公楼的冷负荷计算;选取合适的空调末端设备;冷冻水系统的设计、布置与水力计算;风管系统设计与计算;溴化锂机组设计计算;太阳能集热系统的设计等设计内容。关键词:空调系统设计;太阳能空调;溴化锂机组;风机盘管;空气-水系统。Design of solar air conditioning system in ZhuhaiAbstractThis design is designed for the solar air conditioning system of Zhuhai city. It is intended to design the solar air conditioning system for the office building of a medical waste incineration plant in Zhuhai city. So that the office building in the case of energy conservation can also ensure the comfortable environment in the office building. The office building has five floors, with a total construction area of 3062.64㎡, and the height of each floor is about 3.3 meters.In the design, according to the actual situation, the air treatment system of fan coil and fresh air unit is adopted. The fan coil is set in the room, and the air supply is dew point. New fan unit is set in each floor, and the water chilling unit is set not far from the office building on the first floor. The chiller adopts the lithium bromide unit, USES the hot water collected by the solar energy collecting system and the waste heat generated by the incineration plant as the heat source of...
