垃圾自动分类处理机——传动系统设计

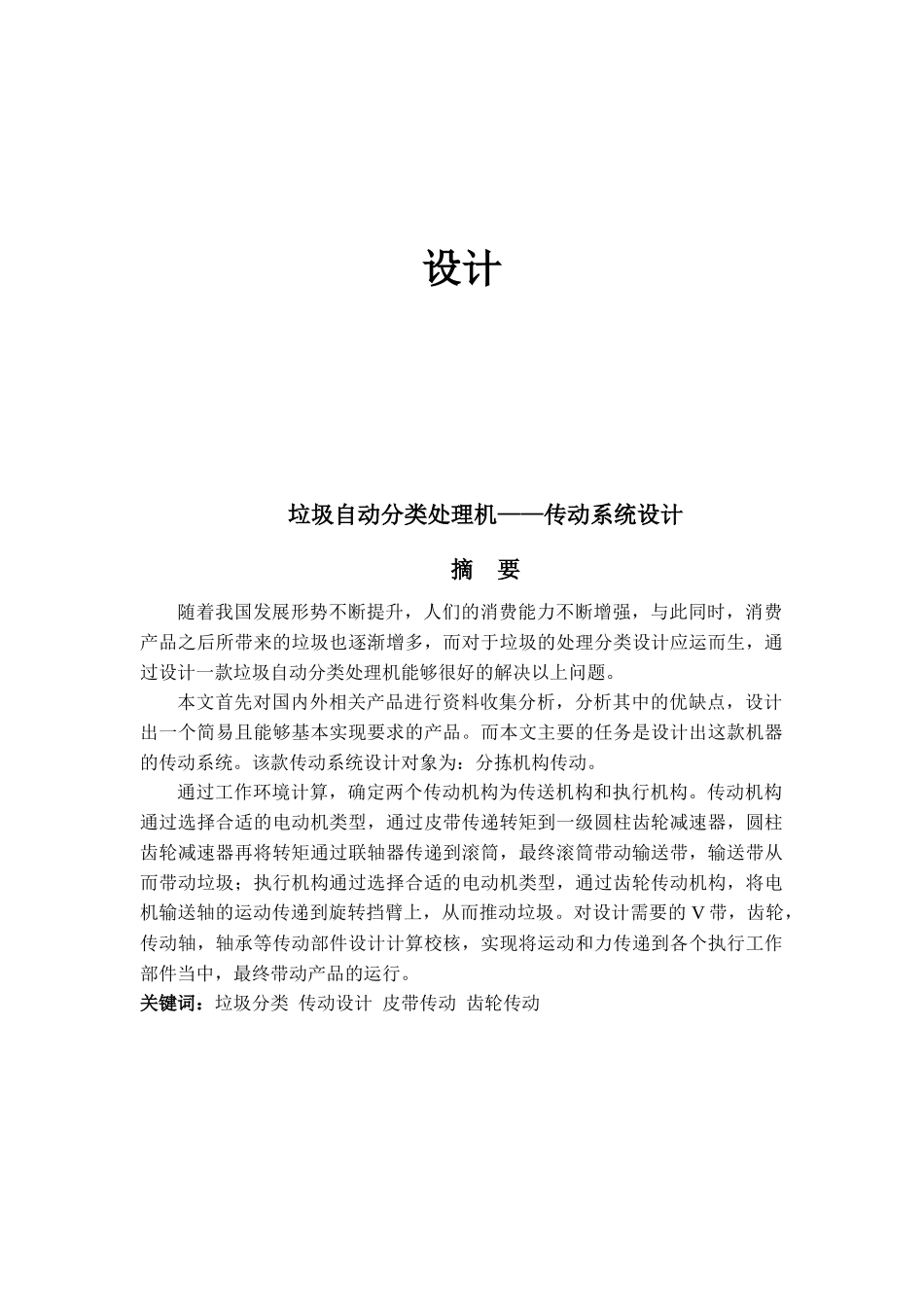

垃圾自动分类处理机——传动系统设计_第1页
1/42

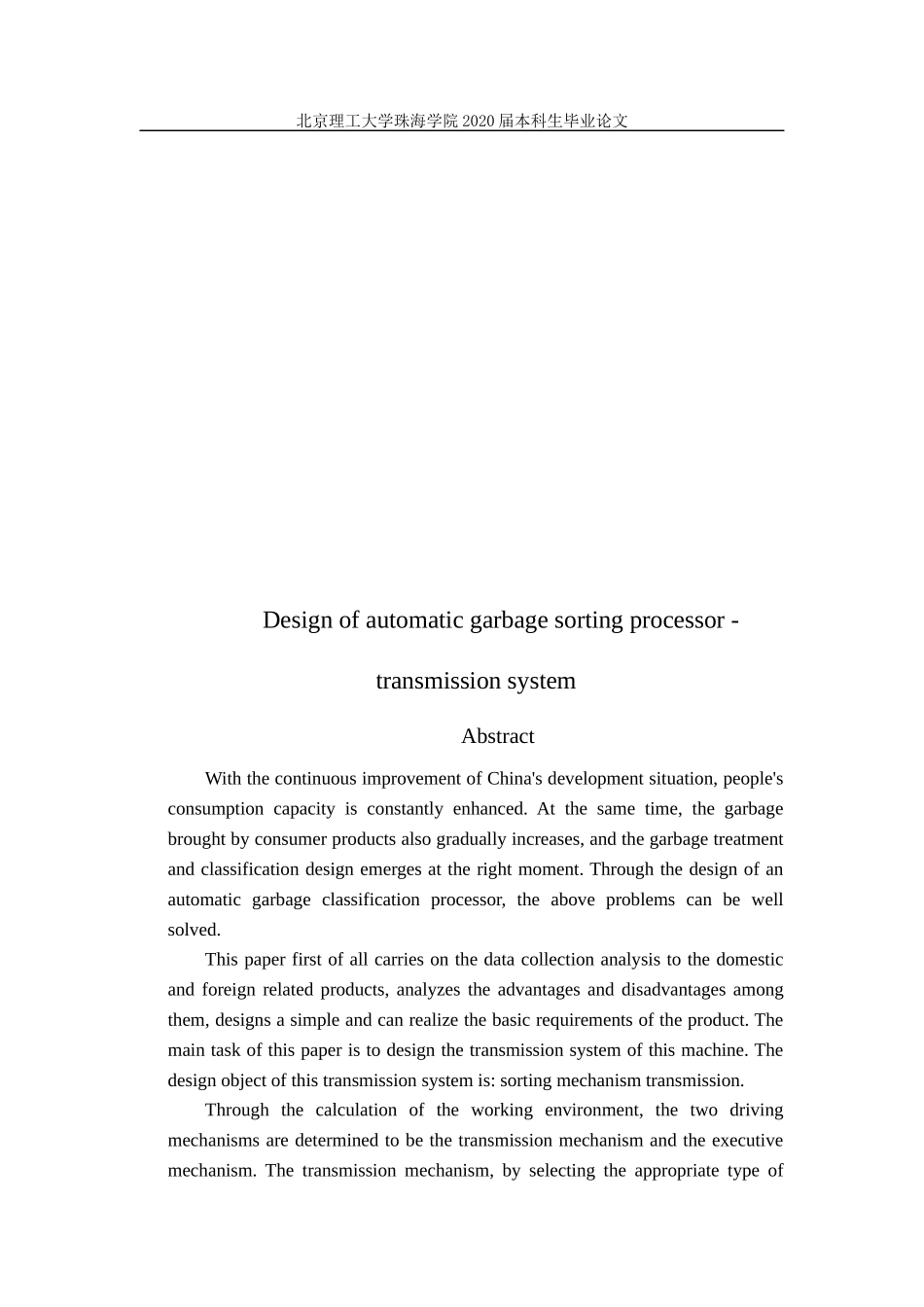

垃圾自动分类处理机——传动系统设计_第2页
2/42

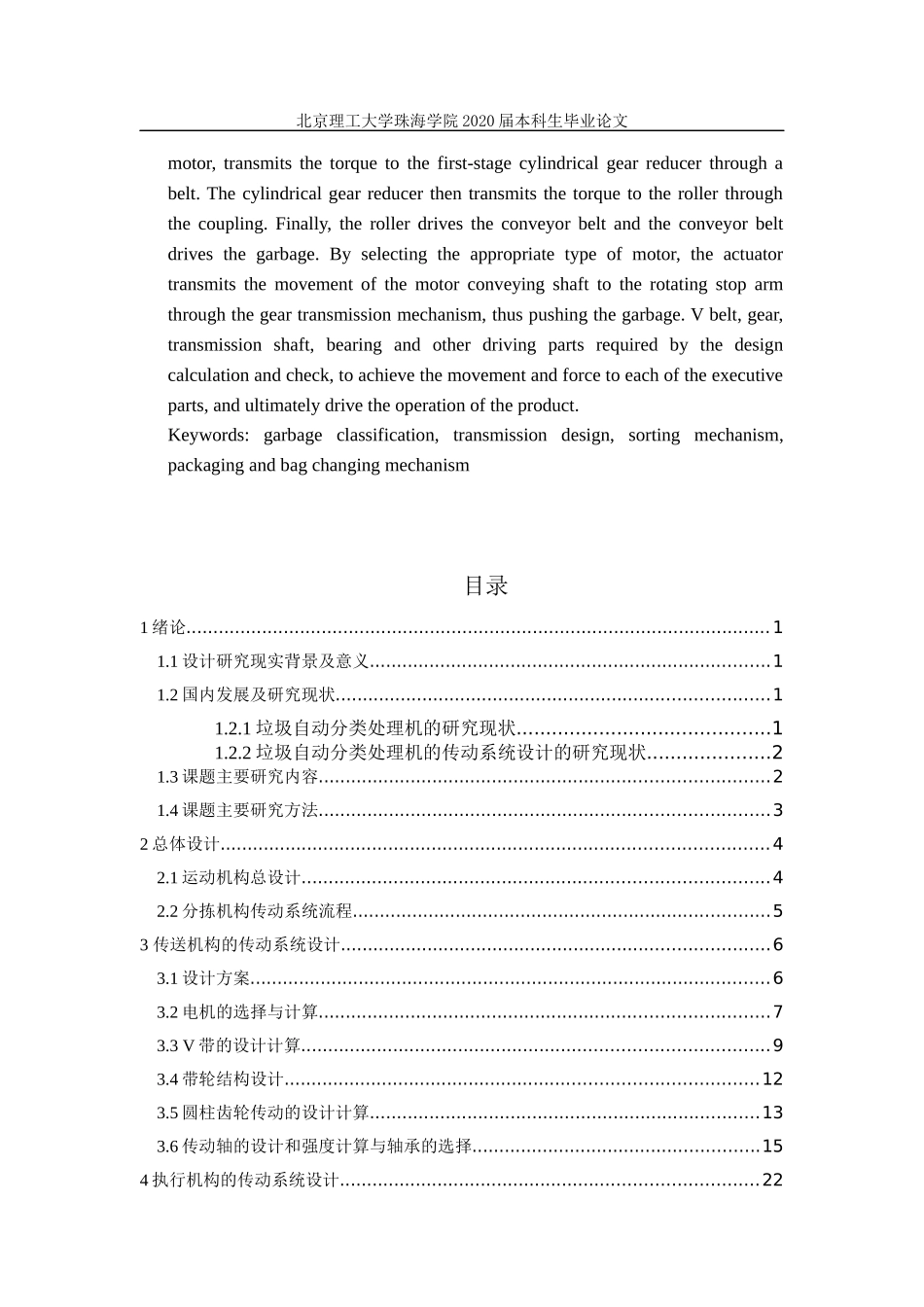

垃圾自动分类处理机——传动系统设计_第3页
3/42
设计垃圾自动分类处理机——传动系统设计摘 要随着我国发展形势不断提升,人们的消费能力不断增强,与此同时,消费产品之后所带来的垃圾也逐渐增多,而对于垃圾的处理分类设计应运而生,通过设计一款垃圾自动分类处理机能够很好的解决以上问题。本文首先对国内外相关产品进行资料收集分析,分析其中的优缺点,设计出一个简易且能够基本实现要求的产品。而本文主要的任务是设计出这款机器的传动系统。该款传动系统设计对象为:分拣机构传动。通过工作环境计算,确定两个传动机构为传送机构和执行机构。传动机构通过选择合适的电动机类型,通过皮带传递转矩到一级圆柱齿轮减速器,圆柱齿轮减速器再将转矩通过联轴器传递到滚筒,最终滚筒带动输送带,输送带从而带动垃圾;执行机构通过选择合适的电动机类型,通过齿轮传动机构,将电机输送轴的运动传递到旋转挡臂上,从而推动垃圾。对设计需要的 V 带,齿轮,传动轴,轴承等传动部件设计计算校核,实现将运动和力传递到各个执行工作部件当中,最终带动产品的运行。关键词:垃圾分类 传动设计 皮带传动 齿轮传动 北京理工大学珠海学院 2020 届本科生毕业论文Design of automatic garbage sorting processor - transmission systemAbstractWith the continuous improvement of China's development situation, people's consumption capacity is constantly enhanced. At the same time, the garbage brought by consumer products also gradually increases, and the garbage treatment and classification design emerges at the right moment. Through the design of an automatic garbage classification processor, the above problems can be well solved.This paper first of all carries on the data collection analysis to the domestic and foreign related products, analyzes the advantages and disadvantages among them, designs a simple and can realize the basic requirements of the product. The main task of this paper is to design the transmission system of this machine. The design object of this transmission system is: sorting mechanism transmission.Through the calculation of the working environment, the t...
