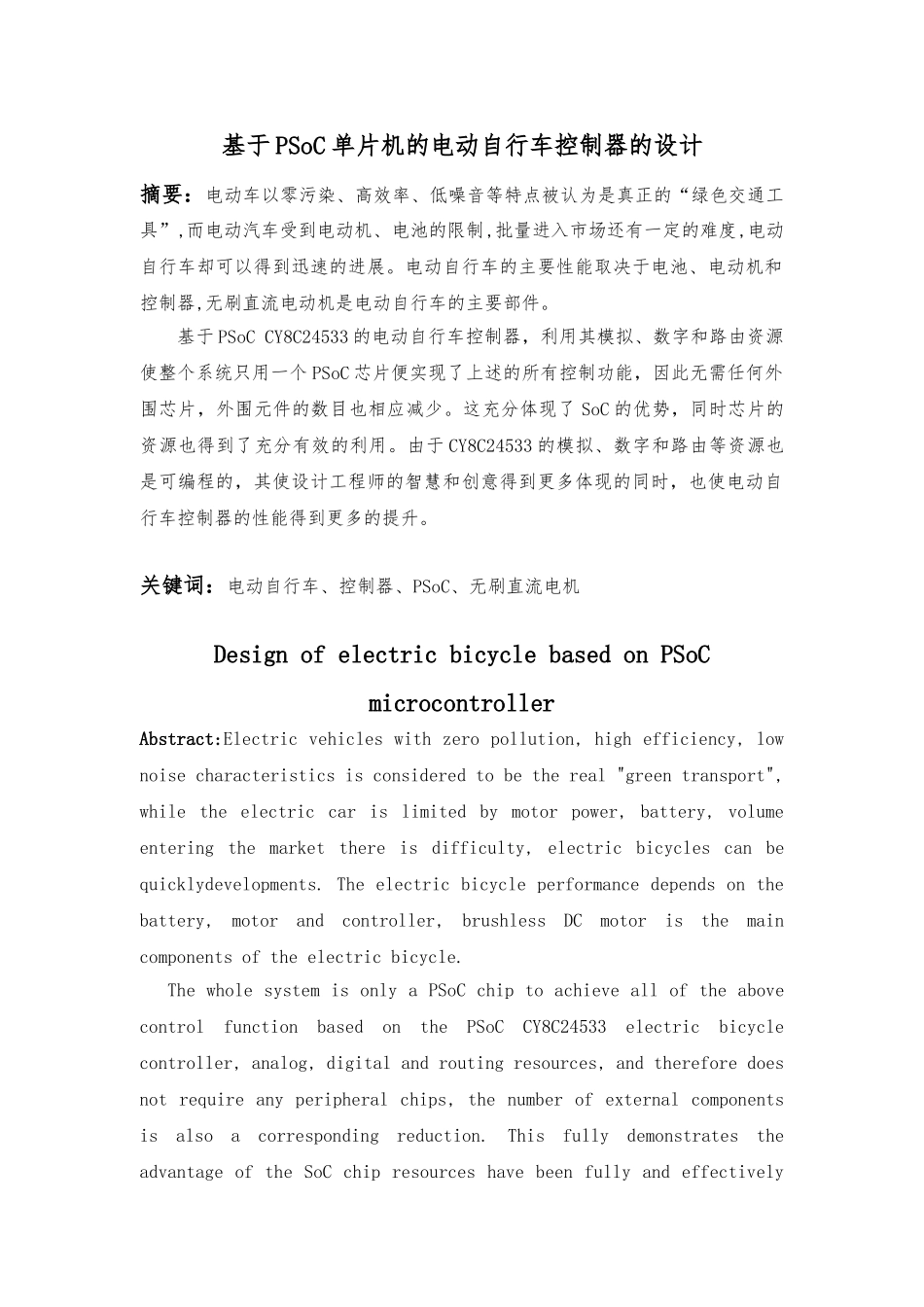

毕业设计（论文）报告题 目 基于 PSoC 单片机的电动自行车控制器的设计系 别专 业班 级学生学 号指导老师2024 年 4 月基于 PSoC 单片机的电动自行车控制器的设计摘要：电动车以零污染、高效率、低噪音等特点被认为是真正的“绿色交通工具”,而电动汽车受到电动机、电池的限制,批量进入市场还有一定的难度,电动自行车却可以得到迅速的进展。电动自行车的主要性能取决于电池、电动机和控制器,无刷直流电动机是电动自行车的主要部件。基于 PSoC CY8C24533 的电动自行车控制器，利用其模拟、数字和路由资源使整个系统只用一个 PSoC 芯片便实现了上述的所有控制功能，因此无需任何外围芯片，外围元件的数目也相应减少。这充分体现了 SoC 的优势，同时芯片的资源也得到了充分有效的利用。由于 CY8C24533 的模拟、数字和路由等资源也是可编程的，其使设计工程师的智慧和创意得到更多体现的同时，也使电动自行车控制器的性能得到更多的提升。关键词：电动自行车、控制器、PSoC、无刷直流电机Design of electric bicycle based on PSoC microcontrollerAbstract:Electric vehicles with zero pollution, high efficiency, low noise characteristics is considered to be the real "green transport", while the electric car is limited by motor power, battery, volume entering the market there is difficulty, electric bicycles can be quicklydevelopments. The electric bicycle performance depends on the battery, motor and controller, brushless DC motor is the main components of the electric bicycle.The whole system is only a PSoC chip to achieve all of the above control function based on the PSoC CY8C24533 electric bicycle controller, analog, digital and routing resources, and therefore does not require any peripheral chips, the number of external components is also a corresponding reduction. This fully demonstrates the advantage of the SoC chip resources have been fully and effectively use. CY8C24533's analog, digital, and routing resources are also programmable, so that the wisdom and creativity of the...
