塑料罩注塑模具设计论文范文

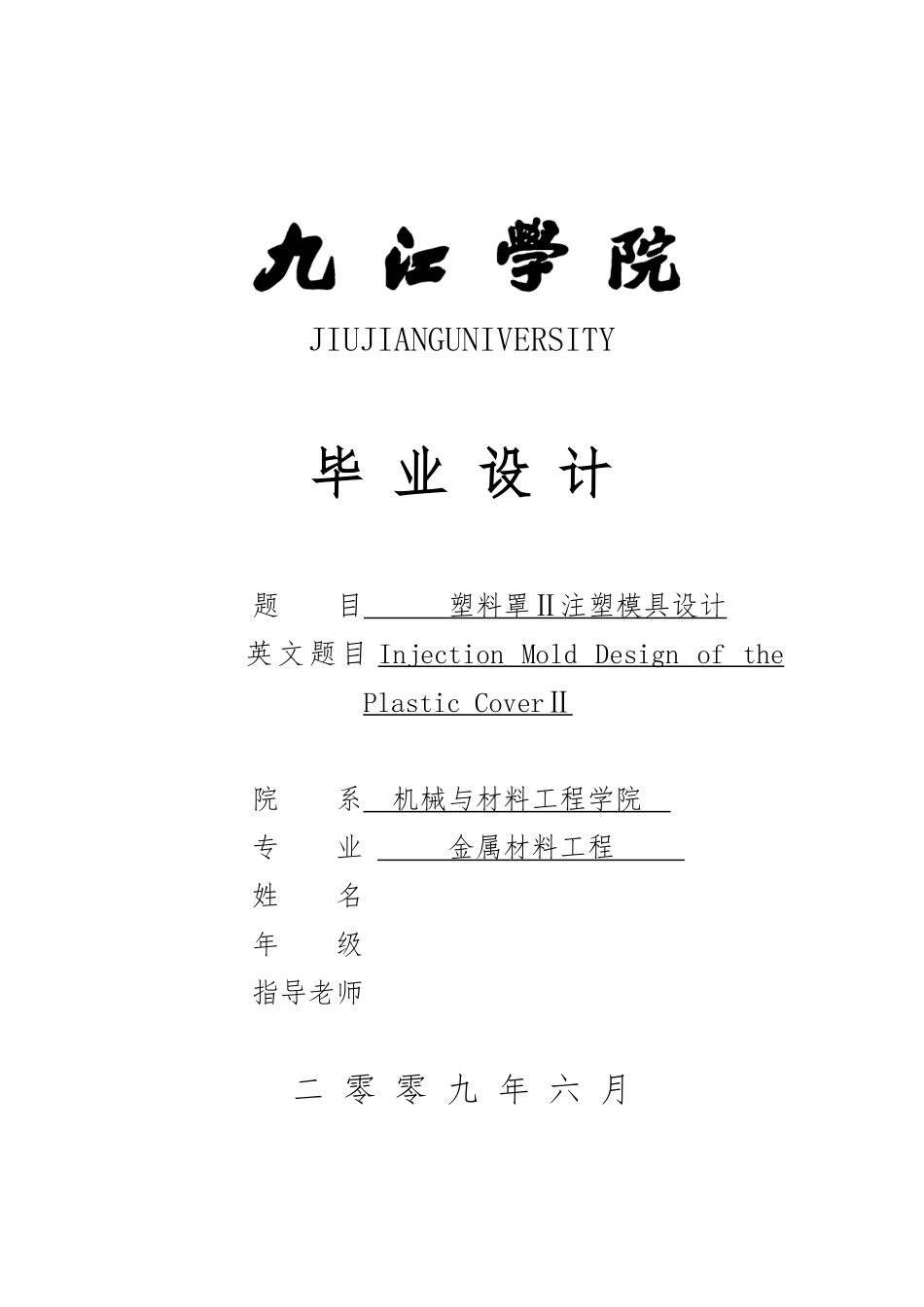

塑料罩注塑模具设计论文范文_第1页
1/57

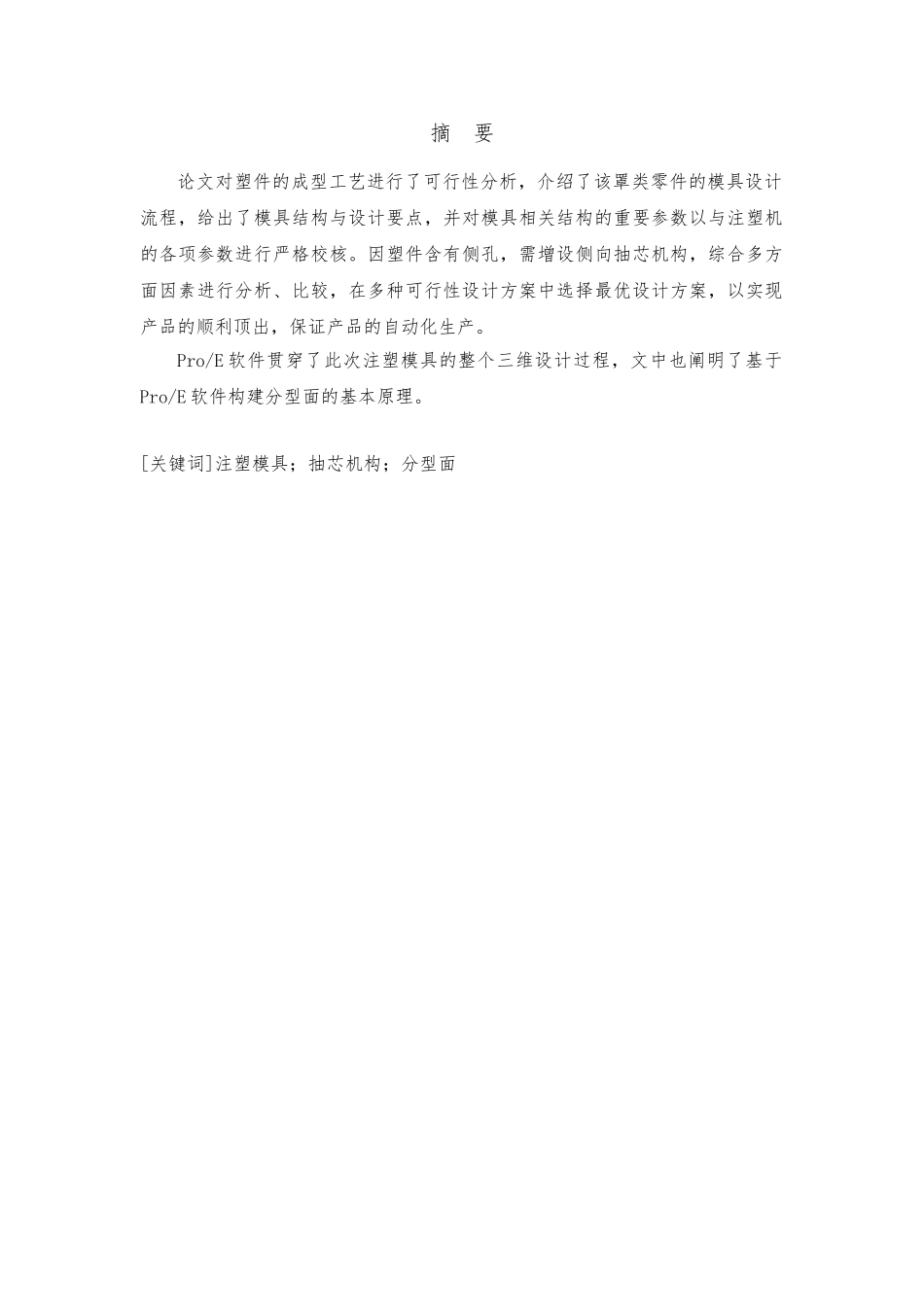

塑料罩注塑模具设计论文范文_第2页
2/57

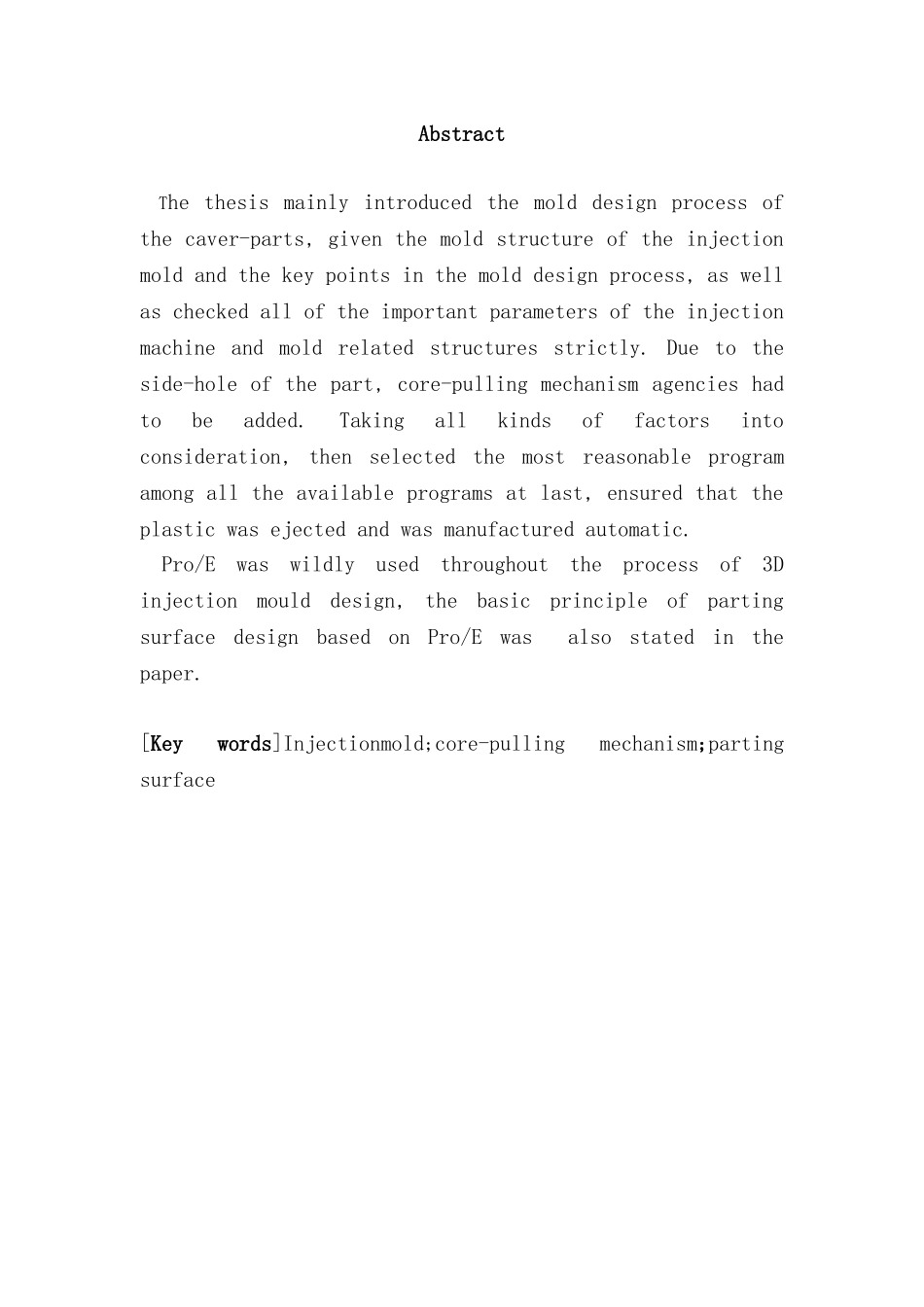

塑料罩注塑模具设计论文范文_第3页
3/57
JIUJIANGUNIVERSITY毕 业 设 计题 目 塑料罩Ⅱ注塑模具设计 英文题目 Injection Mold Design of the Plastic CoverⅡ院 系 机械与材料工程学院 专 业 金属材料工程 姓 名 年 级 指导老师 二 零 零 九 年 六 月 摘 要 论文对塑件的成型工艺进行了可行性分析,介绍了该罩类零件的模具设计流程,给出了模具结构与设计要点,并对模具相关结构的重要参数以与注塑机的各项参数进行严格校核。因塑件含有侧孔,需增设侧向抽芯机构,综合多方面因素进行分析、比较,在多种可行性设计方案中选择最优设计方案,以实现产品的顺利顶出,保证产品的自动化生产。Pro/E 软件贯穿了此次注塑模具的整个三维设计过程,文中也阐明了基于Pro/E 软件构建分型面的基本原理。[关键词]注塑模具;抽芯机构;分型面AbstractThe thesis mainly introduced the mold design process of the caver-parts, given the mold structure of the injection mold and the key points in the mold design process, as well as checked all of the important parameters of the injection machine and mold related structures strictly. Due to the side-hole of the part, core-pulling mechanism agencies had to be added. Taking all kinds of factors into consideration, then selected the most reasonable program among all the available programs at last, ensured that the plastic was ejected and was manufactured automatic.Pro/E was wildly used throughout the process of 3D injection mould design, the basic principle of parting surface design based on Pro/E was also stated in the paper.[Key words]Injectionmold;core-pulling mechanism;parting surface目 录前言 1第一章概论 21.1 模具在工业生产中的地位 21.2 代模具制造中的新技术 21.3 我国的模具工业的现状 41.4 我国的模具行业的进展趋势 5第二章塑料罩的结构设计 62.1 设计要求 62.2 塑件成型工艺的可行性分析与修改说明 62.2.1 产品精度分析 62.2.2 脱模斜度设计 72.2.3 塑件壁厚分析 72.2.4 圆角设计 102.3 修正后的产品图 10第三章模具结构设计 113.1 分型面位置的确定 113.2 型腔数量和排列方式...
